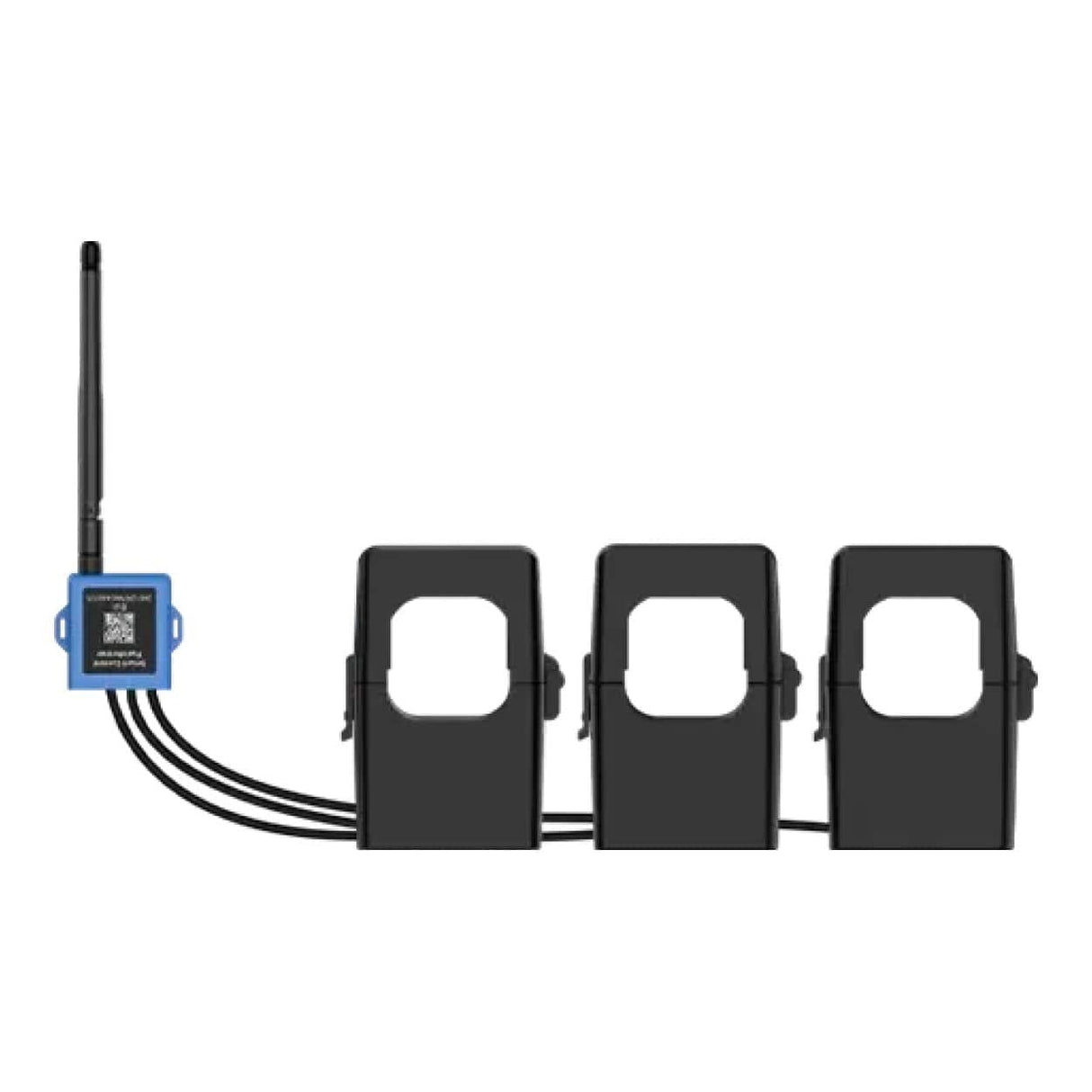

Milesight 250A Smart Current Transformer CT303-868M

Milesight 250A Smart Current Transformer CT303-868M

Wireless Smart Current Transformer, Smarter Energy Efficiency

The Wireless Smart Current Transformer is a LoRaWAN®-enabled device with an innovative, non-intrusive, quick installation. Suitable for 1 to 3 wires, it accurately estimates energy consumption with a sampling rate up to 3.3kHz and calculates cumulative ampere-hours every second, helping identify energy usage patterns for effective savings.

Features:

• Self-Powered Operation
• Superior Accuracy with Up to 3.3kHz Frequency
• Real-time Accumulated Ampere Hour Calculation
• Non-invasive Installation
• Irregular Current/Temperature Status Alert
• Innovative One-to-Three Design
• LoRaWAN® Wireless Deployment

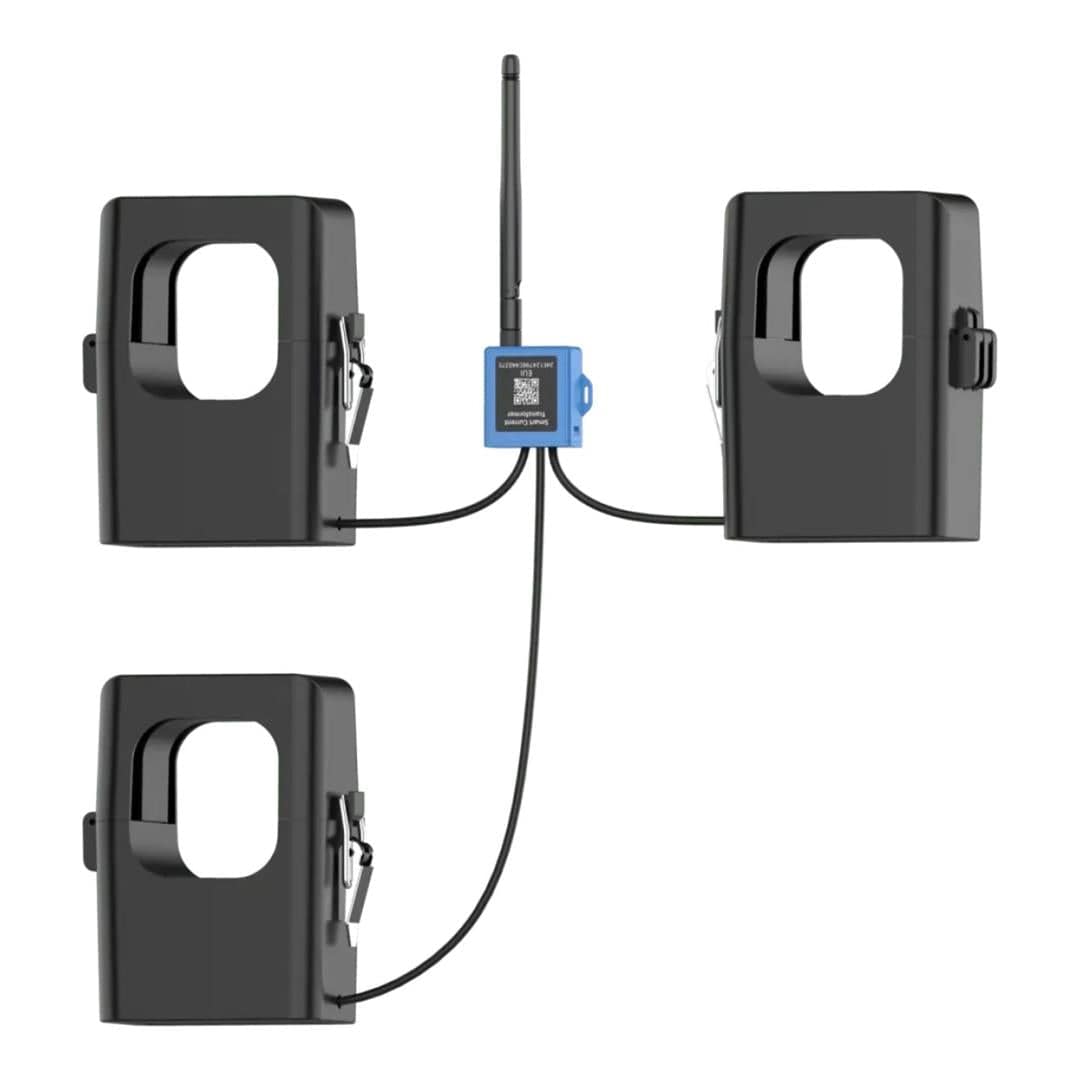

Multi-Target Measurement with Wireless Current Sensor

With a one-to-three design, the current transformer can be
applied to measuring up to three different objects' electricity.

Versatile & Non-Invasive Installation

The user-friendly wireless current sensor features a clamp probe design for non-invasive and quick installation, eliminating the risk of circuit damage or power interruptions. Available in multiple wire hole sizes(24mm/36.6mm/51mm) to accommodate various wire thicknesses, ensuring broad compatibility across applications.

Self-Powered:
No Batteries, No Limits

The CT3xx Wireless Smart Current Transformer is designed to derive power directly from the measured circuit, eliminating the constraints of batteries while ensuring seamless operation.

Superior Accuracy

Outperform other competitors on the market, CT3xx boasts an impressive high sampling frequency of up to 3.3kHz, guaranteeing unparalleled accuracy and detail.

Efficient Energy Tracking

At One-Second Interval

Calculate accumulated ampere hour in real-time at a one-second interval. This enables precise current consumption monitoring
and analysis, achieving goals such as energy conservation and reduced operational costs.
