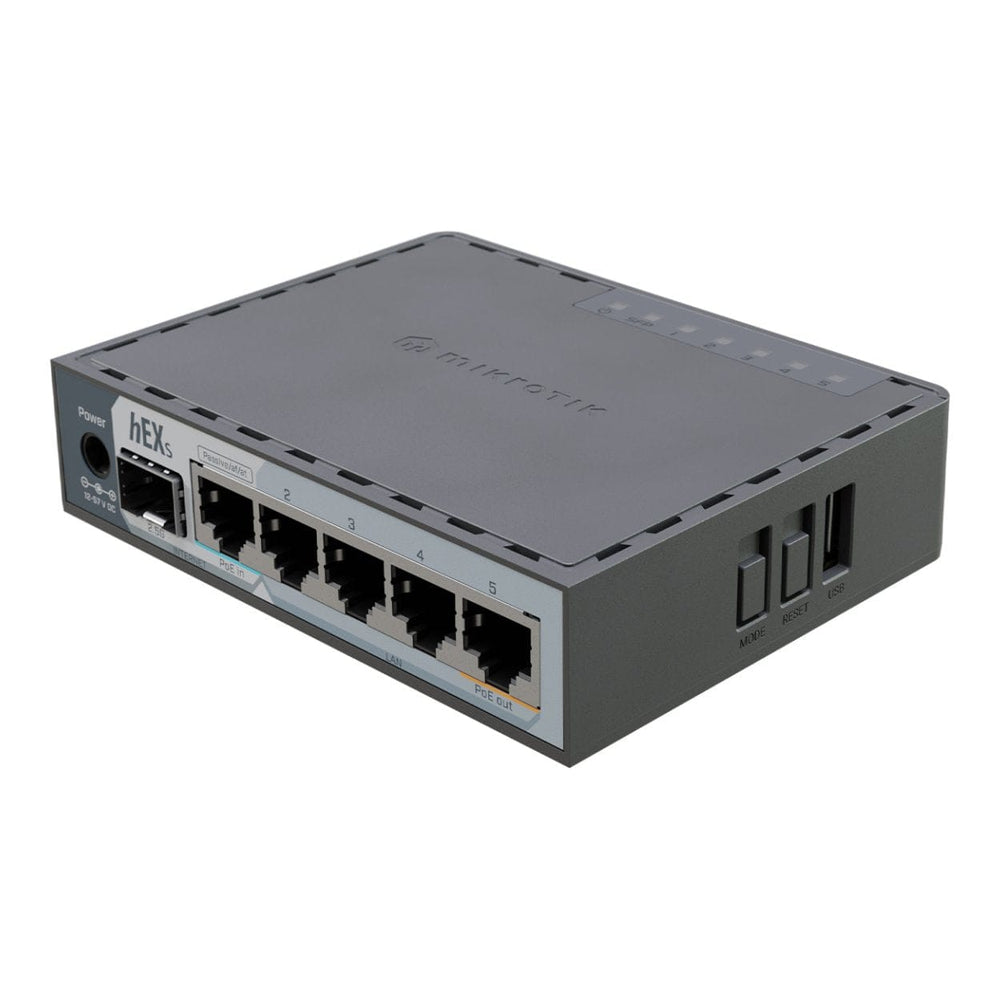

Mikrotik hEX S E60IUGS 5-port Gigabit Ethernet Router with 1x SFP Port

Mikrotik hEX S E60IUGS 5-port Gigabit Ethernet Router with 1x SFP Port

hEX S (2025)

A compact, affordable wired router featuring a 2.5G SFP port, 5x Gigabit Ethernet, PoE out, USB, and a fast dual-core CPU – ideal for homes, offices, or underfunded labs that need reliable performance.

Need a wired router that won’t slow you down or drain your budget? The new hEX S is a compact, truly budget-friendly device that does a little bit of everything and does it fast. Whether you’re building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.

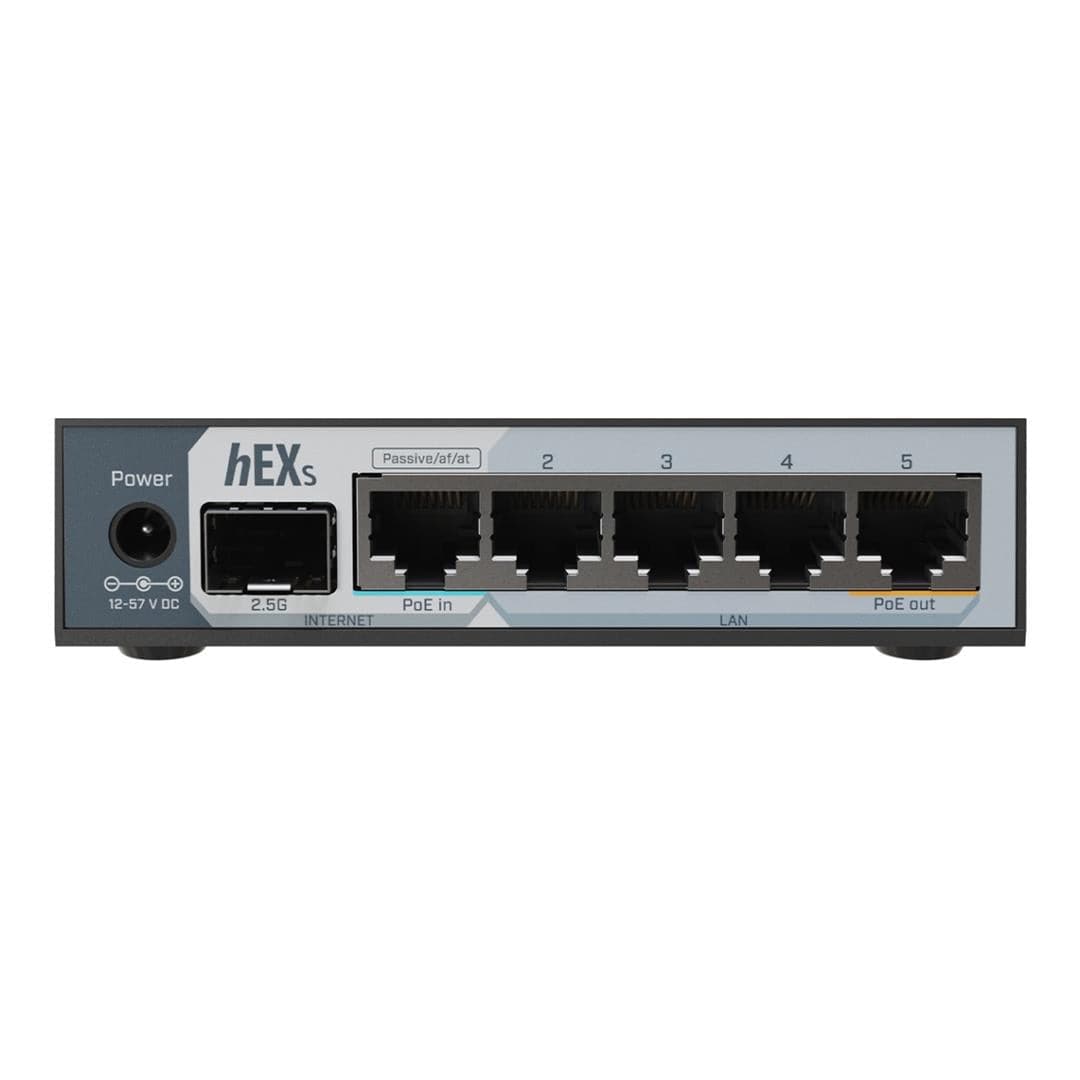

With 5x Gigabit Ethernet ports (including PoE-in on port and PoE-out on port), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge full flexibility right out of the box. That’s just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more so you can build the wired network you’ve always wanted.

Max Your Internet Plan

Got a 2 Gbps fiber plan? Use the 2.5G SFP port to deliver that speed to your power-hungry devices from self-hosted movie servers to media workstations or security camera NVRs. Perfect for homes, small offices, and media studios.

Local Speed for Creators

Connect your PC over 2.5G, then bond two 1G ports to your NAS. Enjoy ultra-fast file transfers, smooth backups, and zero bottlenecks ideal for creators, editors, and researchers who work with large files.

hEX S higher speed and better connectivity on a smaller budget.Because every network deserves an upgrade.

Specifications:

Product code: E60iUGS

Architecture: ARM 32bit

CPU: EN7562CT

CPU core count: 2

CPU nominal frequency: 950 MHz

CPU Threads count: 2

Switch chip model: EN7523

RouterOS license: 4

Operating System: RouterOS v7

Size of RAM: 512 MB

Storage size: 128 MB

Storage type: NAND

MTBF: Approximately 100'000 hours at 25C

Tested ambient temperature: -40°C to 70°C

Powering

Number of DC inputs: 2 (DC jack, PoE-IN)

DC jack input Voltage: 12-57 V

Max power consumption: 23 W

Max power consumption without attachments: 5 W

PoE in: 802.3af/at

Cooling type: Passive

PoE in input Voltage: 18-57 V

PoE-out

PoE-out ports: Ether5

PoE out: Passive PoE up to 57V

Low voltage PoE-Out current limit: 0.5 A

High voltage PoE-Out current limit: 0.5 A

Ethernet

10/100/1000 Ethernet ports: 5

Number of 1G Ethernet ports with PoE-out: 1

Fiber

SFP ports: 1 (2.5G supported)

Peripherals

Number of USB ports: 1

USB Power Reset: Yes

USB slot type: USB 3.0 type A

Max USB current (A): 1
