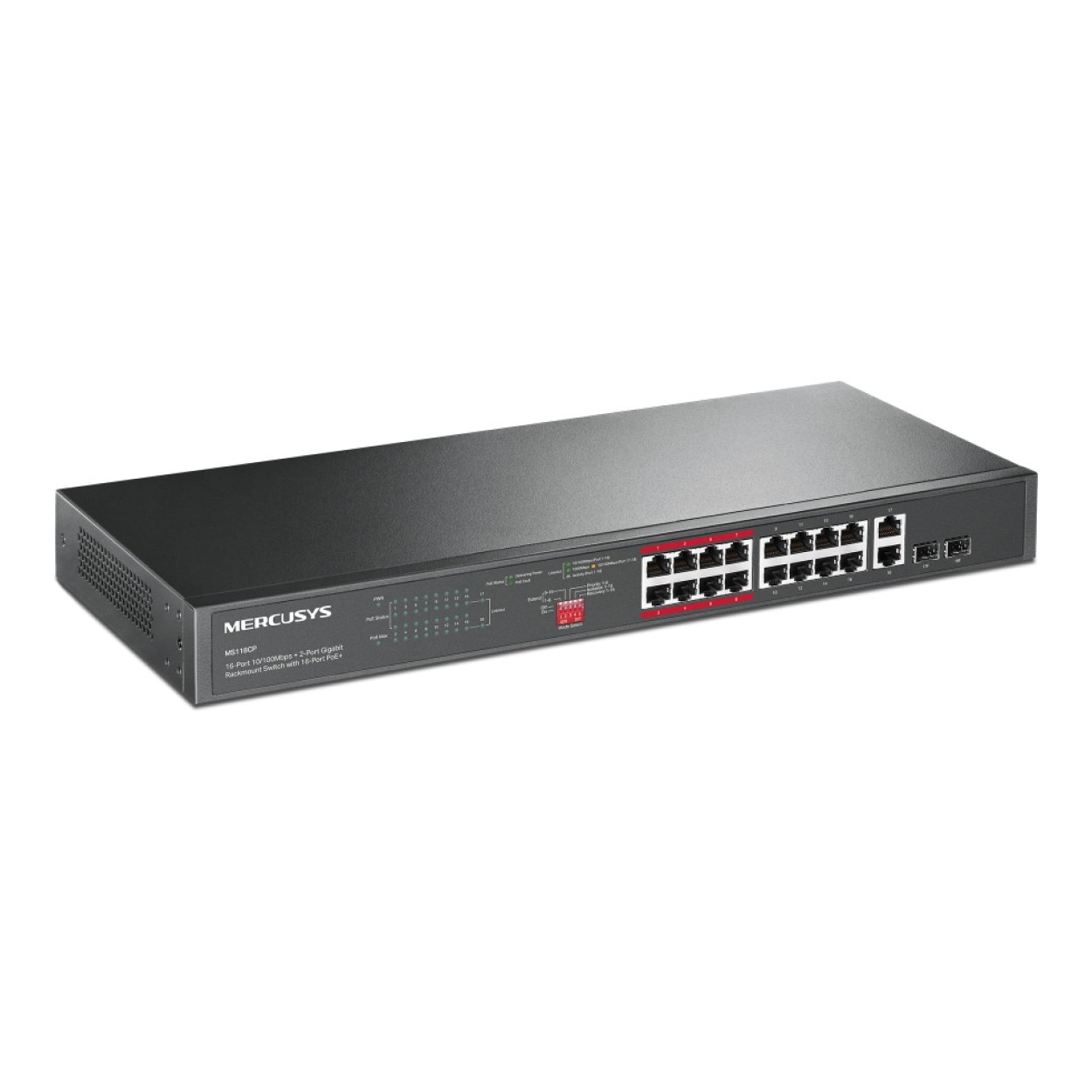

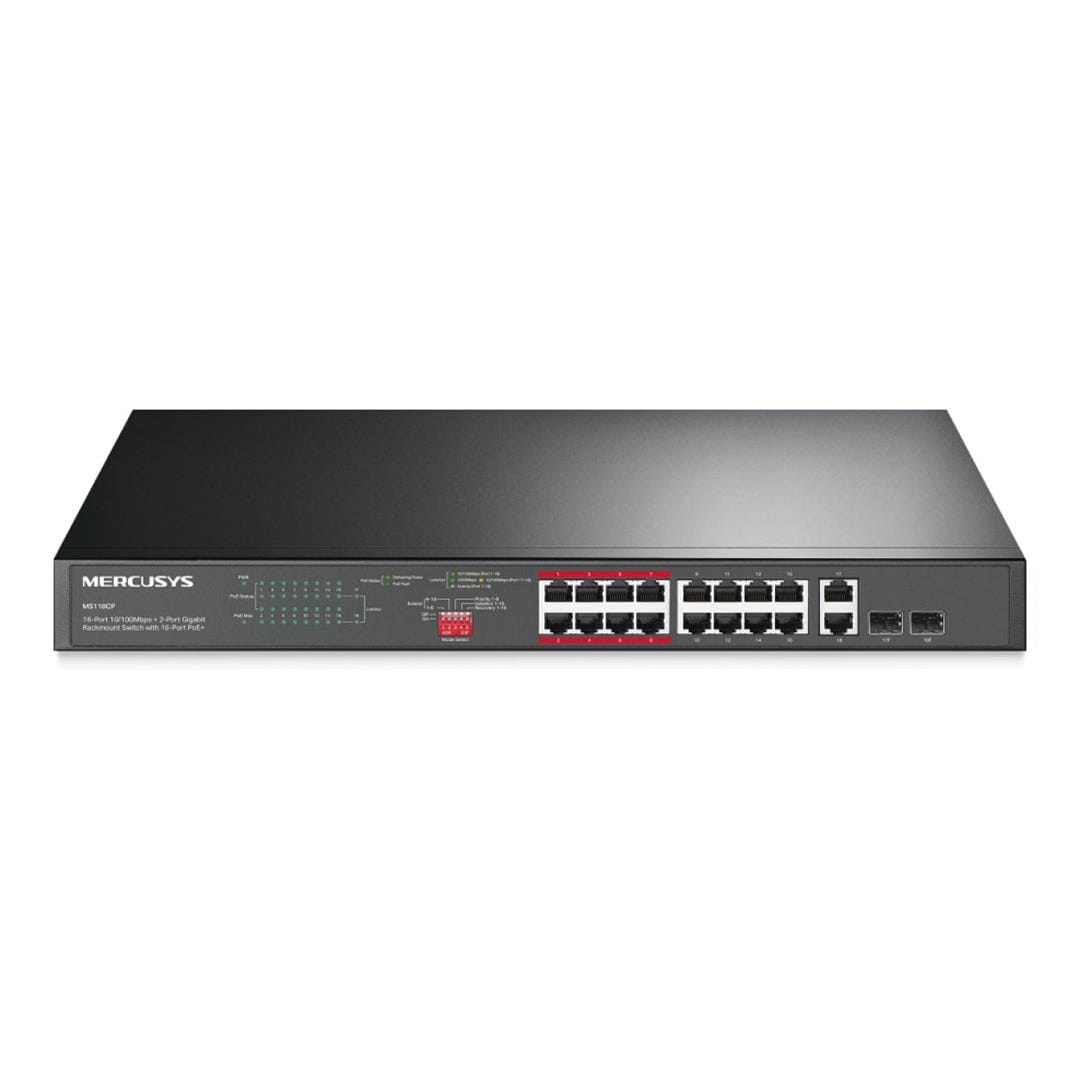

Mercusys MS118CP 16-port PoE+ and 2-port Gigabit Rackmount Switch

Mercusys MS118CP 16-port PoE+ and 2-port Gigabit Rackmount Switch

The MS118CP is a 16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+, ideal for small and medium business IP surveillance with a 190 W PoE budget. The plug-and-play design makes it for easy deployment without the need for a technician.

Features:

• 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
• High PoE power budget with up to 30 W for each PoE port and 190 W for all PoE ports.
• Up to 250 m data and power transmission under extend mode specially designed for surveillance system.
• Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
• Isolation Mode allows one-click client traffic separation for higher security and performance.
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
• Easy to use, with no configuration and installation needed.

Technical Specifications:

Software Transfer Method:
Store-and-forward

Advanced Features:

Compatible with IEEE 802.3at/af compliant PDs

Extend Mode (up to 250 m PoE power supply and data transmission)

Priority Mode (Ports 1–8)

Isolation Mode (Ports 1–16)

PoE Auto Recovery (Ports 1–16)

MAC address auto-learning and auto-aging

IEEE 802.3x flow control

Dimensions (W × D × H):
17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

PoE Ports:
Standard: IEEE 802.3at / 802.3af compliant
PoE Ports: Ports 1–16
PoE Power Budget: 190 W

Interfaces:

• 16 × PoE+ 10/100 Mbps RJ45 ports
• 2 × 10/100/1000 Mbps RJ45 ports
• 2 × Combo Gigabit SFP slots

Network Media:

• 10BASE-T: UTP Category 3/4/5 cable (maximum 100 m)
• EIA/TIA-568 100 Ω STP (maximum 100 m)
• 100BASE-TX: UTP Category 5/5e cable (maximum 100 m)
• EIA/TIA-568 100 Ω STP (maximum 100 m)
• 1000BASE-T: UTP Category 5/5e/6 or above (maximum 100 m)
• EIA/TIA-568 100 Ω STP (maximum 100 m)
• 1000BASE-X MMF, SMF

Power Supply:
100–240 V AC, 50/60 Hz

Fan Quantity:
2 fans

Physical Security Lock:
Yes

Jumbo Frame:
10 KB

Switching Capacity:
7.2 Gbps

MAC Address Table:
8K

Maximum Power Consumption:
13.07 W (220 V / 50 Hz, no PD connected)
218.91 W (220 V / 50 Hz, with 190 W PD connected)

Maximum Heat Dissipation:
44.57 BTU/h (no PD connected)
746.48 BTU/h (with 190 W PD connected)

Packet Forwarding Rate:
5.36 Mpps

Certifications:
CE, FCC, RoHS

Environment:
Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% RH (non-condensing)
Storage Humidity: 5% to 90% RH (non-condensing)

What’s in the Box:

• MS118CP
• Power cable
• Installation guide
• Two mounting brackets with fittings
