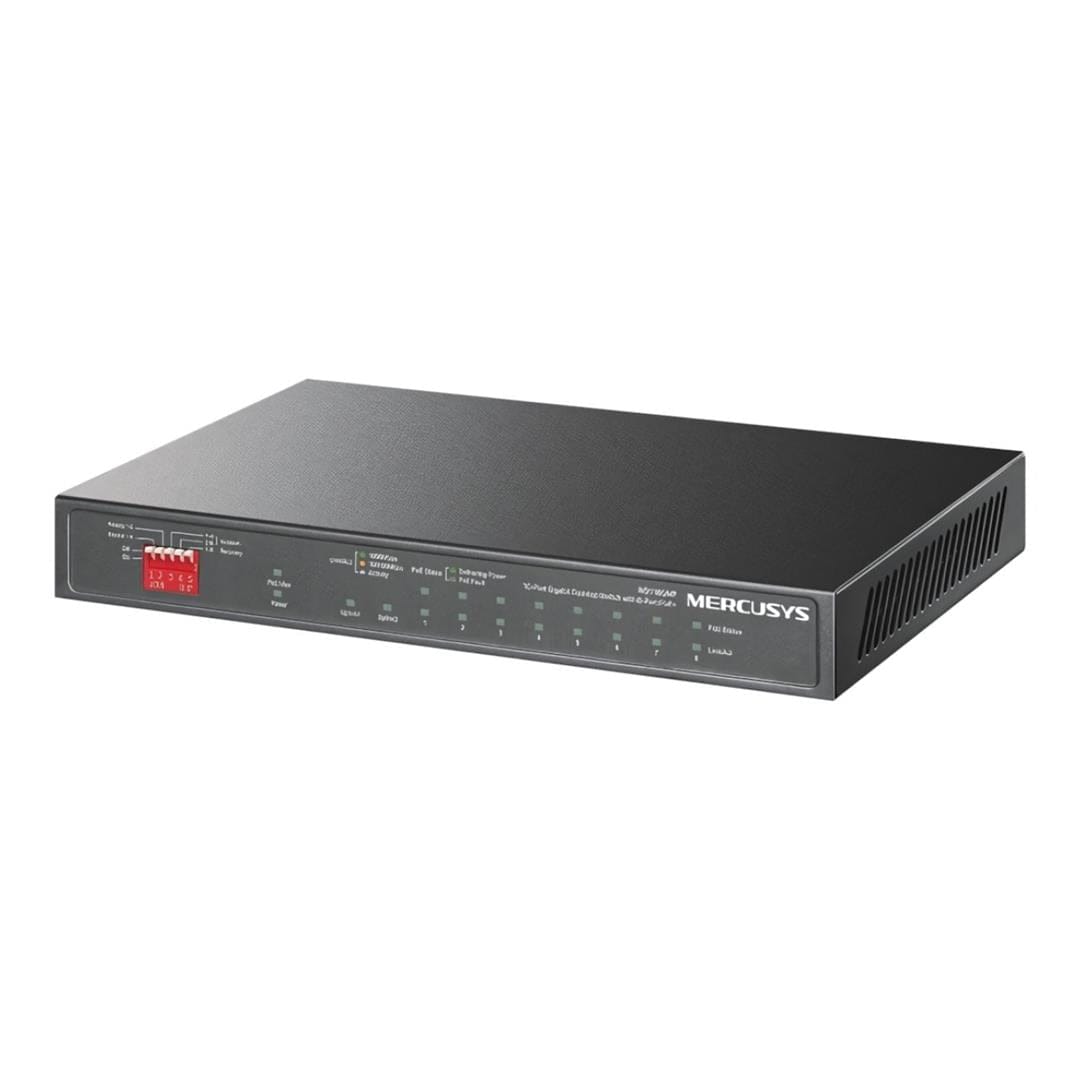

Mercusys MS110GMP 10-port Gigabit 8-port PoE+ Desktop Switch

Mercusys MS110GMP 10-port Gigabit 8-port PoE+ Desktop Switch

As a 10-port gigabit desktop switch with 8 PoE+ ports, MS110GMP is ideal for a wide range of applications, such as surveillance for offices, dormitories, and small businesses.

Features:

• 8× Gigabit PoE+ ports, and 2× Gigabit Uplink Ports
• 8× PoE+ ports transfer data and power via a single cable with a total power budget of 111 W^*
• Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
• Up to 250 m data and power transmission range under Extend Mode^**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Plug and play with no configuration required
• Fanless design reduces power consumption and works silently in its location

Technical Specifications:

Software
Transfer Method: Store-And-Forward

Advanced Features
Compatible with IEEE 802.3af/at compliant PDs. Extend Mode Button (Ports 1–4, up to 250 m PoE power and data transmission). Priority Mode Button (Ports 1–2). Isolation Mode Button (Ports 1–4 / 5–8). PoE Auto Recovery (Ports 1–8). MAC Address Auto-Learning and Auto-Aging. IEEE802.3x Flow Control for full-duplex; backpressure for half-duplex.

Hardware
Dimensions (W × D × H): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm). Fan Quantity: Fanless. Physical Security Lock: Yes.

PoE Ports
Standard: 802.3af/at compliant. Ports: 1–8. Power Supply: 111 W.

Interfaces
8 × 10/100/1000 Mbps PoE+ Ports and 2 × 1000 Mbps RJ45 Ports. AUTO Negotiation and AUTO MDI/MDIX supported.

Network Media
10BASE-T: UTP Cat 3/4/5 (max 100 m), EIA/TIA-568 100Ω STP (max 100 m). 100BASE-TX: UTP Cat 5/5e (max 100 m), EIA/TIA-568 100Ω STP (max 100 m). 1000BASE-T: UTP Cat 5/5e/6+ (max 100 m), EIA/TIA-568 100Ω STP (max 100 m).

External Power Supply
Output: 54 VDC / 2.22 A.

Performance
Jumbo Frame: 16 KB. Switching Capacity: 20 Gbps. Packet Forwarding Rate: 14.88 Mpps. MAC Address Table: 4K.

Power & Heat
Max Power Consumption: 7.37 W (no PD connected), 129.4 W (with 111 W PD connected). Max Heat Dissipation: 25.13 BTU/h (no PD), 441.25 BTU/h (with 111 W PD).

Certifications
FCC, CE, RoHS.

Environment
Operating Temperature: -10℃ to 40℃ (14℉–104℉). Storage Temperature: -40℃ to 70℃ (-40℉–158℉). Operating Humidity: 10–90% RH, non-condensing. Storage Humidity: 5–90% RH, non-condensing.

What's in the Box:

• MS110GMP
• Power Adapter
• Installation Guide.
