Mercusys MC510 Outdoor Pan/Tilt Security Wi-Fi Camera

Mercusys MC510 Outdoor Pan/Tilt Security Wi-Fi Camera

2K QHD for Crisp Outdoor Details

See faces, vehicles, and movement in stunning 2K QHD clarity. Perfect for capturing complex outdoor details.

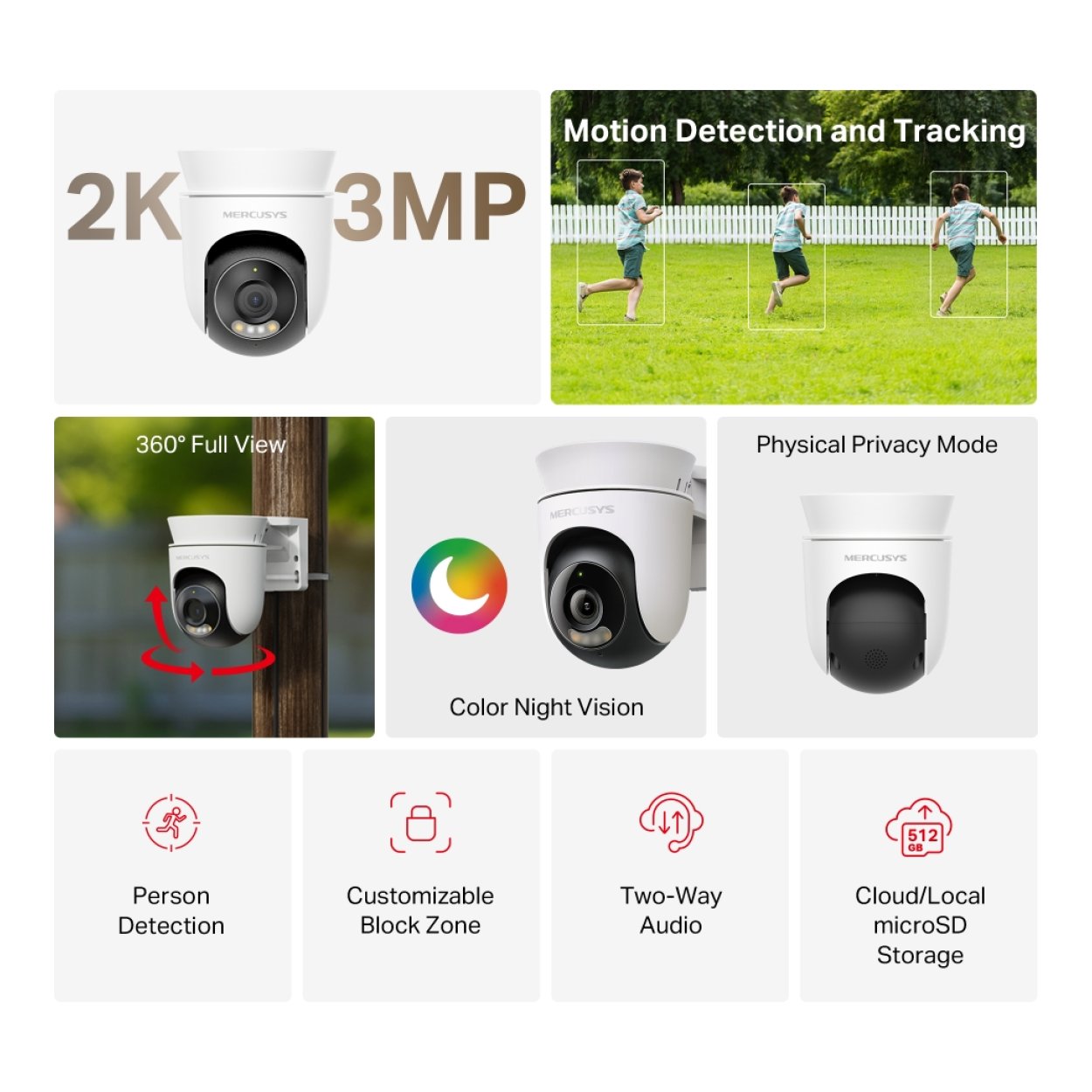

Features:

• 2K QHD with 360° View - Delivers sharp 2K 3MP video and full 360° horizontal coverage to see every angle and every detail.
• Smart Motion & Person Tracking - Automatically detects and tracks motion or people, ensuring key activity stays in focus.
• Color Night Vision - Delivers vivid, detailed images even at night for 24/7 protection.
• Focus on What Matters - Smart person and motion detection, combined with customizable activity zones, helps filter out irrelevant events and sends alerts only when needed.
• Local & Cloud Storage - supports up to 512GB microSD cards and cloud storage for secure, flexible video backup.
• Weatherproof for Outdoor Use - IP65-rated for reliable performance in rain, dust, or snow. Mounts easily to walls, ceilings, or poles.
• Privacy Protection with Lens Shield - Activate the physical lens cover when monitoring isn’t needed for peace of mind at home.

360° Coverage with Smart Motion Tracking

One camera is all you need to keep an eye on your entire outdoor space. It auto-tracks motion and follows preset patrol routes to cover every corner.

Full-Color Night Vision

See clearly after dark with full-color night vision. Even in low-light or near-total darkness, the camera captures clear details and provides round-the-clock protection you can count on.

Two-Way Audio for Real-Time Communication

The built-in microphone and speaker let you hear and speak from your phone — whether you're greeting a guest, talking to a delivery driver, or calming your pet. Talk through the camera anytime.

Guard Your Home As If You're There

MC510 uses smart motion and person detection to ignore distractions like falling leaves or shifting light. When a real threat is detected, it triggers a flashing light and loud siren to alert and deter intruders.

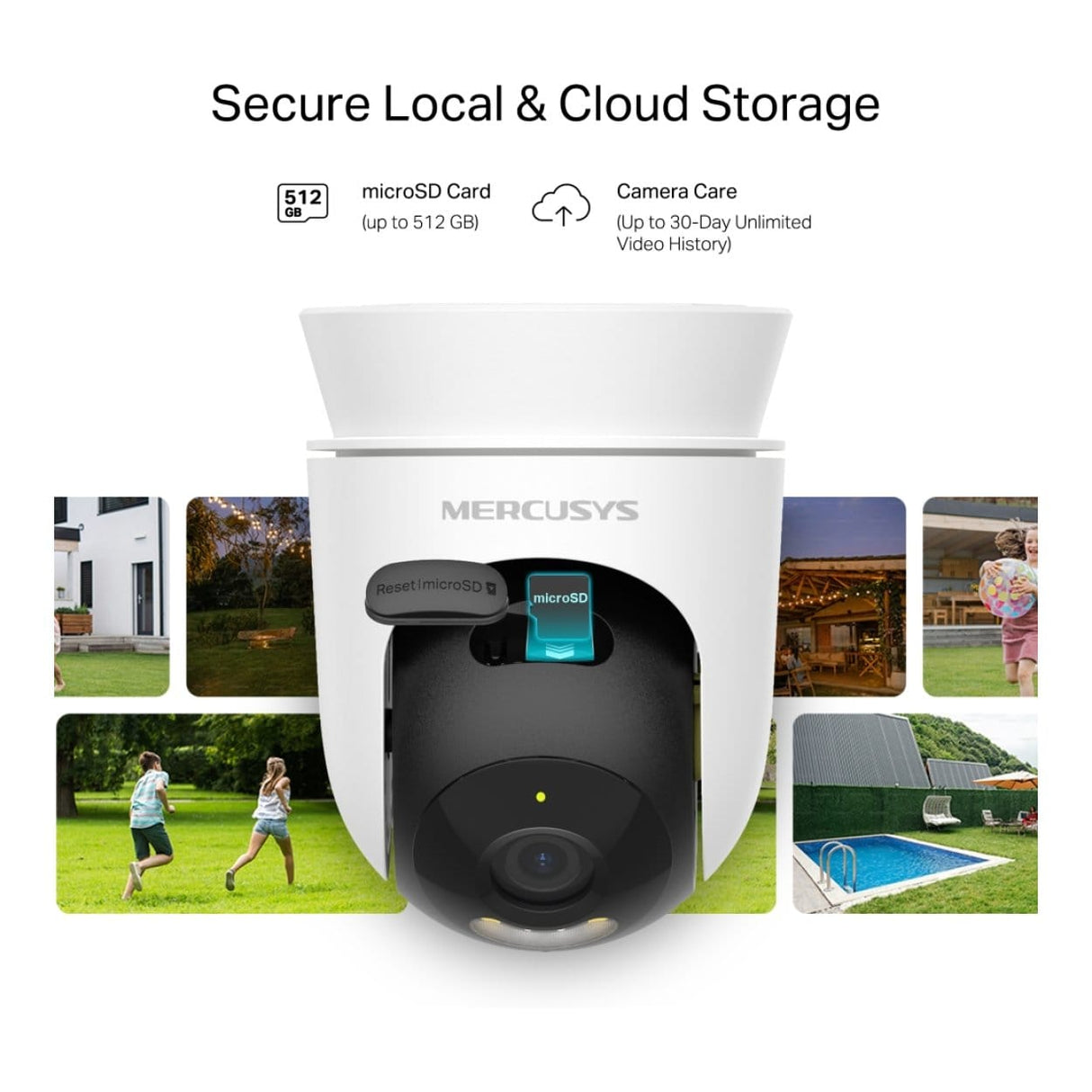

Secure Local & Cloud Storage

Save all your important moments to a microSD card (up to 512 GB) or subscribe to MERCUSYS Camera Care for cloud service after a free trial.

Built to Withstand the Outdoors

With IP65 weatherproof protection, the camera stands strong against rain, dust, and snow. Perfect for outdoor use from sunny days to stormy nights. Supports wall-mount, pole-mount, and ceiling installation, so you can set it up wherever fits your needs.

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS (not Starlight Sensor)

Lens
Focal Length: 4 mm
Aperture: F2.0
Field of View: 87° Diagonal, 74° Horizontal, 40° Vertical

Motion Range
Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 90° (130° Tilt Coverage)

Night Vision
IR LED: 850 nm, up to 98 ft (29.9 m)
Color Night Vision: Yes

Interface & Button
RESET Button: 1
MicroSD Card Slot: 1 (supports up to 512 GB)

Video & Audio
Maximum Resolution: 2304 × 1296 px
Digital Zoom: Up to 10.8x
Frame Rate: 15/20/25/30 fps (15 fps default)
Video Compression: H.264
Live View: Yes
Image Enhancement: 3D DNR, WDR
Audio Input & Output: Built-in microphone and speaker
Audio Communication: Two-way audio with noise cancellation
Siren Volume: 88 dB (measured at 4-inch / 10-cm distance)

Software & Security
Encryption: 128-bit AES with SSL/TLS
Wi-Fi Security: WPA/WPA2-PSK

Storage
Local Storage: MicroSD Card (up to 512 GB)
Cloud Storage: MERCUSYS Camera Care Cloud (subscription required)

Network
Connectivity: Wi-Fi
Wireless Speed: 11 Mbps (802.11b), 54 Mbps (802.11g), 72.2 Mbps (802.11n)
RTSP: Yes
ONVIF: Yes

Power
Power Source: 9 V DC Power Adapter
Input Voltage: 100–240 VAC, 50/60 Hz, 0.3 A
Output Voltage: 9.0 V / 0.85 A

General
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: IP65
Mounting Options: Ceiling, Pole, Wall
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Humidity: 10%–90% RH, Non-Condensing
Storage Humidity: 0%–90% RH, Non-Condensing
Dimensions (W×D×H): 141.5 × 93 × 122 mm (5.57 × 3.66 × 4.80 in)

Detection & Notifications
AI Detection: Motion Detection, Person Detection
Activity Zones: Yes (works with motion detection)
Output Notification: System Notification

Certifications: CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

What’s in the Box:

• Outdoor Pan/Tilt Home Security Wi-Fi Camera (MC510) ×1
• Power Adapter ×1
• Mounting Template Sticker ×1
• Mounting Bracket ×1
• Mounting Screws ×4
• Bracket Screws ×2
• Mounting Anchors ×4
• Waterproof Foam Gasket ×1
• Quick Start Guide
