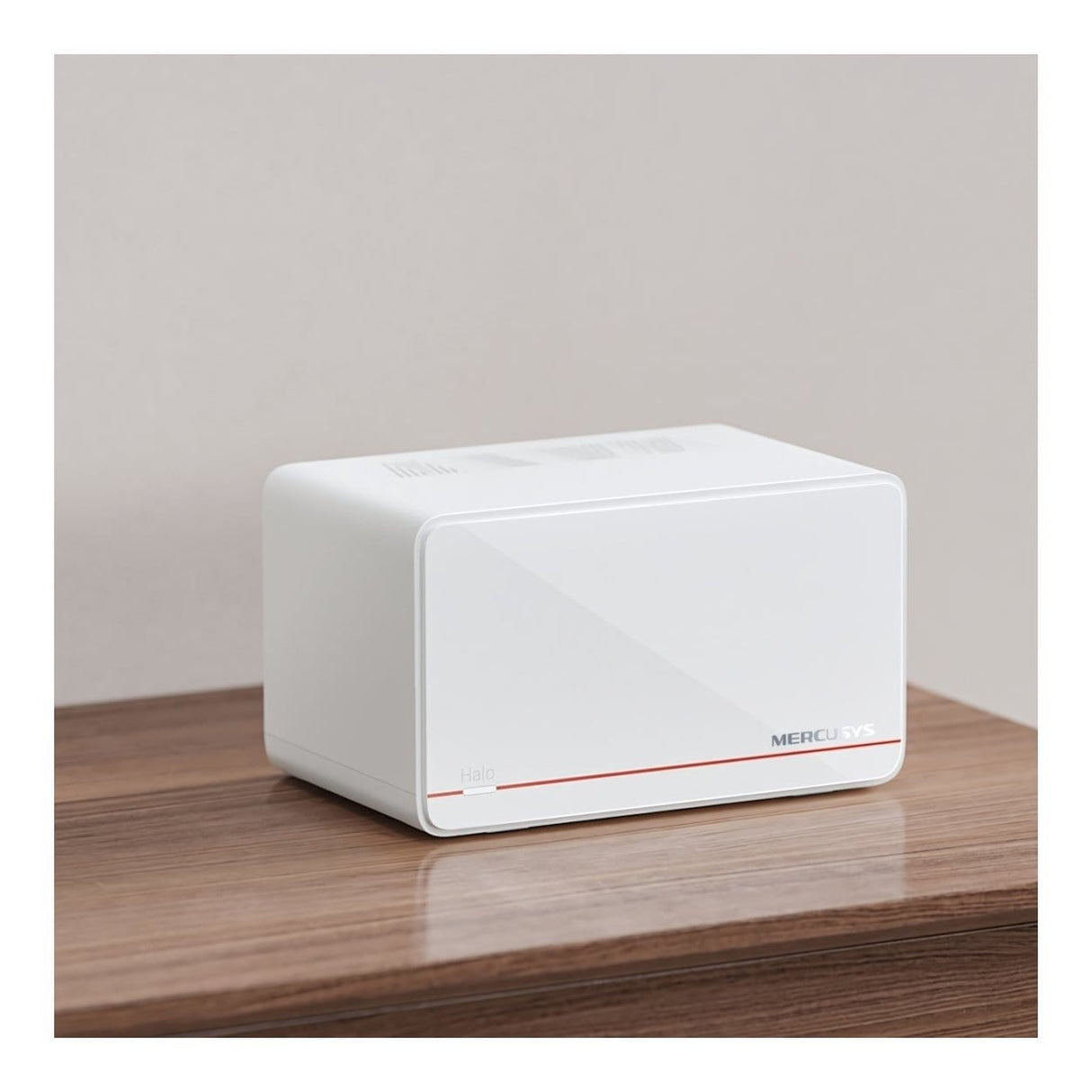

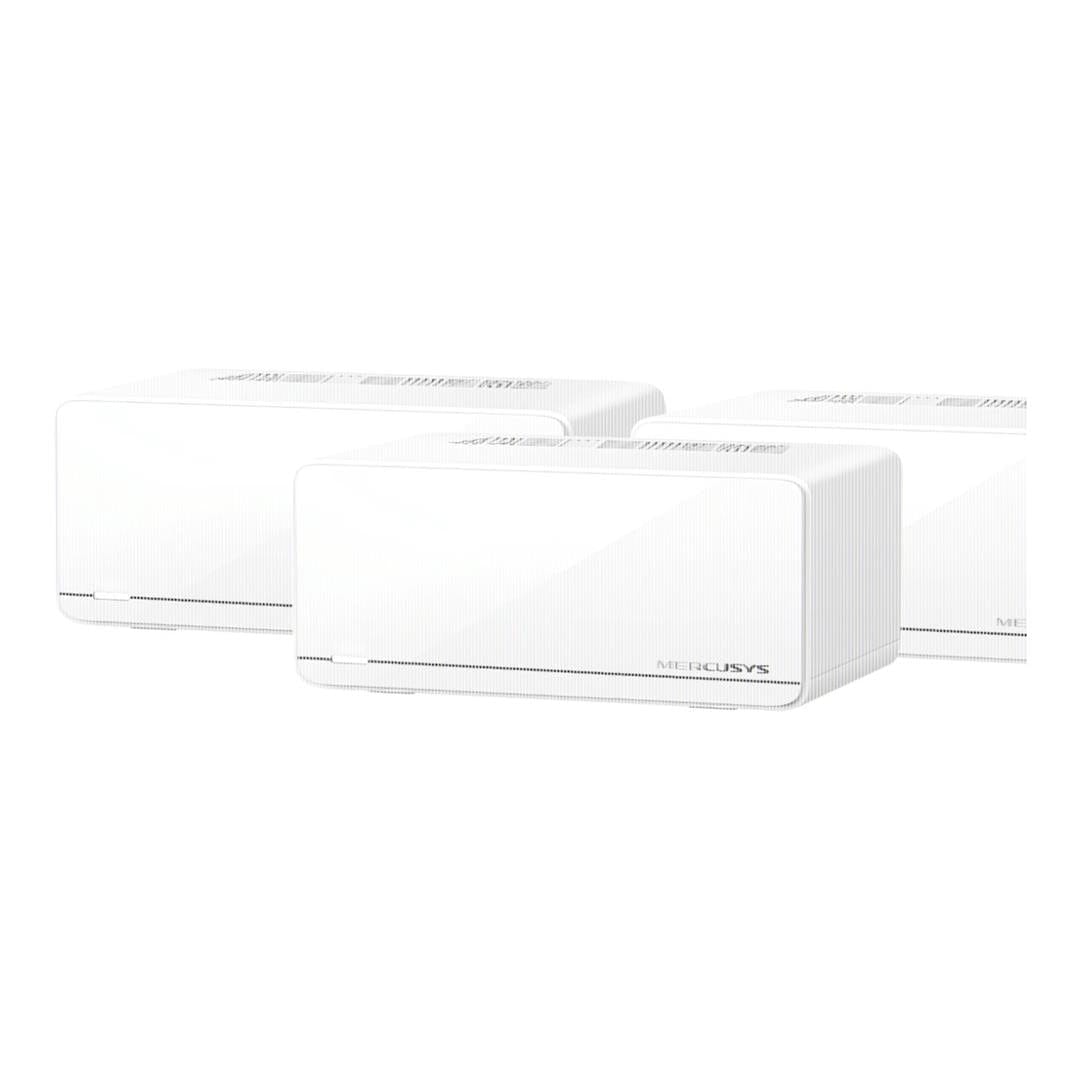

Mercusys Halo H37BE BE6500 Dual-band Whole Home Mesh Wi-Fi 7 System 3-pack

Mercusys Halo H37BE BE6500 Dual-band Whole Home Mesh Wi-Fi 7 System 3-pack

Faster, Smarter, Limitless Connectivity with Wi-Fi 7 Mesh

BE6500 Whole Home Mesh Wi-Fi 7 System

Features:

• Blazing-Fast 6.5 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
• Newest Wi-Fi 7: Armed with the 160 MHz channels, 4K-QAM, MLO, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.
• Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging Wi-Fi when you're walking around the house.
• Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.
• 2.5G Ports: 2× 2.5 Gbps WAN/LAN auto-sensing ports break through the 1G bottleneck, driving your devices to peak performance.
• Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 5,000 ft²/460 m² (2-pack, ideal for 3-5 bedroom houses) ; 7,000 ft² /650 m²(3-pack, ideal for 4-7 bedroom houses).
• Easy Setup and Use: Network management has never been easier with the MERCUSYS app.

6.5 Gbps Dual-Band Wi-Fi 7 Leads to Amazing Experience

Wi-Fi 7, the latest WiFi standard, has arrived with jaw-dropping performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Wi-Fi 7 updates the QAM from 1024 to 4096, makes Halo H37BE reach a 6.5 Gbps speed. Join the pros and experience the sheer performance of the next generation of Wi-Fi.

Improved Ca-pacity

Enhanced by Wi-Fi 7 technology, Halo H37BE lets you connect over 200 devices at once. Enjoy a more efficient network that loads faster without dragging down performance.

True Seamless Roaming with One Unified Network

The Halo system automatically connects your phones or tablets to the fastest node, delivering a truly seamless network experience. No more sudden signal drops or lagging Wi-Fi when you’re walking around the house.

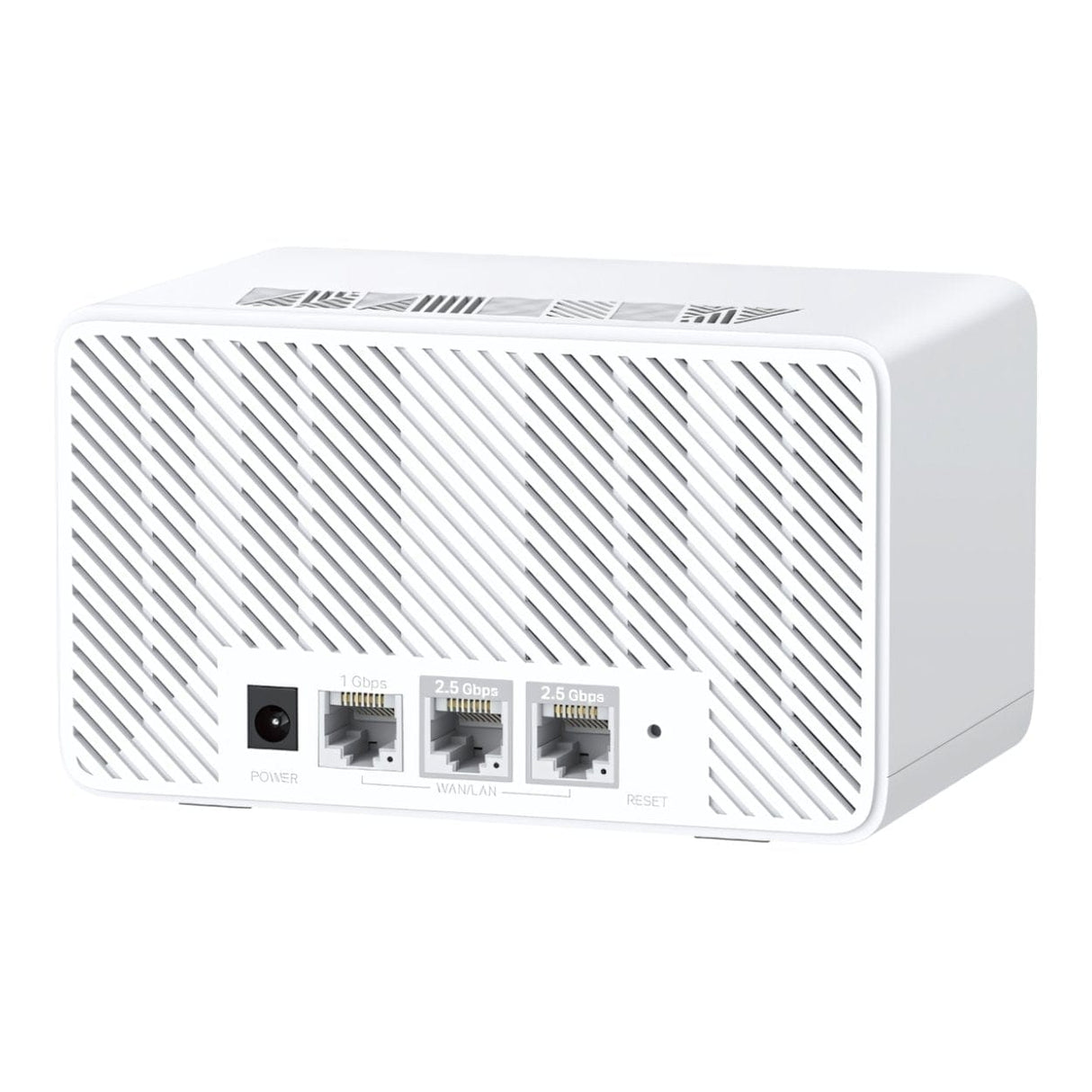

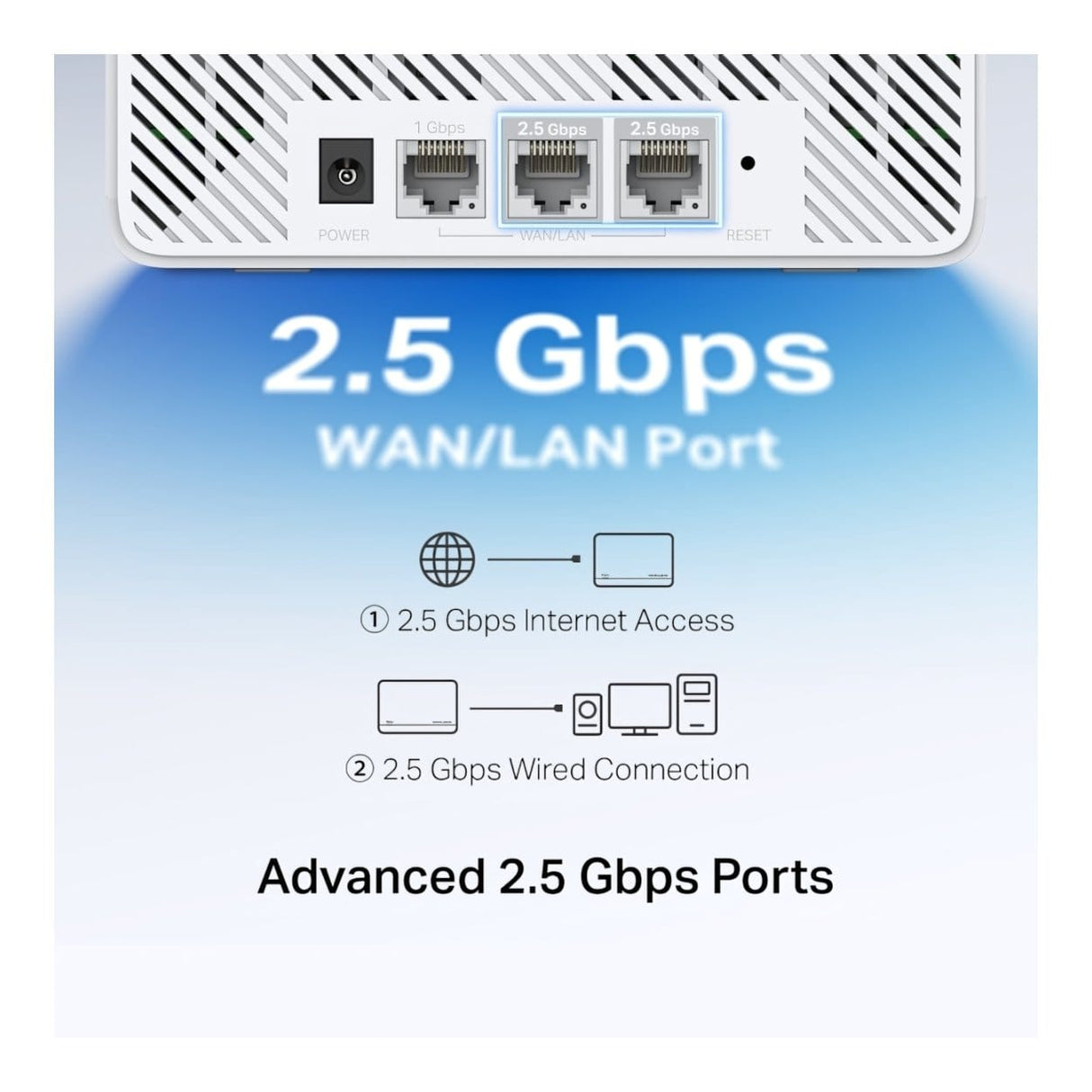

Advanced 2.5 Gbps Ports

Equipped with 2× 2.5 Gbps WAN/LAN and 1× 1 Gbps WAN/LAN auto-sensing ports. Halo H37BE allows you to take full advantage of your broadband speed. Plug your PCs, smart TVs, or game consoles into the ports for blazing-fast wired connections.

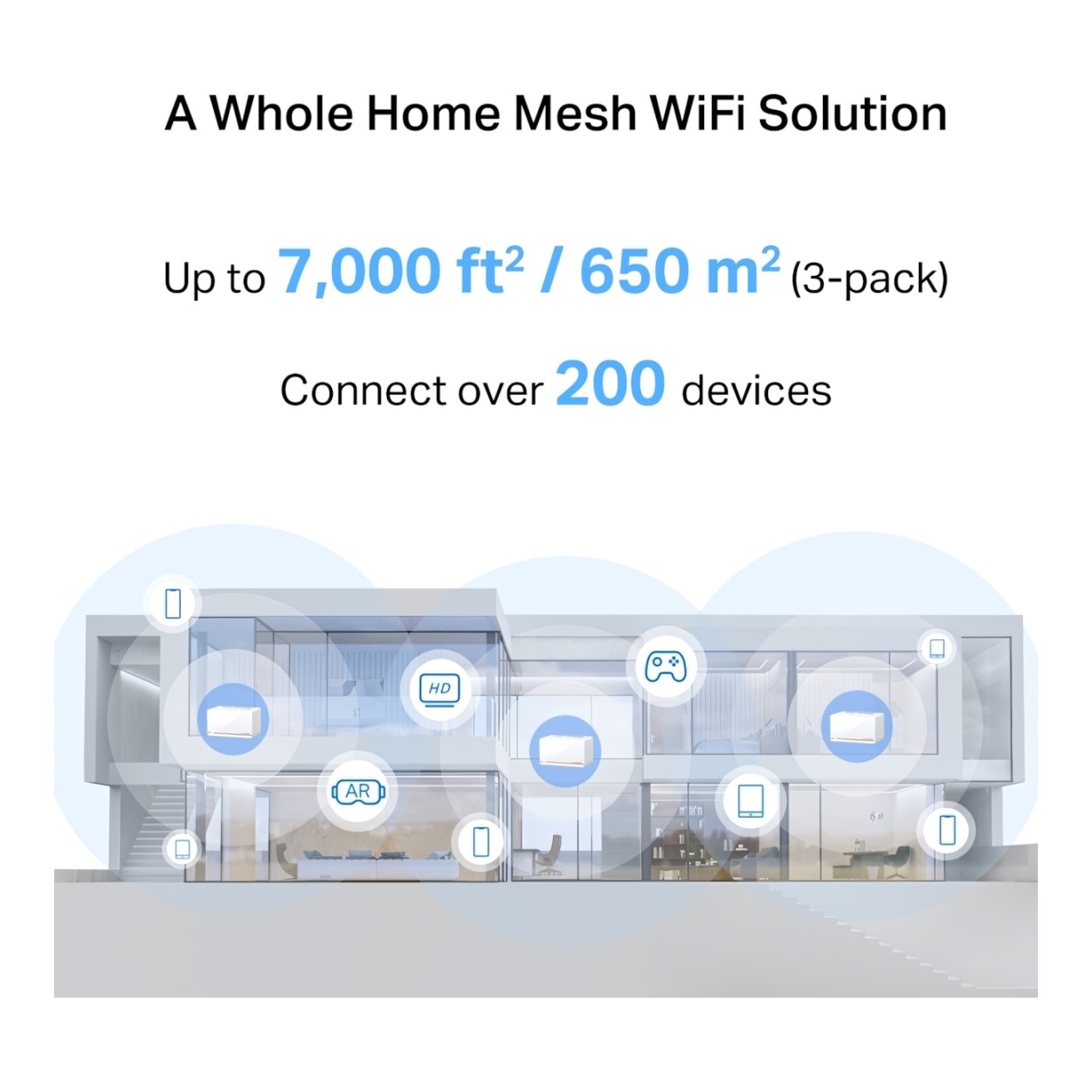

Easily Extend Your Coverage

The Halo Whole Home Wi-Fi kit includes multiple units to fit any type of your house. If that’s not enough, you can expand Mesh Wi-Fi coverage anytime by simply adding more Halos.

Technical Specifications:

Wireless Standards
5 GHz: IEEE 802.11a/n/ac/ax/be mixed
2.4 GHz: IEEE 802.11b/g/n/ax/be

WiFi Speeds
5760 Mbps at 5 GHz
688 Mbps at 2.4 GHz

Reception Sensitivity
2.4 GHz: -97 dBm
5 GHz: -97.5 dBm

Transmission Power
5 GHz band1 & band2: <23 dBm
5 GHz band3: <30 dBm
2.4 GHz band: <20 dBm

Wireless Security
WPA-PSK / WPA2-PSK / WPA3-SAE

Mesh Protocol
802.11k/v/r

Hardware
Dimensions: 5.91 × 3.70 × 3.39 in (150 × 94 × 86 mm)

Interfaces
2 × 2.5 Gbps Ports (WAN/LAN auto-sensing)
1 × 1 Gbps Port (WAN/LAN auto-sensing)

Button
Reset button

Software
Operation Mode: Router, Access Point
Quality of Service: WMM
WAN Type: Dynamic IP / Static IP / PPPoE / L2TP / PPTP
Management: Local Management, Remote Management, Multi-Managers
Firewall Security: SPI Firewall
Protocols: Supports IPv4 and IPv6
Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
DHCP: Server, Client

Network Services Enabled by Default
Web Server: Manage and configure device through web (HTTP/HTTPS), Port 80/443, Protocol TCP
DHCP Server: IP address assignment, Port 67, Protocol UDP
DNS: Port 53, Protocol TCP & UDP
App Management: Manage and configure device through app, Ports 20001 TCP / 20002 UDP

Package Contents
2-pack: 2 × Halo H37BE Units, 1 × RJ45 Ethernet Cable, 2 × Power Adapters, Quick Installation Guide
3-pack: 3 × Halo H37BE Units, 1 × RJ45 Ethernet Cable, 3 × Power Adapters, Quick Installation Guide

Environment
Operating Temperature: 0°C – 40°C (32°F – 104°F)
Operating Humidity: 10% – 90% Non-Condensing
Storage Humidity: 5% – 90% Non-Condensing
