Mercusys Halo H27BE BE3600 Wi-Fi 7 Whole Home Mesh System White 3-pack

Mercusys Halo H27BE BE3600 Wi-Fi 7 Whole Home Mesh System White 3-pack

BE3600 Whole Home Mesh Wi-Fi 7 System

• Blazing-Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
• Newest WiFi 7: Armed with the 4K-QAM, MLO, Multi-RUs, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.
• Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging WiFi when you're walking around the house.
• Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.
• Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN and 2× 1 Gbps auto-sensing ports break through the 1G bottleneck, driving your devices to peak performance.^**

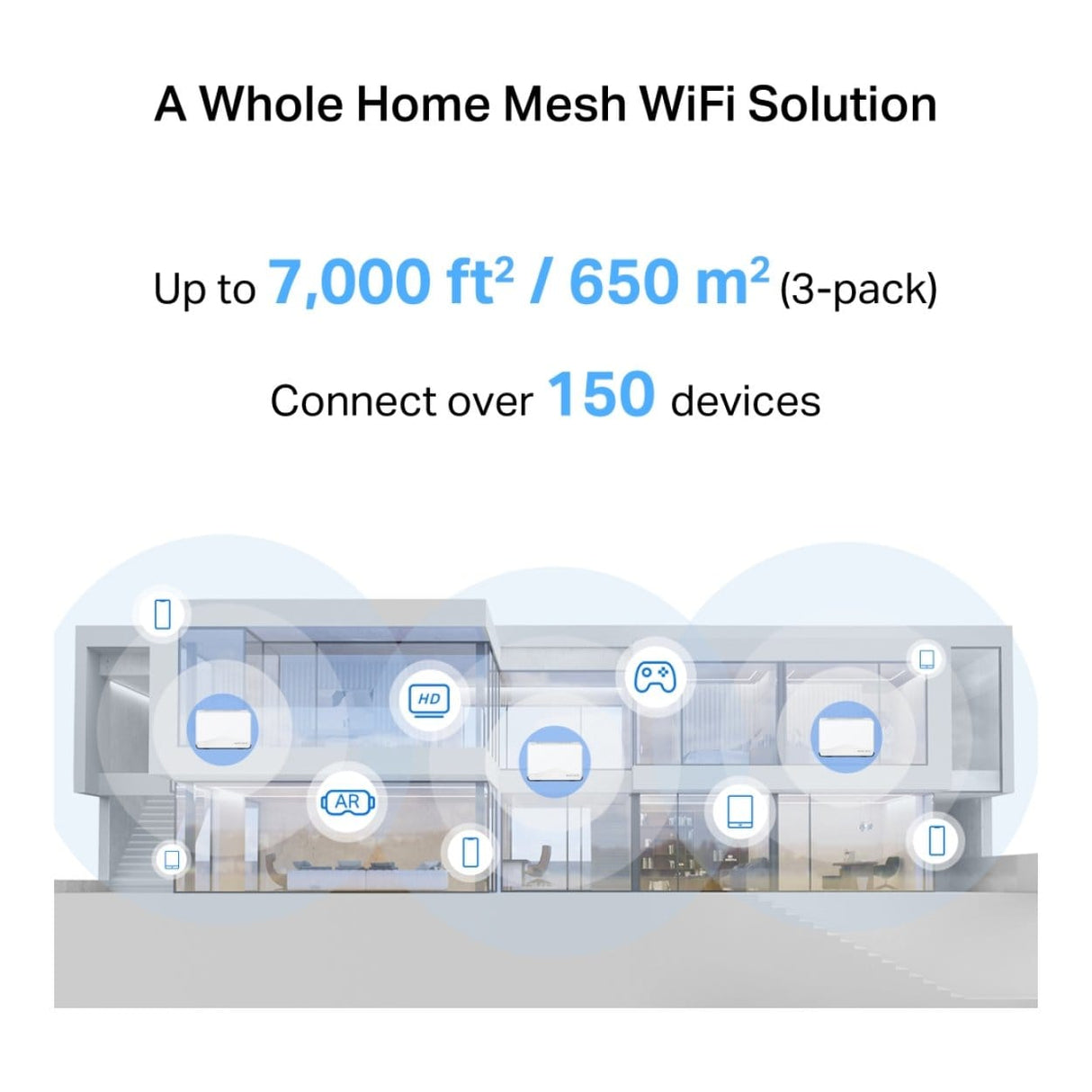

• Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 7,000 ft²/650 m² (ideal for 4-7 bedroom houses).

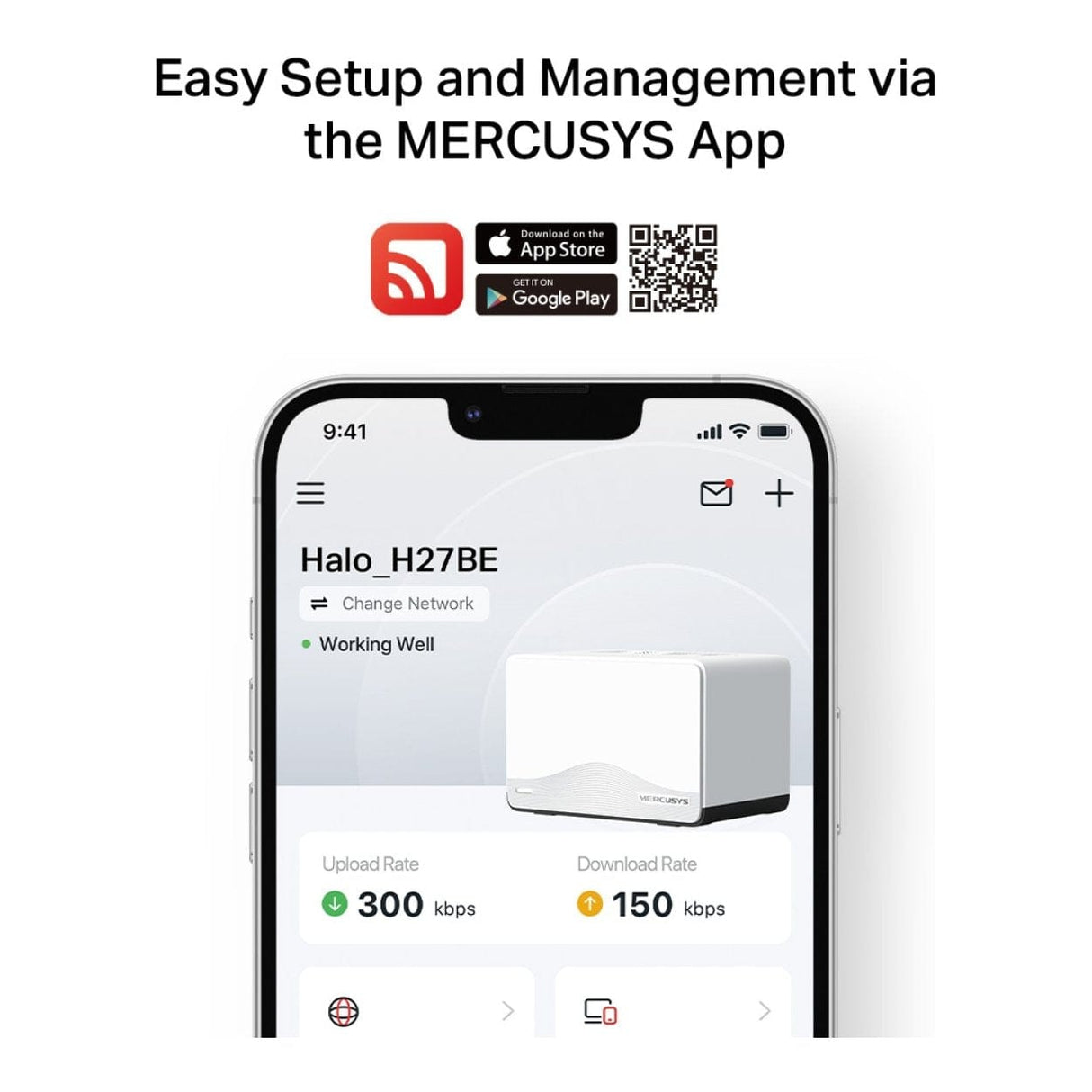

• Easy Setup and Use: Network management has never been easier with the MERCUSYS app.

*Please note that the Halo H series and S series cannot work together.

Unleash WiFi 7 Speeds, Anywhere in Your Home!

BE3600 Whole Home Mesh WiFi 7 System

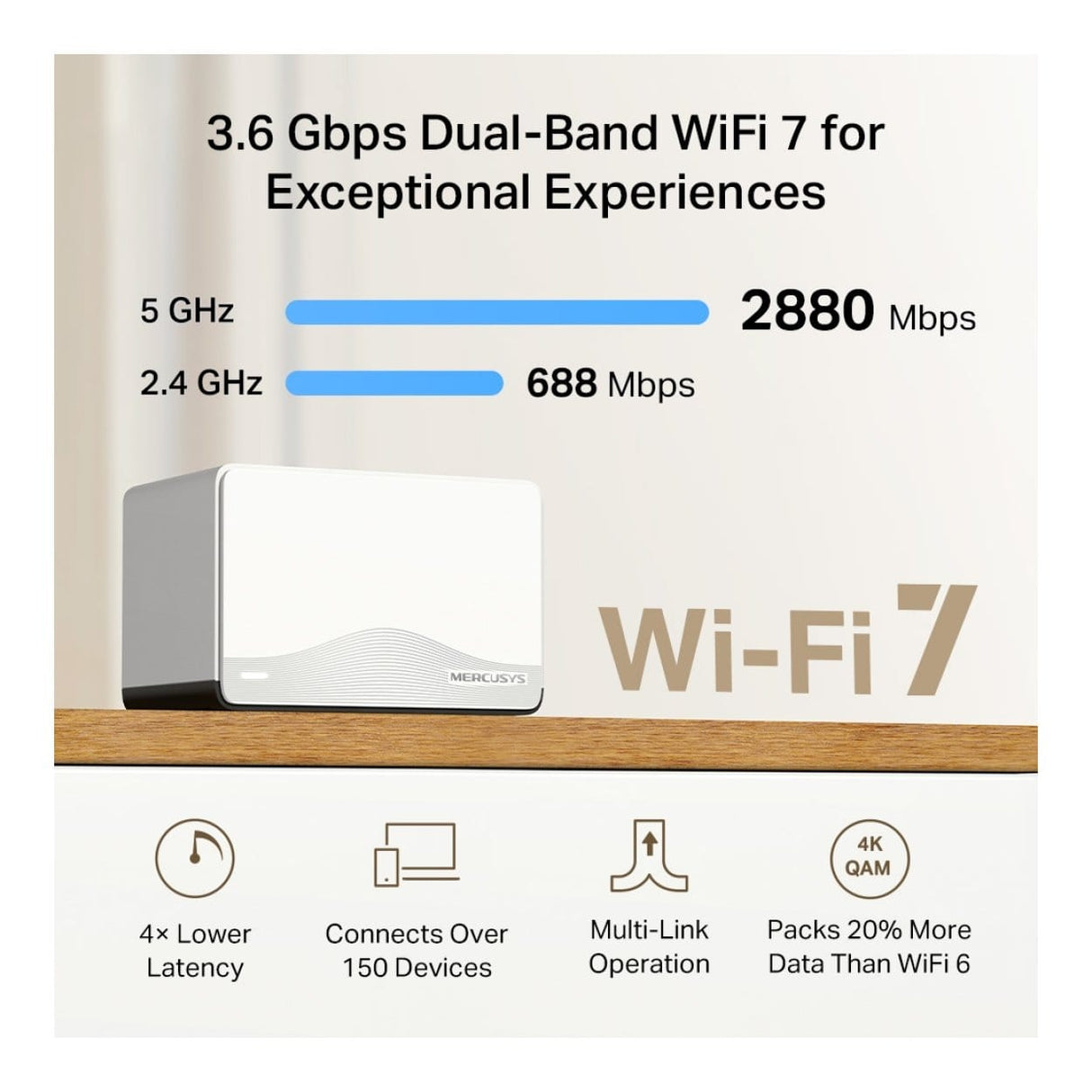

3.6 Gbps Dual-Band WiFi 7 for Exceptional Experiences

WiFi 7, the latest WiFi standard, has arrived with jaw-dropping performance-offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. By upgrading the QAM from 1024 to 4096, WiFi 7 enables the Halo H27BE to achieve speeds of up to 3.6 Gbps. Join the pros and experience the power of the next generation of WiFi.

Improved Capacity

Enhanced by WiFi 7 technology, Halo H27BE lets you connect over 150 devices at once. Enjoy a more efficient network that loads faster without dragging down performance.

True Seamless Roaming with One Unified Network

The Halo system automatically connects your phones or tablets to the fastest node, delivering a truly seamless network experience. No more sudden signal drops or lagging WiFi when you’re walking around the house.

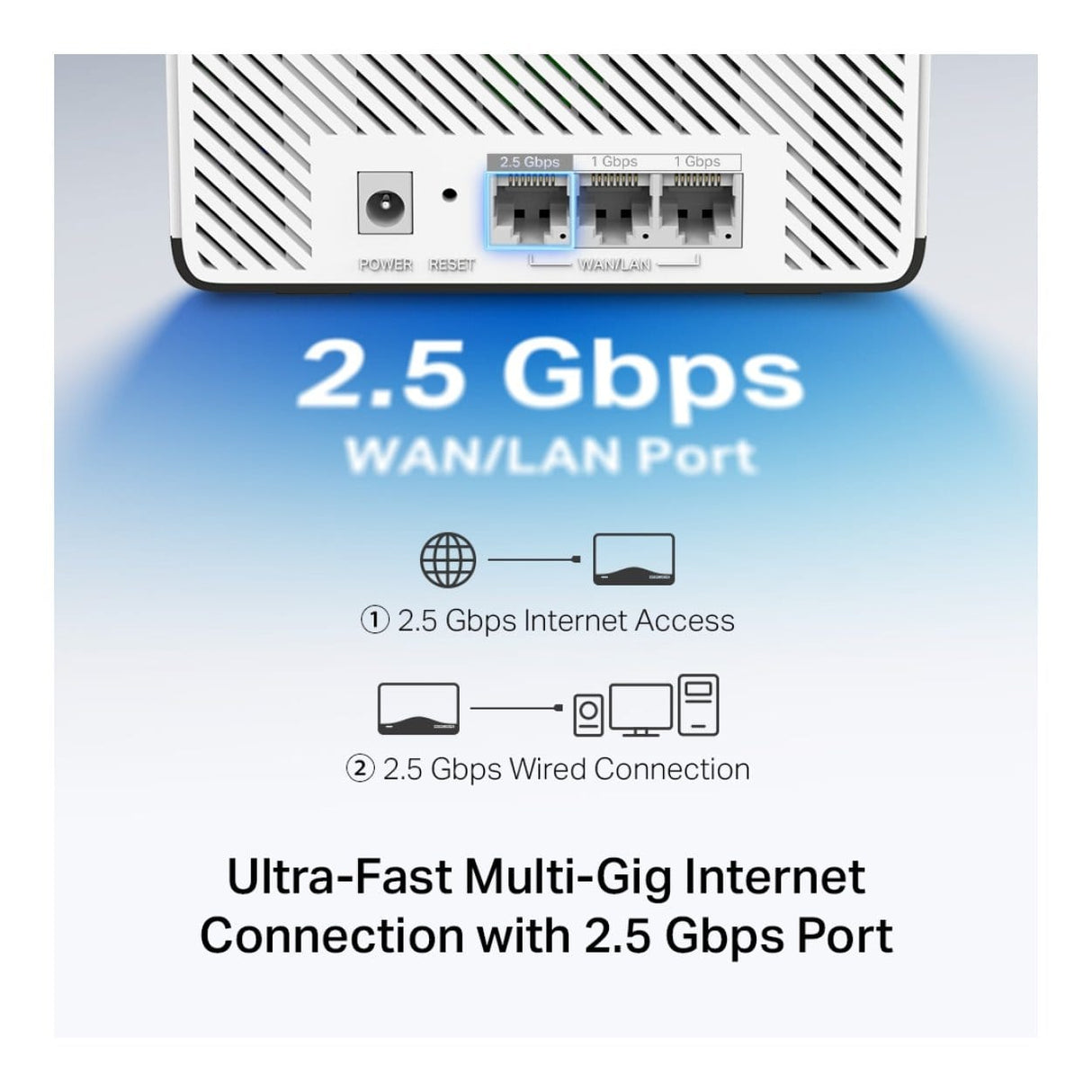

Ultra-Fast Multi-Gig Internet Connection with 2.5 Gbps Port

One 2.5 Gbps port and two Gigabit ports make full use of the Gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. Plug your PCs, smart TVs, or game consoles into the ports for blazing-fast wired connections.

Easily Extend Your Coverage

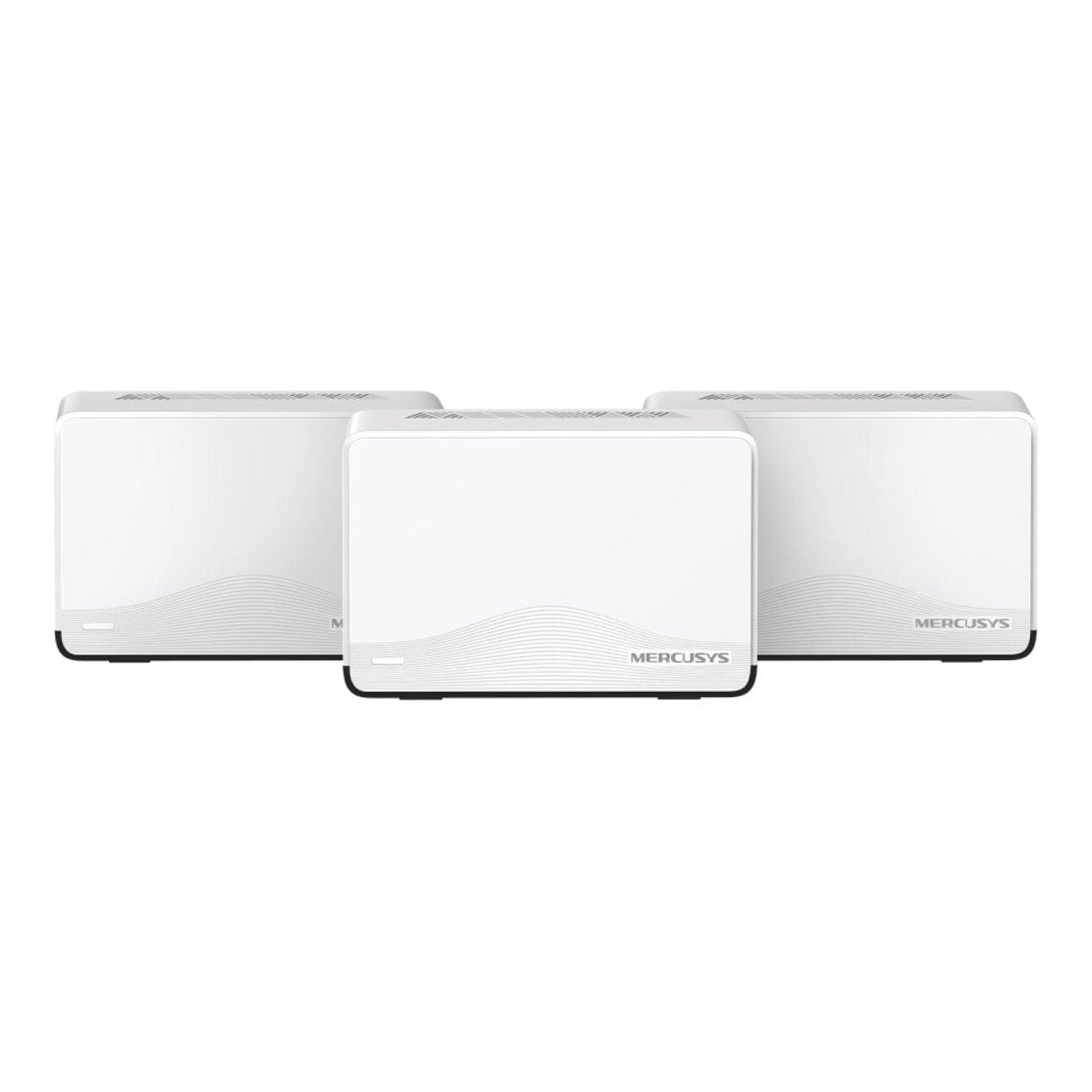

The Halo Whole Home WiFi kit includes multiple units to fit any type of your house. If that’s not enough, you can expand Mesh WiFi coverage anytime by simply adding more Halos.

*Please note that the Halo H series and S series cannot work together.

Specifications:

Wireless Standards: 5 GHz: IEEE 802.11a/n/ac/ax/be mixed / 2.4 GHz: IEEE 802.11b/g/n/ax/be mixed

Signal Rate: 2880 Mbps at 5 GHz / 688 Mbps at 2.4 GHz

Reception Sensitivity: 2.4G: -97dBm / 5G: -98.5dBm

Transmission Power:

• 5G band1 band2 < 23dBm
• 5G band3 < 30dBm
• 2.4G band < 20dBm

Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE

Mesh protocol: 802.11k/v/r

Software

Operation Modes: Router, Access Point

Quality of Service: WMM

WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management: Local Management, Remote Management, Multi-Managers

DHCP: Server, Client

Firewall Security: SPI Firewall

Protocols: Supports IPv4 and IPv6

Guest Network: 2.4 GHz Guest Network / 5 GHz Guest Network

Dimensions (W X D X H): 128 × 81.3 × 83.7 mm

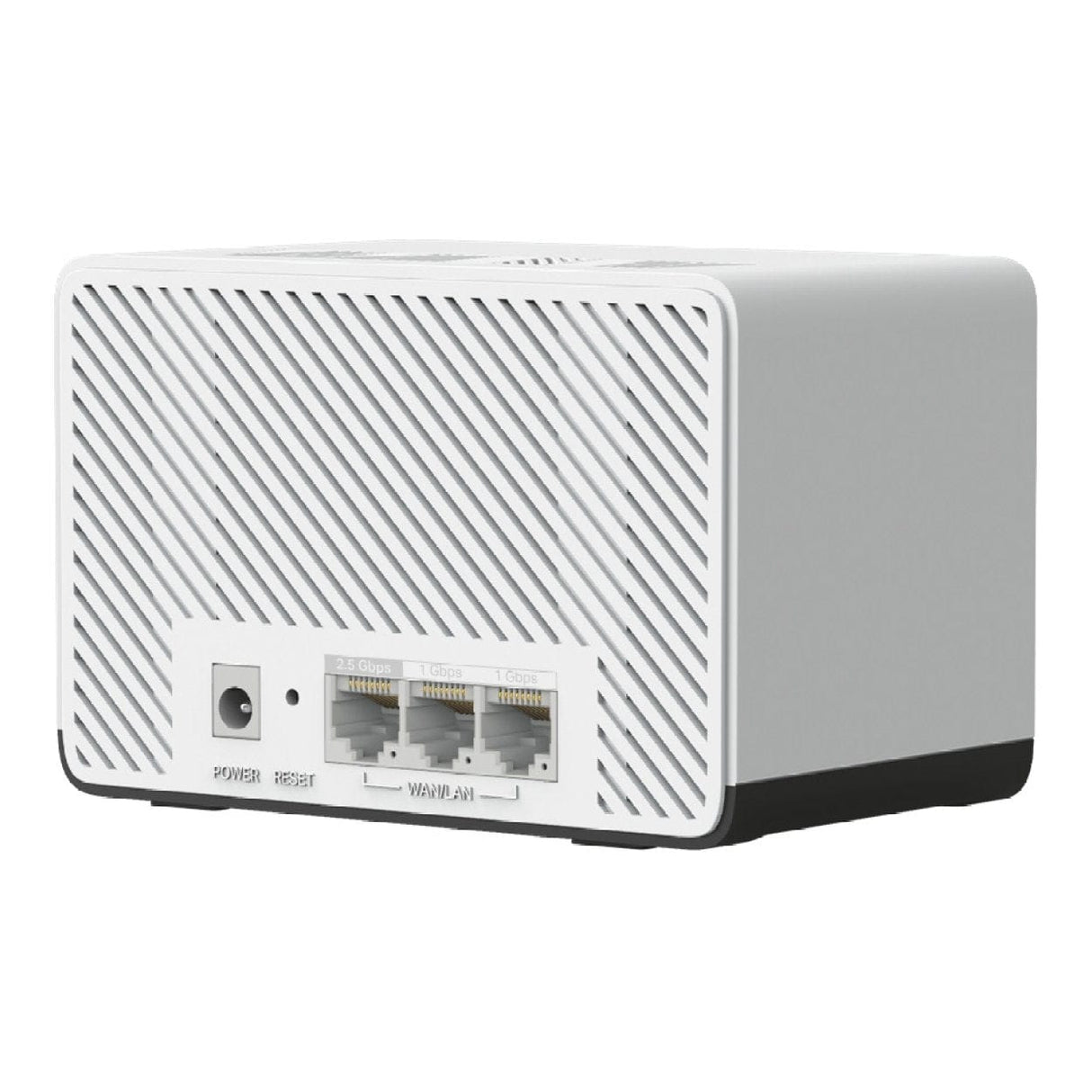

Interfaces

• 1× 2.5 Gbps Port + 2× 1 Gbps Ports (WAN/LAN auto-sensing)
• Button
• Reset button

Network Services Enabled by Default

Web Server: Manage and configure device through web (HTTP/HTTPS), Port: 80/443; Protocol: TCP

DHCP Server: Port: 67; Protocol: UD

DNS: Port: 53; Protocol: TCP & UDP

App management: Port: 20001; Protocol: TCP, Port: 20002; Protocol: UDP
