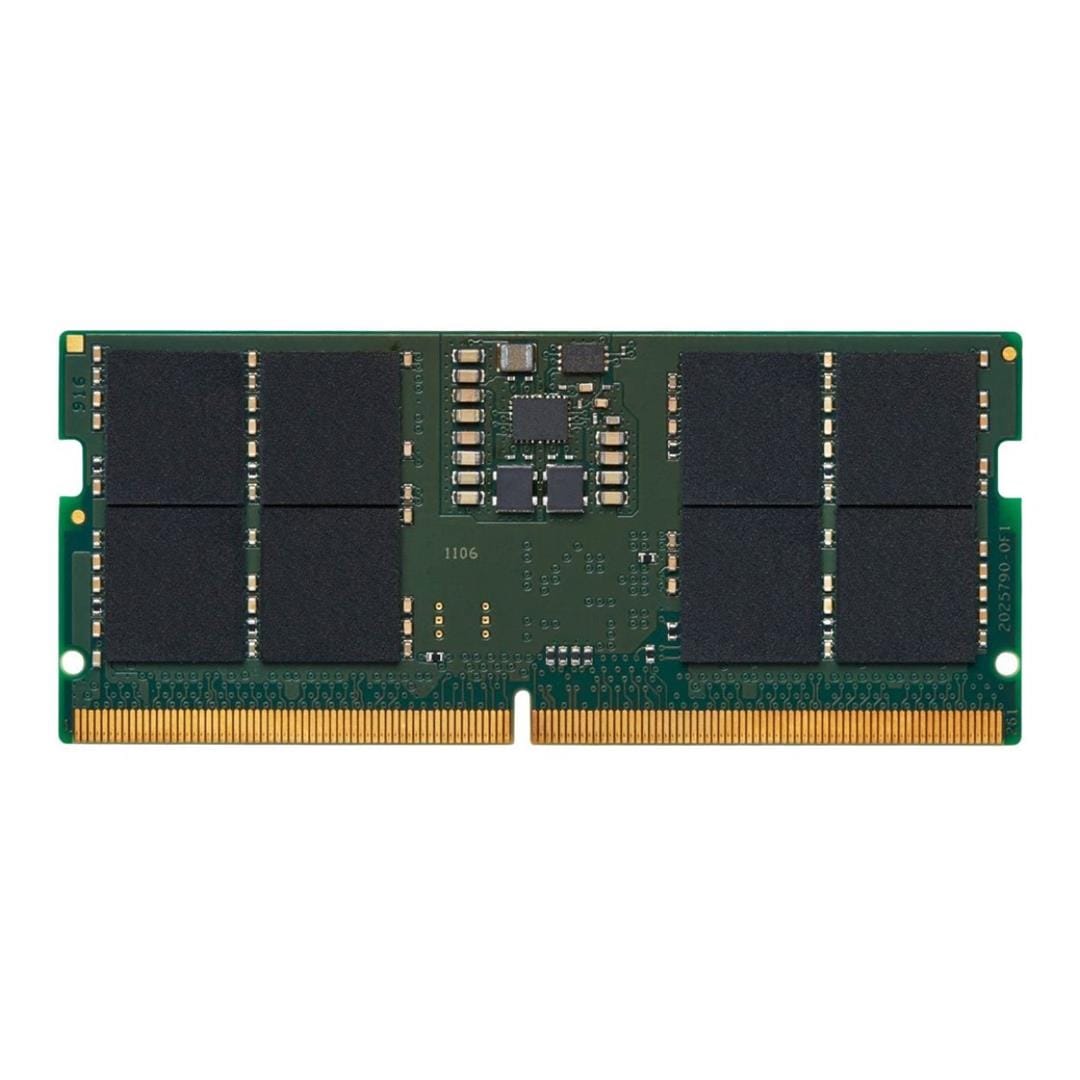

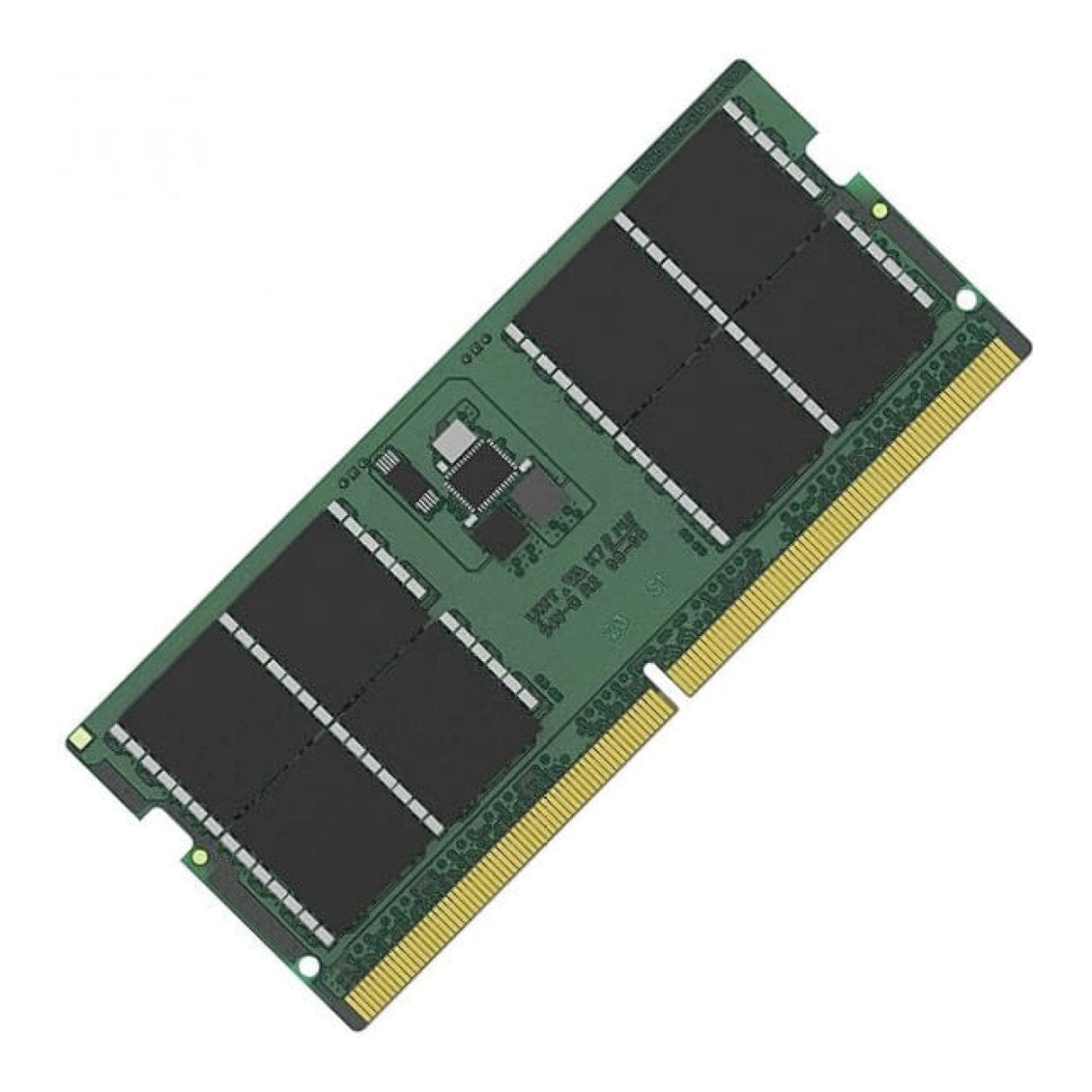

Kingston KVR56S46BD8-32 ValueRAM Memory Module 32GB DDR5 5600MHz

Kingston KVR56S46BD8-32 ValueRAM Memory Module 32GB DDR5 5600MHz

This document describes ValueRAM's KVR56S46BD8-32 is a 4G x 64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.

Features:

• Power Supply: VDD = 1.1V Typical, VDDQ = 1.1V Typical, VPP = 1.8V Typical, VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

Specifications:

Brand: Kingston

Series: ValueRAM Series

Model: KVR56S46BD8-32

Capacity: 32GB (1x32GB)

Memory Type: DDR5

Tested Speed: 5600MT/s

Multi-Channel Kit: Dual Channel

Tested Latency: CL46

Tested Voltage: 1.10V

Registered/Unbuffered: Unbuffered

Error Checking: Non-ECC, DDR5 On-Die ECC

SPD Speed: 5600MT/s

SPD Voltage: 1.10V

Height: 30mm

Warranty: Limited Lifetime Warranty
