Logitech Extend Video Conferencing Accessories Kit 952-000199

Logitech Extend Video Conferencing Accessories Kit 952-000199

Bring your own meeting to the video conferencing room via a single USB-C cable.

Deploy Logitech Extend with category cabling so that anyone can walk into an Android or BYOD-based meeting room, plug in with the USB-C cable, and launch a meeting from their preferred video platform running on their laptop or mobile device.

• Easy BYOD meetings : With Logitech Extend, anyone can walk into an Android or BYOD-based meeting room, plug in with the USB-C cable, and launch a meeting from their laptop or mobile device
• Quick connections. No Additional Drivers.: Use the USB-C cable to quickly plug in a laptop or mobile device and run meetings using a preferred video platform. No need to install additional software.
• Extend and reach : Use category cabling to enable BYOD connections in larger rooms.
• Enable power delivery to devices (optional):Deliver up to 100W of power to a laptop or mobile device by connecting a standard USB-C power adapter to the Table Side (TX) box

Specifications:

Part Number: 952-000199

Dimensions:

Display Side Box:

• Height: 143 mm
• Width: 143 mm
• Depth: 34.5 mm

Table Side Box:

• Height: 143 mm
• Width: 143 mm
• Depth: 34.5 mm

Device Management: Logitech Sync device management

Ports and Interfaces:

• Display Side (RX)
• HDMI 2.0 4K60 4:4:4
• 2x USB 2.0 Type A
• Micro USB Management Interface
• Logitech Extend Power
• RJ45 to Table Side (TX)
• Table Side (TX)
• Secured USB-C (from TX to user laptop)
• USB-C (optional USB-C power supply connection)
• RJ45 to Display Side (RX)

Mounting:

• VESA: 100 x 100 mm
• Mounting Holes: 2 through-holes for mounting directly to the wall or table (mounting hardware included)

Power and Cables:

• Power supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 48V, 0.5A
• Power Supply Dimensions: 73.5 mm x 53 mm x 35 mm
• DC Cable: 1.5 m
• USB-C to USB-C 3.2 Gen 1 Cable: 1.5 m
• USB A to Micro USB Cable: 1 m

Environmental:

• Operating Temperature: 0° to 40° C
• Storage Temperature: -25° to 70° C
• Humidity: 10% to 90%

Security:

• File Based Encryption: NIST SHA-256 bits
• Data Encryption: Public Key Hash
• Firmware Update: Digital Signature

Sustainability:

• Made with recycled plastic: Logitech Extend plastic content: Minimum 40% post-consumer recycled material Excludes plastic in printed wiring assembly (PWA), cables, and packaging
• Responsible Packaging: FS-certified paper packaging

Warranty Information:

2-Year Limited Hardware Warranty
1-Year and 3-Year Extended Warranty available for purchase

Compatibility:

Required:

• Meeting Room Equipment
• Displays: HDMI 1.4 or higher
• AV Devices: USB Type-A 2.0 or higher
• Laptop Computers
• USB Type-C port with DisplayPort Alt Mode

Compatible with:

• Conferencing Cameras: Rally Bar, Rally Bar Mini, Rally Bar Huddle, MeetUp, MeetUp 2, and more
• Laptop Operating Systems: Windows 10, Windows 11, macOS (latest 2 versions)

Feature support and compatibility with cameras and operating systems may vary. For the latest information, see www.logitech.com/support/extend-compatibility

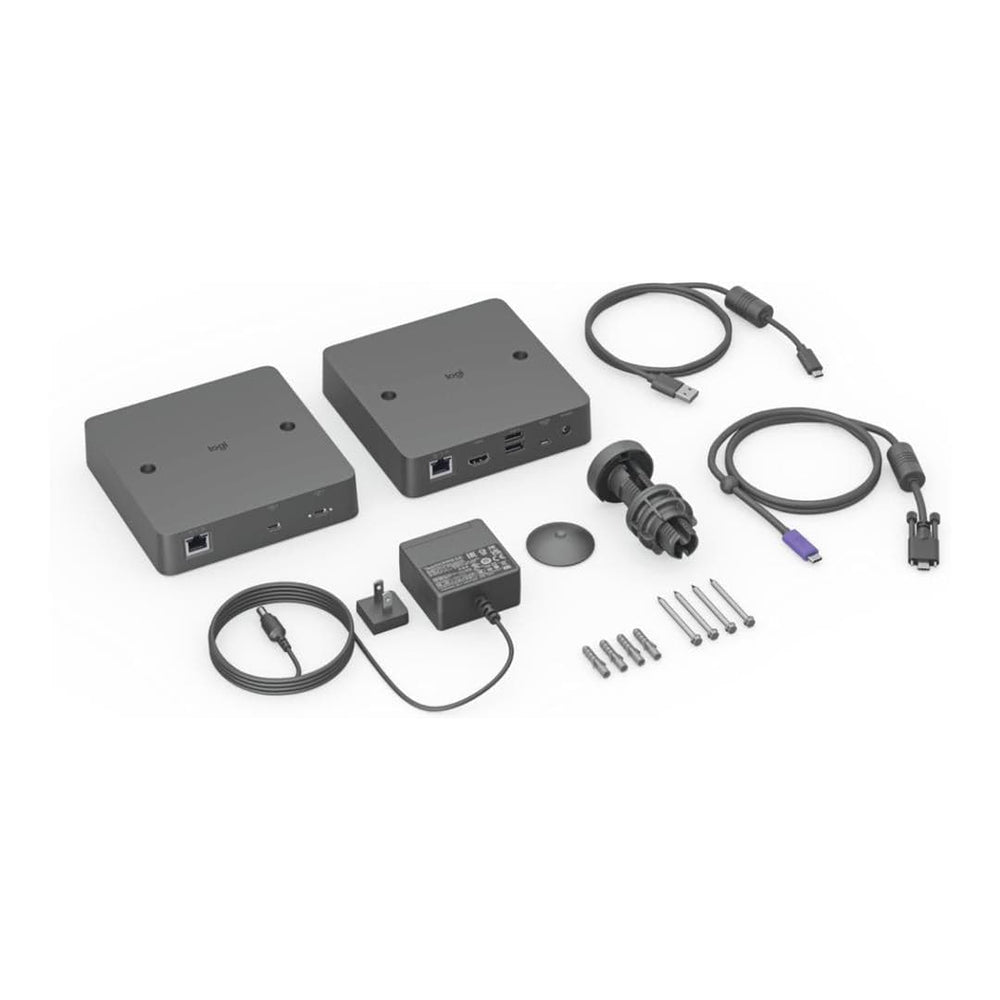

What's In the Box:

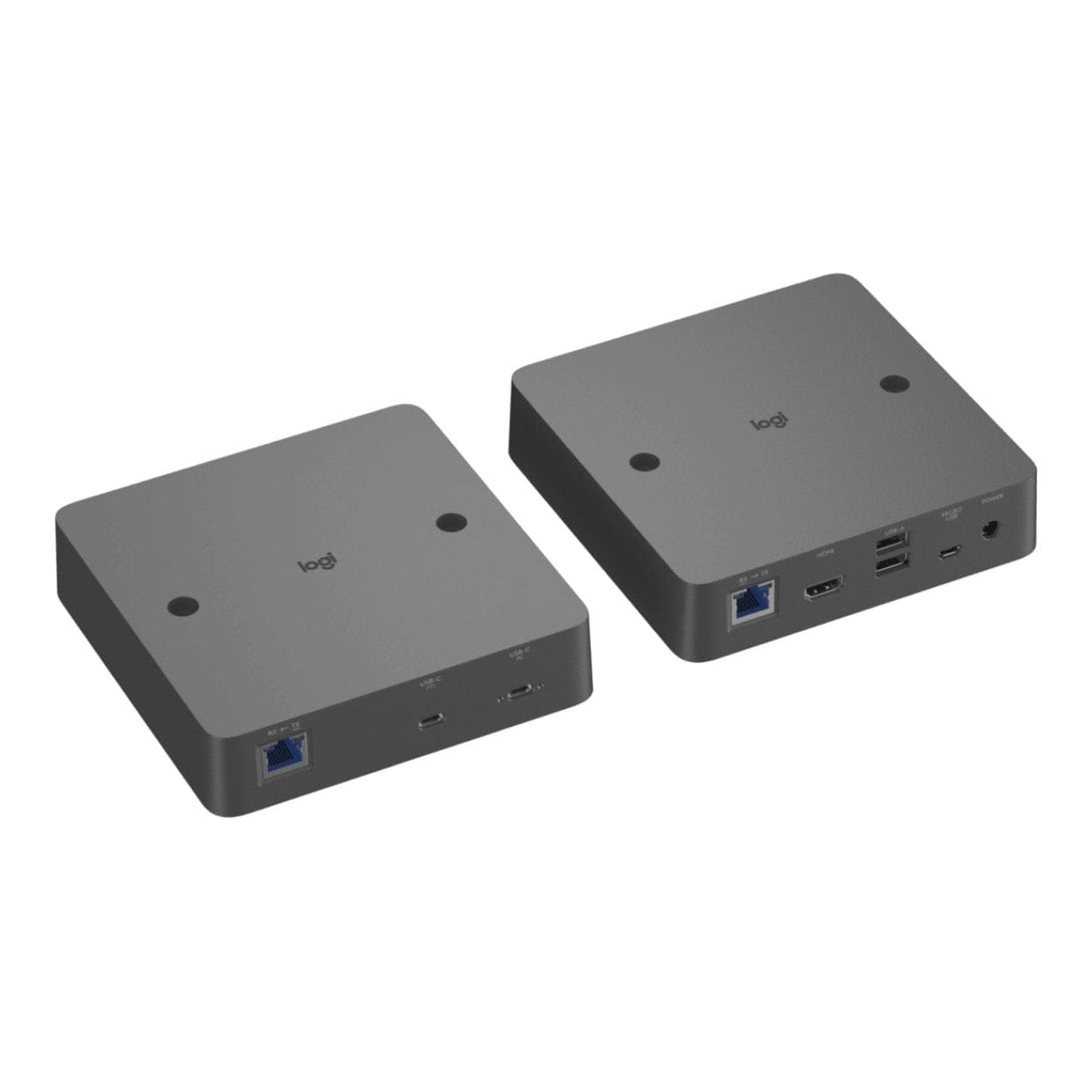

• Display Side (RX) Box
• Table Side (TX) Box

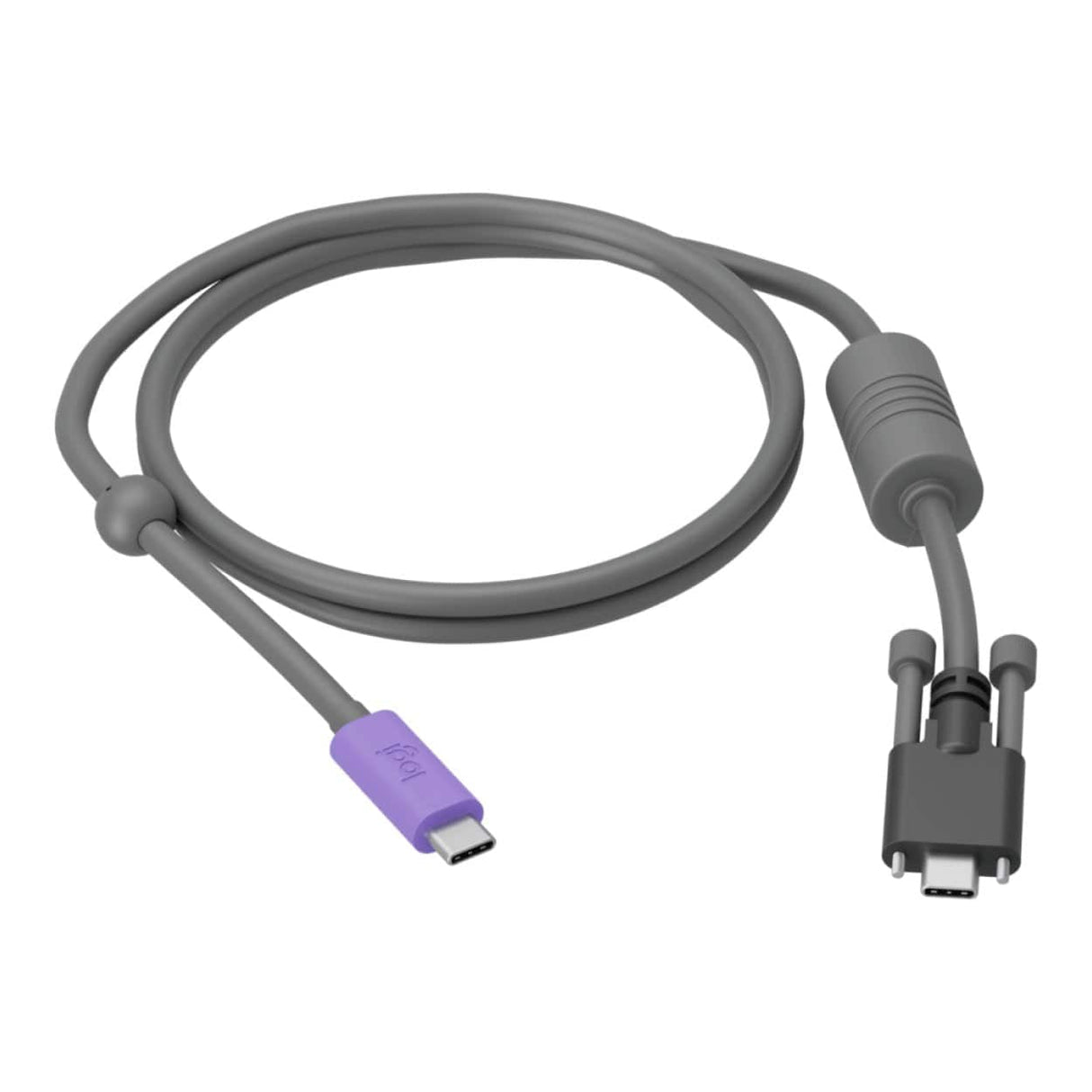

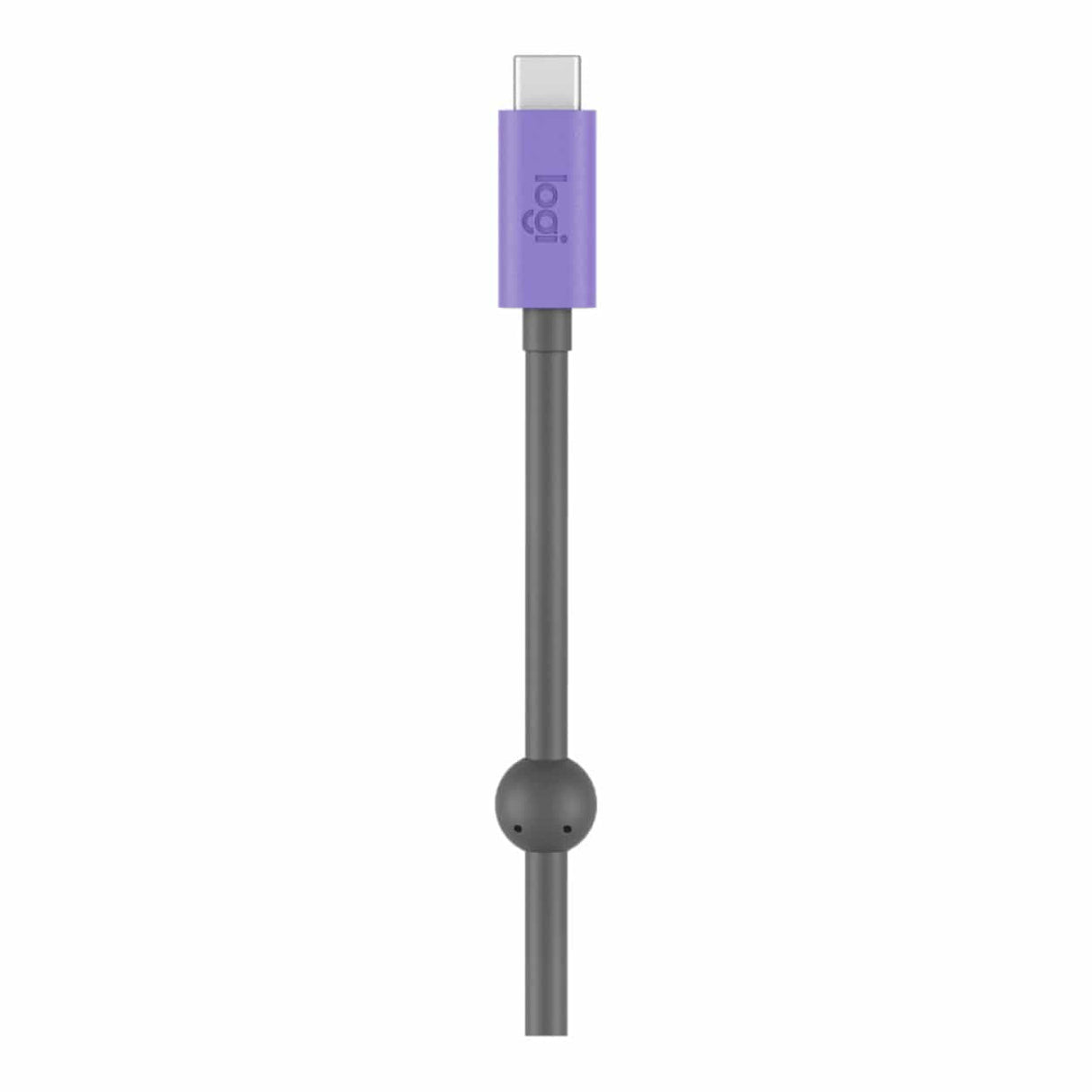

• USB-C to USB-C cable
• Micro USB to USB-A cable
• Power supply
• Mounting hardware

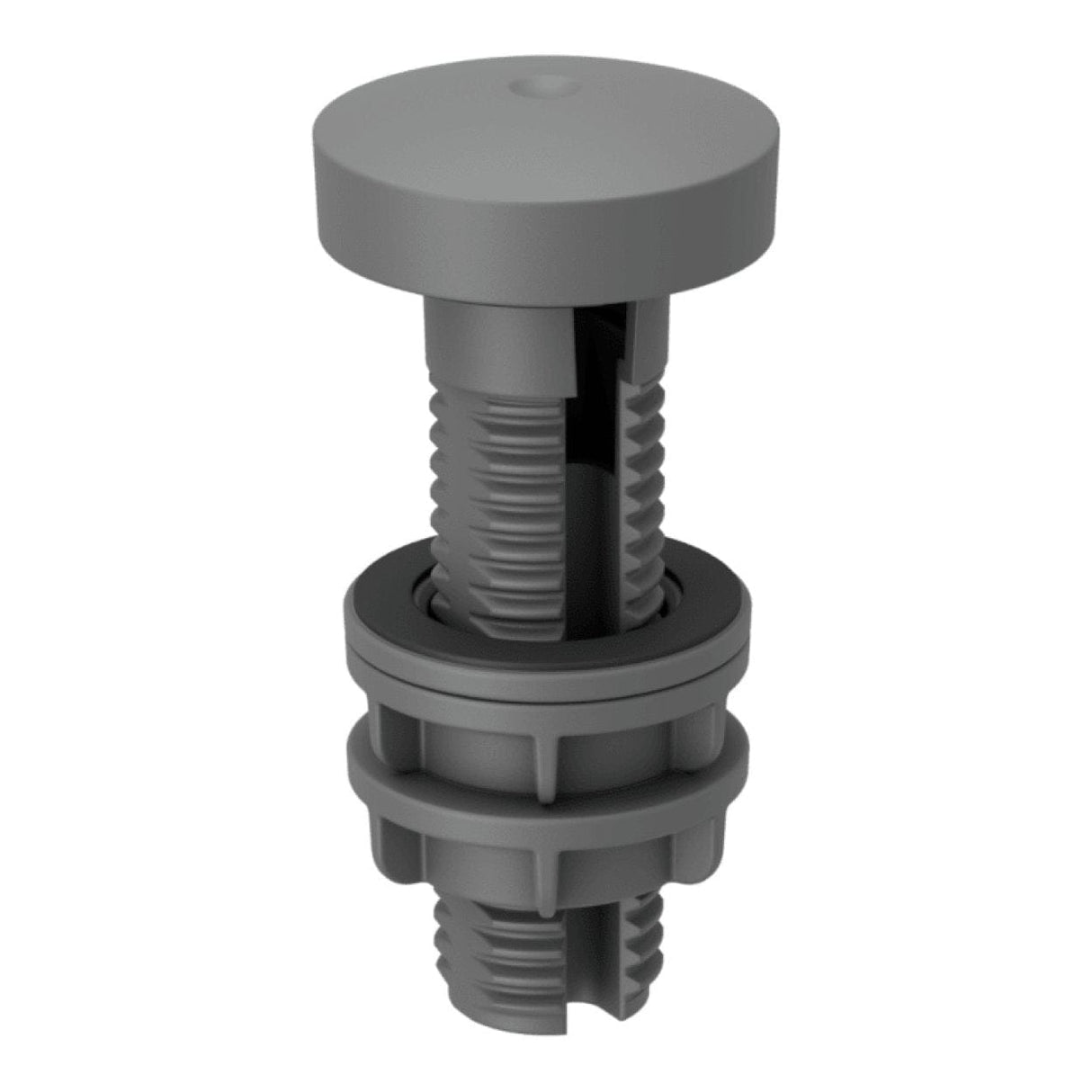

• 25.4 mm Grommet adapter
• Magnetic dock
• User documentation
