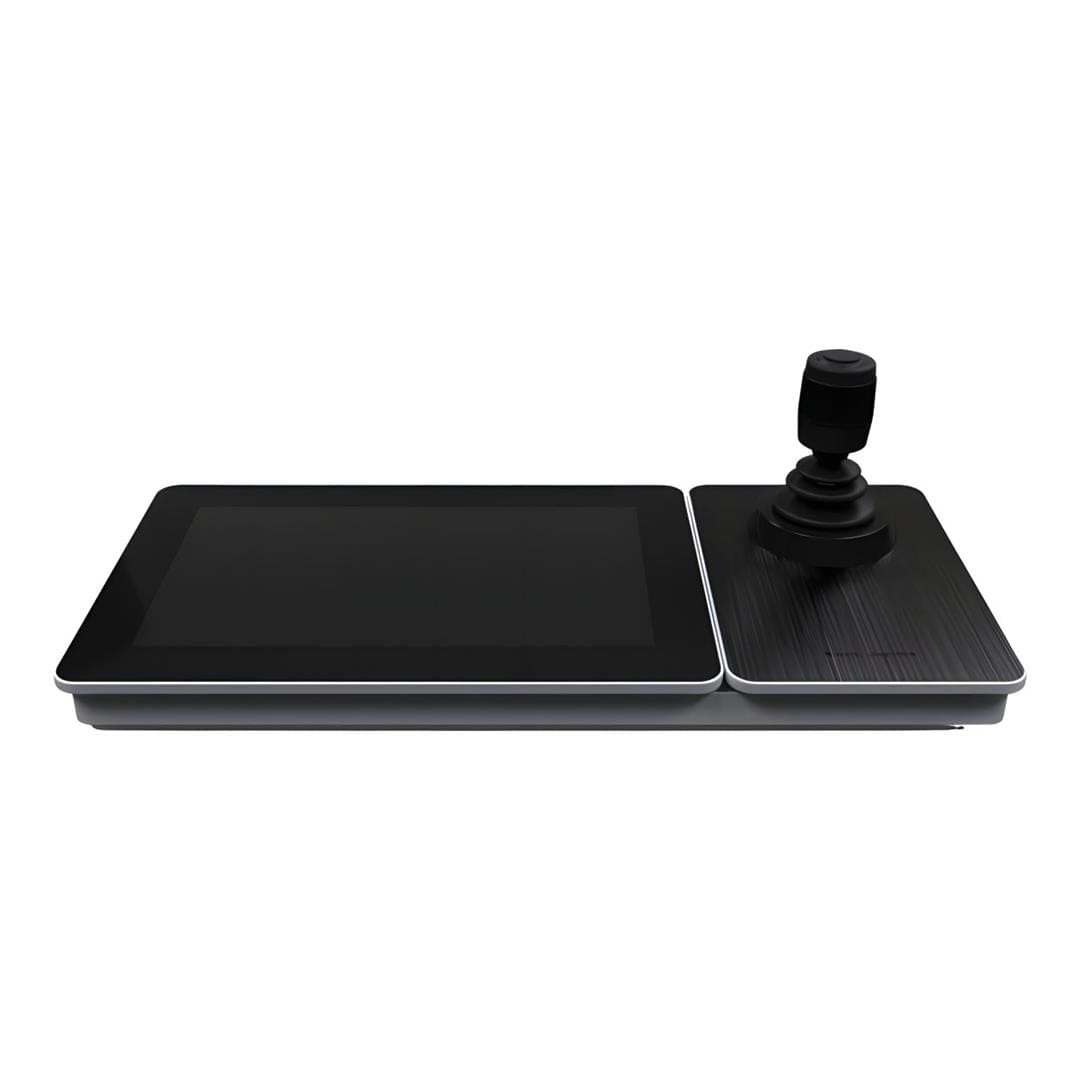

Hikvision DS-1600KI(B) Network Keyboard with 4-axis Joystick

Hikvision DS-1600KI(B) Network Keyboard with 4-axis Joystick

DS-1600KI(B) is the new generation of fully touch-enabled and detachable network keyboard independently developed by Hikvision. In addition to displaying images, the 10.1" capacitive touchscreen supports DVI and HDMI video output. It runs on Android and has the brand new UI interaction design. It also supports all series of front-end and back-end devices of Hikvision, as well as control center devices such as video management platform (VMS). It has open settings of the monitoring point number, and users can arrange the numbers freely as needed. In application, users can call the numbers quickly to display the video on the video wall, or output videos to the touchscreen or external displays. It supports recording, picture capturing and two-way audio, as well as the screen control and scene switch of VMS and decoding device. The 4-axis joystick can be used to the PTZ control to locate the target quickly. The joystick panel is detachable for the convenience of user operation. This keyboard can be widely used in public security and finance and other fields.

Features

• High-performance, full-featured network keyboard
• Built-in Android system provides powerful control functions
• User friendly touch screen makes operation easy
• Flexible configuration via network
• Supports various cameras, NVRs and DVRs

Technical Specification

Interface

USB Interface: 2x USB 2.0

Serial Interface: Network, RS-232, RS-422, RS-485

Network Interface: 10M/100M/1000M adaptive ethernet port

Wi-Fi: Supported

General

Net Weight: 1.7 kg (3.75 lb)

Dimensions (W × H × D): 404 mm × 163 mm × 180 mm (15.91" × 6.42" × 7.09")

Power Consumption: ≤15 W

Power Supply: 12 VDC/PoE

Display: 10.1" TFT LCD touchscreen, Resolution: 1280 × 800

Joystick: 4-axis joystick

Video

Video Output Interface Type: 1x HDMI, 1x DVI

Audio

Audio Input Interfaces: 1-ch, 3.5 mm connector (2.0 Vp-p, >1 KΩ)

Audio Output Interfaces: 1-ch, 3.5 mm connector (2.0 Vp-p, 600 Ω)

Video Decoding

Video Decoding Format: H.264, H.264+, H.265, H.265+, MPEG4

Video Decoding Capability: 1 channel of 4K@30fps, or 4 channels of 1,080P@30fps
