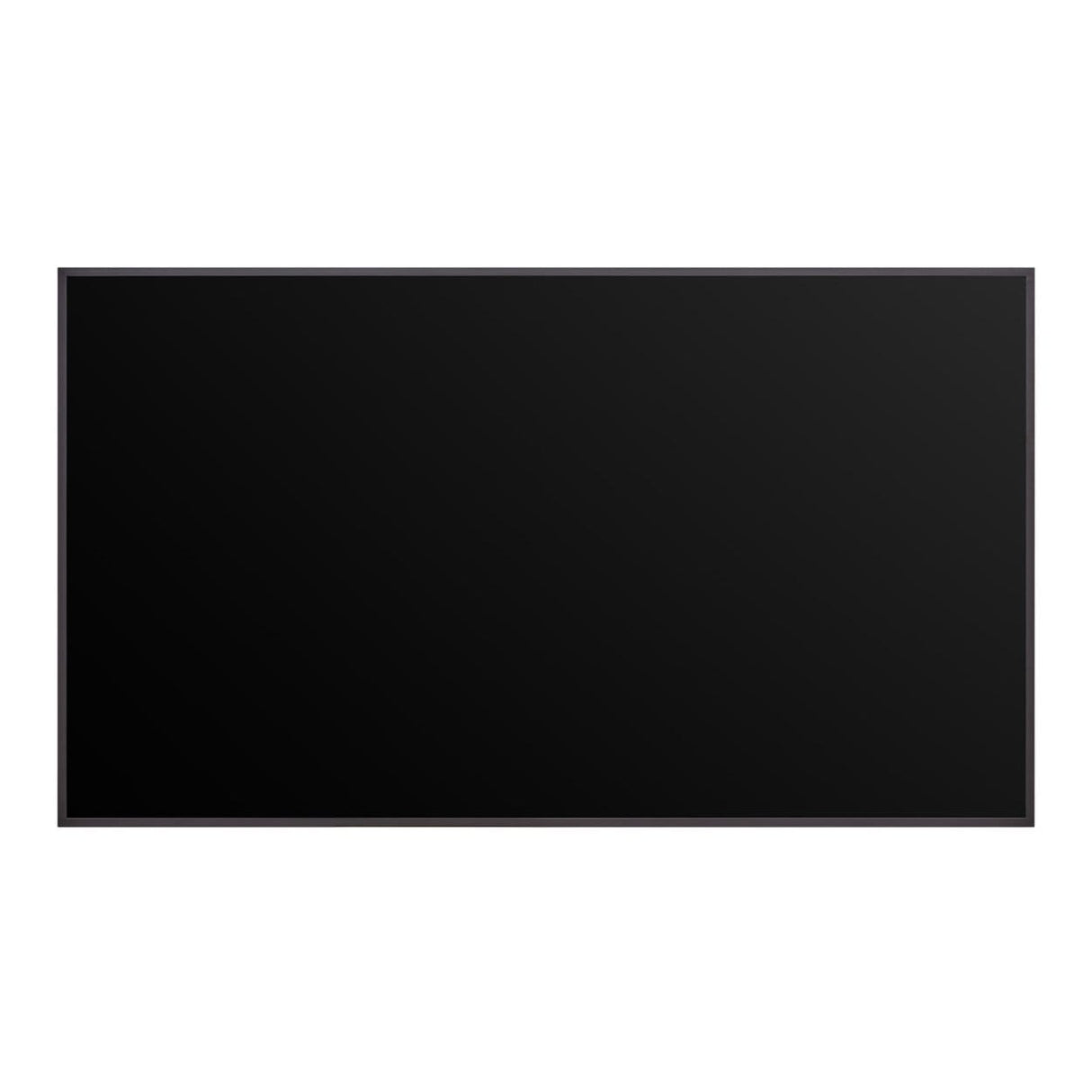

LG 55UH5Q-E 55-inch 4K UHD LCD Digital Signage Flat Panel Display

LG 55UH5Q-E 55-inch 4K UHD LCD Digital Signage Flat Panel Display

UHD Signage Display with LG webOS Platform and Advanced Security

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

Features:

• Resolution : 3,840 × 2,160 (UHD)
• Brightness : 500 nits (Typ.)
• Bezel Width : 11.4 mm (Even Bezel)
• webOS Smart Platform
• LG Shield

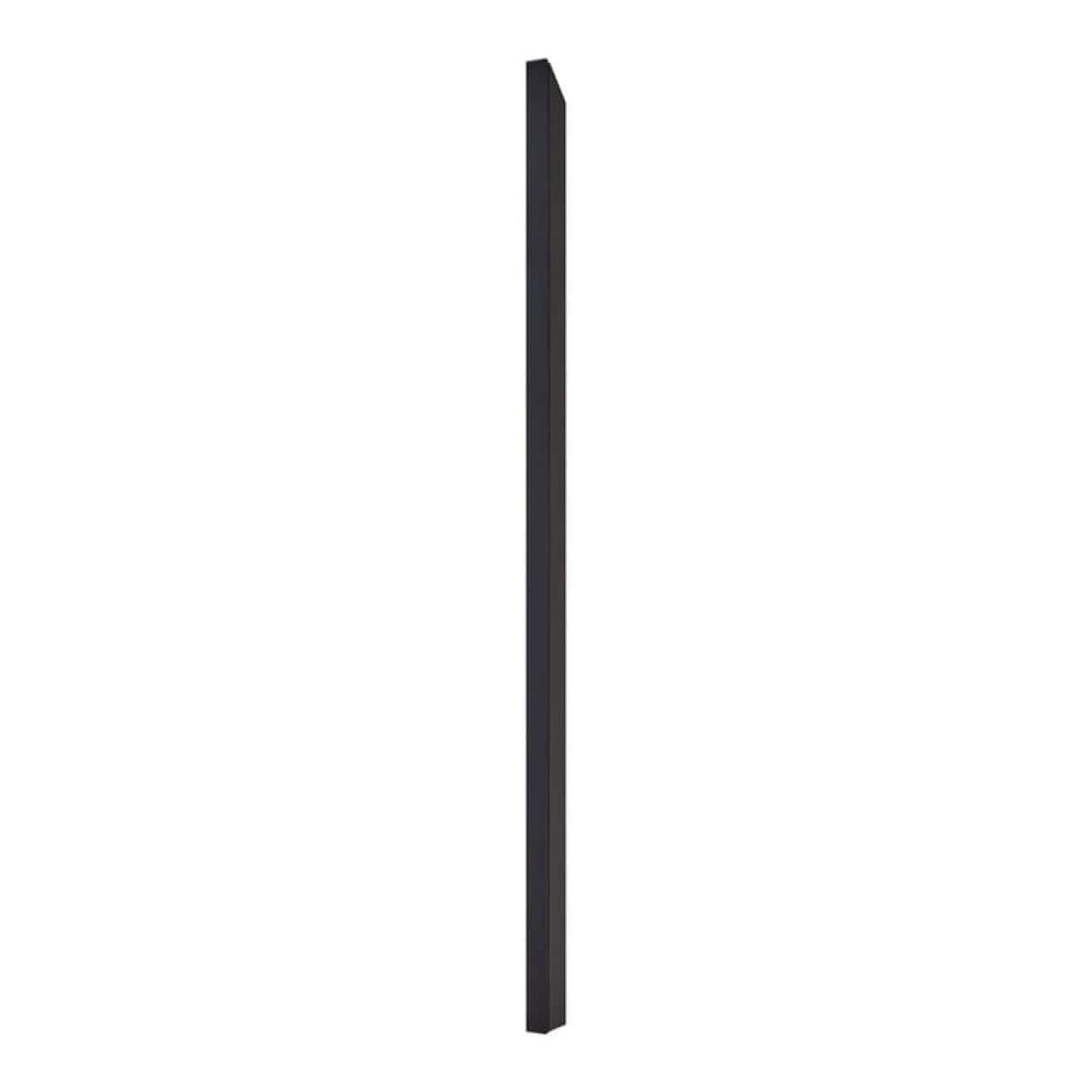

Even & Slim Bezel Design

The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.

Convenient webOS Platform

The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

* SoC : System On Chip

** SI : System Integrator

Design for Space Utilization

Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.

* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

Durability that Provides Reliability

Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.

* When a physical impact occurs on the product, an alert is provided to the administrator through the media controller.

Comprehensive Security

webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

* SuperSign must be purchased separately.

Technical Specifications:

Display

Screen Size: 55″
Panel Technology: ADS
Backlight Type: Edge
Aspect Ratio: 16:9
Native Resolution: 3840 × 2160 (4K UHD)
Refresh Rate: 60 Hz
Brightness (Typical): 500 Nit
Contrast Ratio (Typical): 1200:1
Dynamic Contrast Ratio: 1,000,000:1
Colour Gamut: BT.709 95%
Viewing Angle (H × V): 178° × 178°
Colour Depth: 1.07 Billion Colours (8-Bit + FRC)
Response Time: 8 ms (G to G)
Surface Treatment (Haze): 25% (Typical)
Panel Lifetime (Minimum): 50,000 Hours
Operating Hours: 24 / 7
Orientation Support: Portrait / Landscape

Mechanical

Bezel Colour: Black
Bezel Width: 11.4 mm (Even)
Product Weight (Head): 14.3 kg
Packed Weight: 18.1 kg
Monitor Dimensions (W × H × D): 1240.1 × 711.9 × 29.7 mm
Carton Dimensions (W × H × D): 1360 × 810 × 152 mm
Handle: No
VESA Mount Compatibility: 300 × 300 mm

Key Features

Internal Memory: 16 GB
Wi-Fi: Built-In
Bluetooth: Built-In
Temperature Sensor: Yes
Auto Brightness Sensor: Built-In (Europe Only; Sold Separately in Other Regions)
Acceleration (Gyro) Sensor: Yes
Operating System: webOS 8.0

Feature Support

• Local Contents Scheduling
• Group Manager
• USB Plug and Play
• Fail Over
• Booting Logo Image
• No Signal Image
• RS-232C Sync
• Local Network Sync
• Picture-in-Picture (PIP)
• Picture-by-Picture (PBP) (Up to 4)
• Screen Share
• Video Tag (4)
• Play via URL
• Screen Rotation
• External Input Rotation
• Gapless Playback
• Tile Mode (Up to 15 × 15)
• Setting Data Cloning
• SNMP
• ISM Method
• Auto Set ID
• Status Mailing
• Control Manager
• Cisco Certification (TBD)
• Crestron Connected
• Smart Energy Saving
• PM Mode
• Wake on LAN
• Network Ready
• Beacon
• HDMI-CEC
• SI Server Setting
• webRTC
• Pro:Idiom

Environmental Conditions

Operating Temperature: 0 °C to 40 °C
Operating Humidity: 10% to 80%

Power

Power Supply: AC 100–240 V, 50–60 Hz
Power Type: Built-In Power Supply

Power Consumption

• Typical: 103 W
• Maximum: 154 W
• Smart Energy Saving (70%): 72 W
• DPM: 0.5 W
• Power Off: 0.5 W

Thermal Output

• Typical: 351 BTU/Hr
• Maximum: 525 BTU/Hr

Compliance and Certification

Safety Certifications

• CB
• NRTL

EMC Certifications

• FCC Class B
• CE
• KC

Energy Certifications

• ePEAT (US Only)
• ErP
• ENERGY STAR

OPS Compatibility

OPS Type Compatible: No
OPS Power Built-In: No

Software Compatibility

• SuperSign CMS
• SuperSign Control+
• SuperSign WB
• SuperSign Cloud
• Mobile CMS
• LG ConnectedCare

Connectivity

Input Ports

• 3 × HDMI (3840 × 2160 @ 60 Hz, HDCP 2.2 / 1.4)
• 1 × DisplayPort (3840 × 2160 @ 60 Hz, HDCP 2.2 / 1.4)
• 1 × RS-232C (4-Pin Phone Jack)
• 1 × RJ45 (LAN)
• 1 × IR (5-Pin Phone Jack, Supports Internal IR)
• 2 × USB 2.0 Type-A

Output Ports

• 1 × Audio Output
• 1 × RS-232C (4-Pin Phone Jack)

IR Output: Supported via RS-232C Daisy Chain

Audio

Speaker Output: 10 W × 2

Languages Supported

• English
• French
• German
• Spanish
• Italian
• Korean
• Chinese (Simplified)
• Chinese (Traditional)
• Portuguese (Brazil)
• Swedish
• Finnish
• Norwegian
• Danish
• Russian
• Japanese
• Portuguese (Europe)
• Dutch
• Czech
• Greek
• Turkish
• Arabic
• Polish

Special Features

IP Rating: IP5X
Conformal Coating (Power Board): Yes (Partial Space Coating)

What’s in the Box:

• Remote Controller
• Power Cord
• Quick Setup Guide (QSG)
• Regulation Book
• Phone-to-RS232C Gender Adapter
• IR / Light Sensor Receiver (EU/EK Only)
• Magnetic Sheet × 2 (EU/EK Only)
