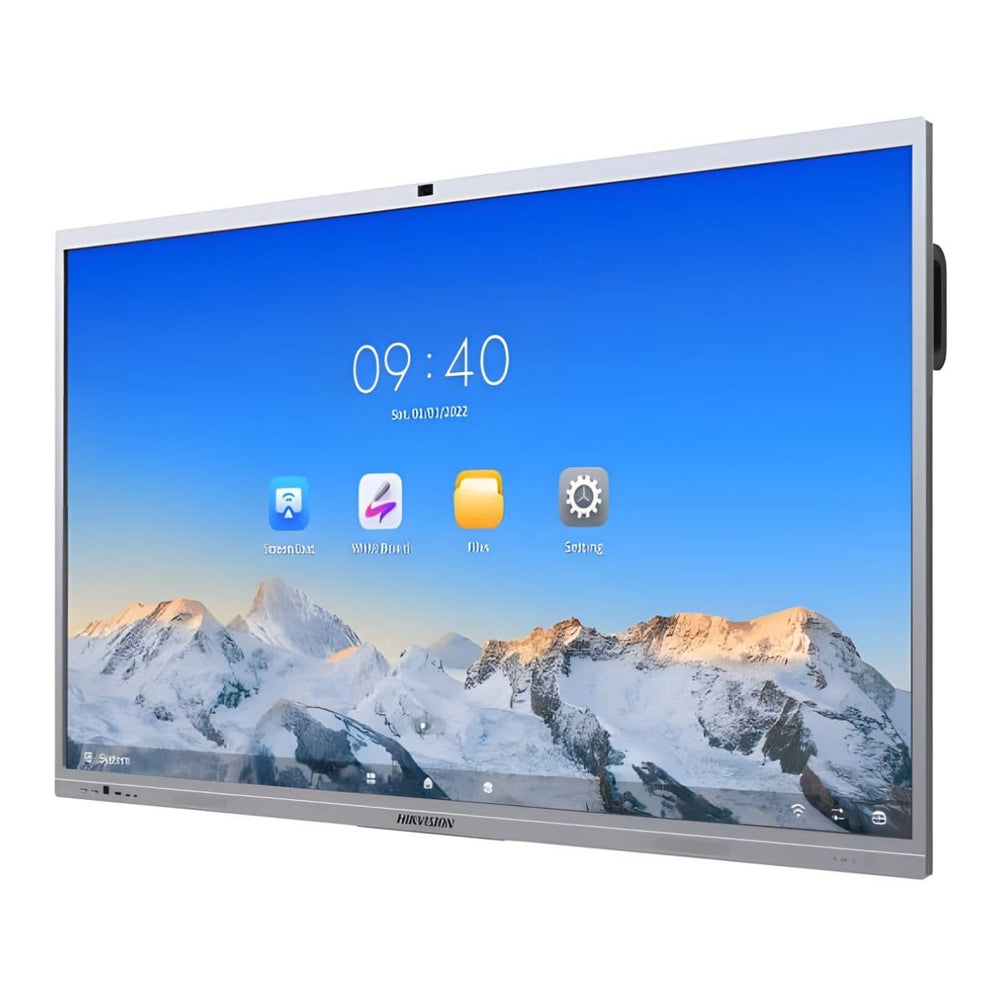

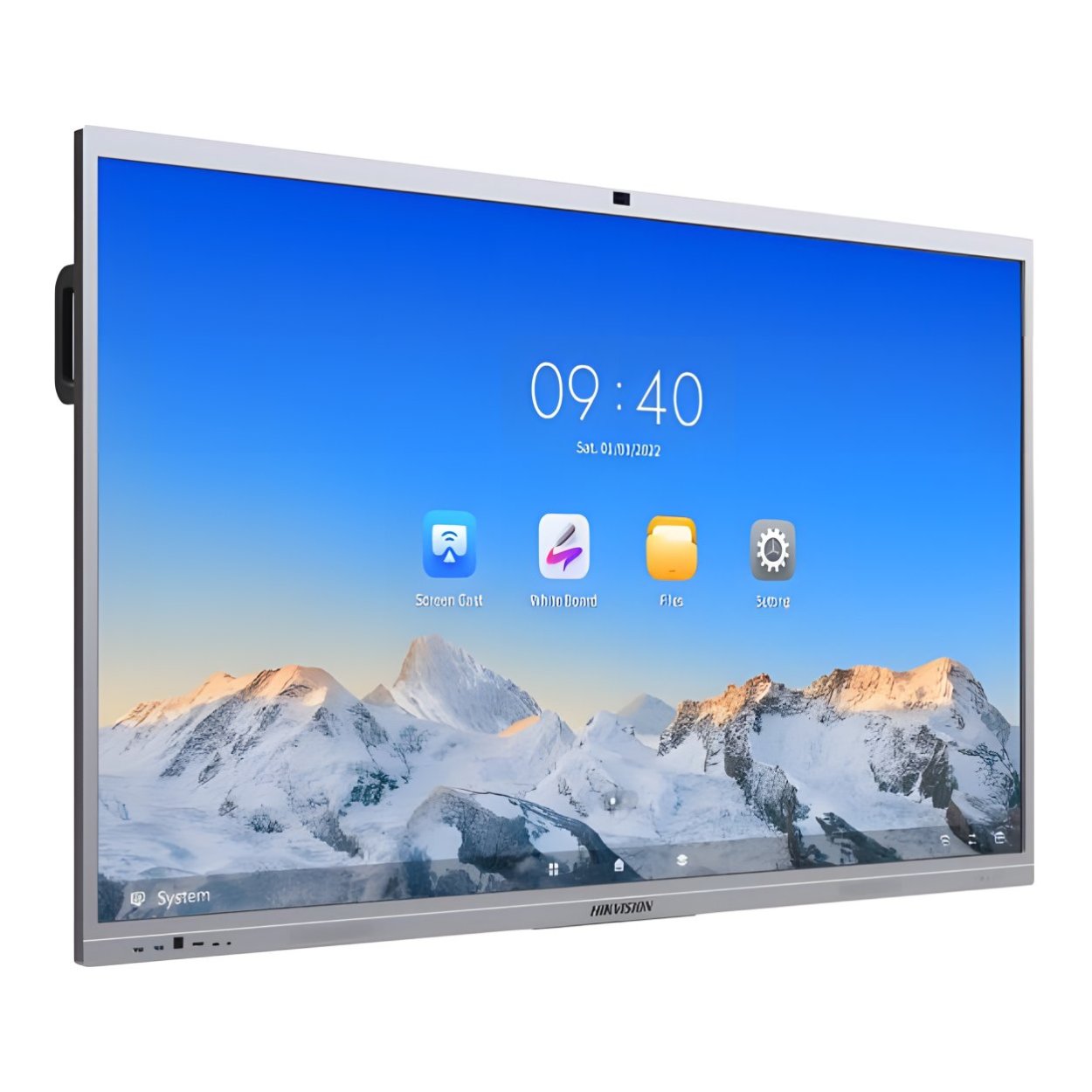

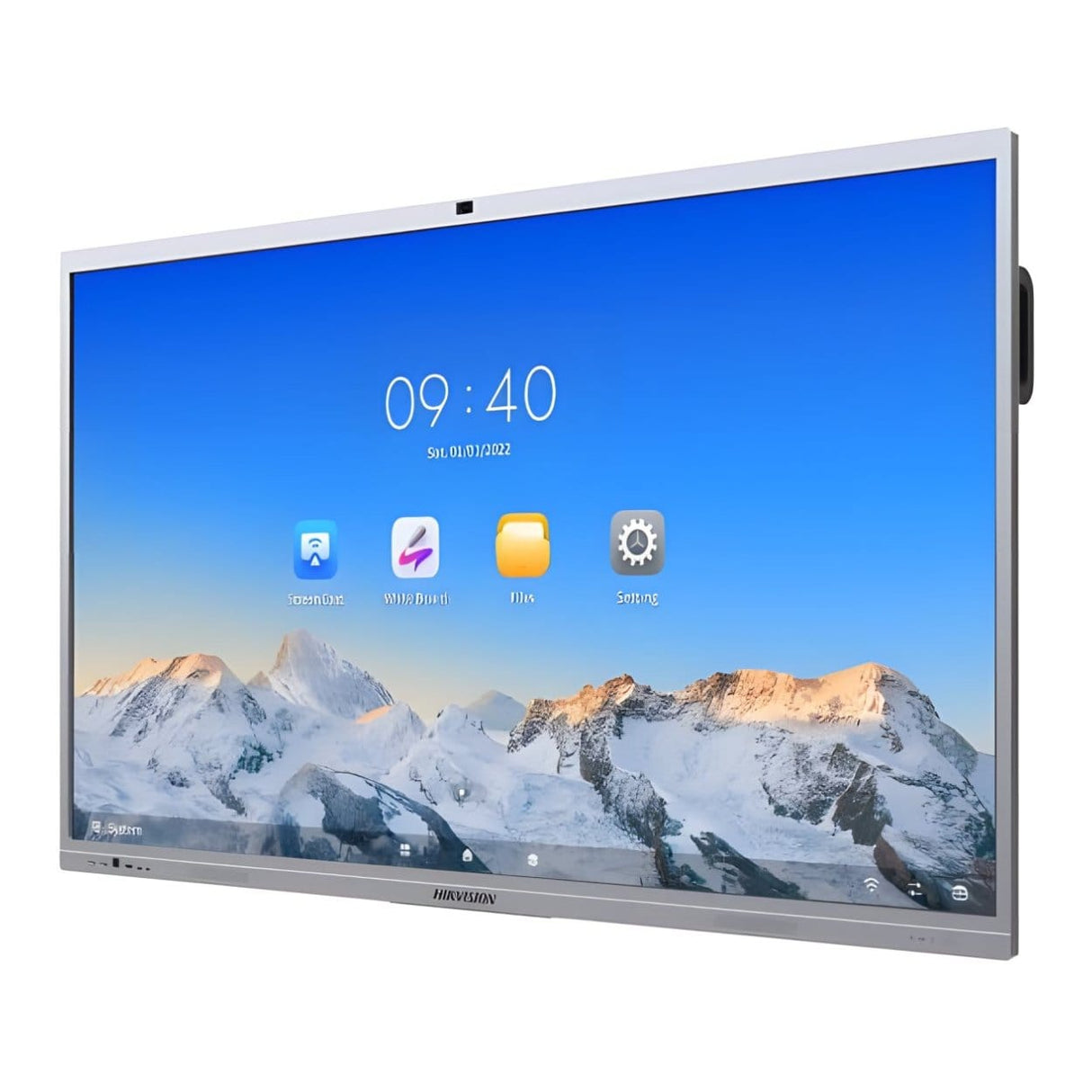

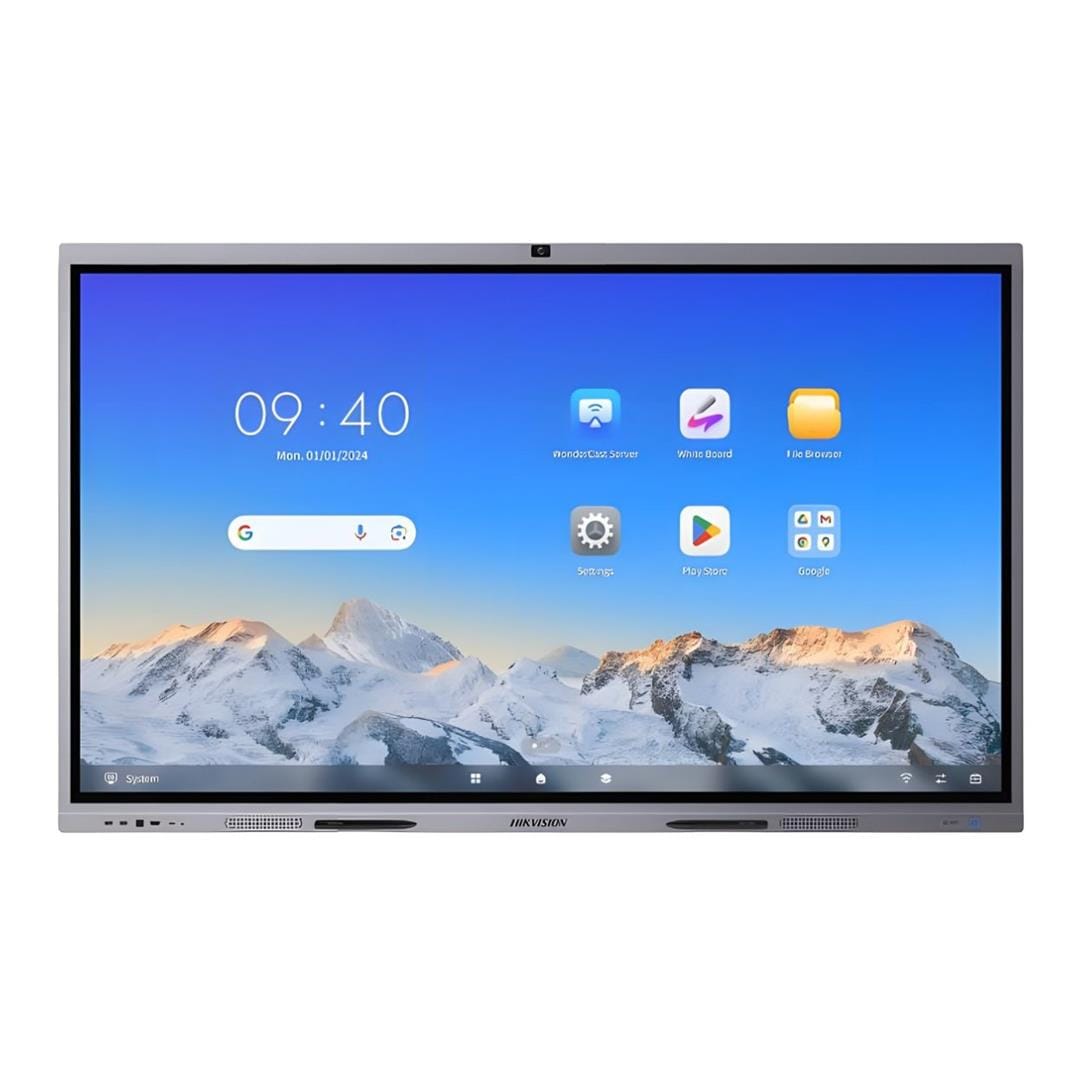

Hikvision 75-inch 4K Interactive Display DS-D5C75RB/B(EDLA)

Hikvision 75-inch 4K Interactive Display DS-D5C75RB/B(EDLA)

Features:

• UHD 4K display with resolution of 3840 × 2160.
• Anti-glare and anti-blocking design to ensure smooth interaction.
• Dual systems of Android and Windows（Optional with OPS） saving cost and easy to use, video conference software are recommonded to run under Windows system.
• Quick response, at most 50-points touch control and smooth writing experience.
• Built-in network switch chip saves a network switch.
• All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
• EDLA Certified

Technical Specifications:

Display
Screen Size 75 inch
Backlight DLED
Pixel Pitch 0.14325(H) × 0.42975(V) mm
Resolution 3840 × 2160 @60 Hz
Brightness 400 cd/m² （Typ.）
Color Depth 10 bit
Display Color 1.07 G
Response Time 5 ms
Panel Type VA
Contrast Ratio 5000:1 (Static) 30,000:1 (Dynamic)
Color Gamut 72% NTSC (CIE1931) (Typ.)
Refresh Rate 60 Hz
Viewing Angle 178° (H)/178° (V)
Aspect Ratio 16:9
Surface Hardness 9H (Pencil) 7 (Mohs)
Surface Glass Anti-Glare Glass
Surface Haze 25% Haze
Glass Bonding Method Zero Lamination
Display Area 1650.24 mm × 928.26 mm
Working Duration 7 × 16 H
Transmittance 88% ± 3
Lifespan 50,000 hours

Touch
Type Infrared Touch Screen
Touch Point Up to 50-point multi-touch
Touch Response Time ≤ 2 ms
Minimum Touch Object ≥ 1.5 mm (≥ 90% touching area)
Touch Precision ± 0.5 mm (≥ 90% touching area)
Touch Resolution 32768 × 32768

Built-in System
Operation System Android 14.0
Memory 8 GB
Built-in Storage 128 GB
Processor Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
GPU Mali-G610 MC4
HDCP Version 2.3

Camera
Pixel Pixel 48MP for Photos & 8 MP for Video
Camera Function Support intelligent switching between Android system, OPS, and PC.
Field Angle 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
Distortion ≤2.5%
Camera Resolution Ratio Up to 4K

Microphone
Specification Omni-directional 8-array layout
Mic Function Echo reduction and smart noise-cancellation
Voice Distance 12 m
Sampling Rate 32 K
Mic Depth 16 bit

Internal Function
Loudspeaker Built-in 2 × 20 W+25W loudspeaker
Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
NFC Support screen mirroring by Android phones
Light Sensor Yes

Image Processing Technology Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defoggingï¼›support shadow correction.
Audio Processing Technology Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.

Interface
Video & Audio Input HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
Video & Audio Output HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
Control Interface TOUCH-USB 3.0 × 3, RS232 × 1
Network Interface LAN (1000 Mbps) × 2, WIFI AP & Station 2.4G/5G, WIFI 6 IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)

Power
Power Supply 100 to 240 VAC, 50/60 Hz
Standby Consumption ≤ 0.5 W
Average Consumption < 150 W

Working Environment
Working Temperature 0 °C to 40 °C (32 °F to 104°F)
Working Humidity 10%~90% RH

General
VESA 800 mm × 400 mm （4 × M8-25 mm）
Product Dimensions 1713.23 mm × 1034.54 mm × 82.5 mm
Accessory Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), power cable, Bluetooth remote control
Package Dimensions (W × H × D) 1897 mm × 1150 mm × 213 mm
Net Weight 51.23 kg
Gross Weight 67.62 kg
