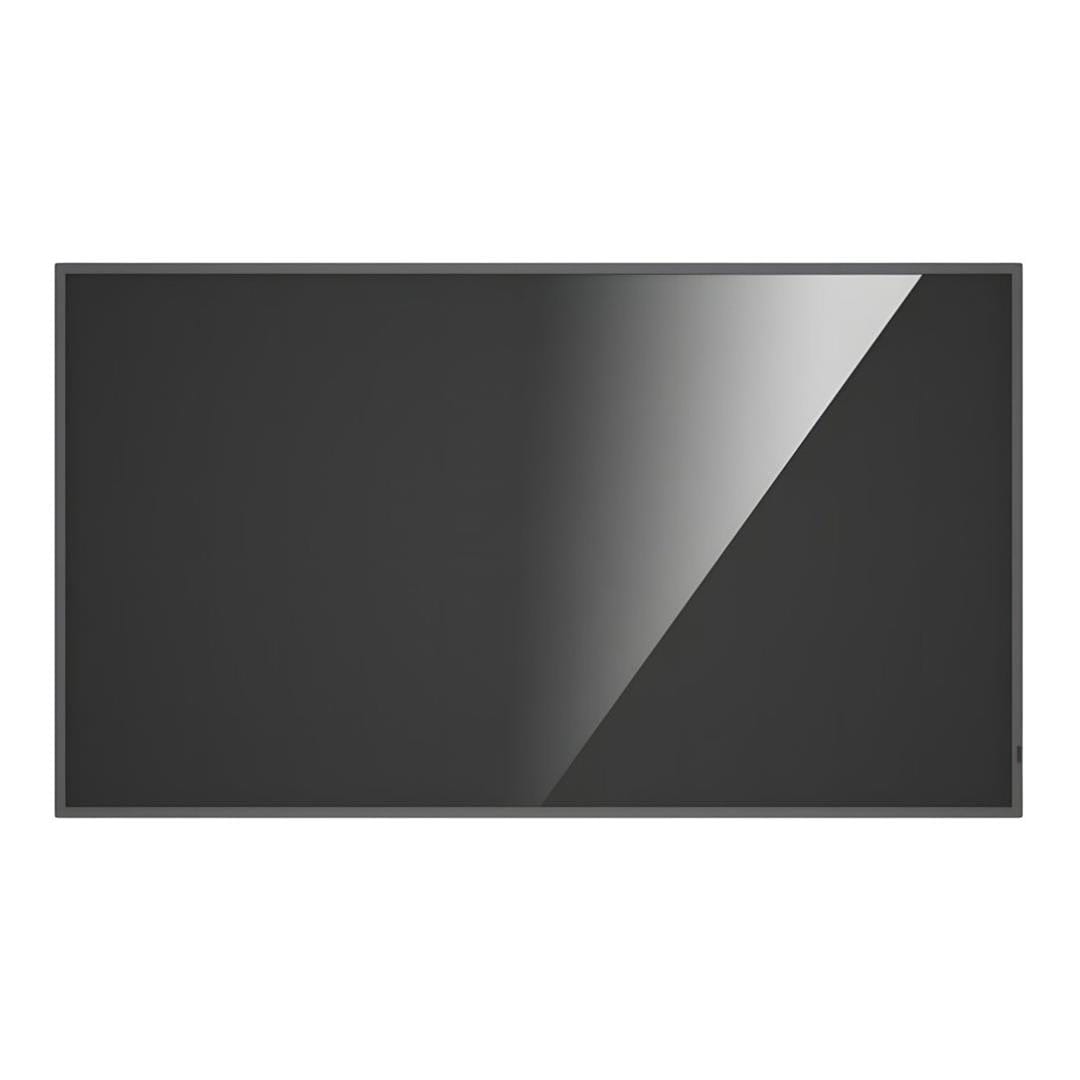

Hikvision 55-inch 4K Digital Signage Panel DS-D6055UH

Hikvision 55-inch 4K Digital Signage Panel DS-D6055UH

Features:

• Plastic shell appearance, slim frame, and all-in-one design.
• Exquisite image, auto-coloring and image-enhancing engine.
• Variable materials, static and dynamic materials, including the pictures, audio, video, scrolling subtitle, PDF, webpages, live video, number calling, pop-up pictures, etc.
• Flexible program schedule, free schedules and district play of multiple materials and variable play modes: play by day, play by week, play by loop, custom play, etc.
• Centralized management, remotely control and manage one screen or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview, remotely release programs and updates local (USB) programs.
• Organization permission, 5-level organization is available for managing materials, programs, terminals, and users, and support creating custom users, allocating permission for users according to user level, and permission templates.
• Multiple security safeguards, 3-level check of materials, programs and schedules to prevent mistake release, encryption of data in storage and transmission to prevent data tampering, and with no default password, users can activate and set initial password to guarantee the password safety.

Technical Specifications:

Display
Screen Size: 55 inch
Viewing Angle: 178° (H) / 178° (V)
Contrast Ratio: 5000:1
Active Display Area: 1209.6 (H) × 680.4 (V) mm
Backlight: DLED
Pixel Pitch: 0.315 (H) × 0.315 (V) mm
Resolution: 3840 × 2160
Brightness: 700 cd/m²
Color Depth: 1.07 billion (8-bit + FRC)
Response Time: 8 ms
Color Gamut: 72% NTSC
Refresh Rate: 60 Hz
Haze: 25%
Reliability: 7 × 24 hours

Built-in System
Operating System: Android 8.0
Processor: A73 × 2 + A53 × 2 (1.7 GHz)
Memory: 3 GB
Storage: 32 GB

Internal Functions
Loudspeaker: Built-in speakers (10 W × 2)

Interface
Video & Audio Input: DVI-I × 1, HDMI 2.0 × 2, DP 1.2 × 1, Audio Line In × 1
Video & Audio Output: DP 1.2 × 1, Audio Line Out × 1
Network Interface: LAN × 1, Wi-Fi × 1
Data Ports: USB 2.0 × 2, TF Card × 1

Processing Performance
Decode Capacity: Supports 1 channel 4K multimedia video and 2 MP video stream decoding

Working Environment
Storage Temperature: -20°C to 60°C
Storage Humidity: 10% to 90% RH
Operating Temperature: 0°C to 40°C
Operating Humidity: 20% to 80% RH

General
Supported Formats: DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, AAC, M4A, XMF, MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG
Power Supply: AC 100 – 240 V
Power Consumption: 175 W (typical), 315 W (max)
Standby Consumption: ≤ 0.5 W
Product Dimensions: 1241.8 × 712.6 × 63.5 mm
Package Dimensions: 1350 × 860 × 160 mm
Net Weight: 16.6 kg
Gross Weight: 23 kg

What’s in the Box:

• Power cord
• Remote control
• User manual
• Warranty card
