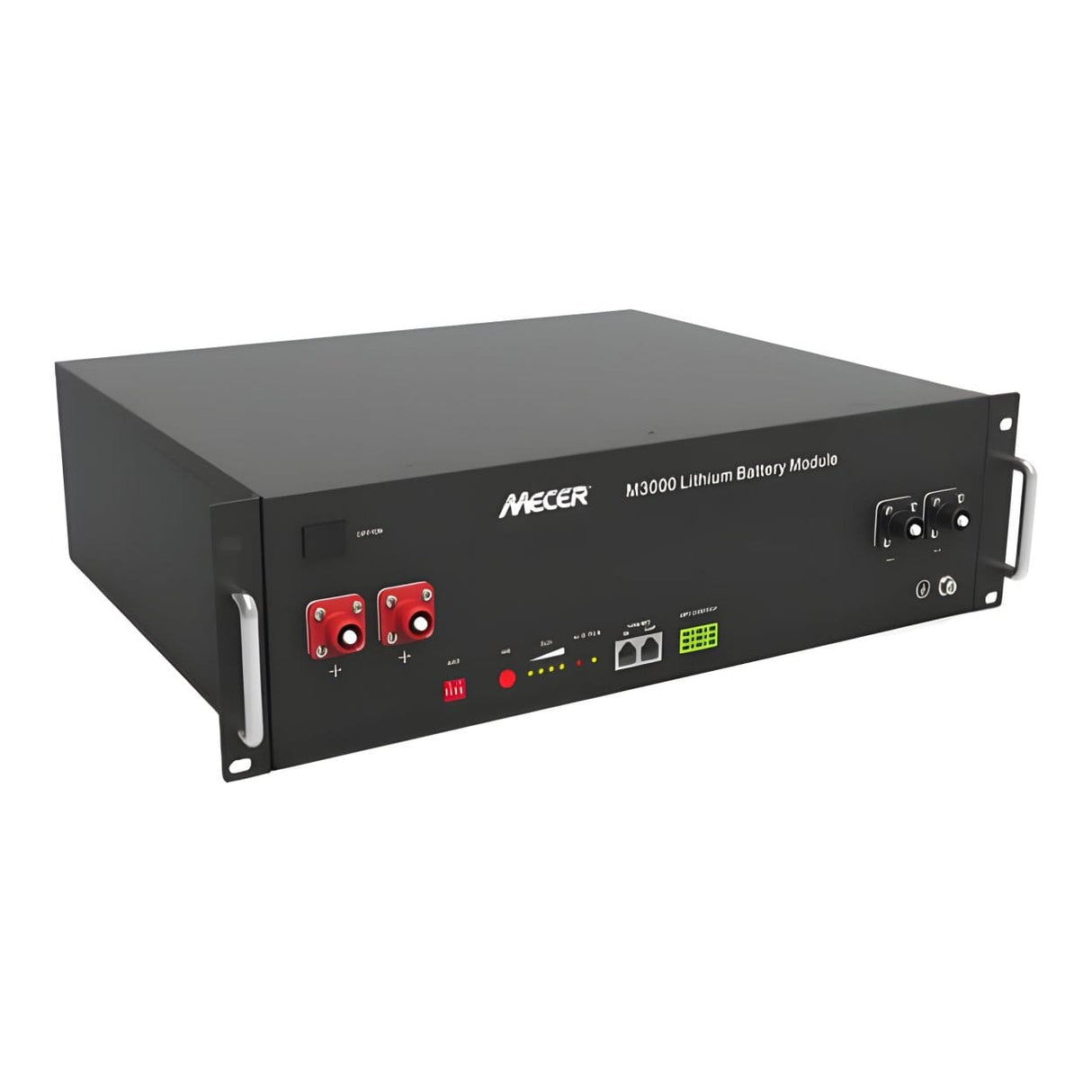

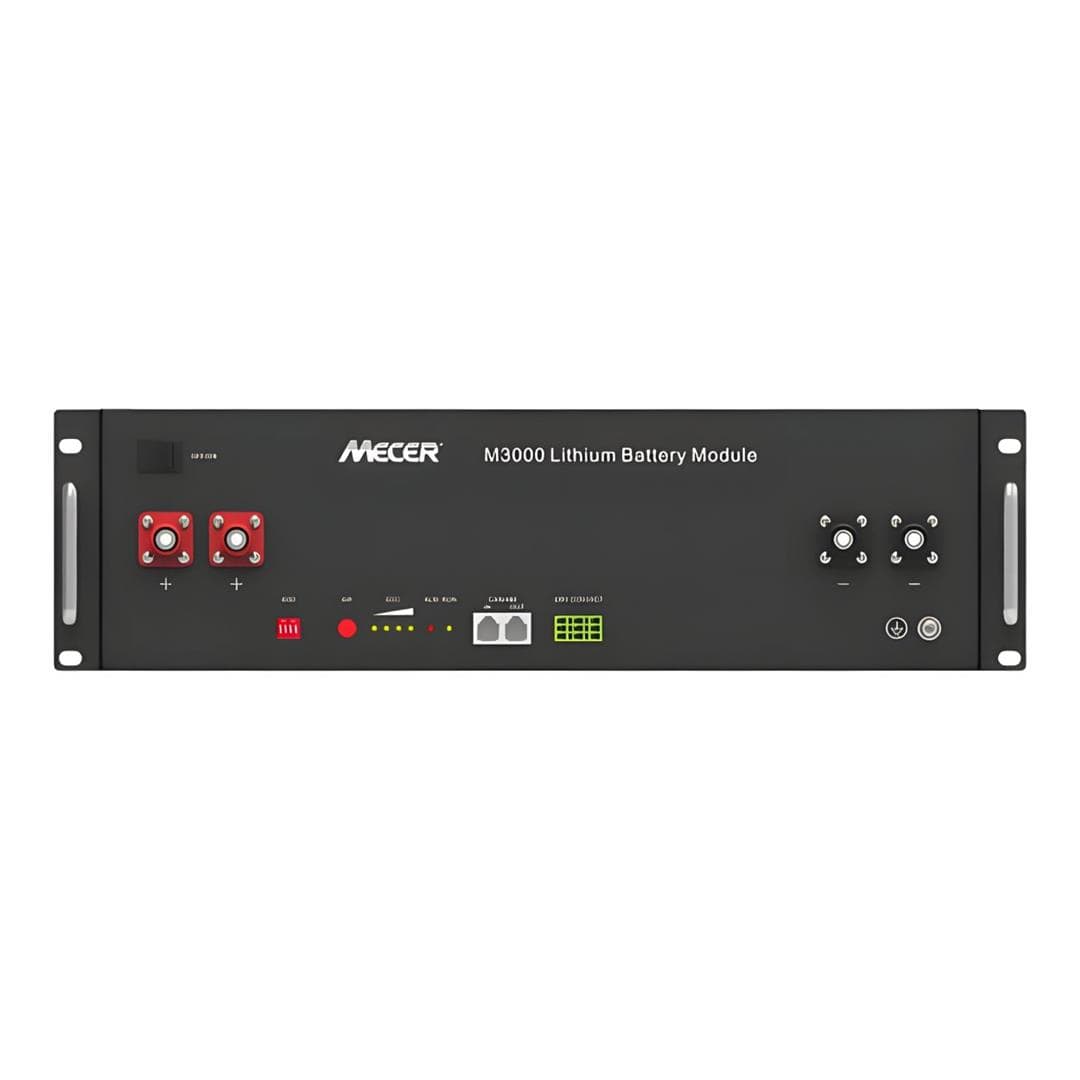

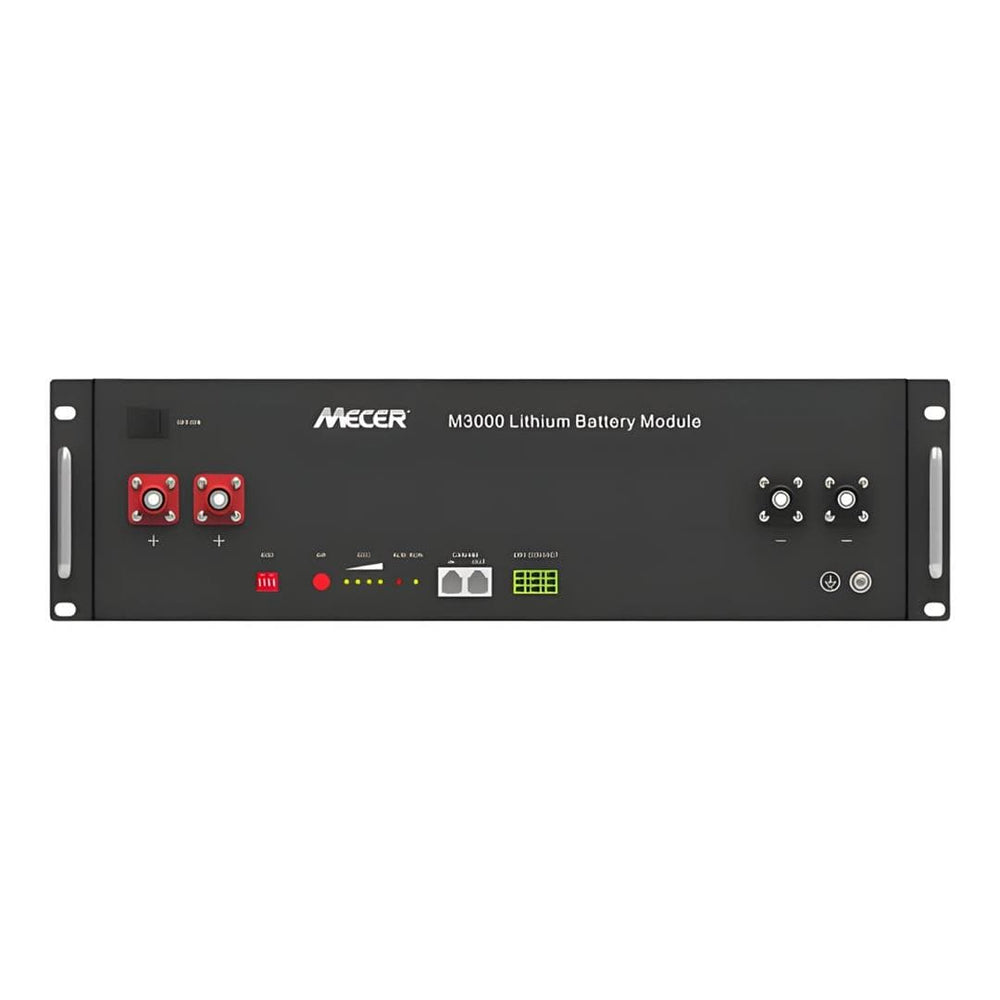

Mecer M3000 3.5kWh 48V 74AH Lithium Battery DYBA4874

Mecer M3000 3.5kWh 48V 74AH Lithium Battery DYBA4874

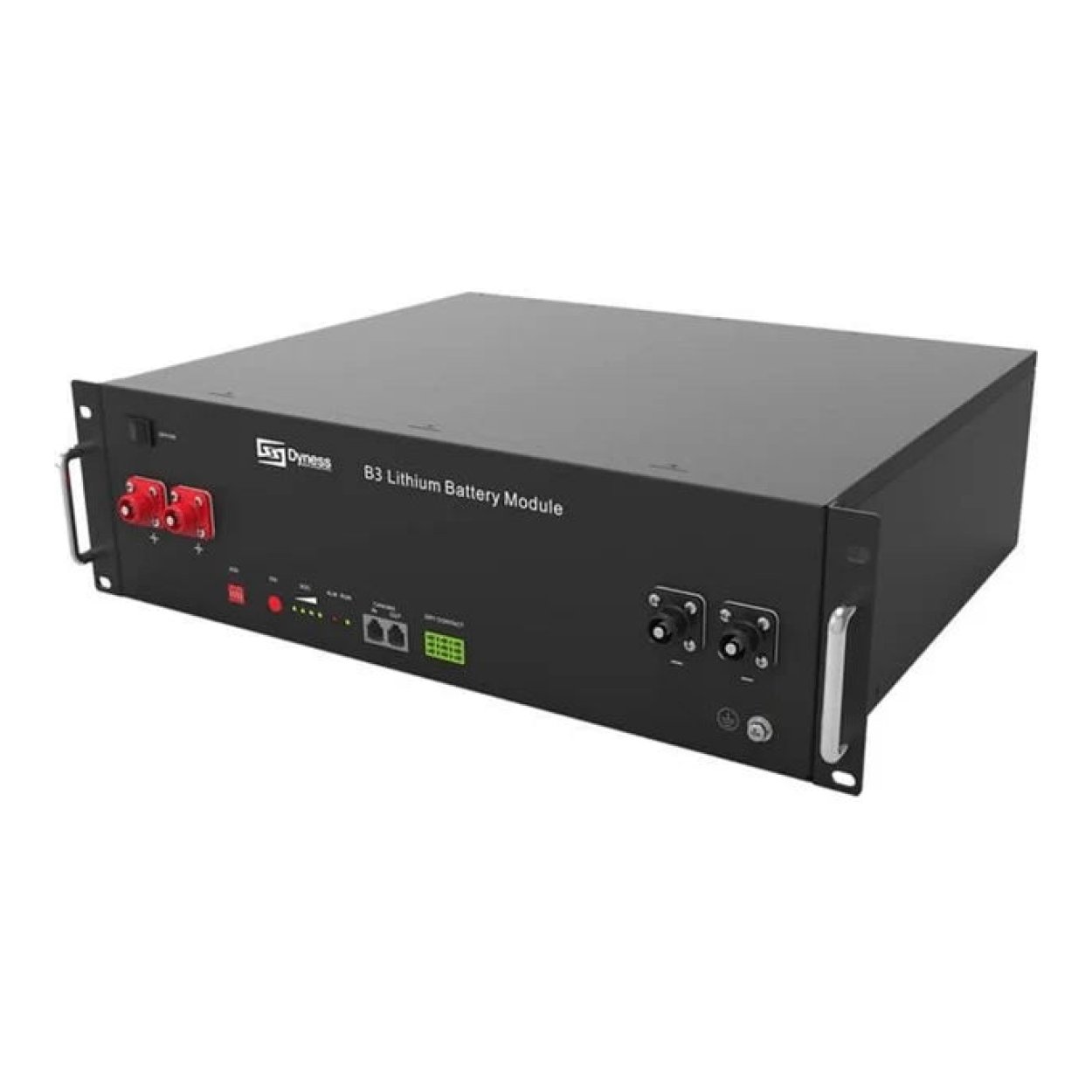

Mecer Dyness B3 3.5 kWh Lithium Battery 48V DC, 6000 cycles calendar life @ 80% DOD, 74Ah nominal capacity, 50A Maximum continuous discharge current, 50A Maximum continuous charge current. The Dyness battery B4850 Module is widely in energy storage and electrical products. Household Energy Storage Systems, Centralized power station energy storage systems.

Features:

• LiFePO4 battery, Safe, Longer life span
• Modular design, Easy to stack, Quick installation
• Larger energy capacity
• Natural cooling with optional heat/fan configuration
• Wide temperature range of -20~50 C

Technical Specifications:

Nominal Energy: 3.55 kWh

Nominal Capacity: 74Ah

Nominal Voltage: 48V

Max. Continuous Discharge Current: 50 A

Max. Continuous Charge Current: 50 A

Charging Cut-off Voltage: 54V

Discharging Cut-off Voltage: 40.5V

Net weight: 30kg

Dimensions [w x d x h]: 400 x 360 x 133.5mm

Protection Level: IP20

Calendar Life: 6000 Cycles (based on 0.2C Charging/Discharging @25 degrees celsius, 80% dod)

Communication: CAN/RS485

Configuration: maximum 40 modules in parallel

Recommended C Rate: 0.5C
