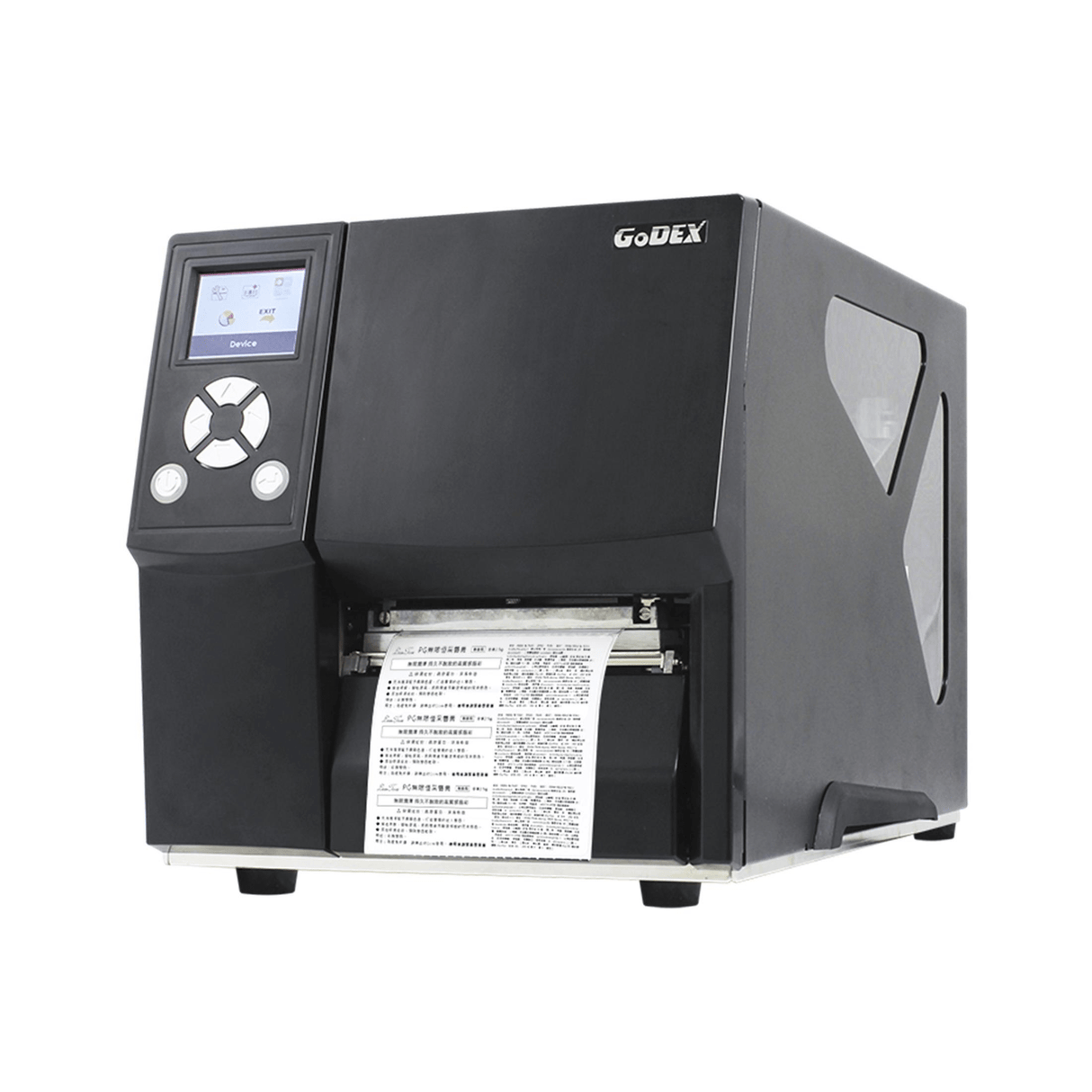

GoDex ZX420i Thermal Transfer Industrial Printer (GODEX 011-42i002-000) - Processor: 32-bit RISC CPU, Print Method: Thermal Transfer / Direct Thermal, Resolution: 203 dpi (8 dots/mm), Print Speed: 6 ips (152 mm/s), Memory: Flash 128 MB Flash (60 MB for user storage), SDRAM 32 MB, Graphics: Resident graphic file types are BMP and PCX, Interfaces: USB 2.0 (B-Type)

The best combination with Compact and Robust Design,Innovating upon extensive customer feedbacks, GoDEX ‘s most cost-effective and space-saving Industrial printers, the GoDEX ZX400/ZX400i series, integrates industrial utility with its high performance and exquisite design.
Large intuitive touch screen LCD allows the user to be in control.Three USB host ports standard allows integration with several devices.
High performance printer designed for high volume applications in mind, up to 4 ips print speed
New hardware ideal for both high volume or precision printing applications, easy and fast ribbon/media loading 600 DPI model

Specifications

Print Method
Thermal Transfer / Direct Thermal

Resolution
203 dpi (8 dots/mm)

Print Speed
6 ips (152 mm/s)

Print Width
4.25” (108mm)

Print Length
Min. 0.16” (4 mm); Max . 157.44” (3999mm)

Processor
32-bit RISC CPU

Memory
Flash 128 MB Flash (60 MB for user storage)
SDRAM 32 MB

Sensor Type
Adjustable reflective sensor and transmissive sensor, left aligned

Media
Type
Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming

Width
Tear:
Min. 1” (25.4 mm) – Max. 4.64” (118 mm)

Cutter:
Max. 4.61” (117 mm)

Dispenser / Rewind:
Max. 4.64” (118 mm)

Thickness
Min. 0.003” (0.076 mm) – Max. 0.01” (0.25 mm)

Label roll diameter
Max. 8” (203.2 mm) with 3" (76.2 mm) core
Max. 6” (152.4 mm) with 1.5" (38.1 mm) core
Max. 5" (127 mm) with 1" (25.4 mm) core

Core diameter
Min. 1 " (25.4 mm) – Max. 3" (76.2 mm)
Ribbon Types
Wax, wax/resin, resin

Length
Max. 1476’ (450 m)

Width
Min. 1.18” (30 mm) – Max. 4.33” (110 mm)

Ribbon roll diameter
3” (76.2 mm)

Core diameter
1” (25.4 mm)

Printer Language
EZPL, GEPL, GZPL auto switch

Software
Label design software
GoLabel (for EZPL only)

Driver
Windows 2000, XP, Vista, Windows 7, 8.1 and 10, Windows Server 2003 & 2008、 MAC、 Linux

DLL
Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10

Resident Fonts
Bitmap Fronts:
6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B

Bitmap fonts
90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable

Bitmap fonts
8 times expandable in horizontal and vertical directions

TTF Fonts (Bold / Italic / Underline).
0°,90°, 180°, 270° rotatable

Download Fonts
Bitmap Fonts
90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable

Asian Fonts
16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese (GB2312), Japanese (S-JIS), Korean (KS-X1001) 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions

TTF Fonts TTF Fonts (Bold / Italic / Underline).
0°,90°, 180°, 270° rotatable

Barcodes
1-D Bar Codes
China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese
Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart

2-D Bar Codes
Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39

Code Pages
Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257

Unicode
UTF8、UTF16BE、UTF16LE

Graphics
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces
USB 2.0 (B-Type)

Control Panel
1 Power on/standby button with green colour LED backlight
1 Calibration button at rear panel
1 Control key:
FEED / PAUSE / CANCEL with dual colour LED backlight: Ready
(Green); Error (Red)

Power
Auto Switching 100-240V AC, 50-60Hz

Real Time Clock
Standard

Environment
Operation temperature
41°F to 104°F (5°C to 40°C)

Storage temperature
-4°F to 140°F (-20°C to 60°C)

Humidity
Operation
20-85%, non-condensing

Storage
10-90%, non-condensing

Agency Approvals
CE (EMC)、FCC Class B、CB、UL、cUL、CCC

Dimension
Length
15.86” (403 mm)

Height
10.79” (274 mm)

Width
10.24” (260 mm)

Weight
23.81lbs (10.8 Kg), excluding consumables
