Cooler Master X Silent Edge 1100W 80 PLUS Platinum ATX PSU MPS-B001-AZBP-NBEU

Cooler Master X Silent Edge 1100W 80 PLUS Platinum ATX PSU MPS-B001-AZBP-NBEU

Precise Silent Power

Engineered with a fanless design and industrial IC components, X Silent Edge Platinum features out Heat Pipe.Dissipation Patent, ensuring quietness for even the most noise-sensitive environments.

NO FAN, NO DUST

Equipped with a heat pipe and an innovative modular thermal structure, our design enhances thermal efficiency, essential for the low-temperature rise of key components and the ultra-quiet fanless operation.

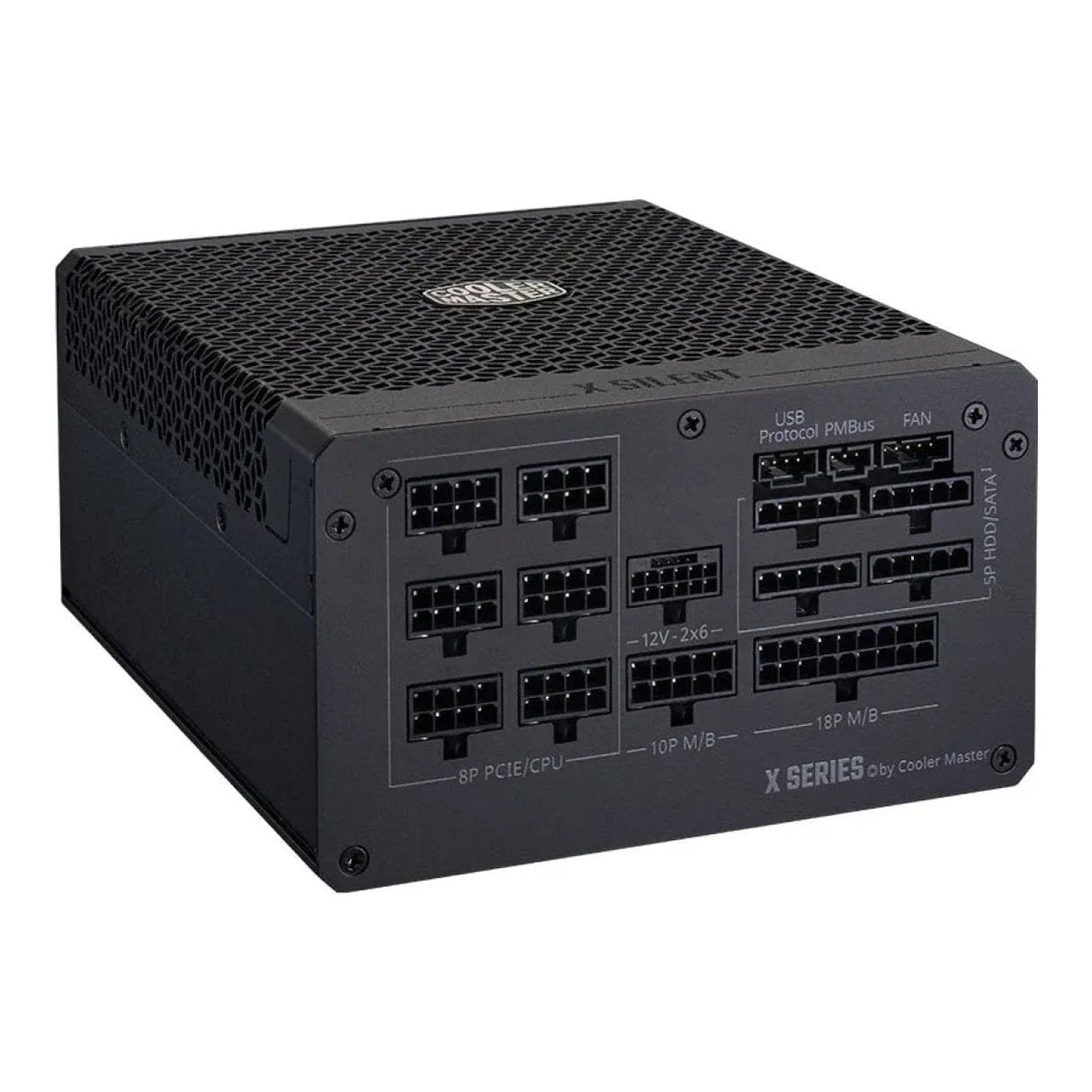

FULLY MODULAR CABLING

Modular cabling minimizes clutter, while the additional ports provide extra functionality.

Patented Heat Decentralized Design

Our Private Aluminum Thermal Mold effectively dissipates heat, and the Innovative Heat Pipe Thermal Tech uniformly regulates unit temperature. This ensures superior thermal control, enhancing efficiency and longevity in demanding environments.

Patented Copper-Aluminum Heat Dissipation

In-house designed composite heat pipe technology enables effective passive thermal management.

Digital Power Management System & MasterCTRL

Equipped with MCUs and Integrated with MasterCTRL software, our reliable PSU meticulously monitors temperature, current load and efficiency in real-time, offering precise and direct oversight.

Specifications:

Model: MPS-B001-AZBP

ATX Version: ATX 12V Ver. 3.1

PFC: Active PFC

Input Voltage: 200-240V

Input Current: 6.1A (Max.)​

Input Frequency: 50-60Hz

Dimensions (L x W x H): 180 x 150 x 86 mm

Efficiency: ≥ 94% @ Typical Load

80 PLUS Rating: 80 PLUS Platinum

ErP 2014 Lot 3: Yes

Operating Temperature: 0-40°C

Power Good Signal: 100 - 150 ms

Hold Up Time: ≥ 16ms

MTBF: >100,000 Hours

Protections: OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection

Regulatory: TUV, CE, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)

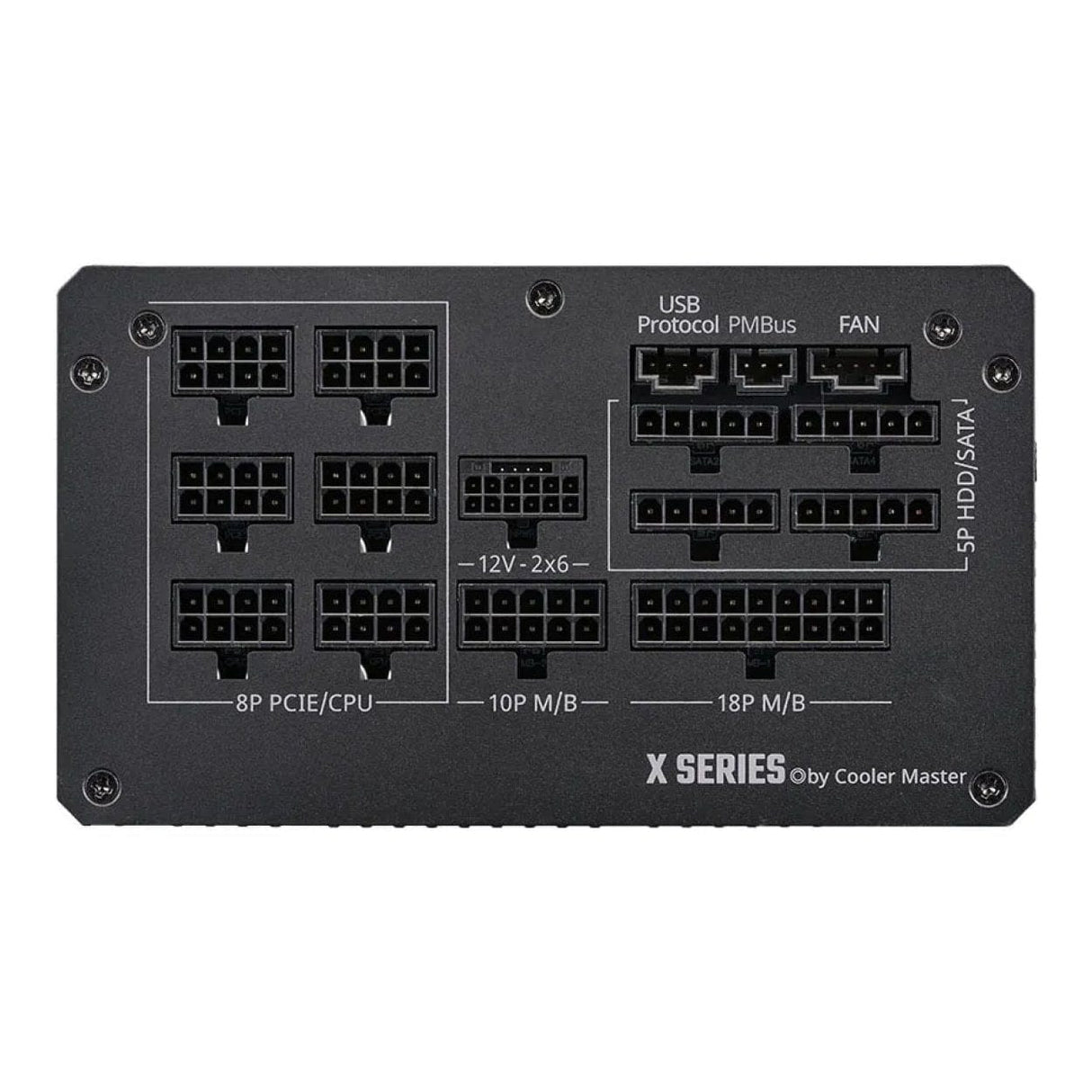

ATX 24 Pin Connectors: 1

EPS 4+4 Pin Connectors: 1

EPS 8 Pin Connector: 1

SATA Connectors: 12

Peripheral 4 Pin Connectors: 4

PCI-e 6+2 Pin Connectors: 4

12V-2x6 Connectors: 1

USB 10P Connector: 1

PMBus 5 Pin Connector: 1

External Fan 4Pin Connectors: 1

Input Voltage Range: 230V

ATX Version: ATX 3.1

Series: X Series

80 Plus Efficiency: Platinum

Form Factor: ATX

Watts: 1100W
