TP-Link Archer MR202 AC750 Wireless Dual-Band 4G LTE Router

TP-Link Archer MR202 AC750 Wireless Dual-Band 4G LTE Router

AC750 Wireless Dual Band 4G LTE Router

• Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
• Powerful, integrated antennas provide stable wireless connections and better coverage
• Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
• Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band
• Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type

Enjoy 4G Wireless Sharing Everywhere

AC750 Wireless Dual Band 4G LTE Router

Share Your 4G LTE Network

Take full advantage of your cutting-edge 4G LTE network with the Archer MR202, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies, rapid file downloads that won't freeze up. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.

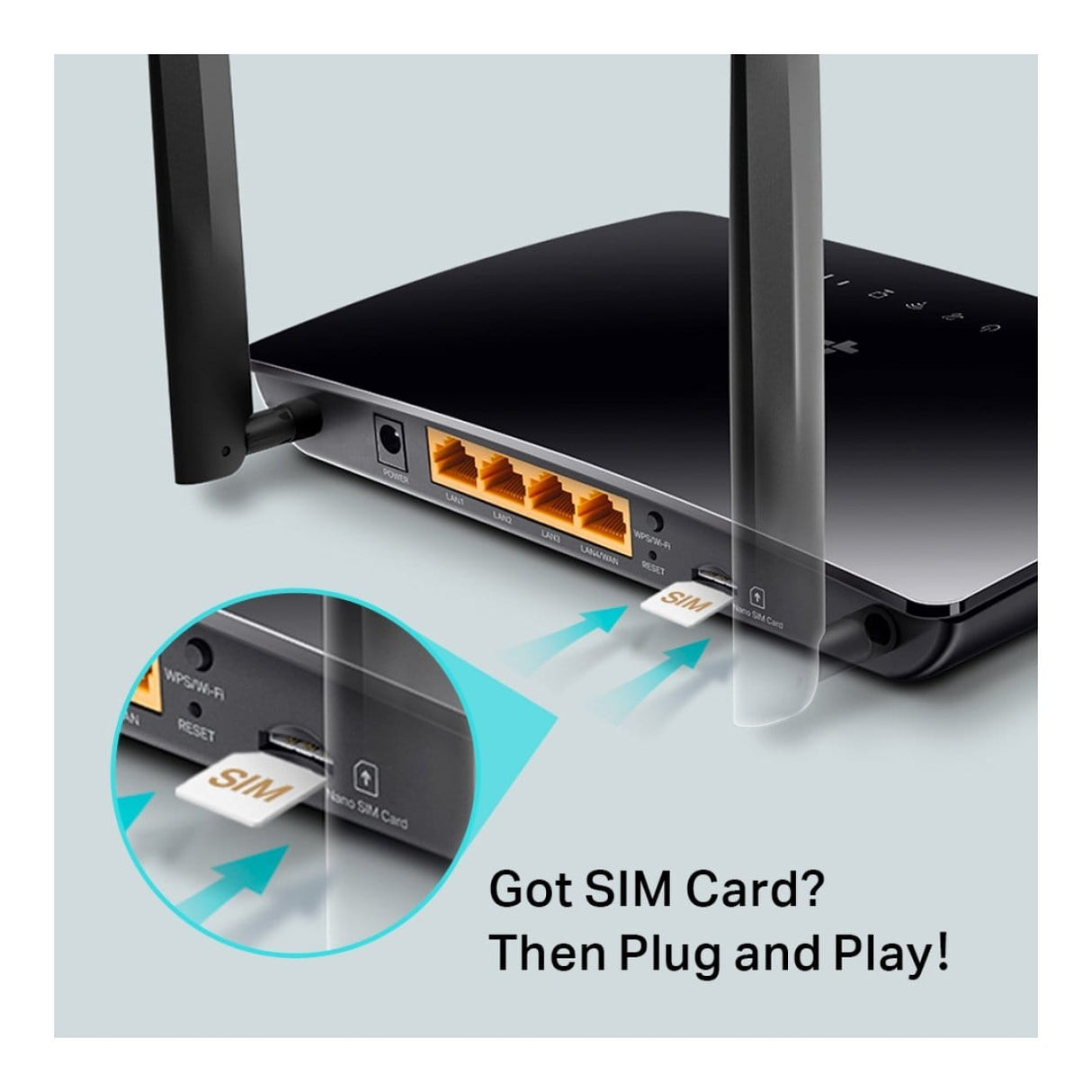

Got SIM Card?
Then Plug and Play!

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR202. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Internet Access for up to 64 Devices Simultaneously

The Archer MR202 can easily share a 3G/4G connection with up to 64 wireless devices like tablets, laptops and mobile phones at the same time. It can also provide internet access for desktop computers via the LAN ports.

Wi-Fi Where You Need It

The Archer MR202 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR202 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR202 has you covered.

Support TP-Link OneMesh™

Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
*OneMesh Range Extender or Powerline Adapter sold separately.

Available WAN Connection

The WAN/LAN port enables Archer MR202 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Management

Set up the Archer MR202 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control from any Android or iOS device. Control your home network whenever and wherever you are.

Specifications:

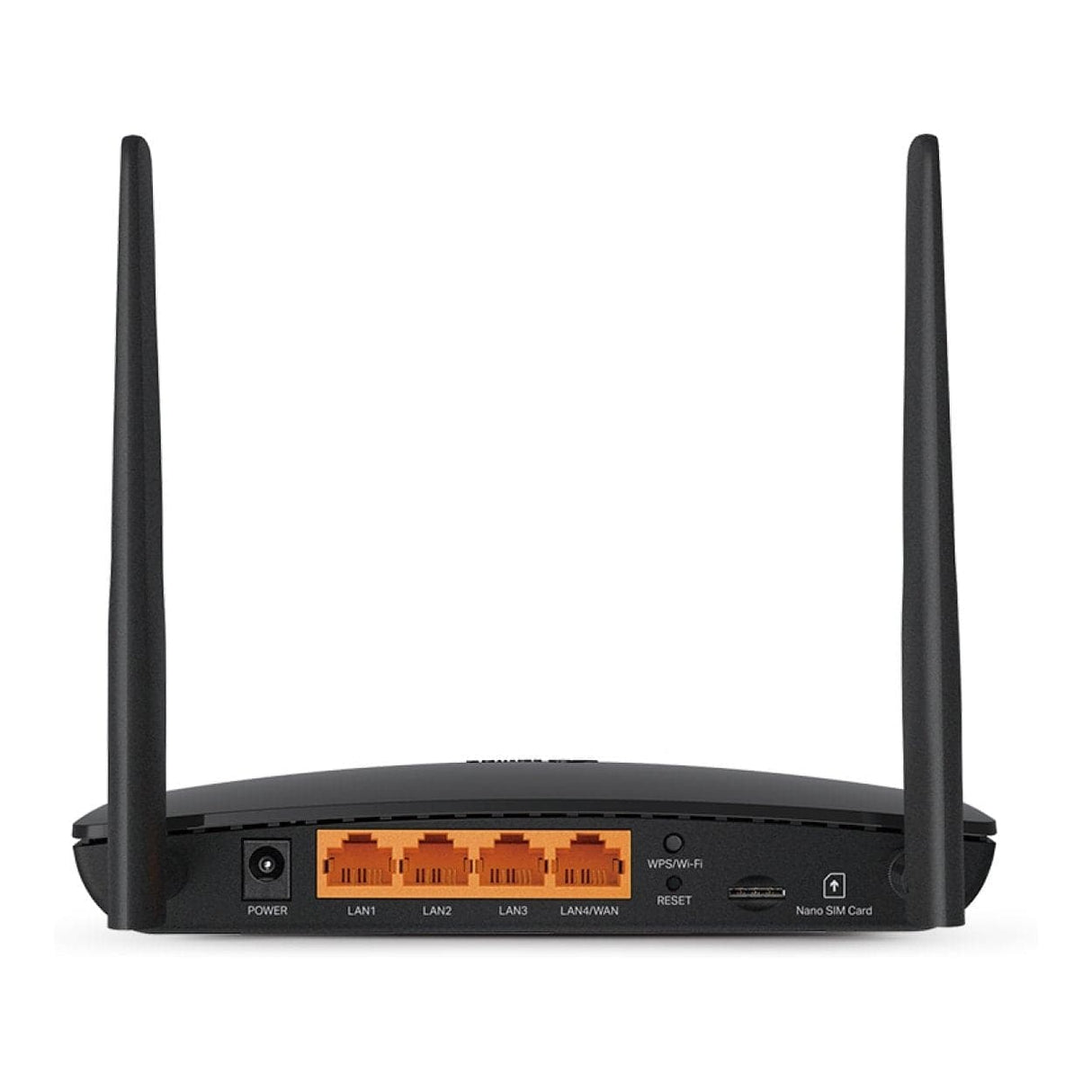

Interface:

• 3× 10/100Mbps LAN Ports
• 1× 10/100Mbps LAN/WAN Port
• 1× Nano SIM Card Slot
• 2× External SMA-F Antenna Interface

Button: WPS/Wi-Fi Button, Reset Button

External Power Supply: 12V/1A

Dimensions (W x D x H): 174 × 124.5 × 33.5 mm

Antenna: 2 Detachable External 4G LTE Antennas

WIRELESS FEATURES

Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency: 2.4 GHz and 5 GHz

Signal Rate: 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz

Reception Sensitivity

5 GHz:

• 11a 54M: -78 dBm
• 11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm
• 11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm
• 11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm

2.4 GHz:

• 11g 54M: -74 dBm
• 11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm
• 11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm

Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

WAN Failover: Yes

Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Transmission Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

Network Type

• 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
• TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
• 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Quality of Service: Prioritizes network traffic by device or application

Operating Modes: 3G/4G Router, Wireless Router

WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management Features: Access Control, Local Management, Remote Management, reboot schedule

DHCP: Server, DHCP Client List, Address Reservation

Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS: DynDns, NO-IP, TP-Link DDNS

Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding

Protocols: Supports IPv4 and IPv6

Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1

VPN Server: PPTP VPN, OpenVPN
