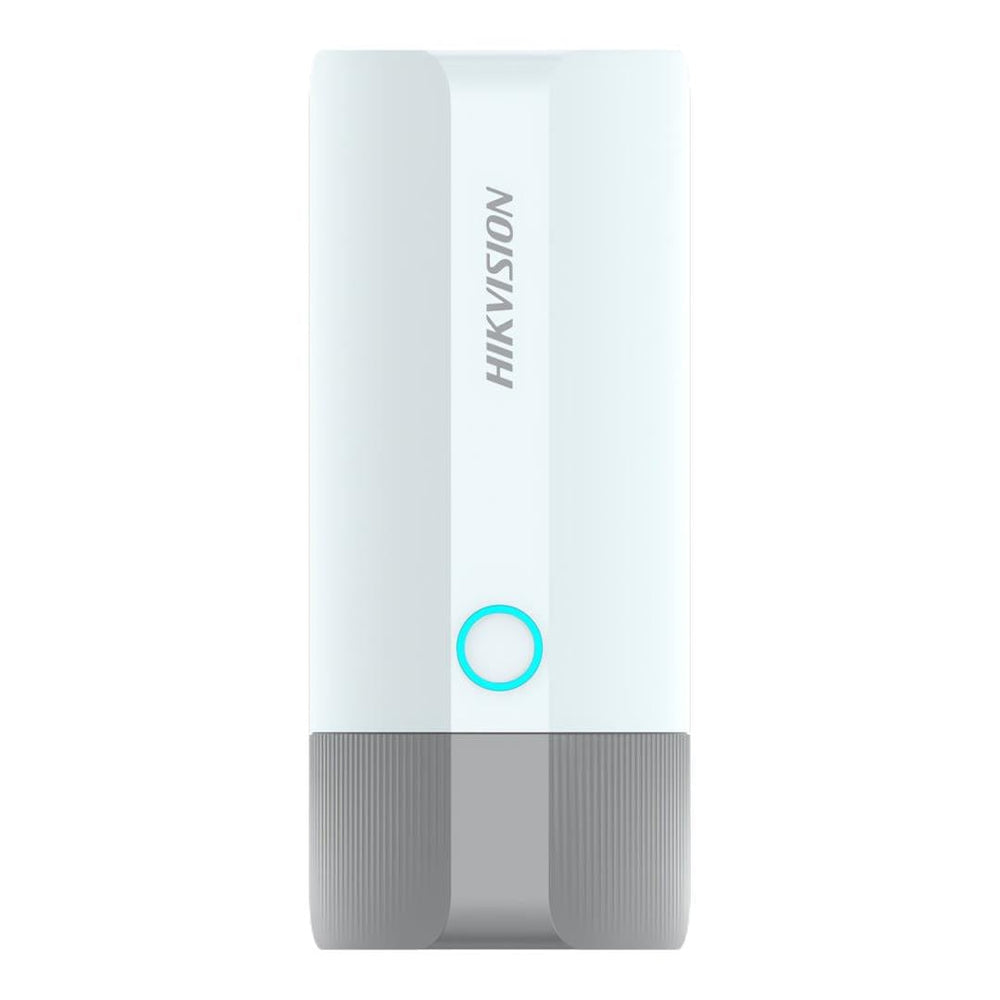

Hikvision Wi-Fi 6 3000M Outdoor Access Point DS-3WAP623E-SI

Hikvision Wi-Fi 6 3000M Outdoor Access Point DS-3WAP623E-SI

DS-3WAP623E-SI wireless access point is a new generation of outdoor 802.11ax AP products developed by IEEE 802.11 working group. The product adopts the design of dual radio frequency and four streams to solve the outdoor and other harsh environment coverage scenarios. Meeting the wireless coverage requirements of outdoor scenarios such as small, medium and micro enterprises.

Features

• Gigabit Port with PoE Input
• 802.11ax Wi-Fi 6 2975 Mbps
• 100+ Concurrent User Connections
• Auto RF Optimization
• Support Intelligent Fast Roaming

Technical Specification

Interface: 1x Gigabit RJ45 uplink port

Maximum Number of Clients: 256

Recommended Number of Clients: 100

Maximum Number of SSIDs: 8

Working Frequency Band: Radio 1: 5G(11a/n/ac/ax), Radio 2: 2.4G(11b/g/n/ax)

Wi-Fi Standards: Wi-Fi 6

Wi-Fi Speed: 2.4G: 575 Mbps ; 5G: 2400 Mbps

Spatial Streams: 2.4GHz, 2 × 2 , MU-MIMO ; 5GHz, 2 × 2 , MU-MIMO

Channel Width: 2.4 GHz: Auto/20 /40 MHz ; 5 GHz: Auto/20 /40 /80/ 160MHz

Number of Antennas

• 2.4GHz: 2
• 5GHz: 2

Antenna Type: Built-in omnidirectional antennas

Antenna Gain: 2.4 GHz: 10 dBi,5 GHz: 5 dBi

Transmit Power: 23 dBm

Modulation Technology

•  OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
•  DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
•  MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9

Power Supply: IEEE 802.3af/at POE, 48 VDC 0.3A

LED Indicator: Yellow/green/blue for different working states, flashing mode

Reset Button: Hardware Resetting Button

Installation Mode: Wall-Mounted,Pole

IP Rating: IP68

Product Dimensions (W × H × D): 102 x 110 x 250 mm

Weight: 1.07 kg

Packing List

• 1x 3000 M Access Point
• 1x Screw Pack
• 1x Quick Start Guide
• 1x Regulatory Compliance and Safety Information
