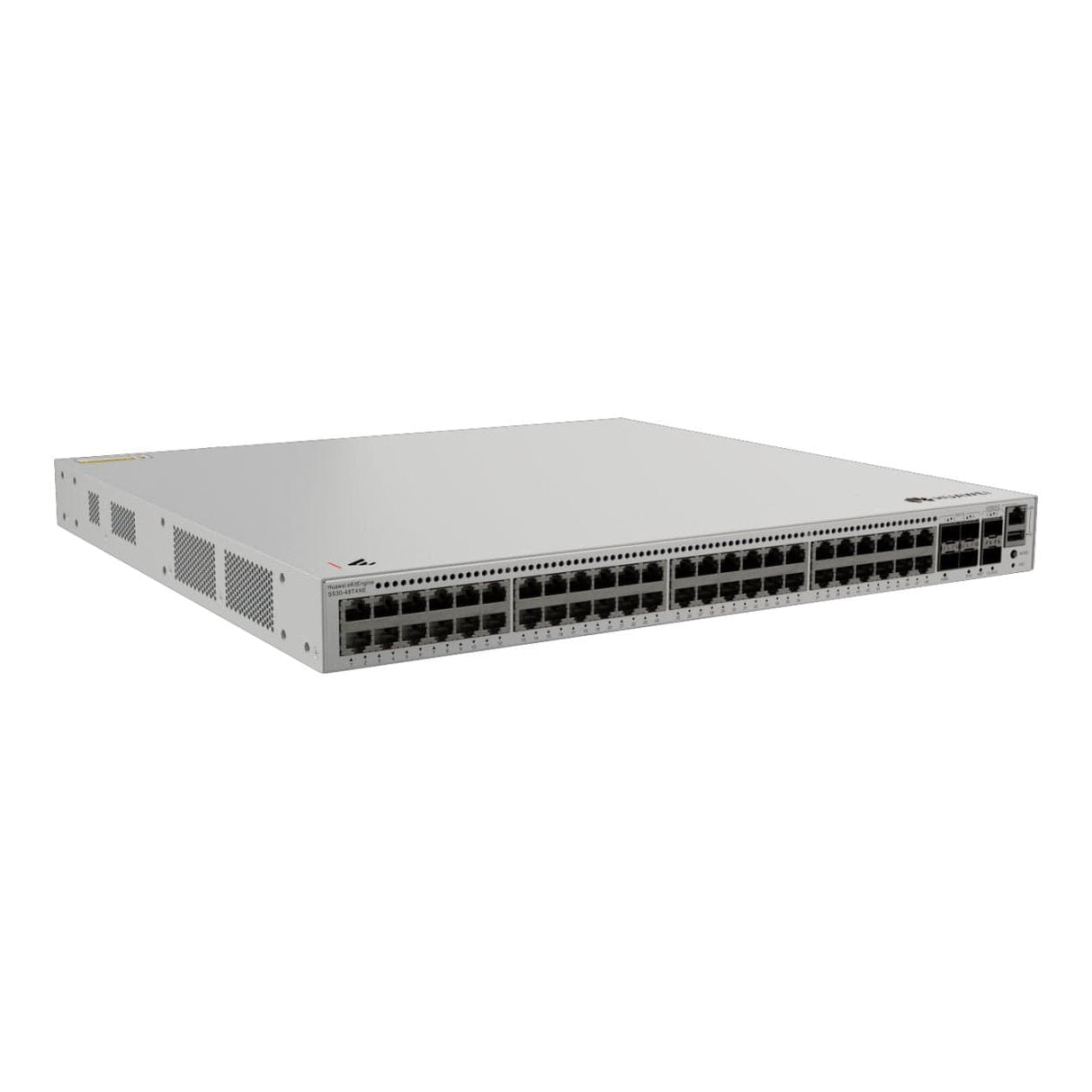

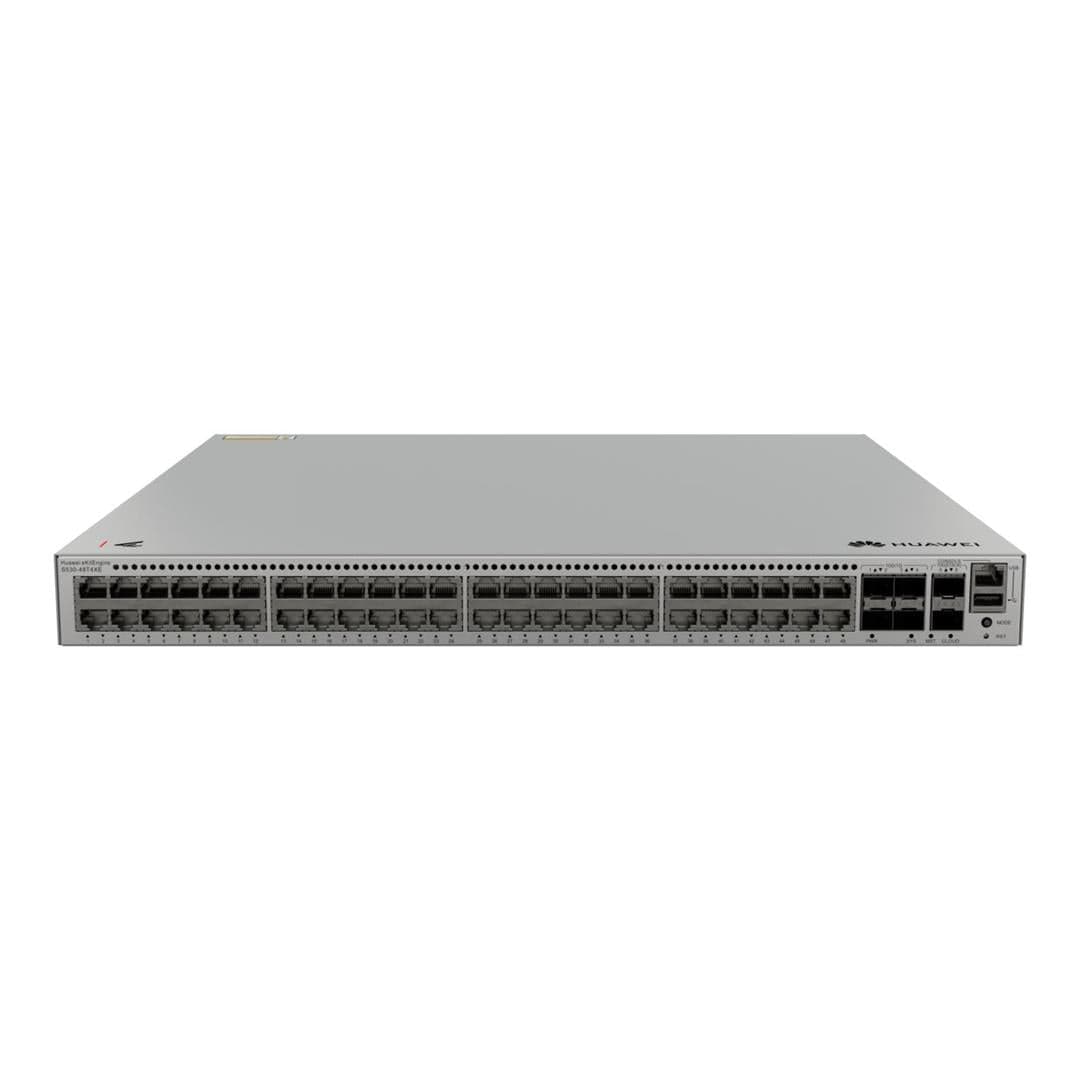

Huawei eKitEngine S530-48T4XE 48-port L3 Managed Network Switch with 4x SFP Ports 98012951

Huawei eKitEngine S530-48T4XE 48-port L3 Managed Network Switch with 4x SFP Ports 98012951

Huawei eKitEngine S530 series switches (S530 for short) are enhanced fully-managed gigabit switches designed for the small- and medium-sized business (SMB) market. They offer multiple models, such as those with twenty-four GE electrical ports, twenty-four GE optical/electrical hybrid ports, and forty-eight GE optical ports. These switches feature flexible Ethernet networking, diversified security control, rich management methods, higher performance, and extended service processing capabilities. Therefore, they can be widely used as core switches on a small campus network or access switches on a large or midsize campus network.

Intelligent Stack (iStack)

eKitEngine S530 series switches support iStack. Multiple switches of the same series can be logically stacked into one virtual switch.Member devices in a stack implement redundancy to improve device reliability and use inter-device link aggregation to improve link reliability.

iStack provides high network scalability. You can increase ports, bandwidth, and processing capacity of a stack by simply adding member switches to the stack.iStack simplifies device configuration and management. After a stack is set up, multiple physical switches are virtualized into one logical device. You can log in to any stack member switch to manage all the member switches in the stack.

eKitEngine S530 series switches have two dedicated stack ports, which do not occupy service port bandwidth or require additional stack cards, making them suitable for multiple scenarios.

Specifications:

Switching capacity: 216 Gbps

Packet forwarding rate: 160 Mpps

Fixed port: 48 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, 2 x 10GE dedicated stack ports

Chassis dimensions (H x W x D): 43.6 mm x 442 mm x 420 mm

Chassis height: 1 U

Weight in full configuration (including packaging materials): 7.19 kg (15.85 lb)

Power module type: 80 W AC power module, 180 W AC power module, 240 W DC power module, Pluggable power module, 1+1 backup

Rated voltage: AC input: 100 V AC to 240 V AC,50/60 Hz, High-voltage DC input: 240 V DC, DC input: –48 V DC to –60 V DC

Maximum voltage: AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-voltage DC input: 190 V DC to 290 V DC, DC input: –38.4 V DC to –72 V DC

Maximum power consumption: 55.12 W (with two 80 W AC power modules), 64.51 W (with two 180 W AC power modules)

Noise: Sound power at normal temperature: 41.9 dB (A), Sound power at high temperature: 58.6 dB (A), Sound pressure at normal temperature: 29.9 dB (A)

Long-term operating temperature: –5°C to +50°C (0 m to 1800 m), 1800 m to 5000 m: The operating temperature decreases by 1°C for every increase of 220 m in altitude.

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Relative humidity: 5% RH to 95% RH, non-condensing

Power port surge protection: AC power port: ±6 kV in differential mode, ±6 kV in common mode, DC power port: ±2 kV in differential mode, ±4 kV in common mode

Heat dissipation mode: Air cooling, intelligent fan speed adjustment
