Description
Description

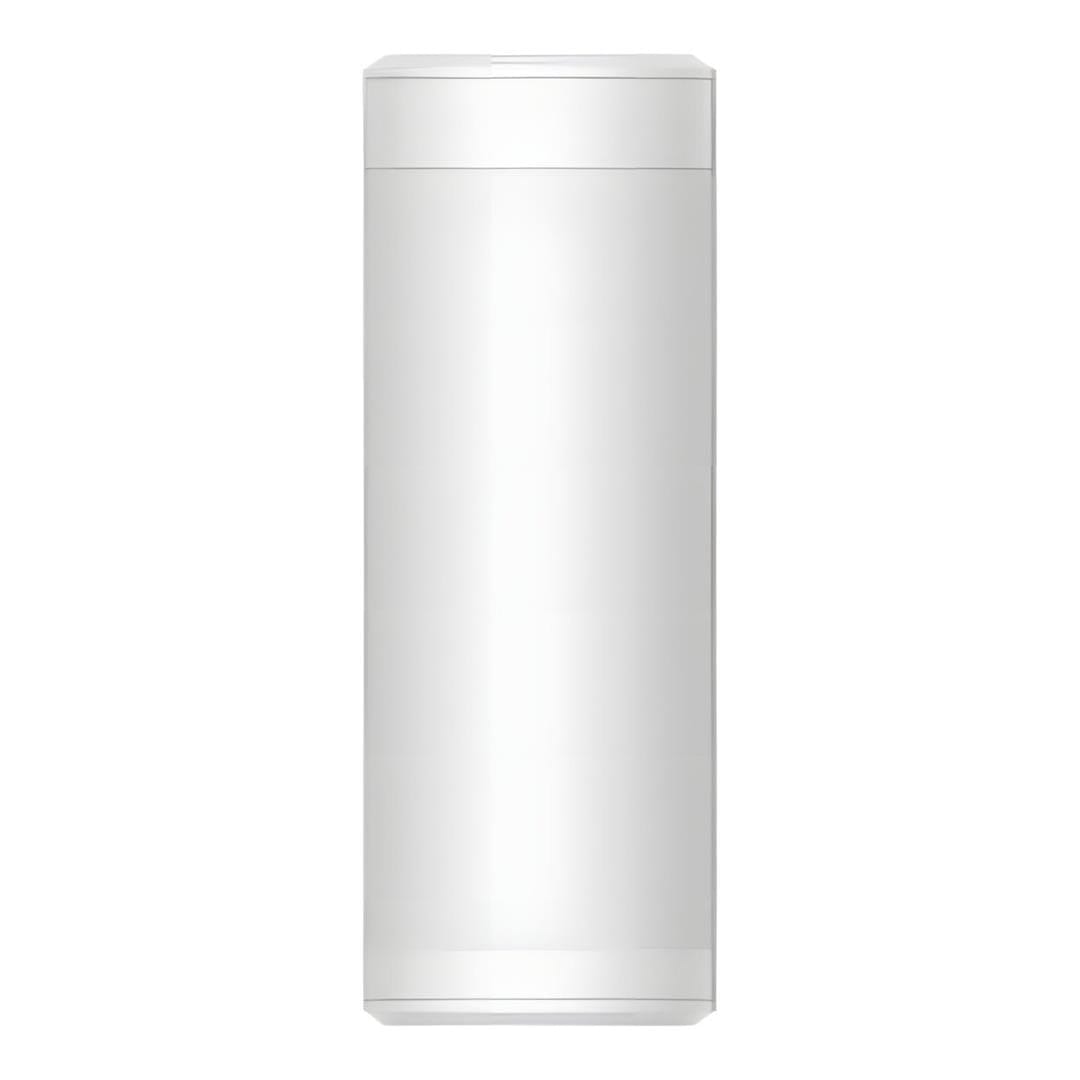

Hikvision Wired Triple Signal Detector DS-PDTT15AM-LM
Features:
- 90°@180° adjustable coverage
- IP65 weather resistance for outdoor application
- Active IR anti-masking
- Automatic sensitivity
- Selectable EOL resistors for alarm and tamper-proof wiring
Technical Specifications:
Detection Performance
Detection Method
Passive Infrared; Microwave
Detection Range
15 m
Detection Angle
90° @ 180° adjustable
Detection Zones
92
Detectable Speed
0.3~2 m/s
Sensitivity
Auto; Low
White Light Filter
10000 lux
Microwave Frequency
24 GHz (24.15~24.25 GHz)
Pet Immunity
40 Kg
Digital Temperature Compensation
Support
Anti-Masking
Support
Adaptable Coverage
Support
Pattern Mask
Included
Feature
Digital Processing
Tri-Signal Logic
Sealed Optics
Support
Tamper Protection
Front; Rear
Anti-Sway Analytics
Support
Interface
Alarm Output
Normally Closed
LED Indicator
Green (Top PIR), Red (Microwave), Orange (Bottom PIR), Green+Orange (Mask), Blue (Alarm)
Transmission
Transmission Method
Wired
Electrical Characteristics
Power Consumption
30 mA (Standard), 220 mA Max (With lighting on)
Power Supply
9 to 16 VDC
Typical Voltage
12 VDC
General
Operation Temperature
-25 °C to 60 °C (-13 °F to 140 °F)
Storage Temperature
-25 °C to 60 °C (-13 °F to 140 °F)
Operation Humidity
10% to 90%
IP Rate
IP65
Dimension (W × H × D)
75 mm × 202 mm × 73 mm
Weight
350 g
Mounting Height
0.8 to 1.2 m
Mounting Method
Wall
Application Scenario
Outdoor
