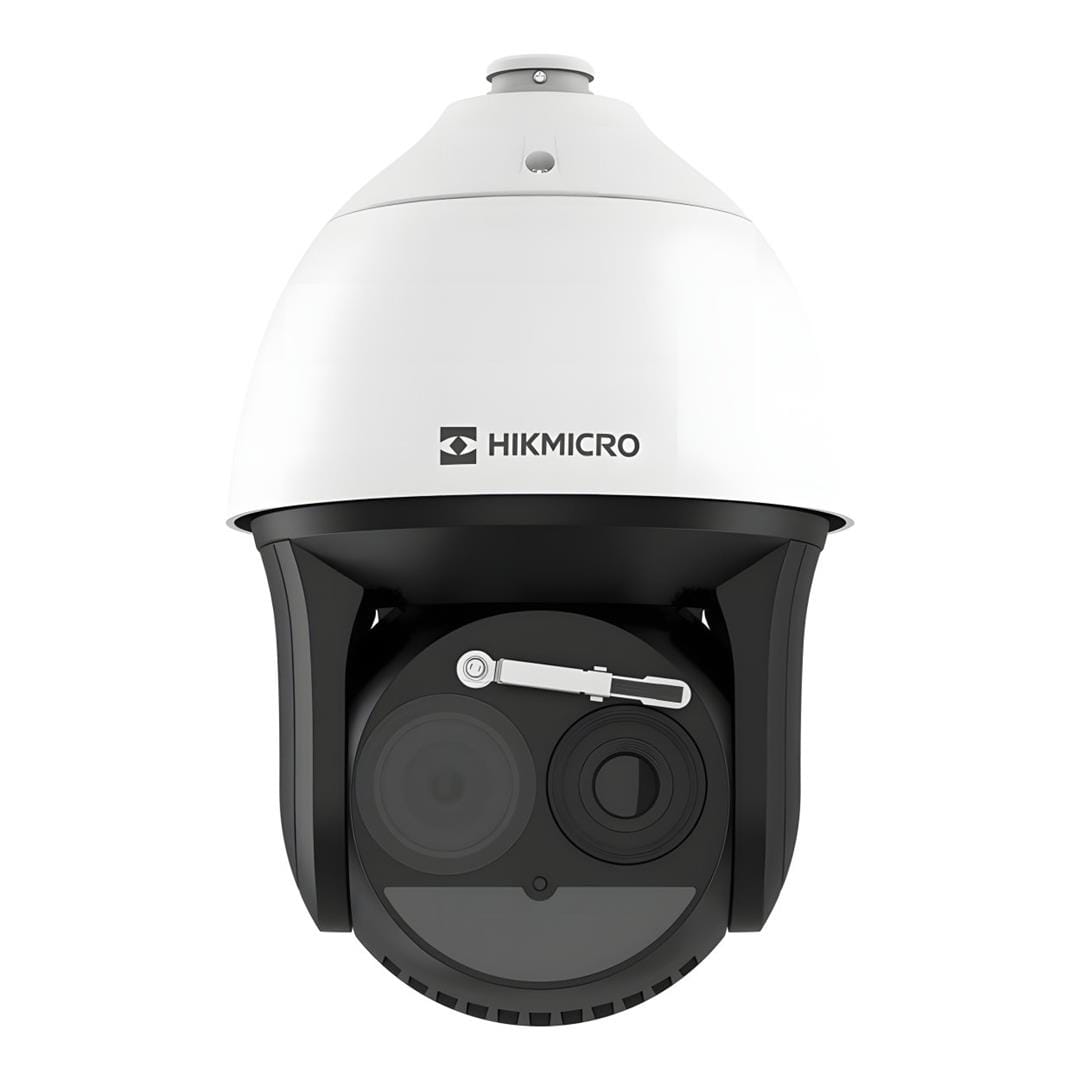

Hikvision Thermal & Optical Bi-spectrum Network Speed Dome Camera HM-TD4137-25/WY

Hikvision Thermal & Optical Bi-spectrum Network Speed Dome Camera HM-TD4137-25/WY

Features:

• Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance and exit
• Temperature exception alarm for fire prevention
• 384 × 288 (the resolution of output image is 384 × 288) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)
• Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
• High quality detector with 10 years guarantee
• Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
• Thermal channel supports EIS, conflicted with intelligent function
• Fire and smoke detection algorithm
• Anti-corrosion coatings

Technical Specifications:

Thermal Module

Image Sensor
VOx Uncooled Focal Plane Arrays

Resolution
384 × 288

Pixel Interval
17 μm

Response Waveband
8 μm To 14 μm

NETD
Less Than 40 mK (@ 25 °C, F# = 1.0)

Focal Length
25 mm

Focus Mode
Athermalized

IFOV
0.68 mrad

Aperture
F1.0

Field Of View
14.9° × 11.2° (H × V)

Minimum Focusing Distance
13 m

Digital Zoom

• ×2
• ×4
• ×8

Optical Module

Image Sensor
1/1.8-Inch Progressive Scan CMOS

Resolution
2688 × 1520 (4 MP)

Minimum Illumination

• Color: 0.005 Lux @(F1.3, AGC On)
• B/W: 0.001 Lux @(F1.3, AGC On)

Field Of View
56.6° × 33.7° (H × V) To 1.8° × 1.0° (H × V)

Focal Length
6–240 mm (40× Optical Zoom)

Aperture Range
F1.3–F4.6

Focus Mode
Semi-Auto / Manual

Digital Zoom

• ×2
• ×4
• ×8
• ×16

Shutter Speed
1 s To 1/30,000 s

Wide Dynamic Range (WDR)
120 dB

Optical Defog
Yes

Image Features

• Picture-In-Picture (Thermal Overlay On Optical Image)
• Target Coloration Supported In White Hot And Black Hot Modes

PTZ Specifications

Movement Range

• Pan: 360° Continuous Rotation
• Tilt: -20° To +90° (Auto Flip)

Pan Speed
0.1°/s To 200°/s (Preset Speed: 240°/s)

Tilt Speed
0.1°/s To 105°/s (Preset Speed: 200°/s)

Proportional Zoom
Yes

Presets
300 Total (273 Configurable)

Patrol Scan
8 Patrols, Up To 32 Presets Per Patrol

Pattern Scan
4 Patterns, More Than 10 Minutes Per Pattern

Power-Off Memory
Yes

Park Actions

• Preset
• Pattern Scan
• Patrol Scan
• Auto Scan
• Tilt Scan
• Random Scan
• Frame Scan
• Panorama Scan

Scheduled Tasks

• Preset
• Pattern Scan
• Patrol Scan
• Auto Scan
• Tilt Scan
• Random Scan
• Frame Scan
• Panorama Scan
• Dome Reboot
• Dome Adjust
• Auxiliary Output

Illuminator

IR Distance
Up To 150 m

IR Control
Intensity And Angle Automatically Adjusted

Smart Functions

Video Content Analysis (VCA)
Supports 4 Rule Types:

• Line Crossing
• Intrusion
• Region Entrance
• Region Exiting

Supports Up To:

• 10 Scenes
• 8 VCA Rules Per Scene

Temperature Measurement

Temperature Rule Types
3 Rule Types Supported

Temperature Range
-20 °C To 150 °C (-4 °F To 302 °F)

Temperature Accuracy
± 8 °C (±14.4 °F)

Temperature Measurement Capacity
21 Rules Per Scene Including:

• 10 Points
• 10 Areas
• 1 Line

Fire Detection
Dynamic Fire Detection With Up To 10 Fire Points

Video And Audio

Main Stream – Thermal Channel

• 50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288)

Main Stream – Optical Channel

50 Hz

• 25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz

• 30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream – Thermal Channel

• 50 fps (704 × 576, 640 × 512, 384 × 288)

Sub-Stream – Optical Channel

50 Hz

• 25 fps (704 × 576, 352 × 288)

60 Hz

• 30 fps (704 × 576, 352 × 288)

Video Compression

• Main Stream: H.265+, H.265, H.264+, H.264
• Sub-Stream: H.265, H.264, MJPEG

Audio Compression

• G.711u
• G.711a
• G.722.1
• MP2L2
• G.726
• PCM

Network

Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SRTP

Network Storage

• MicroSD / SDHC / SDXC Card (Up To 256 GB)
• NAS (NFS, SMB/CIFS)
• Auto Network Replenishment (ANR)

API Support
ISAPI, HIKVISION SDK, Third-Party Management Platform, ONVIF Profile S, T, G

Simultaneous Live View
Up To 20 Channels

User Access
Up To 32 Users With 3 Levels:

• Administrator
• Operator
• User

Security Features

• User Authentication (ID And Password)
• MAC Address Binding
• HTTPS Encryption
• IEEE 802.1x Access Control
• IP Address Filtering

Client Software

• iVMS-4200
• Hik-Connect

Web Browser Support

• Internet Explorer 11 (Plug-In)
• Chrome 57.0+
• Firefox 52.0+

Interface

Alarm Input
7 Channels (0–5 VDC)

Alarm Output
2 Relay Outputs

Alarm Actions

• Preset
• Patrol Scan
• Pattern Scan
• SD Card Recording
• Relay Output
• Smart Capture
• FTP Upload
• Email Linkage

Audio Input
1 × 3.5 mm Mic In / Line In

Audio Output
Linear Level, 600 Ω Impedance

Communication Interface

• 1 × RJ45 10/100 Mbps Ethernet
• 1 × RS-485 Interface

Analog Video Output
1.0 V [p-p] / 75 Ω (BNC, Thermal Channel)

General

Supported Languages
32 Languages Supported

Power Supply

• 24 V AC ±20%
• 36 V DC ±20%
• 48 V DC ±20%
• Hi-PoE

Power Consumption
65 W Max

Operating Temperature
-40 °C To 65 °C (-40 °F To 149 °F)

Operating Humidity
≤ 95%

Wiper
Yes

Protection Level

• IP66
• TVS 6000 V Lightning Protection
• Surge Protection
• Voltage Transient Protection

Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)

Physical Specifications

Dimensions
220 × 410 × 198.6 mm

Weight
Approx. 9 kg

Detection Range

VCA Detection Range – Humans
175 m

VCA Detection Range – Vehicles
525 m

Compliance And Certification

EMC Certifications

• CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014)
• RCM (AS/NZS CISPR 32: 2015)
• IC (ICES-003: Issue 7)

Safety Certifications

• CB: IEC 62368-1: 2014+A11
• CE-LVD: EN 62368-1: 2014/A11: 2017
• BIS: IS 13252 (Part 1): 2010 / IEC 60950-1: 2005

Environmental Compliance

• CE-RoHS: 2011/65/EU
• WEEE: 2012/19/EU
• REACH: Regulation (EC) No 1907/2006

Protection Certification
IP66: IEC 60529-2013
