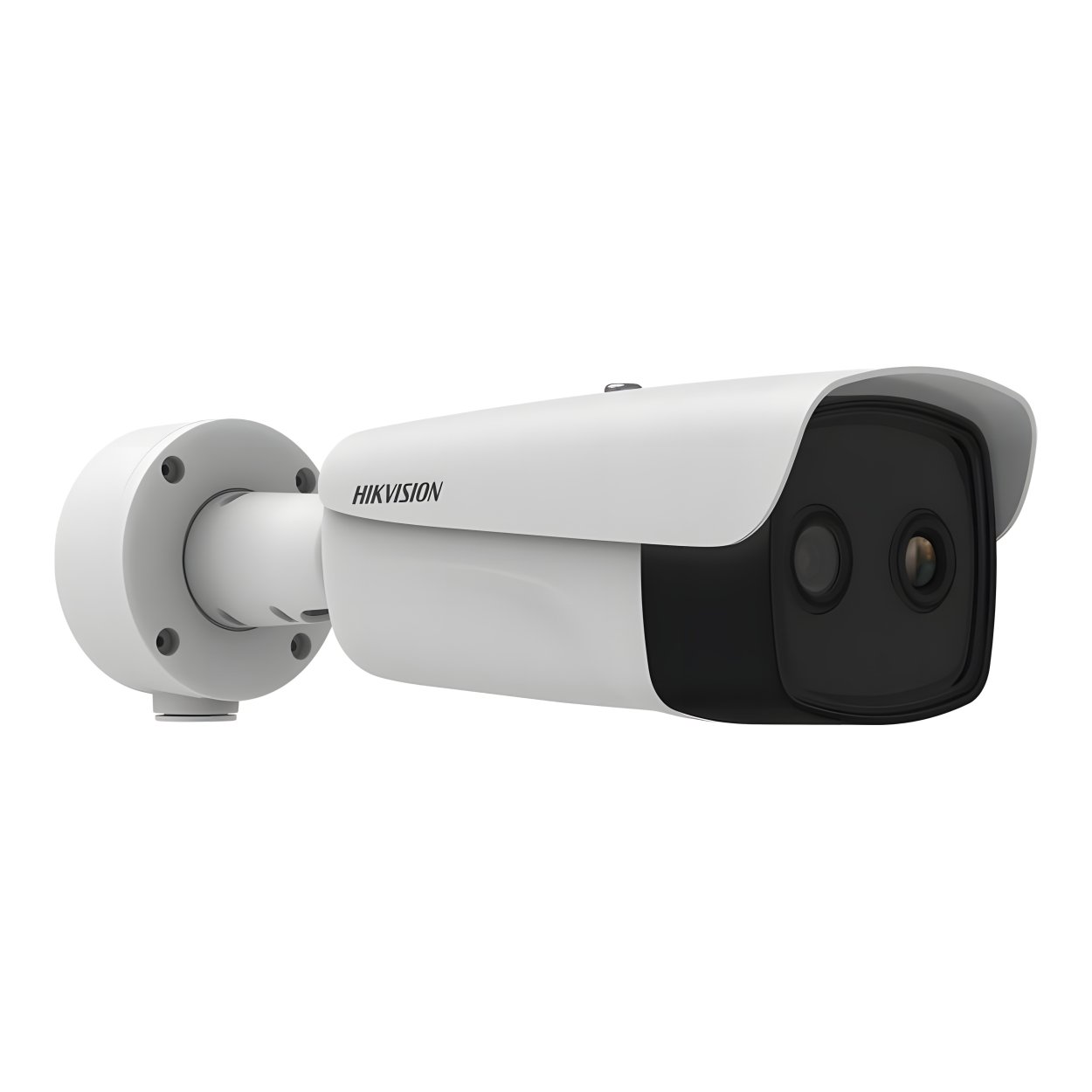

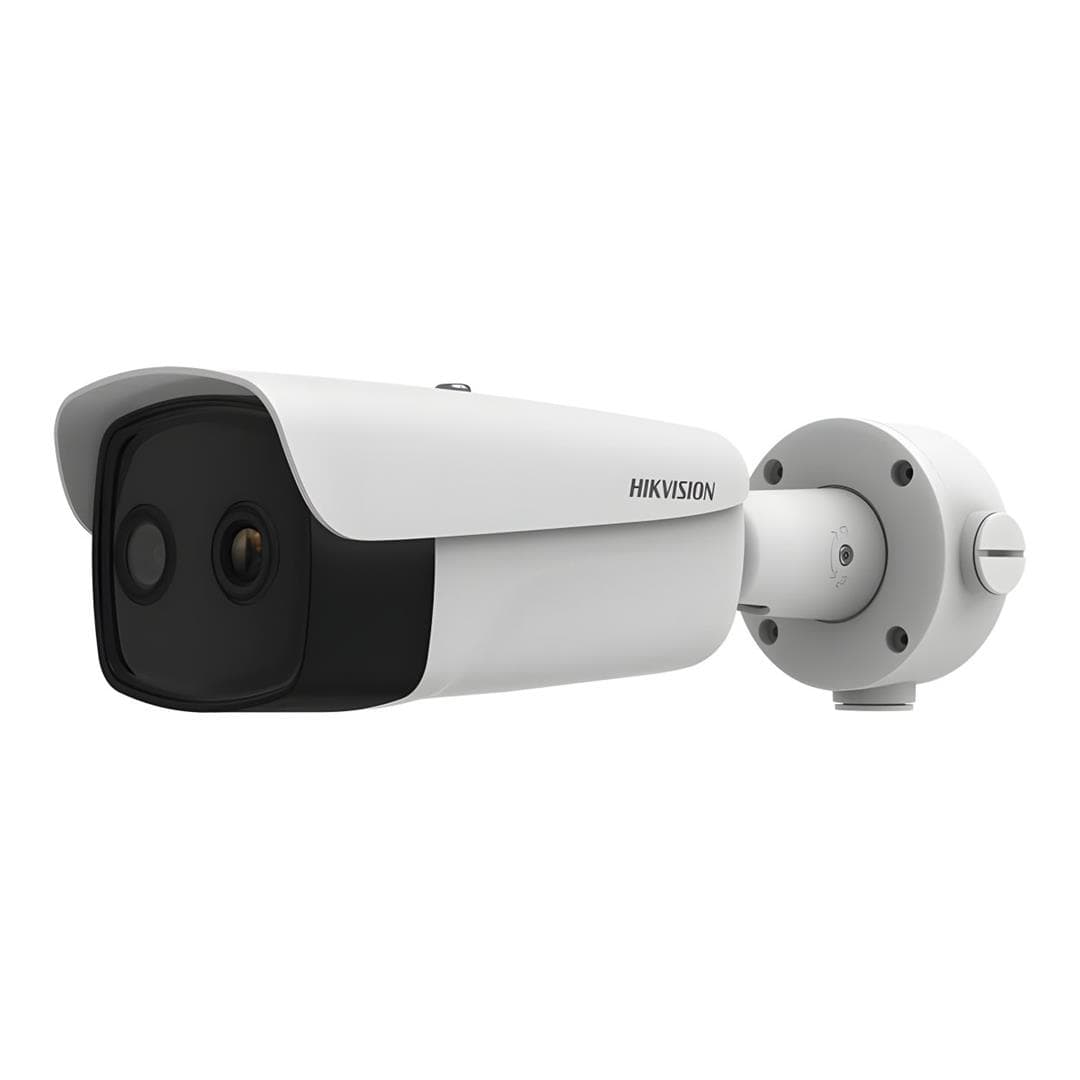

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera HM-TD2638-15/G1/T3Y

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera HM-TD2638-15/G1/T3Y

Features:

• 384 × 288 resolution, 12 μm, VOx UFPA, NETD ≤ 20 mK (25°C, F1.0)
• Extended human/vehicle detection distance and ultra low false alarm with GUANLAN Large-Scale AI Model
• Temperature exception alarm, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
• Fire detection and smoking detection Algorithm
• Built-in TPM2.0 encryption module for cybersecurity
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
• High quality detector with 10 years guarantee

Technical Specifications:

Thermal Module

Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays

Resolution
384 × 288

Pixel Pitch
12 μm

NETD
≤ 20 mK (@25°C, F# = 1.0)

Focal Length
15.4 mm

IFOV
0.78 mrad

Aperture
F1.0

Field Of View
17° × 12.8° (H × V)

Minimum Focusing Distance
5 m

Digital Zoom

• ×2
• ×4
• ×8

Optical Module

Image Sensor
1/2.7" Progressive Scan CMOS

Resolution
2688 × 1520

Minimum Illumination
0.0089 Lux @(F1.6, AGC On), 0 Lux With IR

Field Of View
39.4° × 22° (H × V)

Focal Length
8 mm

Shutter Speed
1 s To 1/100,000 s

White Balance Modes

• MWB
• AWB1
• Locked WB
• Fluorescent Lamp
• Incandescent Lamp
• Warm Light Lamp
• Natural Light

Day And Night Mode
IR Cut Filter With Auto Switch

Wide Dynamic Range
120 dB

Image Effects

• Bi-Spectrum Image Fusion
• Picture-In-Picture
• Target Coloration (Supported In White Hot And Black Hot Modes)
• Electronic Image Stabilisation (Thermal Channel)

IR Illumination Distance
Up To 75 m

IR Intensity And Angle
Automatically Adjusted

Smart Functions

Video Content Analysis (VCA)

• Line Crossing
• Intrusion Detection
• Region Entrance
• Region Exiting
• Up To 8 VCA Rules

Temperature Measurement

• Point
• Area
• Line
• Up To 21 Measurement Rules

Temperature Range
-20°C To 150°C (-4°F To 302°F)

Temperature Accuracy
±8°C (±14.4°F)

Fire Detection
Up To 10 Fire Points

Smoking Detection
Up To 10 Smoking Points

Video And Audio

Main Stream – Optical Channel

• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Main Stream – Thermal Channel

• 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288)

Sub-Stream – Optical Channel

• 50 Hz: 25 fps (704 × 576, 352 × 288)
• 60 Hz: 30 fps (704 × 480, 352 × 240)

Sub-Stream – Thermal Channel

• 25 fps (704 × 576, 352 × 288, 384 × 288)

Video Compression

• Main Stream: H.265 / H.264
• Sub-Stream: H.265 / H.264 / MJPEG

Audio Compression

• G.722.1
• G.711ulaw
• G.711alaw
• MP2L2
• G.726
• PCM

Color Palettes

• 17 Types Including White Hot, Black Hot, Fusion, Rainbow, Ironbow, Sepia, Red Hot, Green Hot, Ice Fire, Winter, Summer

Network

Supported Protocols
IPv4, IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, NTP, Bonjour, SFTP, SRTP, TLS

Network Storage

• MicroSD / SDHC / SDXC (Up To 512 GB)
• NAS (NFS, SMB/CIFS)
• Auto Network Replenishment (ANR)

API Support
ISAPI, ISUP, Hikvision SDK, ONVIF (Profile S, G, T, M), OTAP

Simultaneous Live View
Up To 20 Channels

User Levels
Up To 32 Users

• Administrator
• Operator
• User

Security Features

• User Authentication
• MAC Address Binding
• HTTPS Encryption
• IEEE 802.1x Access Control
• IP Address Filtering

Supported Client Software

• iVMS-4200
• Hik-Connect

Interfaces

Alarm Input

• 2 × Alarm Input (0–5 VDC)

Alarm Output

• 2 × Relay Outputs

Audio Input
1 × 3.5 mm Mic-In / Line-In

Audio Output
Linear Level, 600 Ω

Communication Interface

• 1 × RJ45 (10/100 Mbps Ethernet)
• 1 × RS-485 (Half Duplex)

Analog Output
1.0 V [p-p] / 75 Ω (PAL / NTSC / BNC)

General

Menu Languages
32 Languages Including English, German, French, Spanish, Italian, Portuguese, Dutch, Russian, Korean, Japanese, Chinese, Turkish, And Others

Power Supply

• 24 VAC ±25%
• 12 VDC ±25%
• PoE (802.3af, Class 3)

Power Consumption

• 24 VAC: Max. 12.1 W
• 12 VDC: Max. 11.3 W
• PoE: Max. 11.8 W

Operating Temperature
-40°C To 70°C

Operating Humidity
Up To 95%

Protection Rating

• IP67
• IK10 Impact Protection
• NEMA 4X Anti-Corrosion Housing
• TVS 4000 V Lightning Protection

Physical Characteristics

Dimensions
376.1 × 119.1 × 118.1 mm

Weight
1.82 kg

Detection Range

VCA Range For Humans
195 m

VCA Range For Vehicles
450 m

Compliance And Certifications

EMC Certifications
CE-EMC, RCM, IC, KC

Safety Certifications
CB, CE-LVD, BIS, LOA

Environmental Compliance
RoHS, WEEE, REACH

Protection Standards
IP67 (IEC 60529-2013)
IK10 (IEC 62262-2002)
NEMA 4X (NEMA 250-2018)
