Description

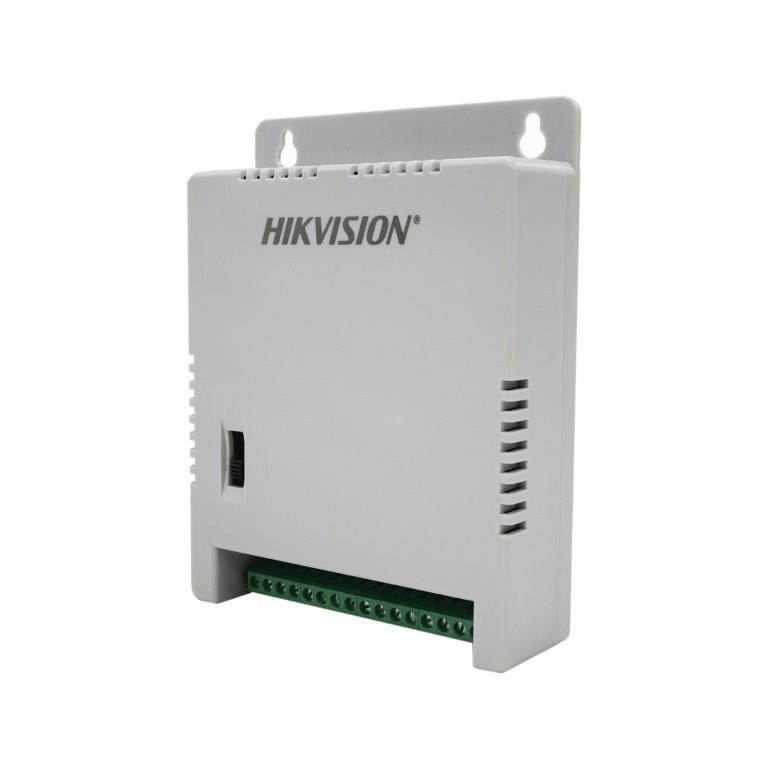

Hikvision Multi-channel SMPS 12V 60W 8-ch CCTV Power Supply DS-2FA1205-C8(EUR)
Features
-
60 W, 12 VDC/1 A max per channel, max total current is 5 A
-
Over current/short circuit/over voltage protection
-
Good EMC performance
-
Compact size; applicable to cameras
-
150 to 285 VAC wide voltage input
Technical Specification
Parameters
-
Appearance: White
-
Dimension: 144 mm × 109.5 mm × 33 mm (5.67" × 4.31" × 1.30")
-
Operating Conditions: 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
-
LED Indicator: Green
-
Input: 150 to 285 VAC, 47 Hz to 63 Hz
-
Output: 12 VDC/1 A per channel
-
Ripple & Noise 150 MVp-P: 0.15 Vp-p (150 mV)
-
AC Input Connector: C8
-
DC Output Connector: DC Plug: grid terminal
-
Storage Conditions: -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
-
Cable Length Compensation:
Normal: 12 VDC
Long: 13.5 VDC
Ex-Long: 15 VDC
