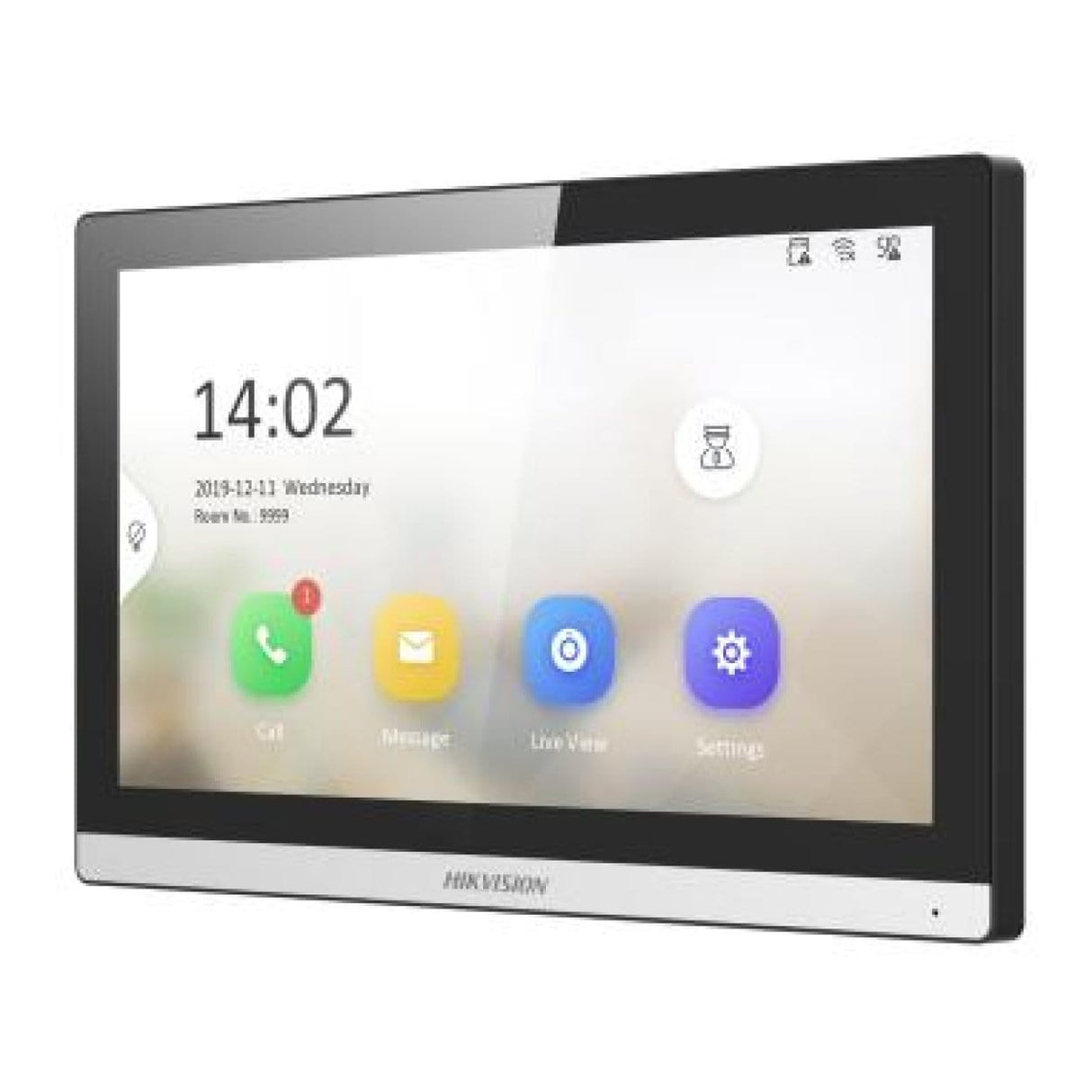

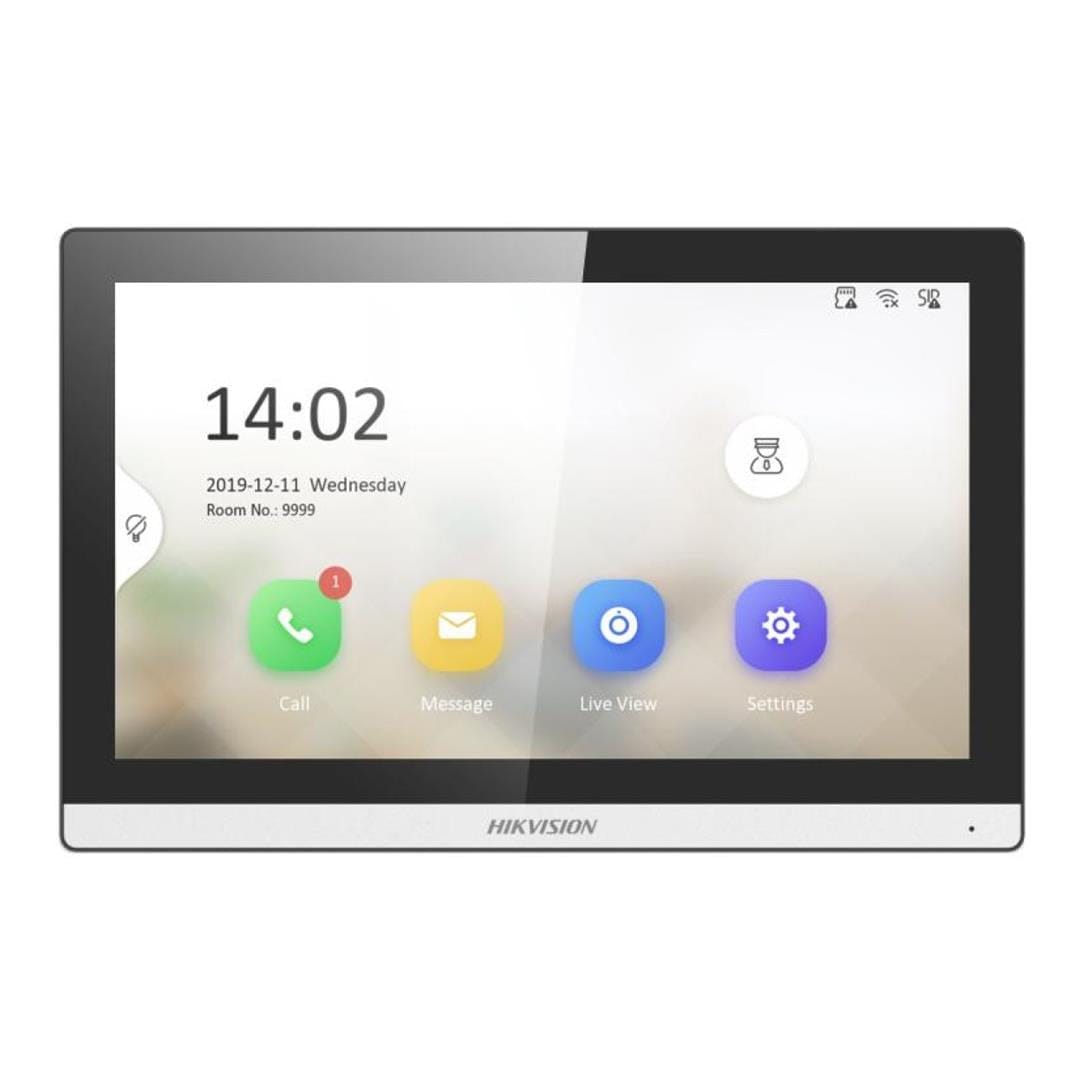

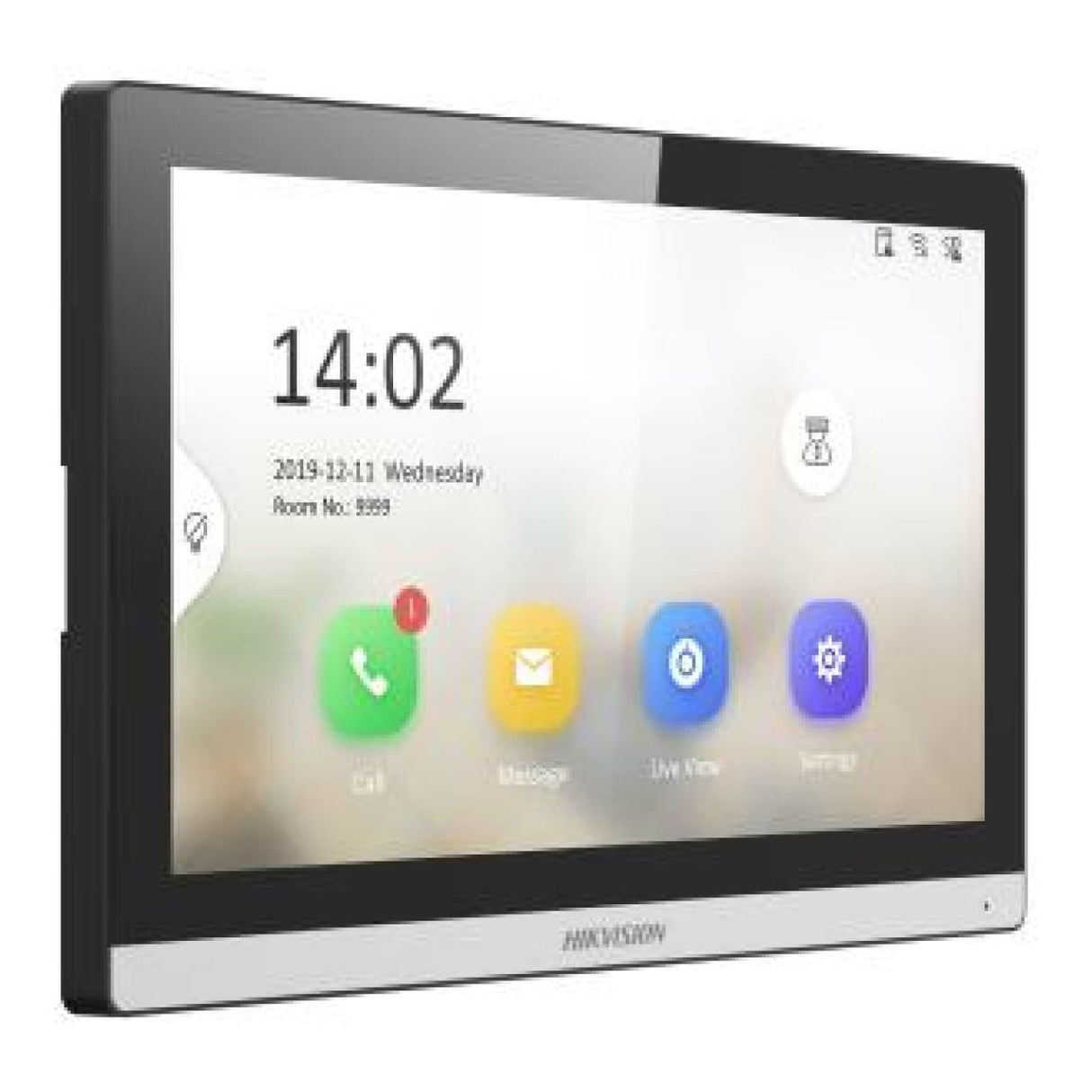

Hikvision KH6 Series 7-inch IP-Based Indoor Station Intercom Monitor DS-KH6350-WTE1

Hikvision KH6 Series 7-inch IP-Based Indoor Station Intercom Monitor DS-KH6350-WTE1

Features:

• 7-inch TFT touch screen with 1024 × 600 resolution
• Convenient Hik-Connect APP Mobile Control
• Receive calls, open the door and live view remotely
• Easy to use without PC
• Easy wizard for quick set up
• Configure the whole system on one touch screen
• Live view of the door station and cameras in public areas
• Support voice messages when no response from the indoor station
• Receive alarms by linkage with a alarm system and notify the center to handle in time
• Elevator access control

Technical Specifications:

System Parameters
Operation System: Linux
ROM: 32 MB
RAM: 128 MB
Processor: Embedded high performance processor

Display Parameters
Screen Size: 7-inch
Operation Method: Capacitive touch screen
Type: Colorful TFT
Resolution: 1024 × 600

Video Parameters
Lens: /
Resolution: /
FOV: /
Wide Dynamic Range (WDR): /
Video Compression Standard: H.265, H.264
Focal Length: /

Audio Parameters
Audio Input: 1 built-in omnidirectional microphone
Audio Compression Standard: G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1
Audio Output: 1 built-in loudspeaker
Audio Compression Bitrate: 64 Kbps
Audio Quality: Noise suppression and echo cancellation
Volume Adjustment: Adjustable

Capacity
Message Capacity: TF card inserted — 200 captured pictures and 200 alarm records.
Without TF card — 2 MB RAM allocated for picture storage (actual number of pictures depends on size); 200 alarm records supported.
Notice Capacity: 200
Linked Indoor Extensions Capacity: 16
Linked Doorphone Capacity: 17

Network Parameters
Network Protocol: TCP/IP, SIP, RTSP
Wi-Fi: 2.4 GHz, IEEE802.11b/g/n
Bluetooth: /
3G/4G: /
Zigbee: /

Device Interfaces
Alarm Input: 8
Network Interface: 1 × RJ-45 10/100 Mbps self-adaptive Ethernet
TAMPER: /
RS-485: 1 RS-485 (half duplex)
USB: /
TF Card: Supports TF card up to 128 GB
Alarm Output: 2
Lock Control: 2 relay outputs, maximum 30 V DC, 0.3 A

General
Button: /
Installation: Wall mounting, table mounting
Indicator: /

Net Weight: 355 g (0.8 lb)
Gross Weight: 683 g (1.5 lb)

Protective Level: /

Working Temperature: −10 °C to 50 °C (14 °F to 122 °F)
Working Humidity: 10% to 90% (non-condensing)

Dimension (W × H × D): 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")

Battery: /

Application Environment: Indoor

Power Consumption: ≤ 5 W

Language Support: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese

Power Supply: 12 V DC, 1 A, IEEE802.3af standard PoE supported
