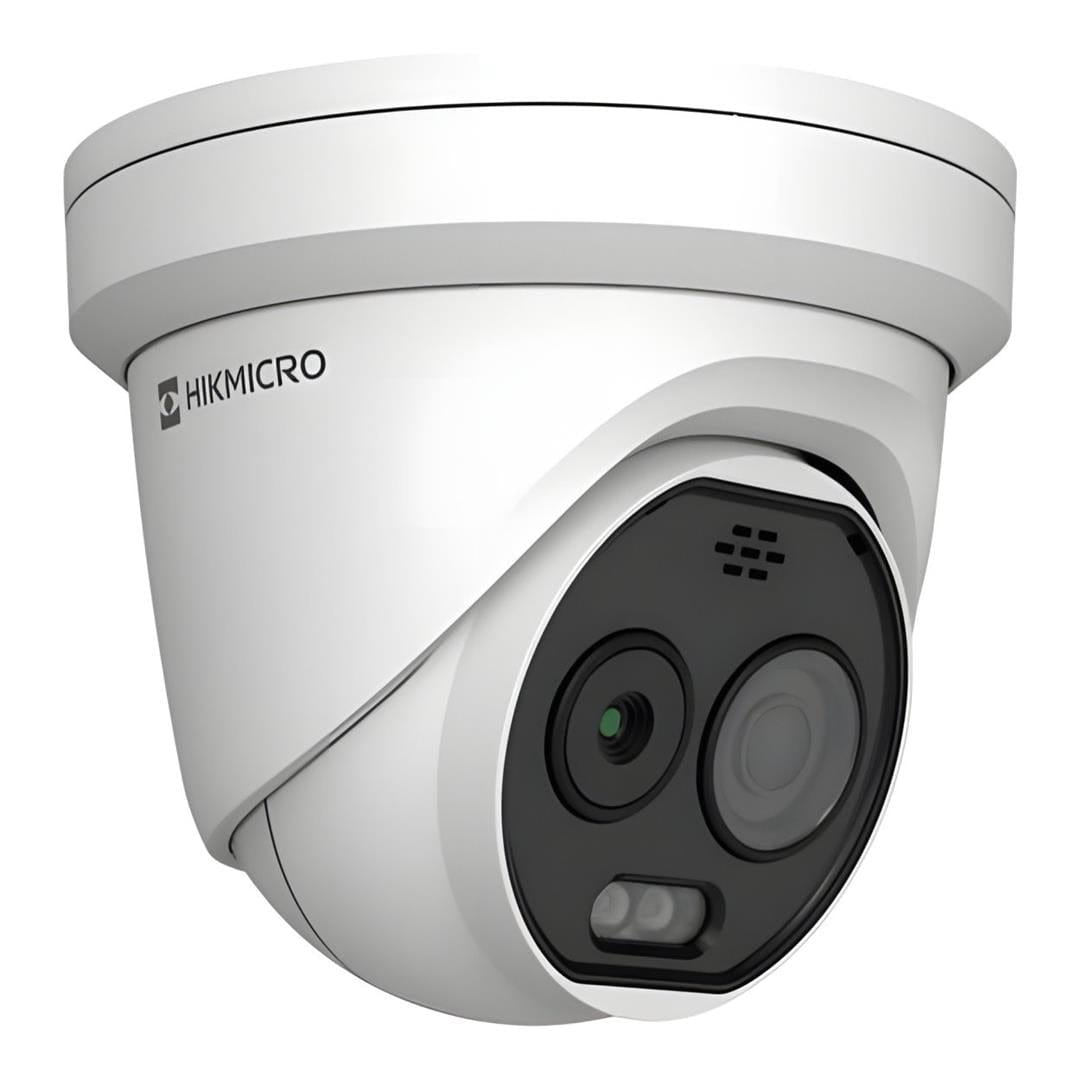

Hikvision HM-TD1228-7/G1/T3A Thermal and Optical Bi-Spectrum Network Turret Camera

Hikvision HM-TD1228-7/G1/T3A Thermal and Optical Bi-Spectrum Network Turret Camera

Features:

• 256 × 192 resolution, 12 μm, VOx UFPA, NETD ≤ 25mK (25°C, F1.0)
• Extended human/vehicle detection distance and ultra low false alarm with GUANLAN Large-Scale AI Model
• Support smart hybrid light: white light, IR and smart mode
• Temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F), ± 8°C (± 14.4°F)
• Support fire point detection algorithm
• Support smoking detection algorithm
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
• High quality detector with 10 years guarantee

Technical Specifications:

Thermal Module
Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays

Resolution
256 × 192

Pixel Pitch
12 μm

Spectral Range
8 μm to 14 μm

NETD
≤25 mK (25 °C, F1.0)

Focal Length
6.9 mm

IFOV
1.74 mrad

Field of View
24.9° × 18.7° (H × V)

Minimum Focusing Distance
1.3 m

Aperture
F1.0

Digital Zoom
×2, ×4

Optical Module
Image Sensor
1/2.7" Progressive Scan CMOS

Resolution
5 MP (2688 × 1944)

Minimum Illumination
0.0089 Lux @(F1.6, AGC ON), 0 Lux with IR

Shutter Speed
1 s to 1/100,000 s

Focal Length
8 mm

Field of View
39.4° (H) × 21.96° (V)

Aperture Range
F1.6

WDR
120 dB

Image Effect
Bi-spectrum image fusion
Optical channel details displayed on thermal channel
Picture-in-picture display of thermal channel over optical channel
Target coloration supported in white hot and black hot modes

Illuminator
Light Supplement
Hybrid (IR, white light, or smart mode)

IR Distance
Up to 60 m

White Light Alarm Range
Up to 60 m

Visual Alarm
White light alarm with adjustable flashing frequency

Audio Alarm
Two alarm types supported (VCA and temperature exception)
Includes 2 preset voice alerts and 6 user-defined voice alerts

Smart Function
VCA
4 rule types: line crossing, intrusion, region entrance, and region exiting
Up to 8 rules total

Temperature Measurement
3 rule types (point, area, line), 21 rules total

Temperature Range
−20 °C to 150 °C (−4 °F to 302 °F)

Temperature Accuracy
±8 °C (±14.4 °F)

Fire Detection
Dynamic fire detection, up to 10 fire points

Video and Audio
Main Stream
Thermal channel:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

Optical channel:
50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream
Thermal channel:
25 fps (704 × 576, 640 × 512, 320 × 240)

Optical channel:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)

Video Compression
Main stream: H.265 / H.264
Sub-stream: H.265 / H.264 / MJPEG

Audio Compression
G.722.1, G.711u, G.711a, MP2L2, G.726, PCM

Color Palettes
17 types including white hot, black hot, fusion 1, rainbow, fusion 2, ironbow 1, ironbow 2, sepia, color 1, color 2, ice fire, rain, red hot, green hot, dark blue, winter, and summer

Network
Protocols
IPv4 / IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP

Network Storage
MicroSD / SDHC / SDXC card (up to 512 GB) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

API
ISAPI, ISUP, Hikvision SDK, third-party management platforms, ONVIF (Profile S, G, T, M), OTAP

Simultaneous Live View
Up to 20 channels

User / Host Level
Up to 32 users across 3 levels: Administrator, Operator, User

Security
ID and password authentication
MAC address binding
HTTPS encryption
IEEE 802.1x access control
IP address filtering

Client Software
iVMS-4200
Hik-Connect

Web Browser Support
Internet Explorer 11 (plug-in allowed)
Chrome 57+, Firefox 52+

Interface
Alarm Input
1 × alarm input (0–5 VDC)

Alarm Output
2 × alarm outputs (configurable response actions)

Alarm Action
SD recording, relay output, smart capture, FTP upload, email linkage

Audio Input
1 × 3.5 mm mic/line interface
Line input: 2–2.4 V [p-p], 1 kΩ ±10% impedance

Audio Output
Linear level, 600 Ω impedance

Communication Interface
1 × RJ45 10/100 Mbps adaptive Ethernet
1 × RS-485 half-duplex

Power Output
12 VDC, max. 1 W

General
Web Client Language
32 languages including English, Russian, German, French, Spanish, Portuguese (Brazil and Europe), Turkish, Japanese, Korean, Chinese variants, and others

Power Supply
12 VDC ±25%, 5.5 mm coaxial power plug
PoE (802.3at, class 4)

Power Consumption
12 VDC: 1 A – 1.7 A (max 16 W)
PoE: 42.5 V – 57 V, 0.28 A – 0.37 A (max 16 W)

Operating Temperature / Humidity
−40 °C to 65 °C, humidity ≤95%

Protection Level
IP67 standard
TVS 6000V lightning, surge, and transient voltage protection

Dimensions
138.3 × 138.3 × 121.6 mm
Weight: 975.6 g

Detection Range (Smart Function)
Human VCA Range
84 m

Vehicle VCA Range
210 m

Approval
EMC
CE-EMC, RCM, IC

Safety
CB (IEC 62368-1), CE-LVD, BIS, LOA

Environment
RoHS, WEEE, REACH

Protection
IP67 (IEC 60529-2013)
