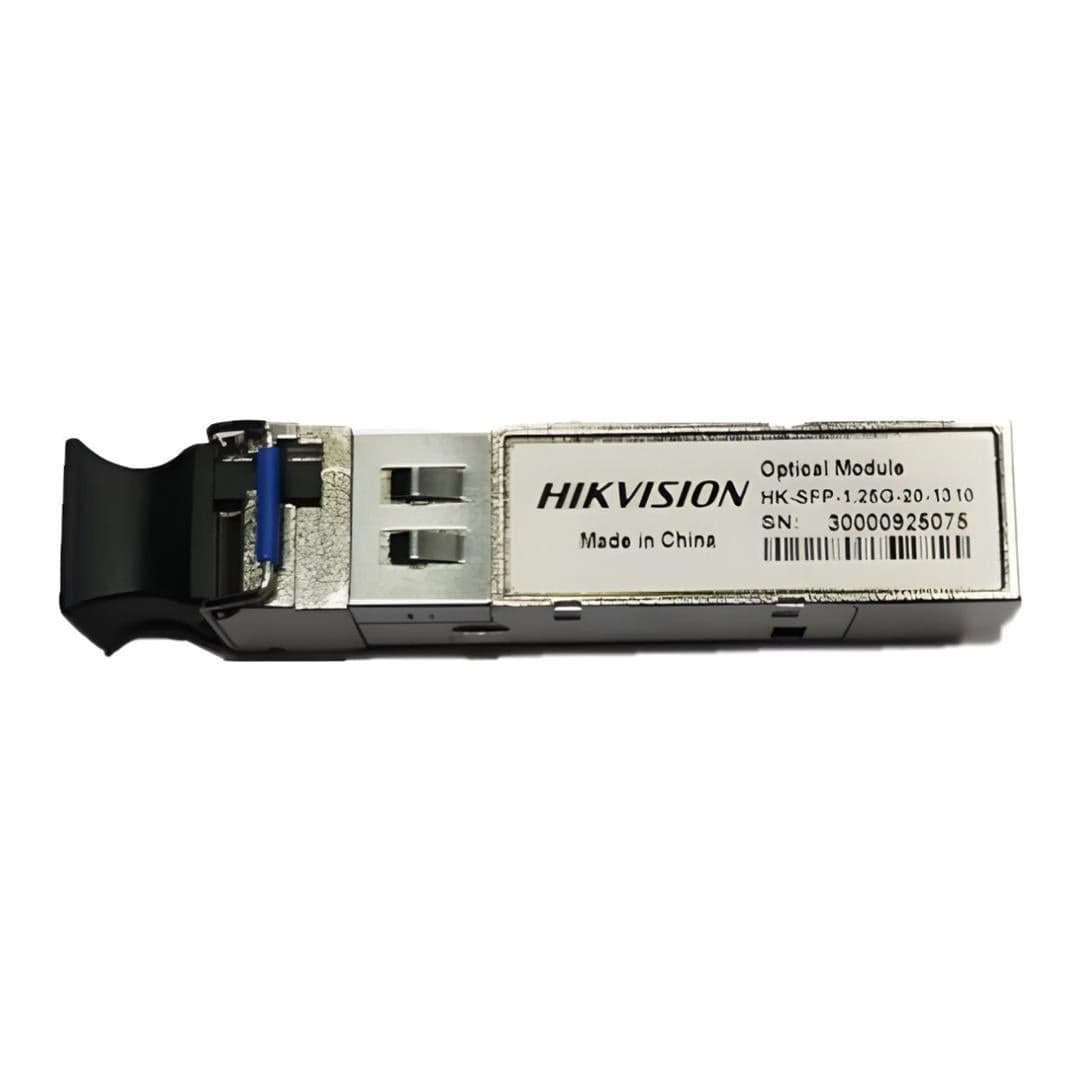

Hikvision HK-SFP-1.25G-20-1310 1250 Mbit/s Fiber Optic Transceiver Module

Hikvision HK-SFP-1.25G-20-1310 1250 Mbit/s Fiber Optic Transceiver Module

Features:

• Small form factor pluggable (SFP) MSA compatible
• Single fiber bi-directional LC connector
• Hot pluggable capability
• Compliant with ROHS standard
• Cost effective SFP solution, enables higher port densities and greater bandwidth
• Supports 1.25G Ethernet

Technical Specifications:

General
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 30% to 80%
Power Supply Voltage: DC 3.3 V

Performance
Fiber Type: SMF, Single fiber (9/125 µm)
Connector Type: LC
Connector Quantity: 1
Data Rate: 1250 Mbps
Transmission Distance: Up to 20 km
Wavelength: Tx 1310 nm / Rx 1550 nm
TX Power: -9 to -1 dBm
RX Sensitivity (Max): -21 dBm
