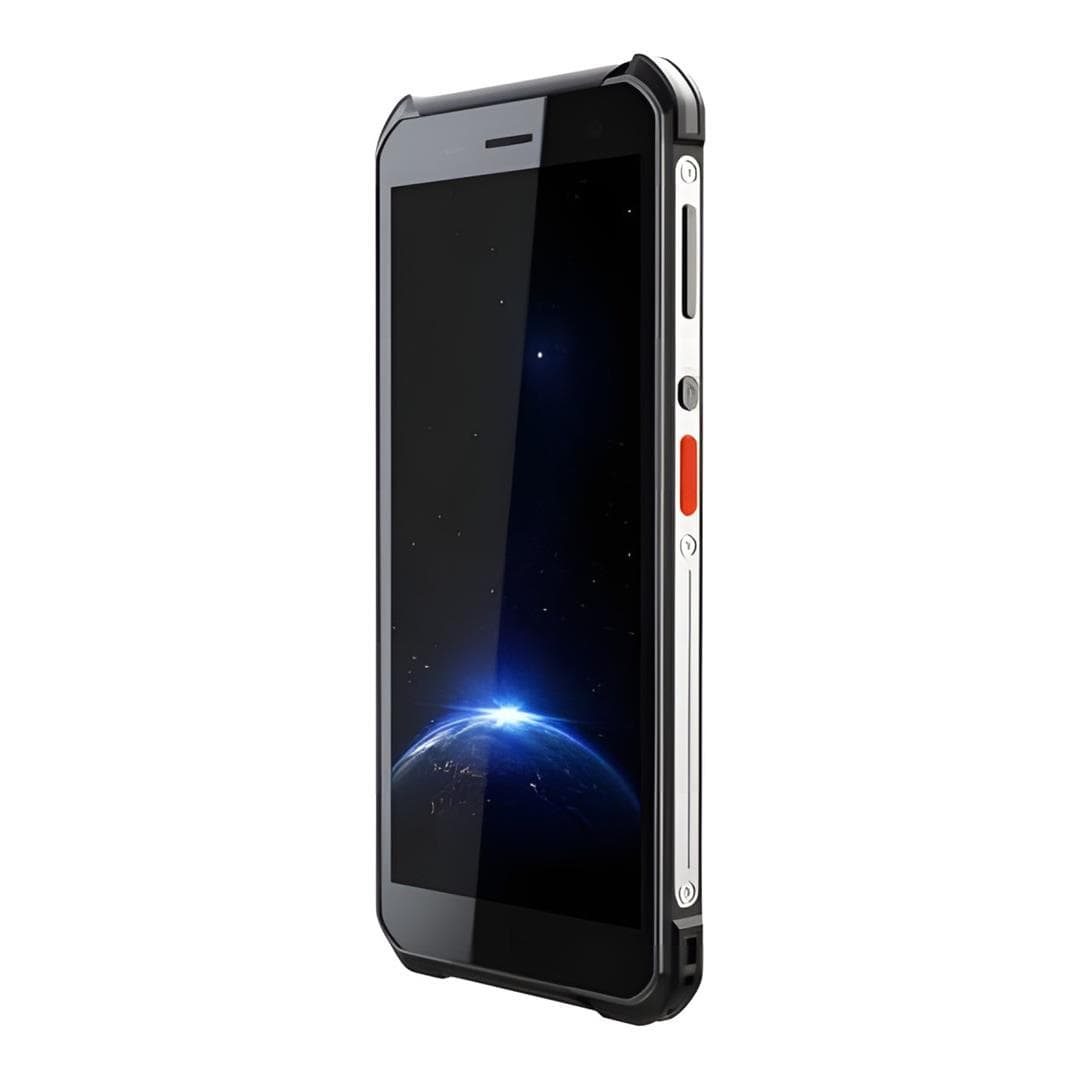

Hikvision DS-MDT201 5.5-inch Handheld Scanner DS-MDT201/64G/GLE

Hikvision DS-MDT201 5.5-inch Handheld Scanner DS-MDT201/64G/GLE

Features:

• Support various one-dimensional codes ：EAN/UPC/ISBN13/Codabar/ITF25/ITF14/Matrix25/Code39/Code93/Code128/Code11/MSI/IND25
• Support various QR codes ：DM/QR/MicroQR/Aztec
• Support continuous code scanning and single code scanning
• Scanning interval: 10-2000ms
• Support NFC protocol; Support ISO15693, ISO14443A/B, ISO14443A
• It can quickly identify blurry, distorted and dirty barcodes

Technical Specifications:

Camera

Image Sensor

• Front Camera: 5 MP, Fixed Focus
• Rear Camera: 13 MP, Auto Focus

Maximum Resolution
1920 × 1080

Flashing Light
Supported

Digital Zoom
4×

Lens

Focal Length

• Front Camera: 2.23 mm
• Rear Camera: 3.44 mm

Field Of View

• Front Camera:
  • Horizontal: 61.3°
  • Vertical: 46°
• Rear Camera:
  • Horizontal: 67.9°
  • Vertical: 53.7°

Aperture

• Lens 1: F2.2
• Lens 2: F2.2

Display

Screen Size
5.5"

Screen Type
IPS Capacitive Touch Panel, Multi-Touch

Resolution
720 × 1440

Performance And Storage

CPU
8-Core Processor, 2.0 GHz

RAM
4 GB

Internal Storage (ROM)
64 GB

Extended Storage

• 1 × TF Card Slot
• Supports Up To 256 GB

Wireless And Connectivity

Cellular Network

• FDD-LTE: B1, B3, B8
• TDD-LTE: B38, B39, B40, B41

Wi-Fi Protocols
802.11 a/b/g/n/ac

Wi-Fi Frequency Bands

• 2.412 To 2.472 GHz
• 5.15 To 5.25 GHz
• 5.725 To 5.875 GHz

Bluetooth
Bluetooth 5.0

Positioning
GPS

NFC

• Frequency: 13.56 MHz
• Supported Standards: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2
• Label Standards: M1 Card (S50, S70), CPU Card, NFC Label

Network And Interfaces

Wi-Fi Working Modes

• Station (STA)
• Access Point (AP)

Buttons

• Volume+
• Volume−
• Left Scan Key
• Right Scan Key
• Power Button
• Function Key

SIM Card Support

• 2 × Nano-SIM (Available On /GLE /5G Models Only)

Charging Interface
USB Type-C

USB Interface
USB 2.0

Fingerprint Module
Not Supported

System

Operating System
Android 10.0

Sensors And Features

Supported Features

• Vibration Motor
• Microphone
• Gyroscope
• G-Sensor
• Distance Sensor
• Light Sensor

Speaker
1 × Built-In Speaker

• Maximum Power Consumption: 1 W
• Maximum Sound Pressure Level: 103 dB (10 cm)

OCR Support
Supported; Not Supported (Model Dependent)

MDM Client
Supported

Physical Characteristics

Dimensions
157 × 75 × 14 mm

Weight
240 g

Material
Antimicrobial Casing, Easy To Disinfect

Colour
Blue-White

Power

Power Input
5 VDC, 2.0 A

Maximum Power Consumption
10 W

Battery

Battery Type
Lithium-Ion (Integrated)

Battery Capacity
4900 mAh

Charging Time
≤ 4 Hours

Battery Duration
Standby Time > 500 Hours

Durability And Environmental

Drop Resistance
1.5 m

Ingress Protection
IP68

Operating Temperature
-10°C To 55°C

Operating Humidity
Up To 95% (Non-Condensing)

Electrostatic Discharge Protection
±15 kV Air Discharge

Compliance Standard
MIL-STD-810G

Certifications And Compliance

RF Compliance
EN 300 328 V2.1.1, EN 62311:2008, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011 + A1:2014

EMC Compliance
CE-EMC: EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 50130-4:2011 + A1:2014

Safety Compliance
CB: IEC 62368-1:2014 + A11, IEC 62368-1:2018
CE-LVD: EN 62368-1:2014/A11:2017, EN IEC 62368-1:2020 + A11:2020

Environmental Compliance
RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (EC No 1907/2006)

Accessories

Standard Accessories

• USB Cable ×1
• Power Adapter ×1
• Wrist Strap ×1

Optional Accessories

• Single Charging Dock
• Six-Bay Charging Base
• Scan Handle (Supported On Specific Models Only)
