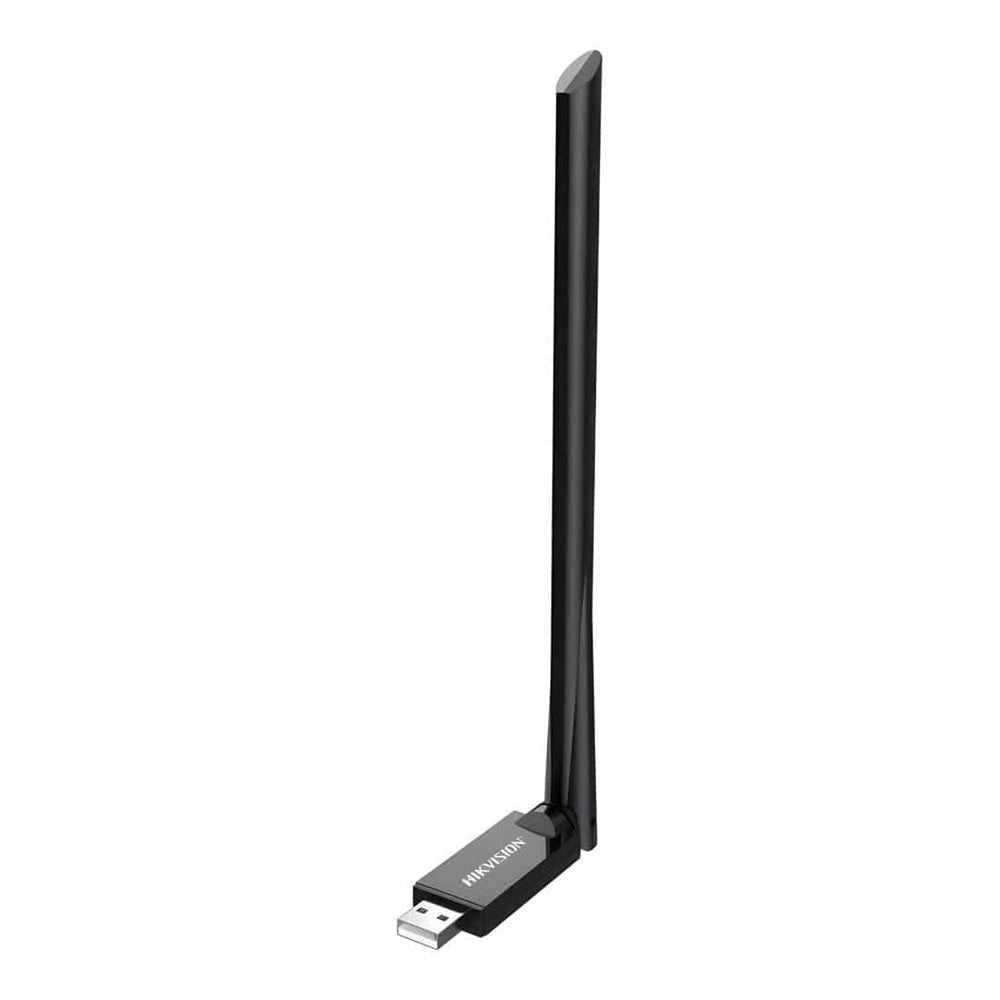

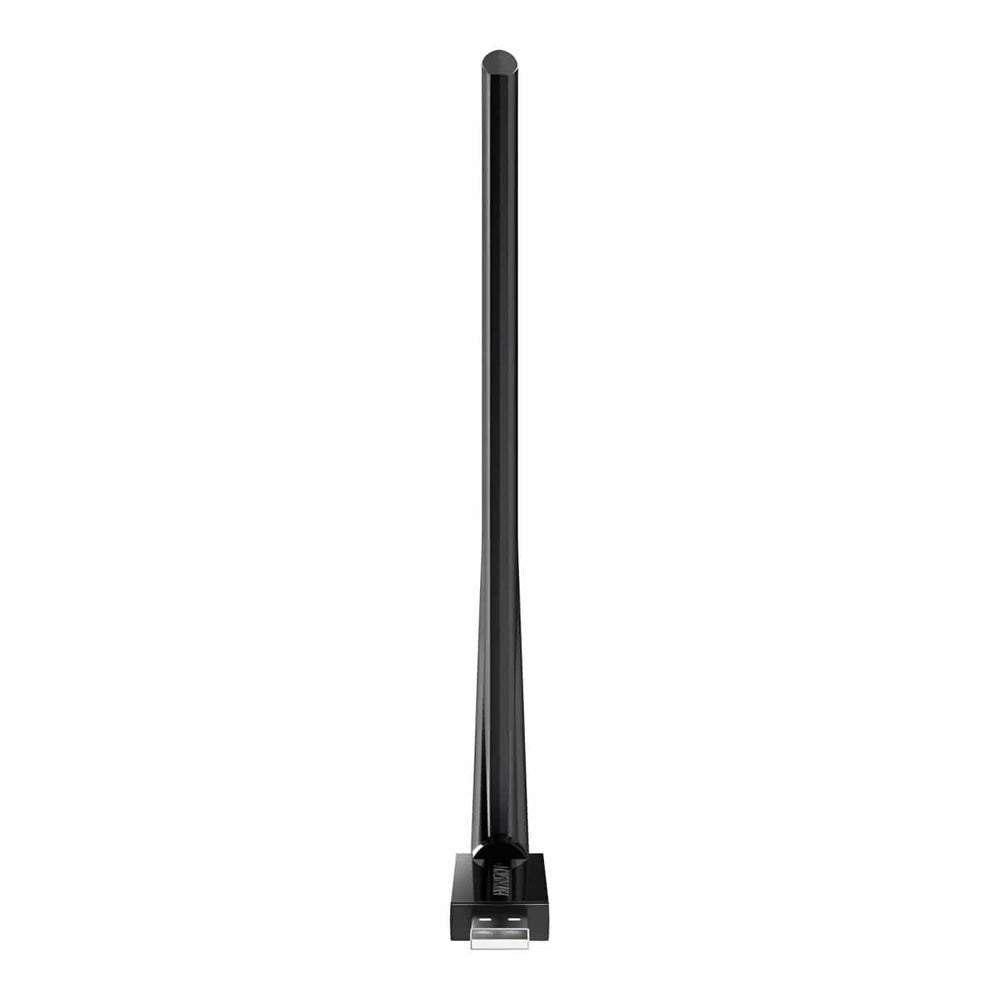

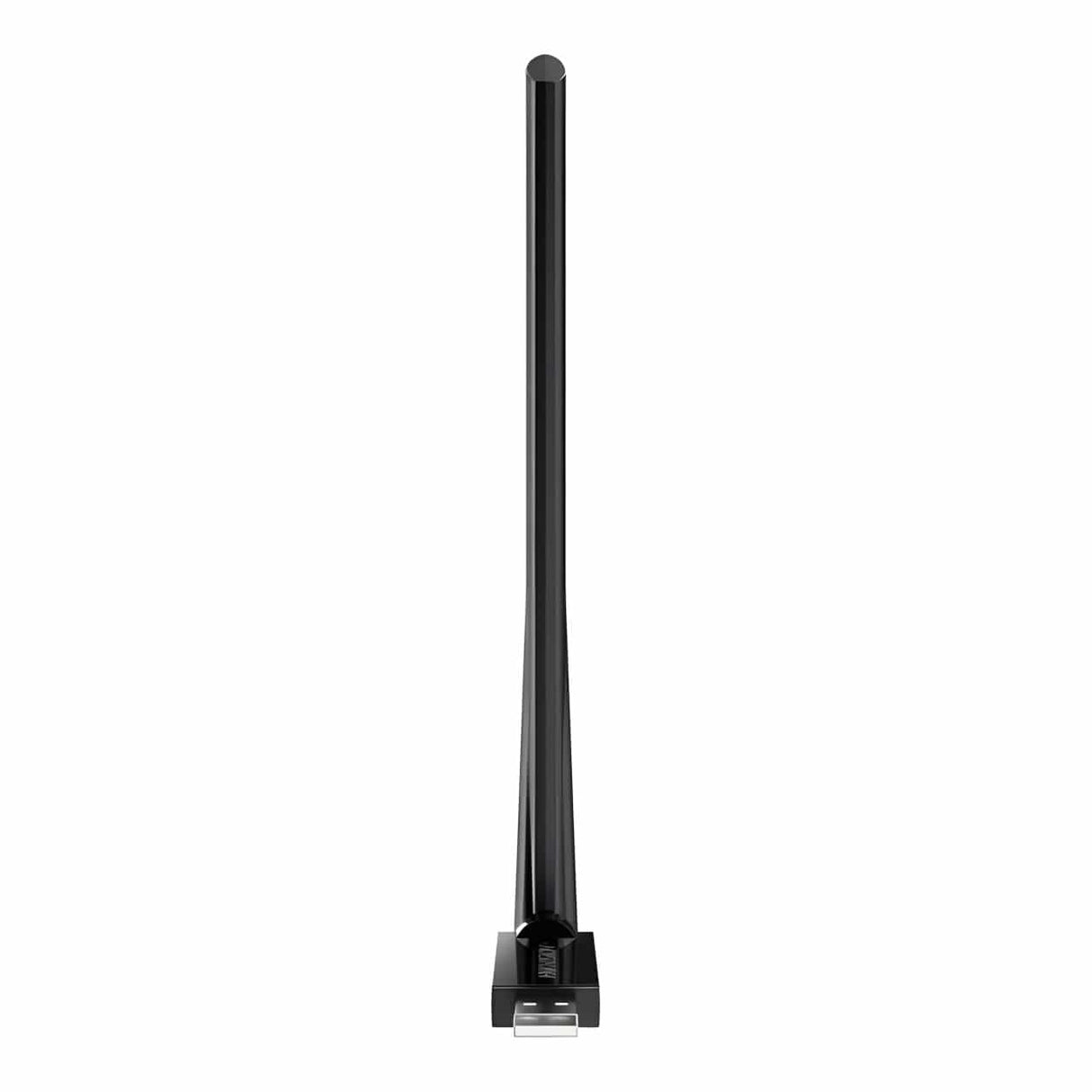

Hikvision DS-3WRU3X-H AX300 Wi-Fi 6 High Gain USB Adapter

Hikvision DS-3WRU3X-H AX300 Wi-Fi 6 High Gain USB Adapter

Features:

• Elevate Your Connectivity with Wi-Fi 6
• Real 6dBi High Gain Antenna for Stronger Connection
• Compatible with Various Operating Systems
• Built-in driver, one-click setup

Technical Specifications:

Product Dimensions (W × H × D): 48 mm × 20 mm × 8 mm
Package Dimensions (W × H × D): 237 mm × 100 mm × 18 mm
Net Weight: 0.025 kg
Gross Weight: 0.062 kg
Packing List: Wireless USB Adapter × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
Packing Method: Single pack
Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity: 10% to 90% RH non-condensing
Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity: 5% to 90% RH non-condensing
Max. Power Consumption: ≤ 1.25 W

Wireless Parameters

Max. Transmission Rate of Air Interface: ≤ 300 Mbps
2.4 GHz: Up to 286 Mbps

Wireless Standard: IEEE 802.11ax/b/g/n
Working Frequency Band: 2.4 GHz
Transmitting Power: <20 dBm (EIRP), <0.1 W (EIRP)
Wireless Performance: 1 × 1 MIMO supported

Receiving Sensitivity

2.4 GHz:
11b-1M: -96 dBm
11g-6M: -94 dBm
11n-20M-MCS7: -75 dBm
11n-40M-MCS7: -72 dBm
11ax-HT20M-MCS9: -69 dBm
11ax-HT40M-MCS9: -66 dBm

Antenna

Type: 1 × 6 dBi Antenna

Hardware Parameters

Power Supply Method: USB

Software Functions

Application Function: Station Mode, Soft AP Mode

Security

Security Mode: Default encryption mode: Mix WPA-PSK/WPA2-PSK
WPA Algorithm: TKIP

Supported Operating System

Windows 7, Windows 10, Windows 11, Linux
