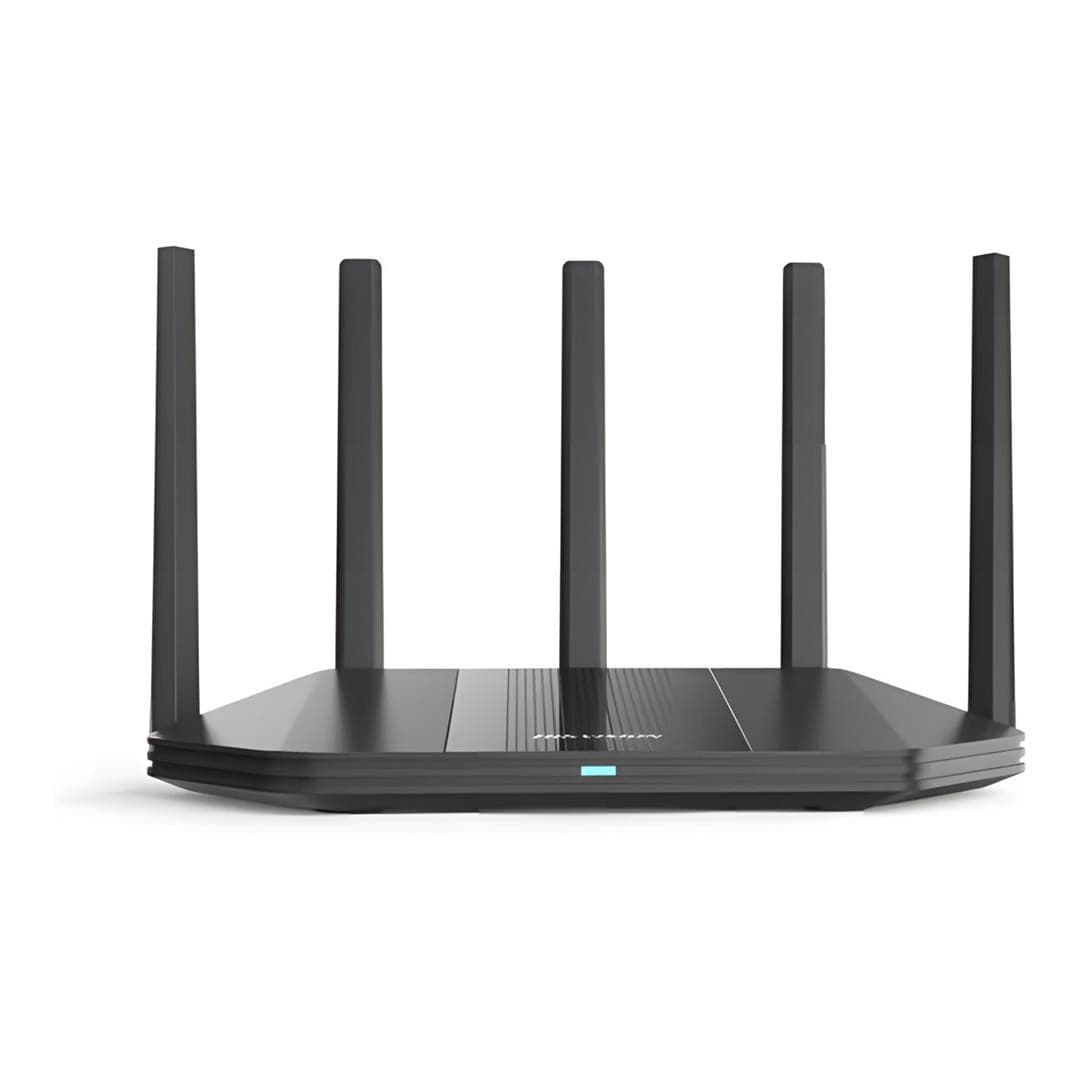

Hikvision DS-3WR30X Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

Hikvision DS-3WR30X Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

Features:

• 3000Mbps Wi-Fi 6
• Wired Wireless Dual Gigabit
• Dual Band in One and 5G First
• Roaming Support
• APP Management

Technical Specifications:

Product Dimensions (W × H × D): 281.7 mm × 145.0 mm × 204.1 mm
Package Dimensions (W × H × D): 365 mm × 340 mm × 73 mm
Net Weight: 0.40 kg
Gross Weight: 0.790 kg
Packing List: 3000Mbps Wi-Fi6 Router × 1, Power Supply Adaptor × 1, CAT5e Network Cable × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
Packing Method: Single pack
Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity: 10% to 90% RH non-condensing
Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity: 5% to 95% RH non-condensing
Installation Mode: Desk-Mounted, Wall-Mounted
Max. Power Consumption: ≤12 W

Wireless Parameters

Wireless Standard: IEEE 802.11a/n/ac/ax @5GHz, IEEE 802.11b/g/n/ax @2.4GHz
Working Frequency Band: 2.4 GHz, 5 GHz
Transmitting Power: CE: <20dBm (2.4GHz), <23dBm (5GHz)
Receiving Sensitivity:
5GHz: -89dBm @ HE80-MCS0, -60dBm @ HE80-MCS11
2.4GHz: -93dBm @ HT40-MCS0, -73dBm @ HT40-MCS7
Wireless Range: Up to 1506 ft² / 140 m² (Recommended coverage for home use; actual Wi-Fi range varies depending on layout and wall materials)
Max. Connections: 256
Recommended Connections: 60
Wireless Features: Dual Band Supported, MU-MIMO supported, Beamforming supported, OFDMA supported
Antenna: 5 high gain antennas
Antenna Gain: 5 dBi
Max. Wi-Fi Speed: ≤ 3000 Mbps (5GHz: 2402 Mbps, 2.4GHz: 574 Mbps)

Hardware Parameters

Network Interface: 1 × 10/100/1000 Mbps Adaptive WAN Port, 3 × 10/100/1000 Mbps Adaptive LAN Ports
LED Indicator: LED indicator
Button: Reset button, WPS/MESH Button
RAM: 256 MB
ROM: 128 MB
Power Supply Method: Power Supply Adapter
Power Specifications: DC 12 V, 1 A

Software Functions

Operating Mode: Router Mode, Wireless Extender Mode, Access Point Mode
WAN Mode: DHCP, Static IP, PPPOE
IP Version: IPv4, IPv6
Parental Control: Speed Limit, Internet Access Period, Filter URL, Custom Profiles
Firewall: Forbid UDP flood attack, Forbid TCP SYNC flood attack, Forbid ICMP flood attack
DDNS: Oray
VPN: PPTP Client, L2TP Client
NAT Forwarding: Port Mapping, DMZ, UPnP
Others: VLAN/IPTV, WAN Self-Adaption, Quick Diagnosis, WIFI Optimization
MESH: Hikvision Mesh
Roaming: 802.11k/v

Security

Security Mode: WPA2-PSK, WPA/WPA2-PSK supported
Security Mechanism: Support fast and secure WPS connection, Support hiding wireless network name, Support controlling terminal network connection, Support firewalls, Login Authentication

Management

Management Method: Web Control (PC, mobile), App Control (HPP, HC), TR069 (TR098/TR181)
Upgrade: Web Upgrade, App Cloud Upgrade, Auto Upgrade
System Log: System log
