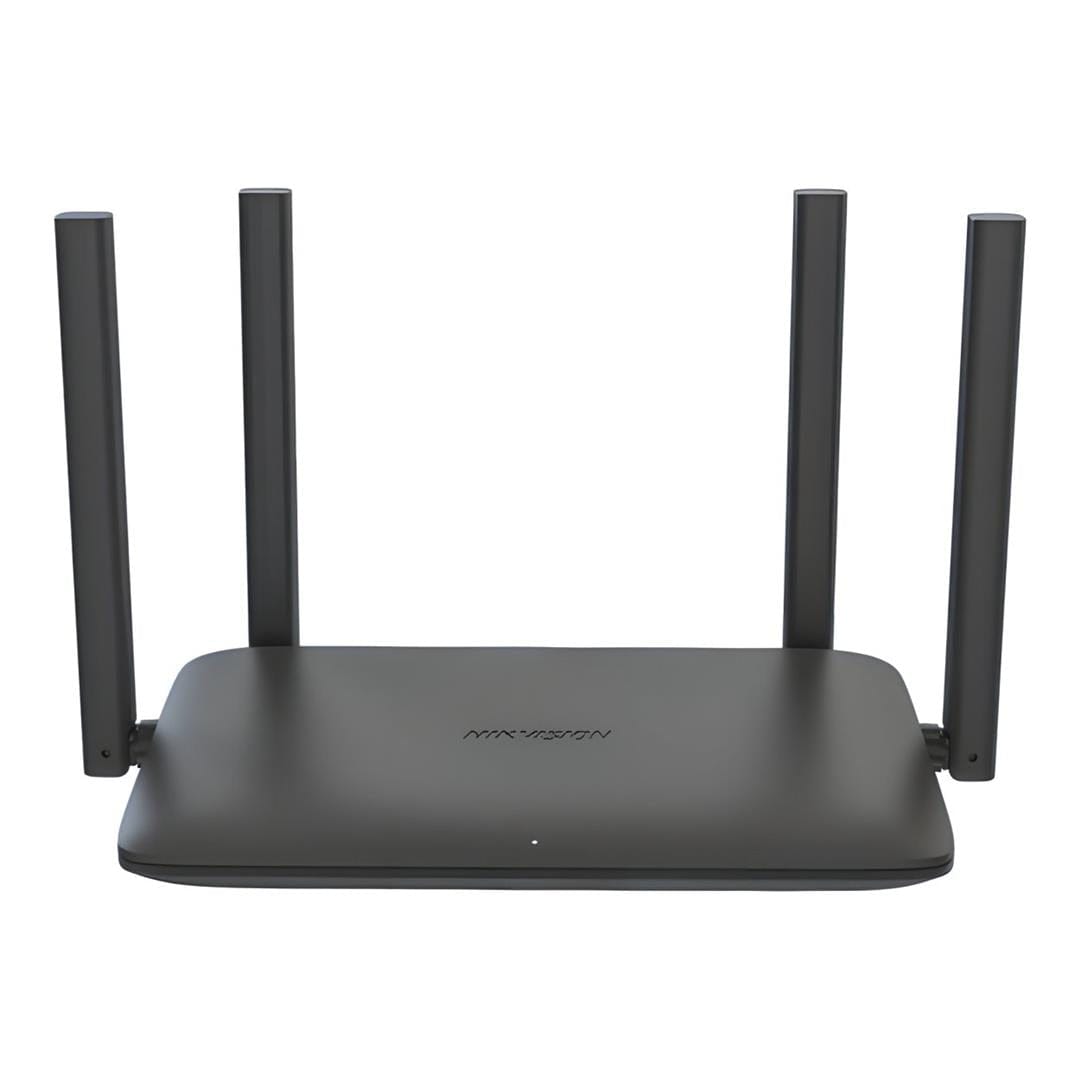

Hikvision DS-3WR15X Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

Hikvision DS-3WR15X Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

Nowadays, Wi-Fi routers are doing a lot more than you can imagine. The key function is to provide a wireless internet connection, but that’s just the start – wireless routers are connecting an ever-growing range of Wi-Fi-capable devices, including smartphones, laptops, computers, tablets, smart devices, and security systems. That means picking the right router with the right features is more important than ever.

Hikvision Wireless Routers have got you covered with a strong signal, stable connection, high security, and trusted Wi-Fi access, delivering blazing-fast speeds online for ultimate performance.

Features:

• 1500Mbps Wi-Fi 6
• Wired Wireless Dual Gigabit
• Dual Band in One and 5G First
• Roaming Support
• APP Management

Technical Specifications:

Product Dimensions (W × H × D): 241.3 mm × 140.8 mm × 156.3 mm
Package Dimensions (W × H × D): 320 mm × 265 mm × 55 mm
Net Weight: 0.245 kg
Gross Weight: 0.790 kg
Packing List: 1500Mbps Wi-Fi 6 Router × 1, Power Supply Adapter × 1, CAT5e Network Cable × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
Packing Method: Single pack
Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity: 10% to 90% RH non-condensing
Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity: 5% to 95% RH non-condensing
Installation Mode: Desk-Mounted, Wall-Mounted

Wireless Parameters

Wireless Standard: IEEE 802.11a/n/ac/ax @ 5 GHz, IEEE 802.11b/g/n @ 2.4 GHz
Working Frequency Band: 2.4 GHz, 5 GHz
Wireless Range: Up to 1300 ft² / 120 m² (recommended coverage for home use; actual Wi-Fi range varies depending on layout and wall materials)
Max. Connections: 128
Recommended Connections: 50
Transmitting Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Wireless Features: Dual Band supported, MU-MIMO supported, Beamforming supported, OFDMA supported
Antenna: 4 high gain antennas
Antenna Gain: 5 dBi

Receiving Sensitivity

5 GHz: -89 dBm @ HE80-MCS0, -60 dBm @ HE80-MCS11
2.4 GHz: -93 dBm @ HT40-MCS0, -73 dBm @ HT40-MCS7

Max. Wi-Fi Speed

Maximum Speed: ≤ 1500 Mbps
5 GHz: 1201 Mbps
2.4 GHz: 300 Mbps

Hardware Parameters

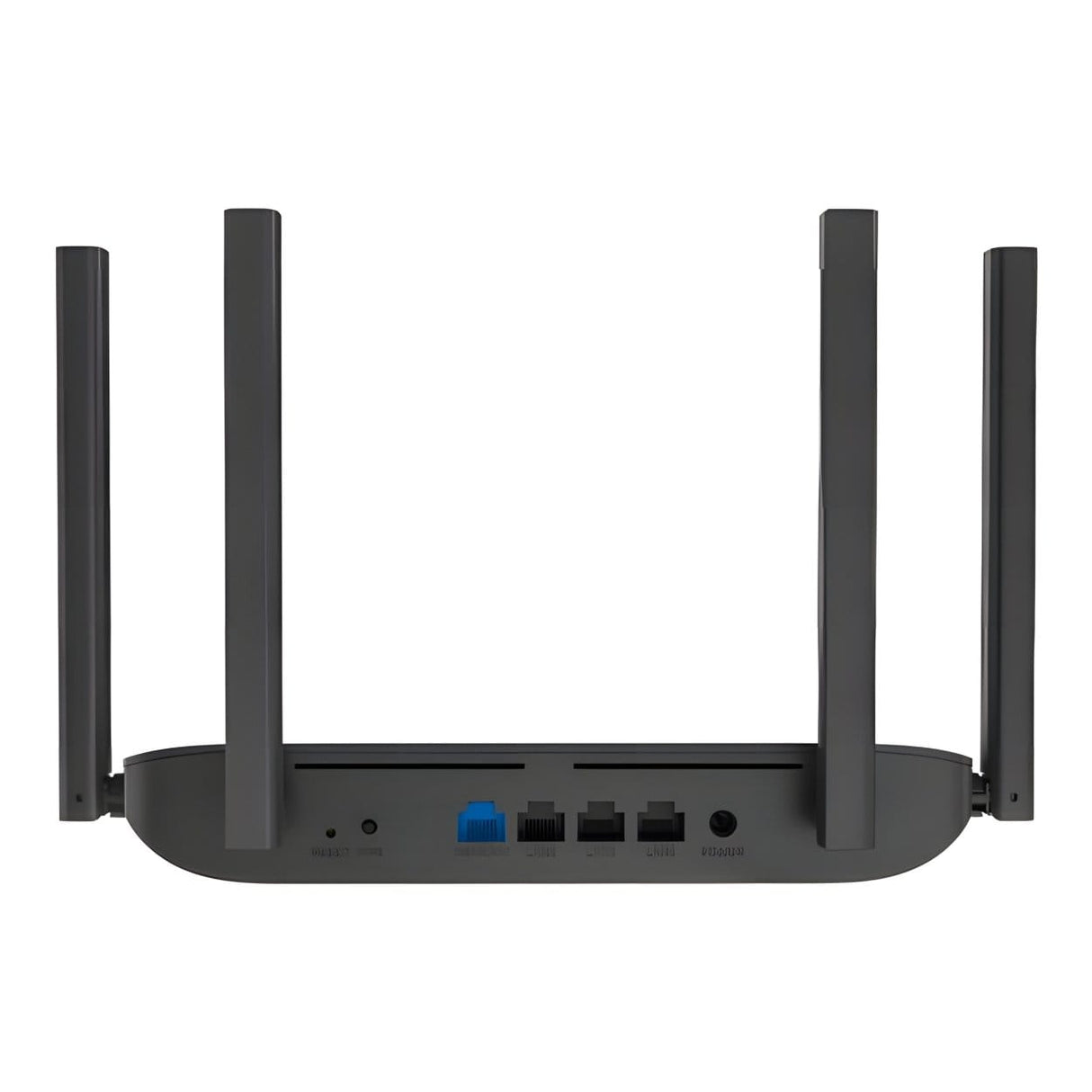

Network Interface: 1 × 10/100/1000 Mbps Adaptive WAN Port, 3 × 10/100/1000 Mbps Adaptive LAN Ports
LED Indicator: Red/blue for different working states, flashing mode
Button: Reset button, WPS button
RAM: 128 MB
ROM: 128 MB
Power Supply Method: Power supply adapter
Power Specifications: DC 12 V, 1 A
Max. Power Consumption: ≤ 10 W

Software Functions

Operating Mode: Router Mode, Wireless Extender Mode, Access Point Mode

WAN Mode: DHCP, Static IP, PPPoE

DHCP: DHCP Client List, DHCP Server

IP Version: IPv4, IPv6

Parental Control: Speed limit, Internet access period, Filter URL, Parental control, Custom profiles

Firewall: Forbid UDP flood attack, Forbid TCP SYN flood attack, Forbid ICMP flood attack

DDNS: Oray

VPN: PPTP Client, L2TP Client

NAT Forwarding: Port mapping, DMZ, UPnP

Other Features: VLAN/IPTV, WAN self-adaption, Quick diagnosis, Wi-Fi optimization

Mesh

Mesh Technology: Hikvision Mesh

Security

Security Mode: WPA2-PSK, WPA/WPA2-PSK supported
Security Mechanism: Fast and secure WPS connection, hidden wireless network name support, terminal network connection control, firewall support, login authentication

Management

Management Method: Web control (PC, mobile), App control (HPP, HC), TR069 (TR098/TR181)

System

Upgrade: Web upgrade, App cloud upgrade, Auto upgrade
System Log: System log
Roaming: 802.11k/v
