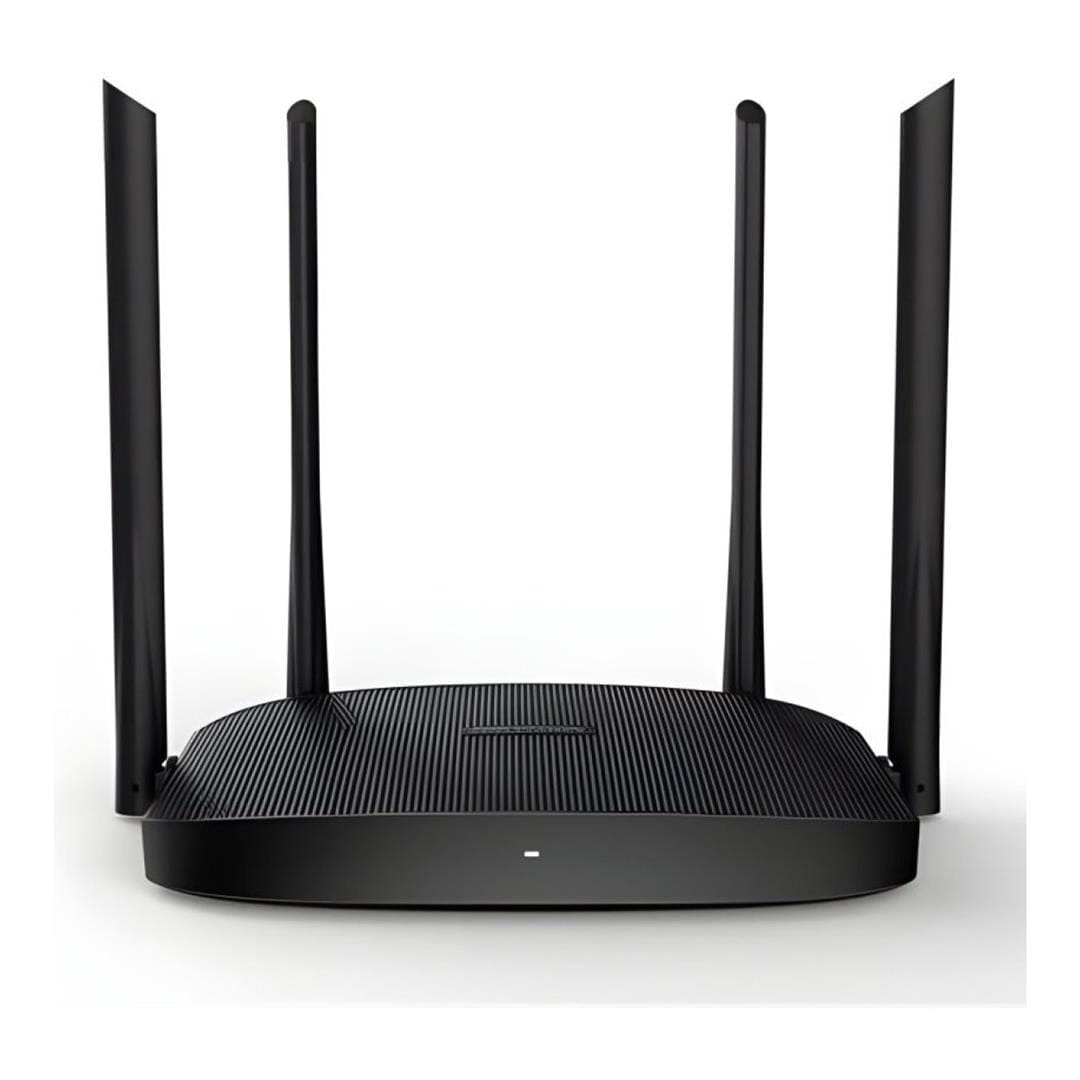

Hikvision DS-3WR12GC AC1200 Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

Hikvision DS-3WR12GC AC1200 Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

DS-3WR12GC is a dual band Wi-Fi router designed by Hikvision. You can easily deploy, monitor and expand your home Wi-Fi network anytime and anywhere. DS-3WR12GC comes equipped with dual band coverage, which can offer a smooth online game and 4K video experience. Powered with beamforming technology, DS-3WR12GC ensures excellent high-speed Wi-Fi coverage in every corner at home.

Features:

• Four 5-dBi amplified antennas
• Beamforming optimizes signal
• Beamforming optimizes signal
• Dual band – Smart signal switching
• Dual band – Smart signal switching
• Broadband account synchronization

Technical Specifications:

Product Dimension (W × H × D): 248.40 mm × 154.80 mm × 213.34 mm (9.78" × 6.09" × 8.40")
Package Dimension (W × H × D): 306 mm × 290 mm × 59 mm (12.05" × 11.42" × 2.32")
Net Weight: 0.238 kg (0.525 lb)
Gross Weight: 0.738 kg (1.627 lb)
Packing List: Wireless Router × 1, Ethernet cable × 1, Quick installation guide × 1
Packing Method: Single pack
Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity: 10% to 90% RH non-condensing
Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity: 5% to 90% RH non-condensing
Installation Mode: Desktop installation
Max. Power Consumption: ≤ 9 W

Wireless Parameters

Data Rate: ≤ 1167 Mbps
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps

Wireless Standard: IEEE 802.11a/n/ac Wave 2 @ 5 GHz, IEEE 802.11b/g/n @ 2.4 GHz
Transmitting Power: 18 dBm

Wireless Performance:
4 × 4 MU-MIMO supported
Beamforming supported

Receiving Sensitivity:
58 ± 2 dB @ AC80-MCS9
84 ± 2 dB @ AC80-MCS0

Antenna

Type: 4 high gain antennas

Hardware Parameters

Network Interface: 4 × RJ45, 10/100/1000 Mbps auto-negotiation
LED Indicator: LED indicator
Reset: Reset button
Power Supply Method: 9 VDC, 1 A power adapter power supply
Power Specifications: 9 VDC, 1 A

Software Functions

Application Function:
Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported
DHCP Server supported
Guest Network Configuration supported
Signal Adjustment supported
WiFi Schedule supported

Security

Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported
Security Mechanism: Hide SSID

Management

Management Method: Web

System

Upgrade: Web update and upgrade
System Log: System log

WAN Mode

Supported Modes: DHCP, Static IP, PPPoE
