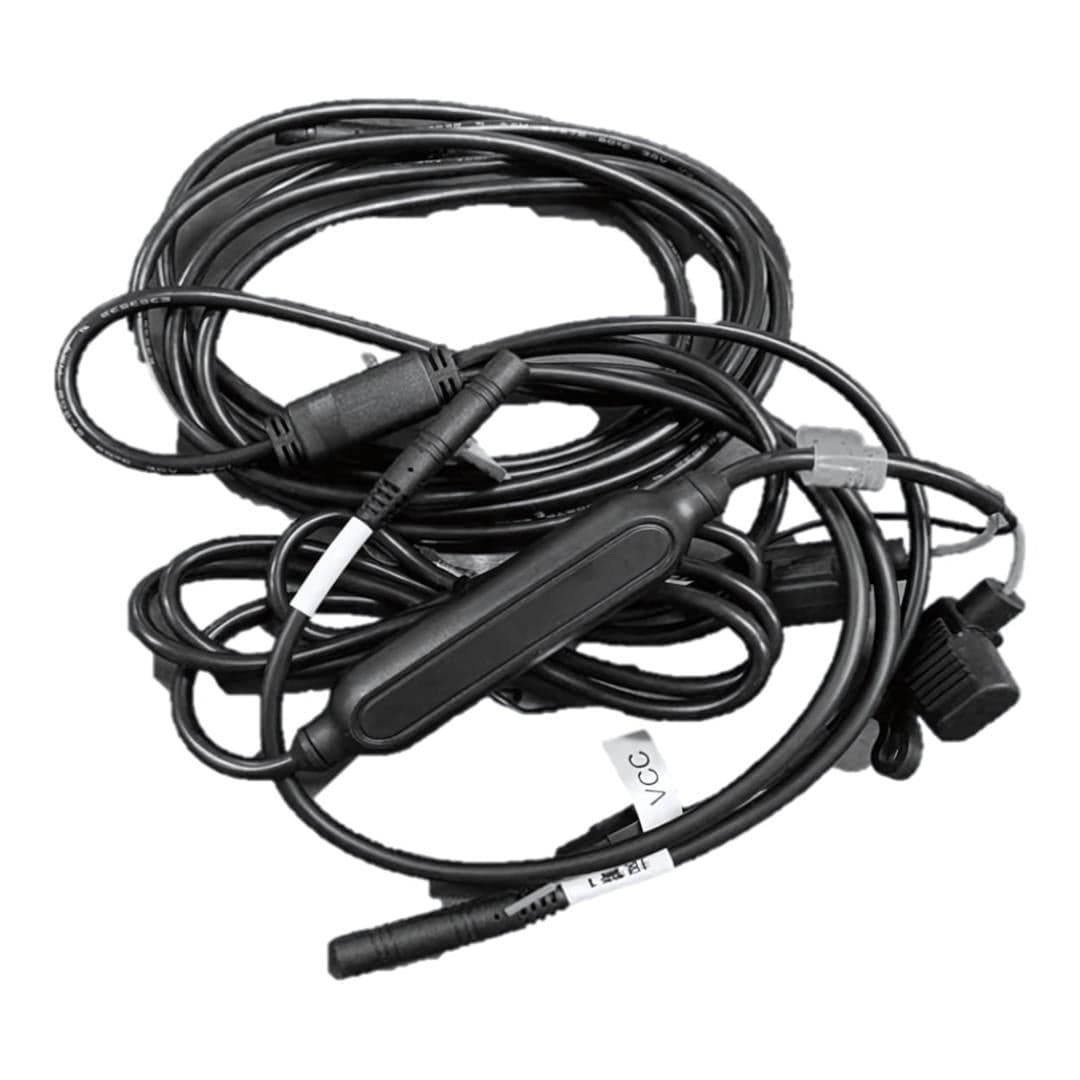

Hikvision AE-DF7252 2.3m Voltage Converter Power Cable

Hikvision AE-DF7252 2.3m Voltage Converter Power Cable

Only use with AE-DI5042-G4 Dash Camera

Features:

• This specification shall be applied to 12V/1.5A adapter
• It is normal for 10Vdc to 16Vdc 、20Vdc to 36Vdc input voltage
• The rated output voltage is specified at DC 12V when input >20V，The rated output voltage is same as input voltage when 10V<Vin<16V
• Over Current Protection
• Short Circuit Protection
• Input Under Voltage Protection
• Reverse connect protection
• The standby power consumption is less than 7mA within the rated input voltage range。 (35V input is about 5mA)

Technical Specifications:

Interface
Input Interface Type: 1 × open line (VCC, ACC, GND), 2 × BM4F Connector for Camera
Output Interface Type: 1 × BM8M Connector for Host Device

General
Operating Voltage Range: DC 10 V–DC 36 V
Nominal Voltage: Vin < 10 V: Vout = 0 V, 10 V, 16 V; Vin > 20 V: Vout = 12 V (1.5 A)
Working Temperature: -20 °C to 70 °C
Working Humidity: 10%–90%

Application: Only use with AE-DI5042-G4 Dash Camera
Cable Length: 2.3 m
