Description

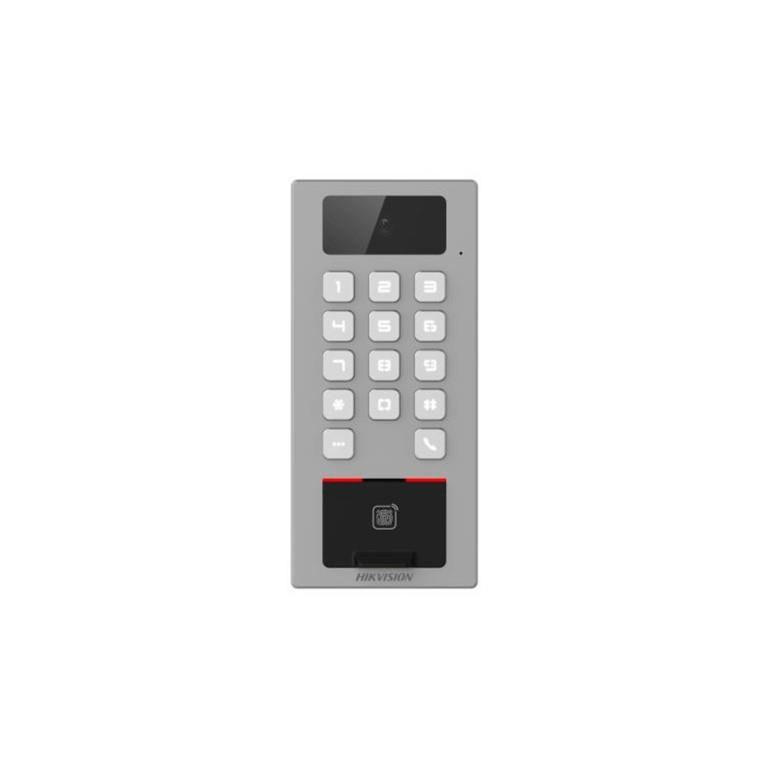

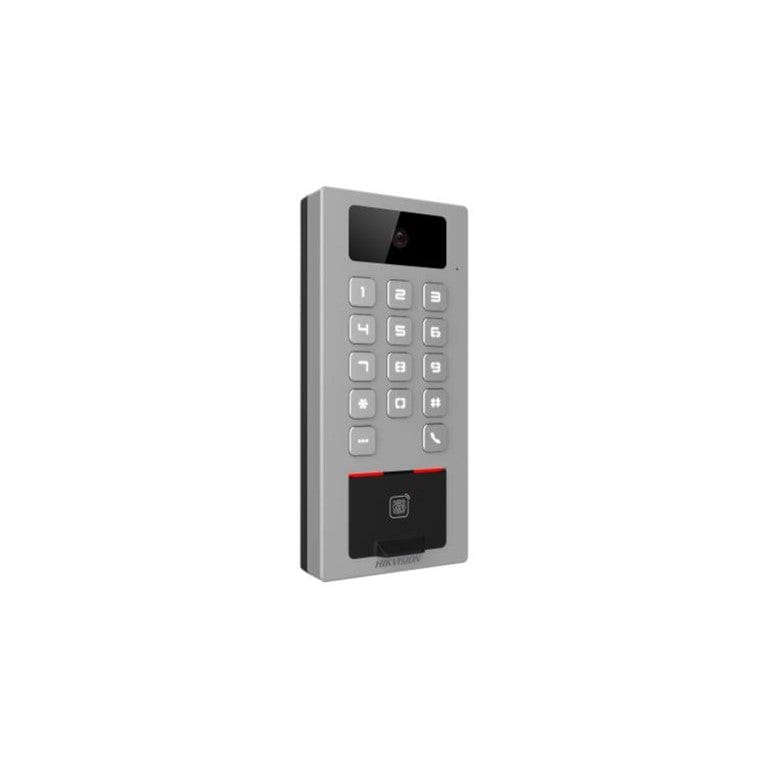

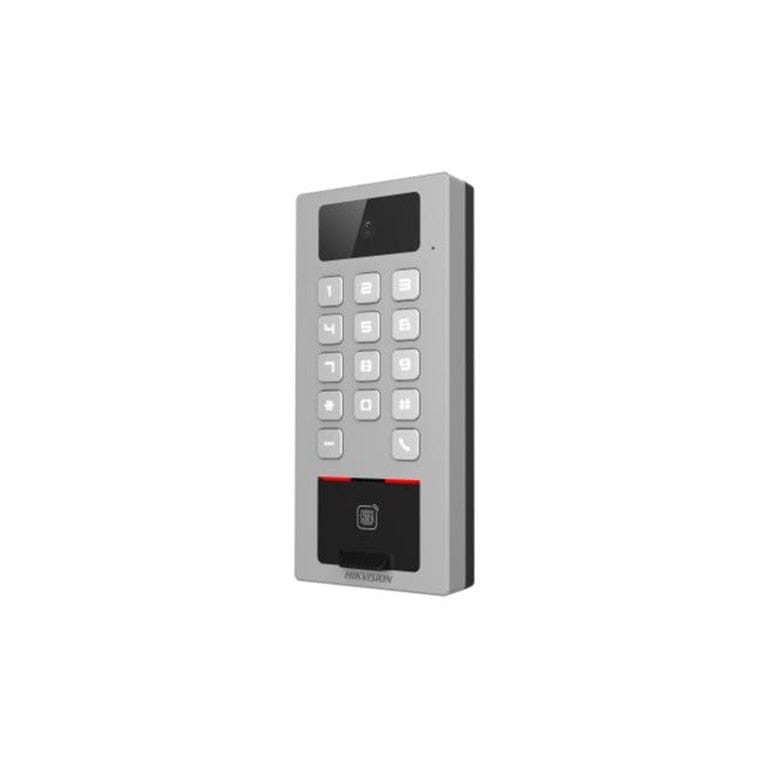

Hikvision Access Control Terminal DS-K1T502DBFWX-C
Features
- Manage access control and intercom functions in one device
- IP65 & IK09 protections, as well as increased stability with zinc alloy materials
- Supports multiple authentication methods (card, fingerprint, PIN, etc.)
- Remote control via the Hik-Connect mobile app
- Connects to external access controller via Wiegand protocol
- Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
- RS-485 communication for connecting external card reader and calling elevator
- Supports AP mode
- Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
- Supports up to 256 GB SD card memory
- Supports PIN settings under platform mode and local mode
- Setting the priority of wired network and wireless network is available
- Power Supply required: 1 A (12 VDC to 24 VDC)
Specification
Interface
- Network Interface: 1
- Lock Control: 1
- Exit Button: 1
- Door Contact Input: 1
- Alarm Input: 1
- Alarm Output: 1
- TAMPER: 1
- RS-485: 1
- Wiegand: 1 (Input and output)
- SD Card Slot: 1
Capacity
- Fingerprint Capacity: 10,000
- Card Capacity: 100,000
- Event Capacity: 300,000
Authentication
- Fingerprint Module: Capacitive fingerprint recognition
- Card Type: M1 card; DESfire card
- Card Reading Distance: 0 - 3 cm
