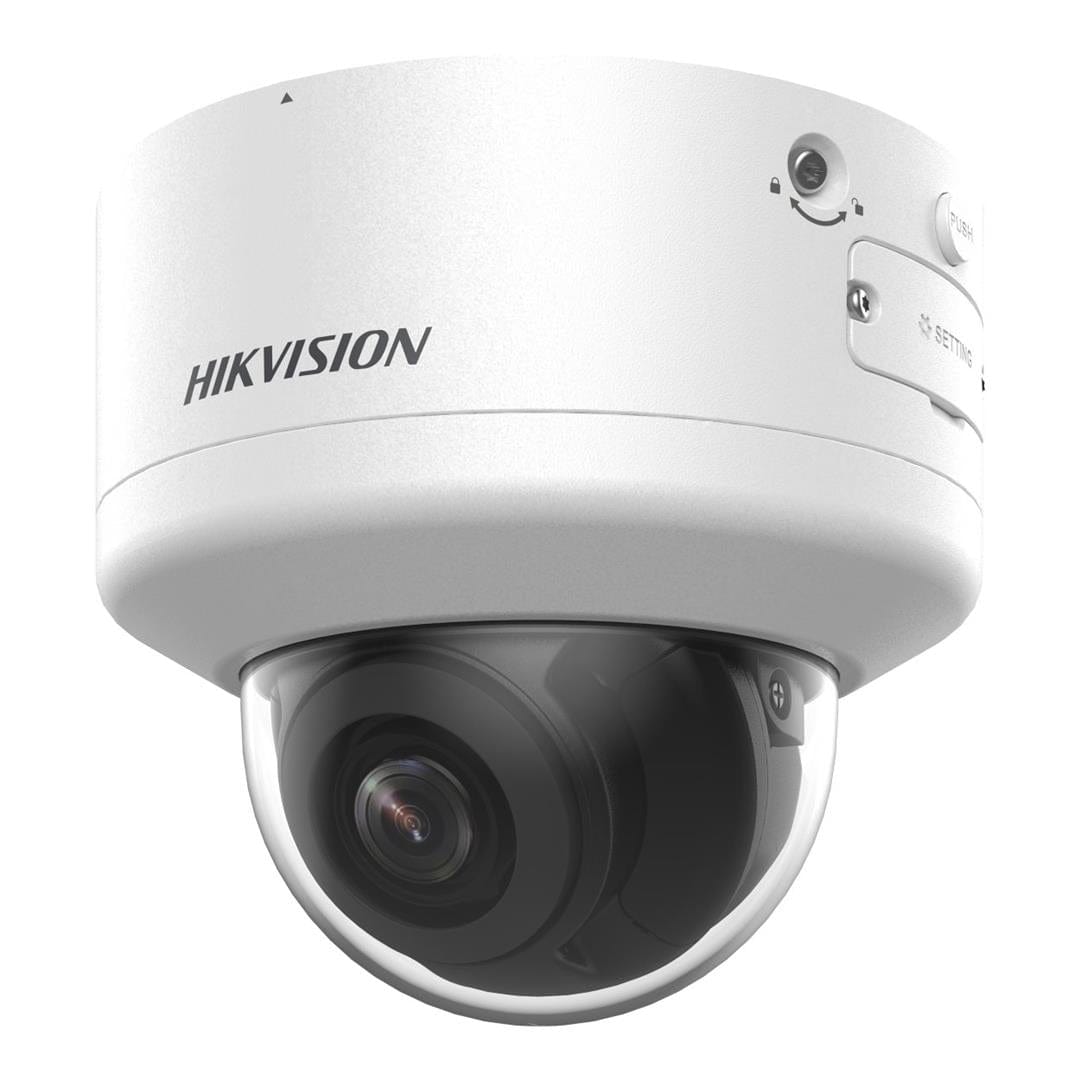

Hikvision 8MP 2.8-12mm AcuSense PTRZ Varifocal Dome Network Camera DS-2CD2786G2H-IPTRZS(2.8-12mm)

Hikvision 8MP 2.8-12mm AcuSense PTRZ Varifocal Dome Network Camera DS-2CD2786G2H-IPTRZS(2.8-12mm)

Features

• Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB WDR technology
• Human and vehicle classification based on deep learning
• Water and dust resistant (IP66) and vandal resistant (IK10)
• Audio and alarm interface available

Technical Specification

Image Sensor: 1/1.8" Progressive Scan CMOS

Max. Resolution: 3840 × 2160

Lens Type: Varifocal lens, motorized lens

Focal Length: 2.8 to 12 mm

FOV: Horizontal FOV 112.3° to 41.2°, Vertical FOV 58.1°to 23.1°, Diagonal FOV 137.4°to 47.3°

Depth of Field: 1 m to ∞

DORI

• Wide: D: 89 m, O: 35 m, R: 18 m, I: 9 m
• Tele: D: 220 m, O: 87 m, R: 44 m, I: 22 m

Supplement Light Type: IR

Supplement Light Range: Up to 40 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

Audio

• 1x input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
• 1x output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm: 1x input, 1x output (max. 24 VDC/24 VAC, 1 A)

Ethernet Interface: 1x RJ45 10 M/100 M self-adaptive Ethernet port

Power: 12 VDC ± 25%, 1.05 A, max. 12.6 W,reverse polarity protection,two-core terminal block or PoE: IEEE 802.3at, Class 4, max. 15 W

• Please note: Power supply is not included
