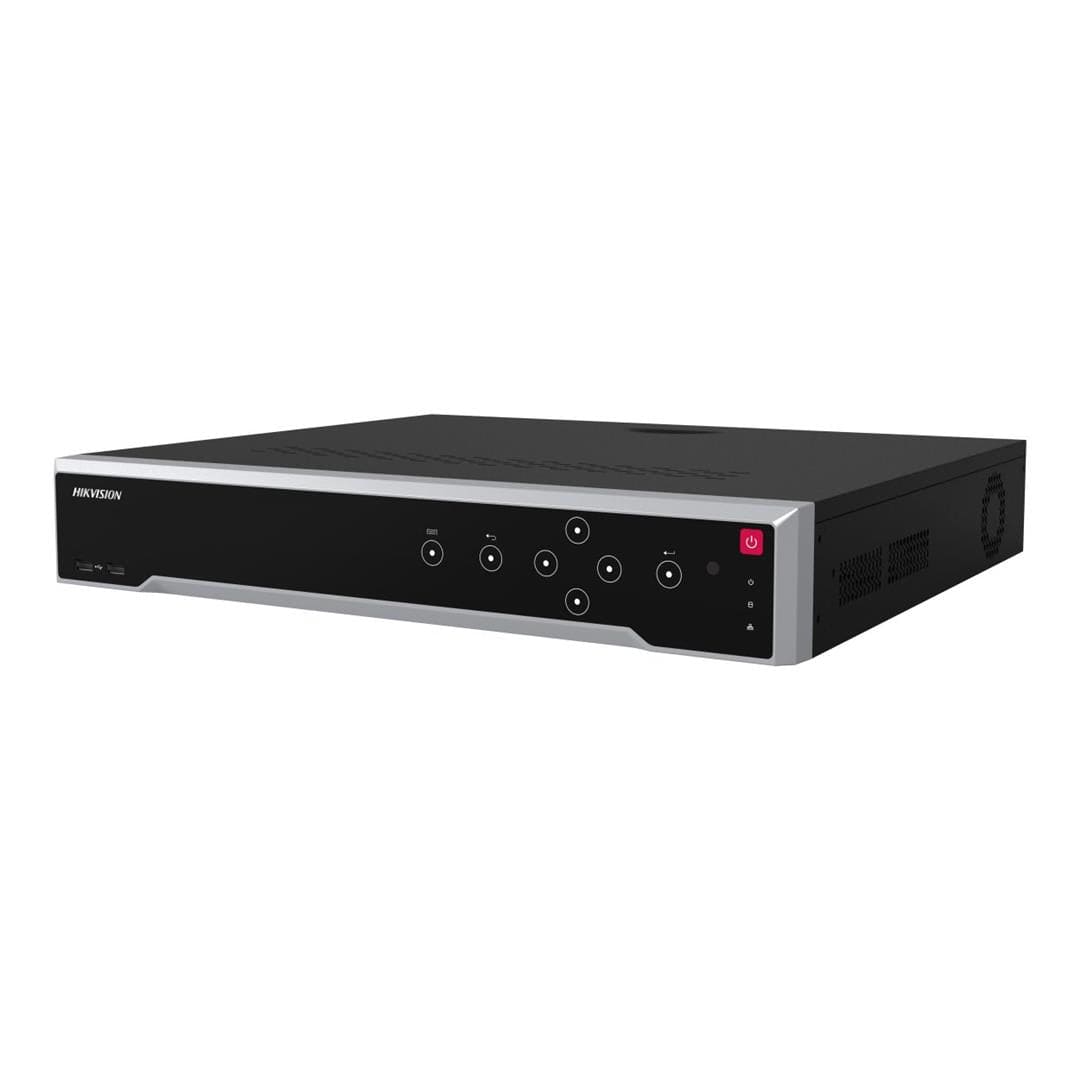

Hikvision 7700 Ultra Series 32-ch 1.5U 8K NVR DS-7732NI-M4

Hikvision 7700 Ultra Series 32-ch 1.5U 8K NVR DS-7732NI-M4

Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%
• Dual-stream recording saves bandwidth
• Adopt stream over TLS encryption technology which provides more secure stream transmission service
• Support double verification for playback and downloading

HD Video Output

• Provide independent HDMI and VGA outputs
• HDMI video output at up to 8K resolution
• Dual 4K HDMI output resolution

Storage and Playback

• Up to 4 SATA interfaces for HDD connection
• 16-ch synchronous playback

Smart ＆ POS Function

• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
• POS information overlay on live view and playback, and POS triggered recording and alarm

Network ＆ Ethernet Access

• 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
• Hik-Connect ＆ DDNS (Dynamic Domain Name System) for easy network management
• Smooth streaming technology
• Support web access without plug-in

Features

• H.265+/H.265/H.264+/H.264 video formats
• Up to 32-ch IP camera inputs
• Up to 32-ch@1080p decoding capacity
• Up to 320 Mbps incoming bandwidth
• Up to 8-ch IP speakers can be connected
• 16x Alarm In
• 9x Alarm Out
• 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 for CVBS Output
• 1-ch, RCA (Linear, 1 KΩ) for Audio Output
• 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) for Two-Way Audio
• 1x eSATA interface
• 4x SATA interfaces
• Up to 16 TB capacity for each disk
• 2x RS-485 (half-duplex), 1x RS-232 Serial Interfaces
• 2x USB 2.0 on Front panel
• 1x USB 3.0 on Rear panel
• 2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• 19-inch rack-mounted 1.5U chassis
