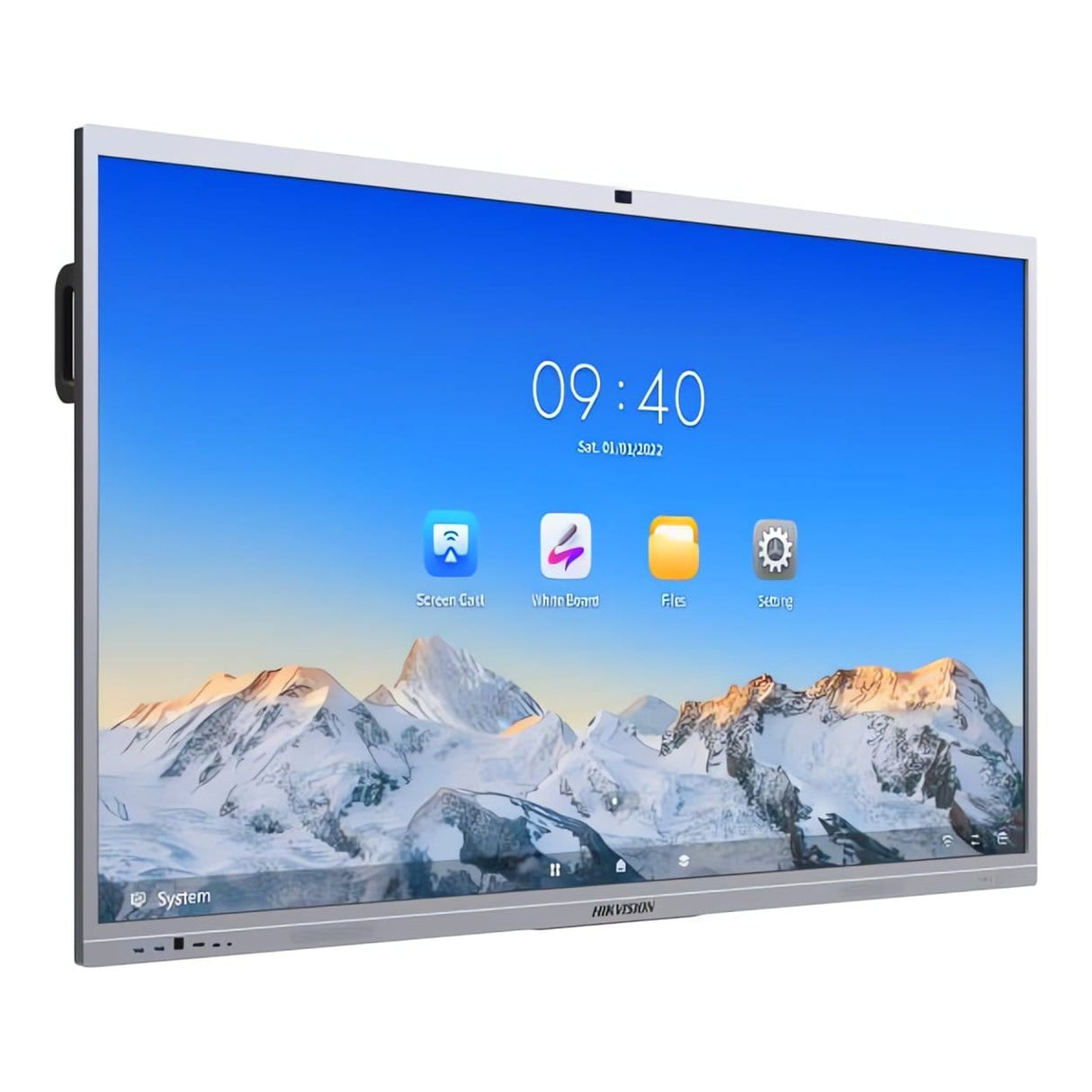

Hikvision 65-inch 4K UHD Interactive Large Format Display DS-D5C65RB/B

Hikvision 65-inch 4K UHD Interactive Large Format Display DS-D5C65RB/B

Features

• UHD 4K display with resolution of 3840 × 2160.
• Anti-glare and anti-blocking design to ensure smooth interaction.
• Dual systems of Android and Windows (Optional with OPS) saving cost and easy to use, video conference software are recommonded to run under Windows system.
• Quick response, at most 50-points touch control and smooth writing experience.
• Built-in network switch chip saves a network switch.
• All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.

Technical Specification

Product: Hikvision DS-D5C65RB/B Large Format Display

Product design: Interactive flat panel

Display diagonal: 165.1 cm (65")

Display resolution: 3840 x 2160 pixels @ 60Hz

HD type: 4K Ultra HD

Display: Infrared Touchscreen, Up to 50-point multi-touch

Touch response Time: ≤ 2 ms

Minimum touch object: ≥ 1.5 mm (≥ 90% touching area)

Touch precision: ± 0.5 mm (≥ 90% touching area)

Touch resolution: 32767 × 32767

Aspect ratio: 16:9

Brightness: 400 cd/m² (Typ.)

Contrast ratio: 5000:1 (Static) ; 30,000:1 (Dynamic)

Response time: 5 ms

Backlight technology: DLED

Panel type: VA

Surface hardness: 9H (Pencil) ; 7 (Mohs)

Surface glass: Anti-Glare Glass

Surface haze: 25% Haze

Glass bonding method: Zero Lamination

Working duration: 7 × 16 H

Transmittance: 88% ± 3

Lifespan: 50,000 hours

Operation system: Android 13.0

Memory: 8 GB

Built-in storage: 128 GB

Processor: Quad-core Cortex-A76 x 4 (2.4 GHz) and quad-core Cortex-A55 x 4 (1.8 GHz)

GPU: Mali-G610 MC4

HDCP version: 2.3

Camera pixel: Pixel 48MP for Photos & 8 MP for Video

Camera function: Support intelligent switching between Android system, OPS, and PC.

Field angle: 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)

Distortion: ≤2.5%

Camera resolution Ratio: Up to 4K

Microphone specification: Omni-directional 8-array layout

Mic function: Echo reduction and smart noise-cancellation

Voice distance: 12 m

Sampling rate: 32 K

Mic depth: 16 bit

Loudspeaker: Built-in 2 × 20 W+25W loudspeaker

Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1

Wireless: Wi-Fi AP & Station, 2.4G/5G

NFC: Support screen mirroring by Android phones

VESA mount: 600 x 400 mm

Weight: 37.6 kg

Warranty: 1-Year Carry-in

Ports

Video & audio input: 3x HDMI In (HDMI 2.0), 1x VGA In, 1x DP In (DP 1.2), 1x Audio In

Video & audio output: 1x HDMI Out (HDMI 2.0), 1x Audio Out, 1x SPDIF Out

Control interface: 3x TOUCH-USB 3.0, 1x RS232

Network Interface: 2x LAN (1000 Mbps)

Data Transmission Interface: 4x USB 3.0, 1x USB 2.0, 2x Type-C (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
