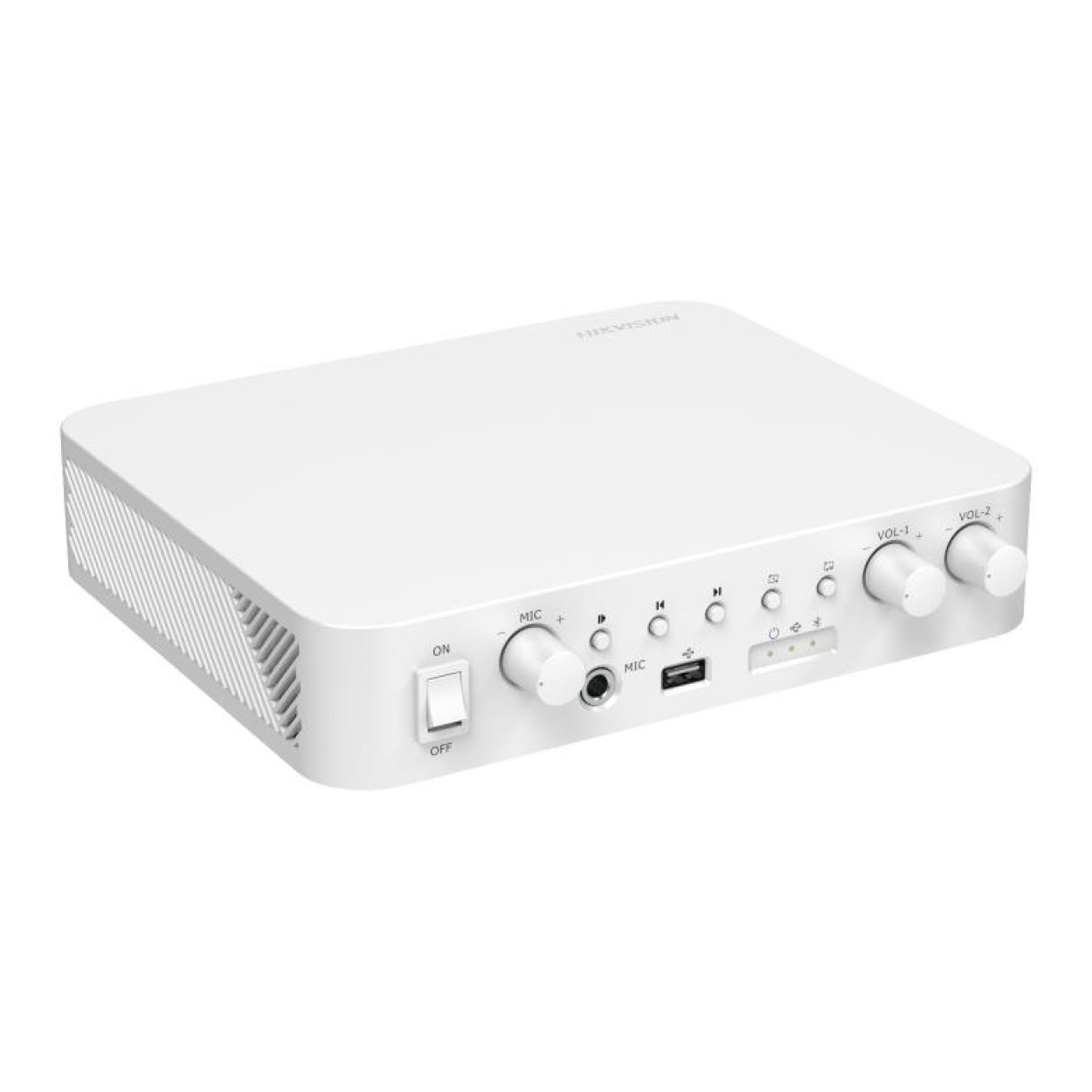

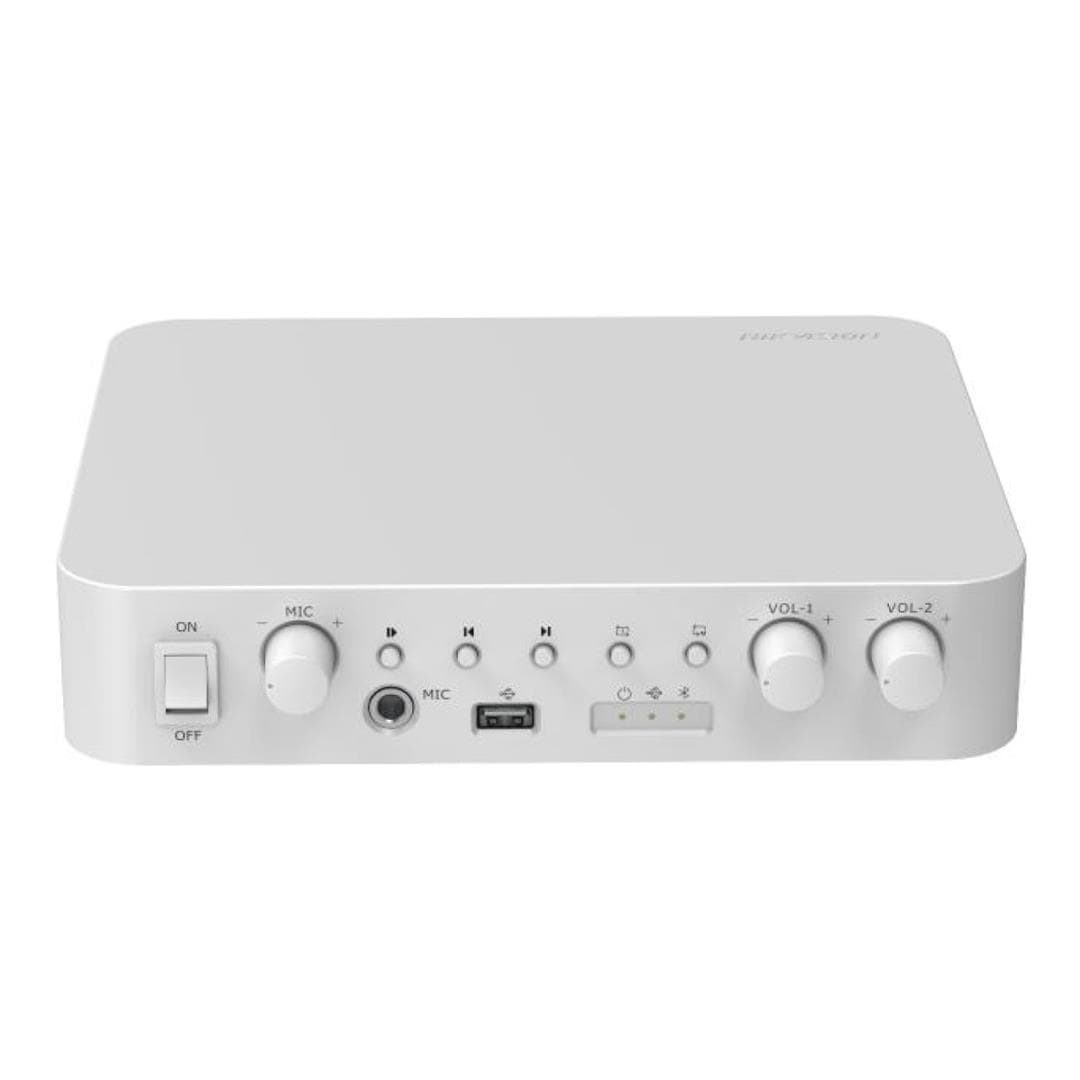

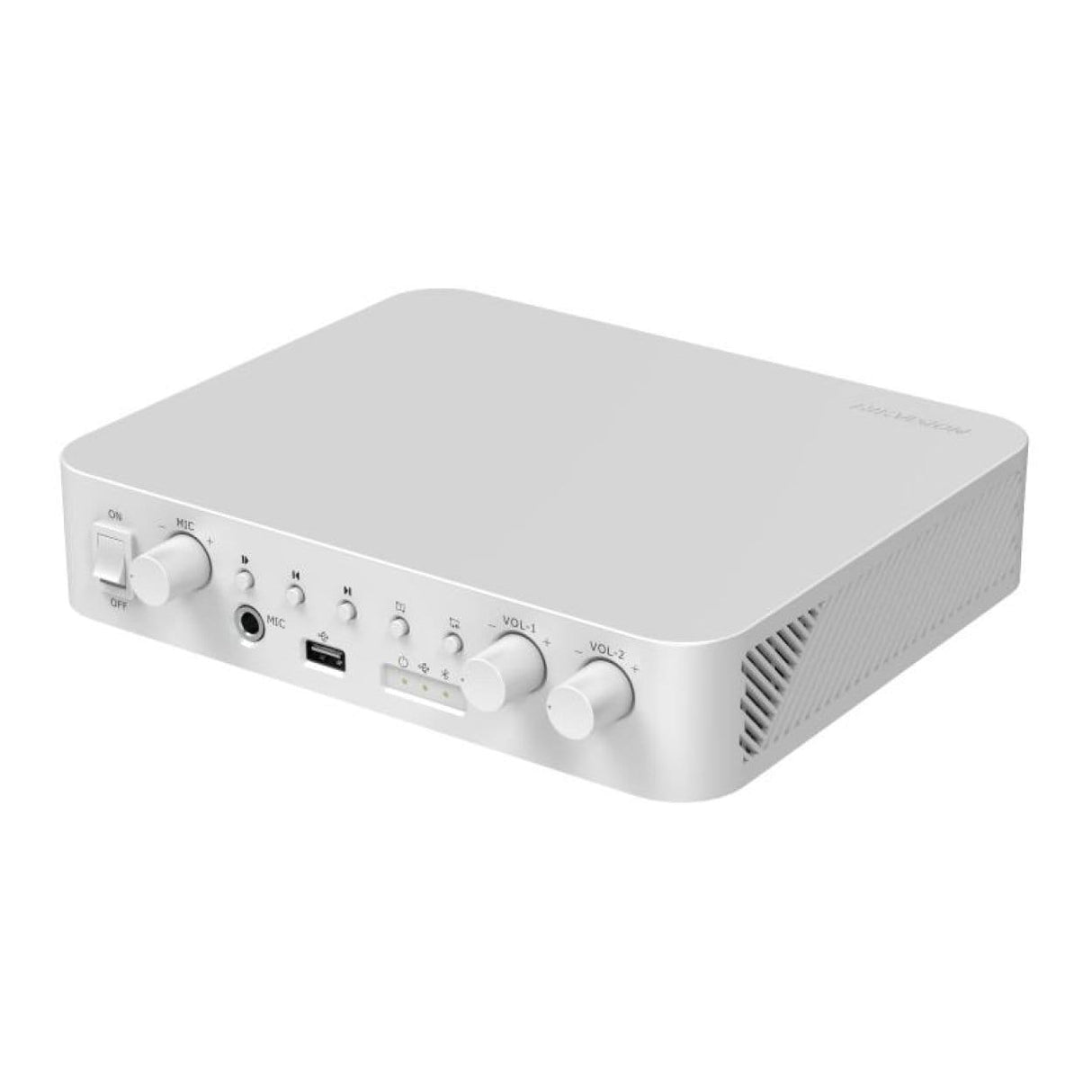

Hikvision 60W Analog Amplifier DS-QAE0A60G1-VB

Hikvision 60W Analog Amplifier DS-QAE0A60G1-VB

Features:

• Rated Power: 60 W, 2 Zones
• Audio input: USB/Bluetooth/MIC/RCA
• Support two-zone volume adjustment

Technical Specifications:

Function

Protection Functions

Short Circuit Protection

Overcurrent Protection

Over Temperature Protection

Anti-Static Electricity Protection

Surge Protection

Electrical Shock Protection

Audio

Rated Power
60 W

Rated Voltage
24 V DC

Frequency Response

• USB, Bluetooth: 20 Hz To 20 kHz
• MIC, RCA Input: 20 Hz To 8 kHz

THD And SNR

• THD: ≤ 1%
• SNR: ≥ 100 dB

Interface

Audio Input

• MIC 1: -28 dBV, 2.57 KΩ, Unbalanced, 6.35 mm Jack (Supports Dynamic Microphone)
• 1 × USB 2.0
• 1 × RCA In: 0 dBV, 5 KΩ, Unbalanced
• Bluetooth Supported

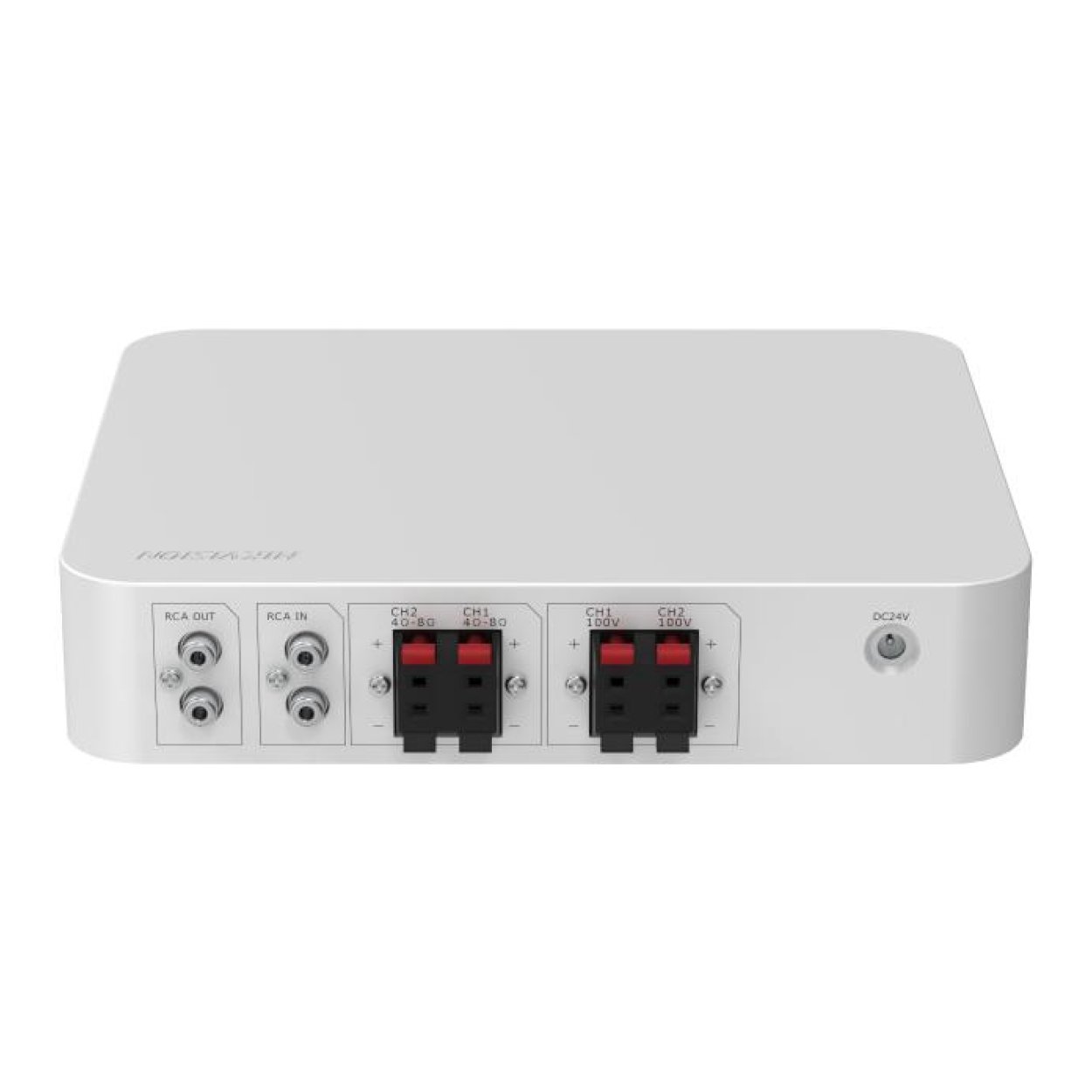

Audio Output

• 2 × Constant Voltage Output (100 V COM)
• 2 × Constant Resistance Output (30 W, 4 Ω To 8 Ω)
• 1 × RCA Out: 0 dBV, 100 Ω, Unbalanced
• RCA Cascading: Supports Cascade Of Up To 3 Amplifiers

Bluetooth
Supported

LED Indicators

Power Indicator (Solid White): Device Operating Normally

USB Indicator (Solid White): USB Mode Active

Bluetooth Indicator (Solid Blue): Bluetooth Mode Active

USB Indicator Off And Bluetooth Indicator Off: MIC And RCA Input Mixed

Volume Controls

• MIC Volume Knob × 1
• Partition 1 Volume Knob × 1
• Partition 2 Volume Knob × 1

USB Support

• USB 2.0
• File Format: FAT32
• Playback Supports Up To Level 3 Directory Traversal

Power Interface
Ø2.0 mm Connector

General

Material
Plastic

Color
White

Dimensions
190.8 × 230.8 × 51.2 mm

Weight
Approx. 1445.5 g

Package Dimensions
362 × 280 × 100 mm

Package Weight
Approx. 2113.3 g

Bluetooth Version
Bluetooth 5.3 (Up To 10 m Range)

Operating Temperature
-10 °C To 55 °C (14 °F To 131 °F)

Operating Humidity
≤ 90% (Non-Condensing)

Power Consumption

• Standby Consumption: 1 W
• Maximum Working Consumption: 60 W

What's in the Box:

• Analog Amplifier × 1
• Power Adapter × 1
• Power Cord × 1
• Regulatory Compliance And Safety Information × 1
