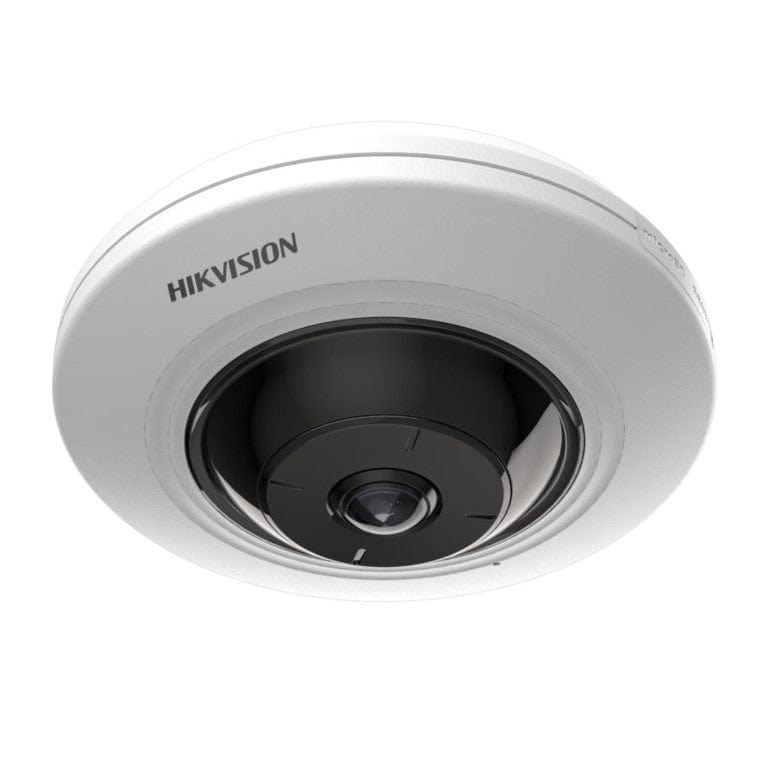

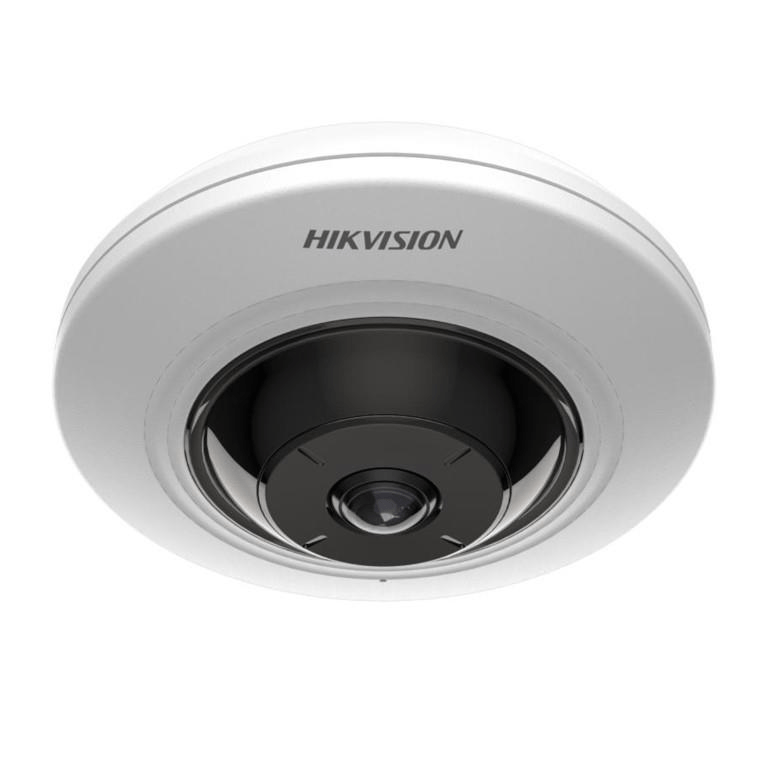

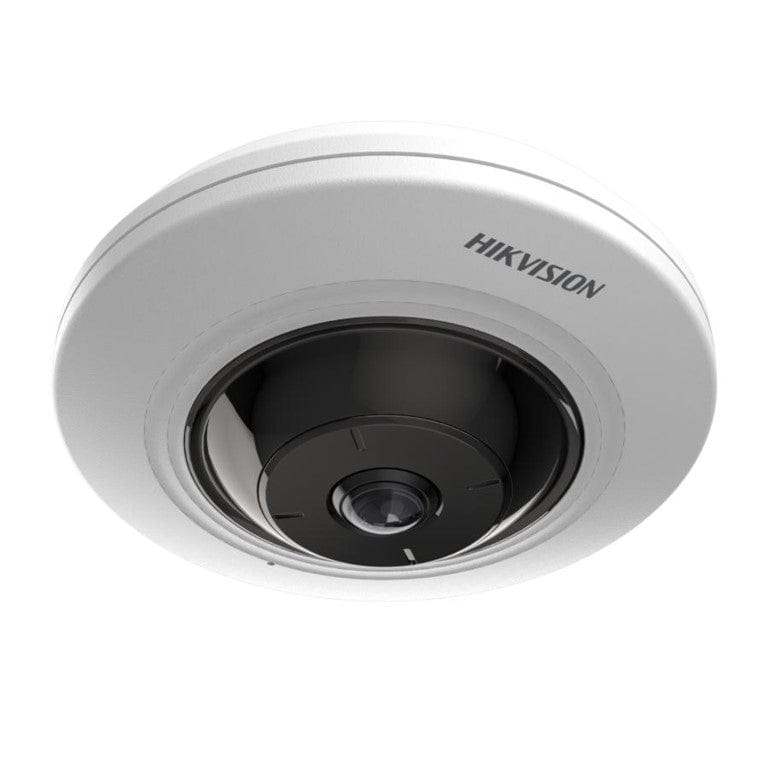

Hikvision 5MP 1.05mm Fixed Fisheye Network Camera DS-2CD2955G0-ISU(1.05mm)

Hikvision 5MP 1.05mm Fixed Fisheye Network Camera DS-2CD2955G0-ISU(1.05mm)

Features

• High quality imaging with 5 MP resolution
• 1/2.7" Progressive Scan CMOS
• 2560 x 1920 Max. Resolution
• 1.05mm Fixed focal lens
• Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV: 180°
• D: 21 m, O: 8 m, R: 4 m, I: 2 m
• Efficient H.265+ compression technology
• 180° fisheye view
• Clear imaging against strong back light due to 120 dB true WDR technology
• Up to 8m IR
• 850nm IR Wavelength
• -U: Built-in microphone
• -S: Audio and alarm interface
• 1x input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
• 1x output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• 1x input, 1x output (max. 12 VDC, 30 A) alarm
• 1x RJ45 10/100MB self-adaptive Ethernet port
• 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection ; PoE: IEEE 802.3af, Class 3, max. 7.5 W
• *Power supply is not included

Technical Specifications:

Camera

Image Sensor
1/2.7" Progressive Scan CMOS

Max. Resolution
2560 × 1920

Min. Illumination
Color: 0.017 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR

Shutter Time
1/3 s to 1/100,000 s

Day & Night
IR cut filter

Lens
Lens Type
Fixed focal lens, 1.05 mm

Focal Length & FOV
1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°

Focus
Fixed

Lens Mount
M12

Iris Type
Fixed

Aperture
F2.25

Depth of Field
0.1 m to ∞

DORI
D: 21 m, O: 8 m, R: 4 m, I: 2 m

Illuminator
Supplement Light Type
IR

Supplement Light Range
Up to 8 m

Smart Supplement Light
Yes

IR Wavelength
850 nm

Video
Main Stream
50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1280 × 960)
60 Hz: 30 fps (2560 × 1920, 2048 × 1536, 1280 × 960)

Sub-Stream
50 Hz: 25 fps (640 × 480)
60 Hz: 30 fps (640 × 480)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate
32 Kbps to 16 Mbps

H.264 Type
Baseline Profile, Main Profile, High Profile

H.265 Type
Main Profile

Region of Interest (ROI)
1 fixed region for main stream

Fisheye Display
Mount Type
Support wall/table/ceiling mounting

Display Mode
Support 14 display modes: Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Audio
Audio Type
Mono sound

Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate
64 Kbps (G.711 ulaw/G.711 alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)

Audio Sampling Rate
8 kHz/16 kHz

Environment Noise Filtering
Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View
Up to 6 channels

API
Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI

User/Host
Up to 32 users, 3 user levels: administrator, operator, user

Client
iVMS-4200, Hik-Connect, Hik-Central

Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Web Browser
Plug-in required live view: IE 10+
Local service: Chrome 57.0+, Firefox 52.0+

Network Storage
NAS (NFS, SMB/CIFS)

Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser

Day/Night Switch
Day, Night, Auto, Schedule

Image Enhancement
BLC, 3D DNR

Wide Dynamic Range (WDR)
120 dB

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Built-in Microphone
Yes

Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm
1 input, 1 output (max. 12 VDC, 30 A)

Reset Key
Yes

Power Output
12 VDC, max. 100 mA

Event
Basic Event
Motion detection, video tampering alarm, exception

Smart Event
Line crossing detection, intrusion detection

Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output

General
Power
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 7.5 W

Material
ADC12

Dimension
Ø119.9 mm × 41.2 mm (Ø4.7" × 1.6")

Package Dimension
150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")

Approx. 320 g (0.7 lb.)
With Package Weight: Approx. 500 g (1.1 lb.)

Language
13 languages: English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian

Storage Conditions
-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions
-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)

General Function
Heartbeat, anti-banding, mirror, password protection

Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015

Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014 + A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
LOA: IEC/EN 60950-1

Environment
CE-RoHS: 2011/65/EU
