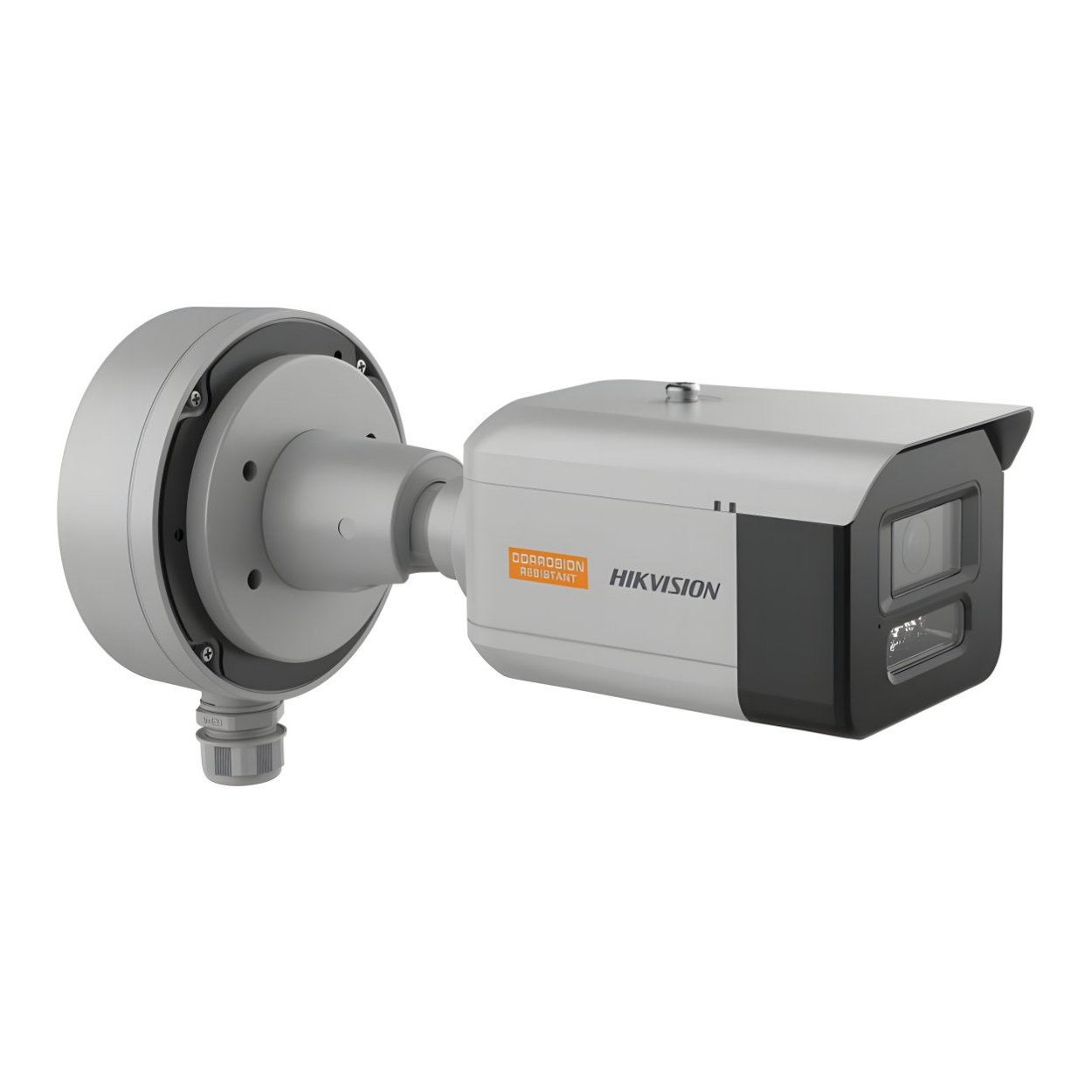

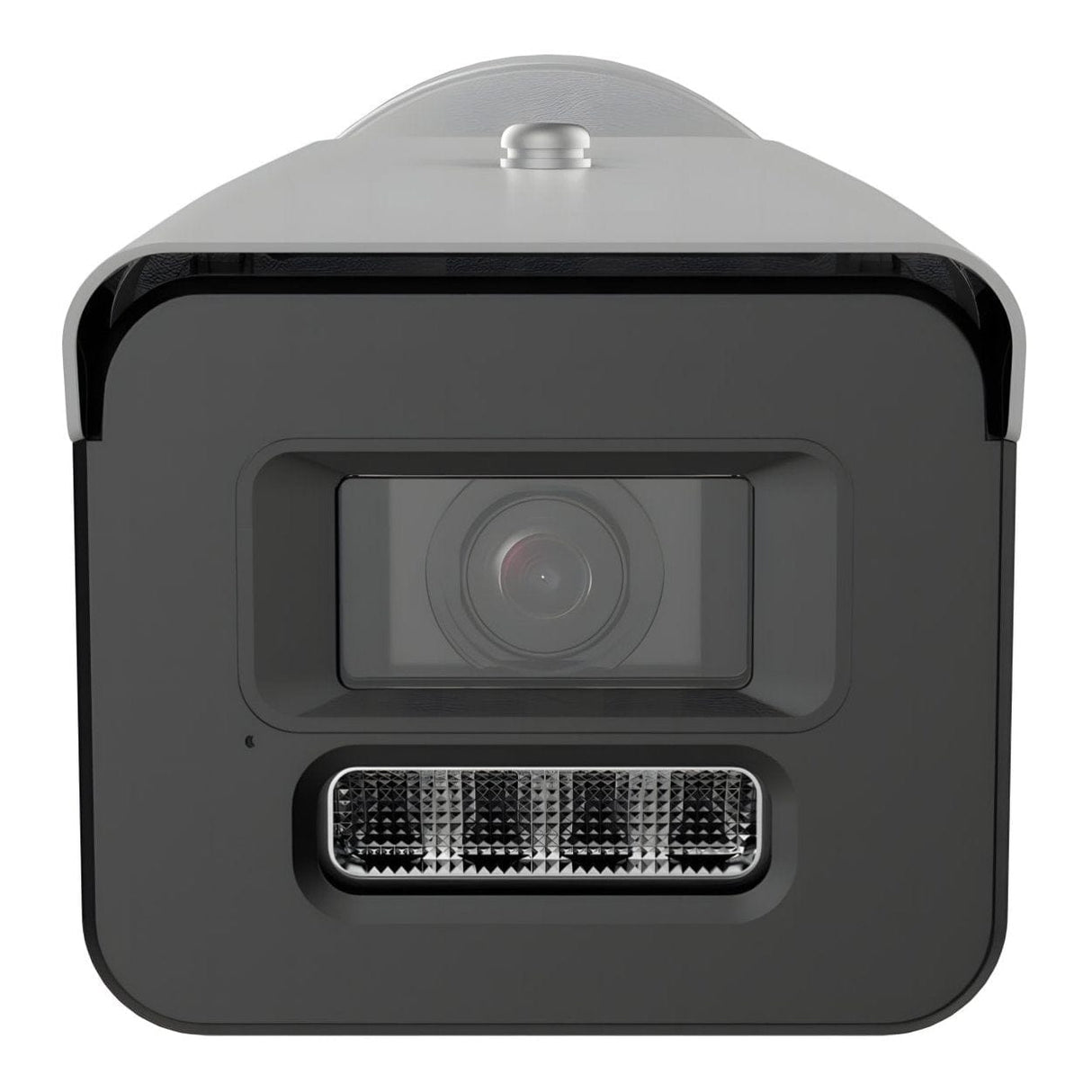

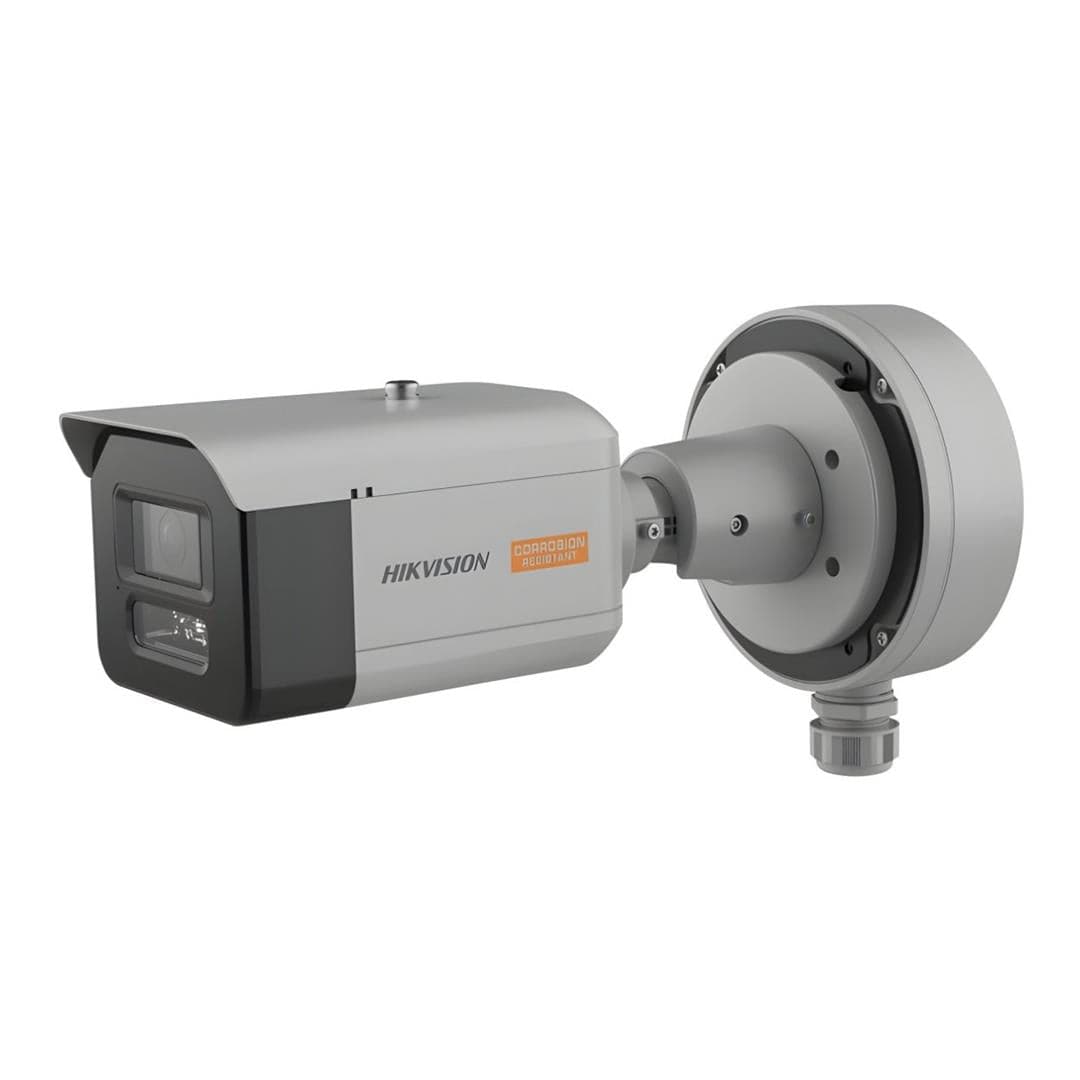

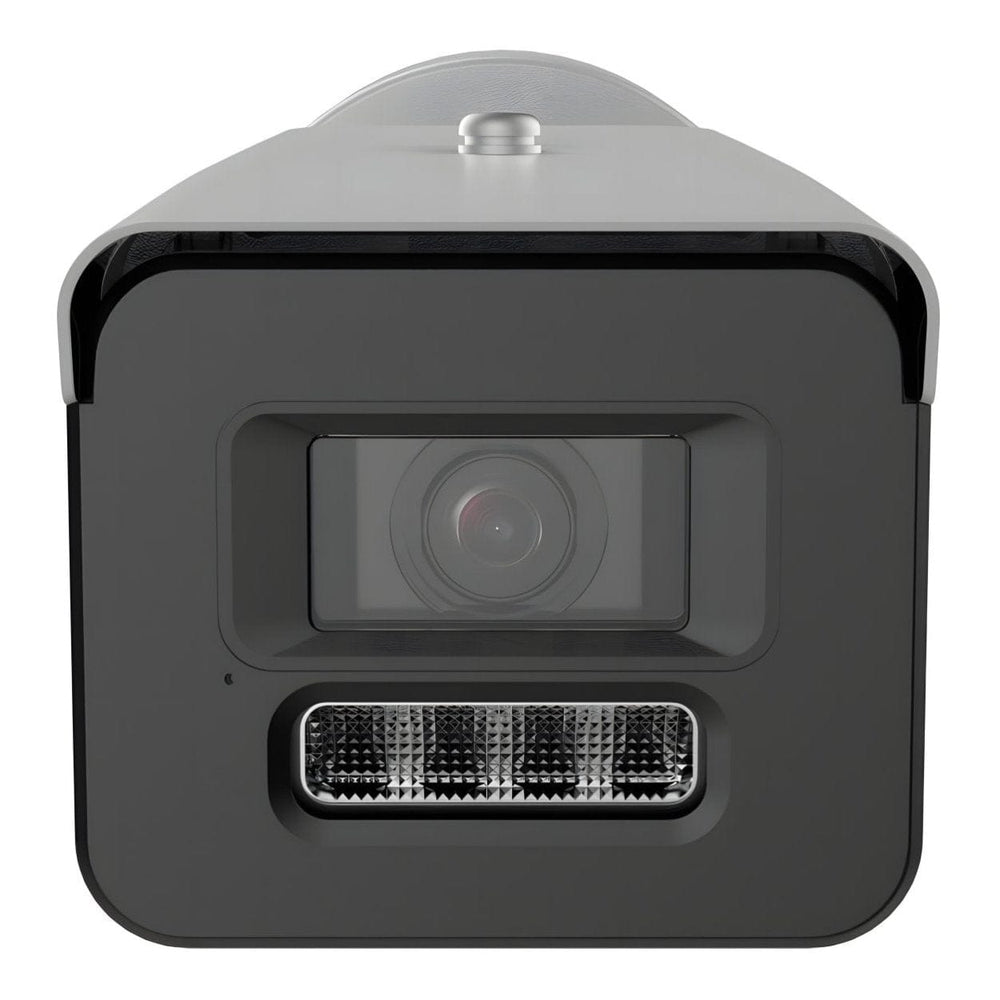

Hikvision 4MP Polymer 4MP Anti-Corrosion Vari-focal Bullet DS-2XC3646G0H-LIZSU(2.7-13.5mm)

Hikvision 4MP Polymer 4MP Anti-Corrosion Vari-focal Bullet DS-2XC3646G0H-LIZSU(2.7-13.5mm)

Features:

• 24/7 colorful imaging via ColorVu technology
• IR light, White light, Smart Hybrid Light modes
• Clear imaging against strong back light due to 130 dB WDR technology
• -SU models: Clear two-way audio with arrayed dual-microphone
• Water and dust resistant (IP68) and vandal resistant (IK10)
• -S and -SU models: Audio and alarm interface available
• Anti-corrosion polymer enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras

Technical Specifications:

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0°–90°, Tilt: 0°–360°, Rotate: 0°–360°

Lens
Lens Type: Varifocal, motorized, 2.7–13.5 mm or 7–35 mm optional
Focal Length & FOV:

• 2.7–13.5 mm: Horizontal FOV 107.4°–39.8°, Vertical FOV 56°–22.4°, Diagonal FOV 130.1°–45.7°
• 7–35 mm: Horizontal FOV 40.3°–14.5°, Vertical FOV 22.1°–8.2°, Diagonal FOV 46.9°–16.5°

Focus: Auto, Semi-auto, Manual
Iris Type: DC iris
Aperture: 2.7–13.5 mm: max F1.2, 7–35 mm: max F1.7
Depth of Field: 1 m to ∞

DORI

• 2.7–13.5 mm: Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m; Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m
• 7–35 mm: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m; Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: Up to 50 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (same resolutions)
Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream: 50/60 Hz: 10 fps (various resolutions)
Fourth Stream: 50/60 Hz: 10 fps (various resolutions)
Video Compression: H.265/H.264/H.264+/H.265+ (Main), H.265/H.264/MJPEG (Sub/Third/Fourth streams)
Video Bit Rate: 32 Kbps – 8 Mbps
H.264 Type: Baseline, Main, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): Supported
Region of Interest (ROI): 5 fixed regions for main stream
Target Cropping: Yes

Audio
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
Audio Sampling Rate: 8/16/32/48 kHz
Environment Noise Filtering: Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live View: Up to 20 channels
API: ONVIF Profile S/G/T, ISAPI, SDK, ISUP
User/Host: Up to 32 users, 3 levels: administrator, operator, user
Security: Password protection, HTTPS encryption, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, basic/digest authentication for HTTP/HTTPS, WSSE/digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout, security audit log, TLS 1.1/1.2/1.3, MAC host authentication
Network Storage: NAS (NFS, SMB/CIFS), ANR; supports memory card encryption and health detection

Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client or browser
Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
Wide Dynamic Range (WDR): 130 dB
Image Enhancement: BLC, HLC, 3D DNR, Defog
SNR: ≥52 dB
Privacy Mask: 4 programmable polygon masks

Interface
Ethernet Interface: 1 RJ45 10/100 M self-adaptive
Built-in Microphone: Yes, 1
Audio I/O: 1 input/output, two-core terminal block, max 3.3 Vpp, impedance 4.7 KΩ (input)/100 Ω (output)
Alarm: 1 input, 1 output (max 12 VDC, 0.1 A)
RS-485: 1, half duplex, self-adaptive
Reset Key: Yes

Event
Basic Event: Motion detection (human/vehicle), video tampering, network exception, IP conflict, illegal login, HDD full/error
Smart Event: Unattended baggage, object removal, scene change, audio exception, defocus
Linkage: FTP/NAS/memory card upload, notify center, email, trigger recording/capture, audible warning, alarm output

Deep Learning Function
Perimeter Protection: Line crossing, intrusion, region entrance/exiting; alarm triggering by human/vehicle

General
Power: 12 VDC ±25%, 0.92 A, max 11 W, two-core terminal block, reverse polarity protection; PoE IEEE 802.3af Class 3, max 11 W
Material: Body: SMC+30% GF, Bracket: PA66+15% GF
Dimension: 294.27 × 120.8 × 121.36 mm (11.59" × 4.76" × 4.77")
Package Dimension: 395 × 195 × 158 mm (15.55" × 7.68" × 6.22")
Weight: Approx. 1480 g (3.26 lb), with package 2035 g (4.49 lb)
Storage/Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤95% non-condensing
Language: 33 languages, including English, Russian, Chinese, Spanish, French, Korean, Japanese, Portuguese (Brazil), etc.
General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, anti-banding

Approval
EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32:2015; IC: ICES-003 Issue 7; KC: KN32/KN35: 2015
Safety: CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017
Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; REACH: EC 1907/2006
Protection: IP68, IK10
Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018), C5
