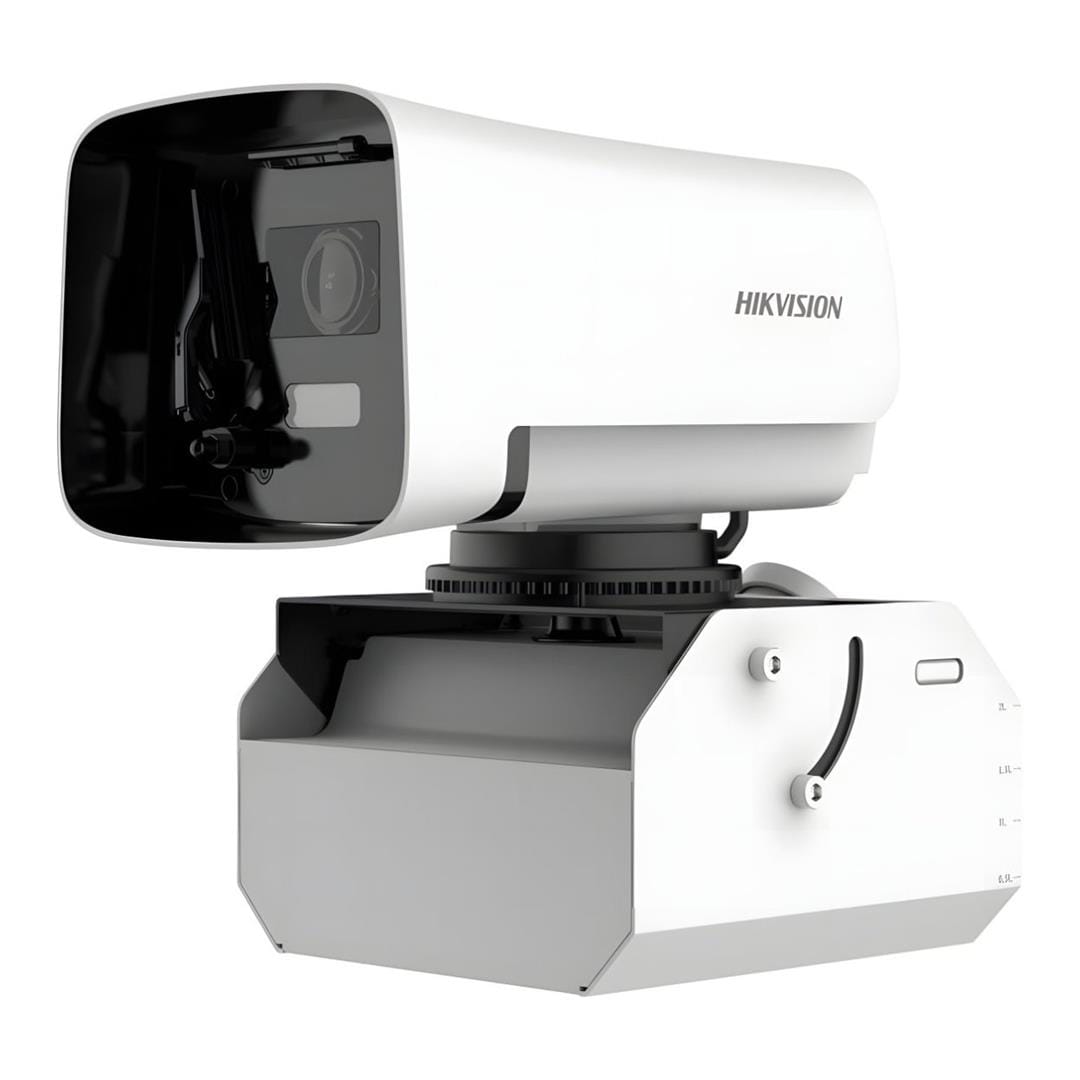

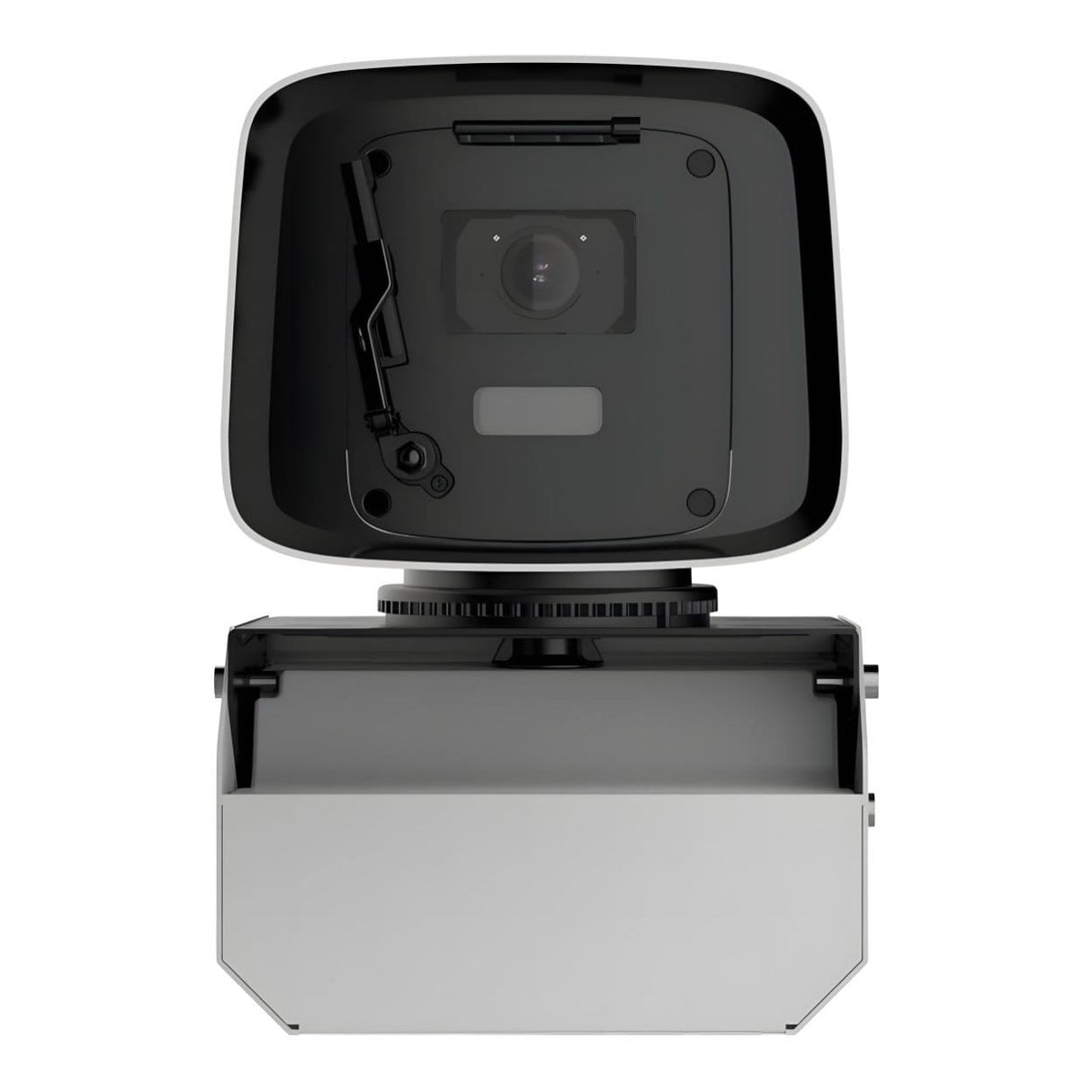

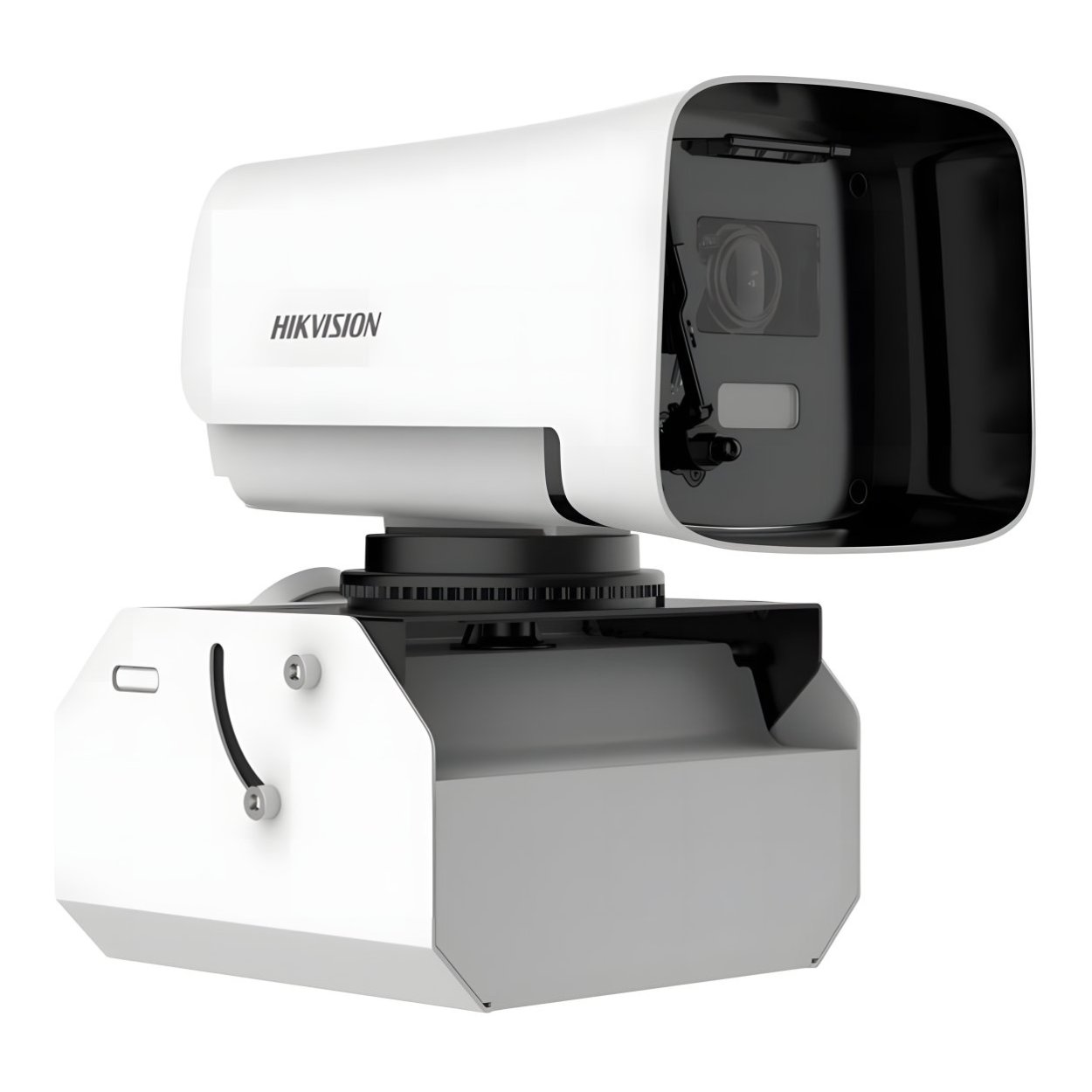

Hikvision 4MP DeepinView Self-Cleaning Bullet Camera IDS-2CD8A46G0/SC-XZY(8-32MM)

Hikvision 4MP DeepinView Self-Cleaning Bullet Camera IDS-2CD8A46G0/SC-XZY(8-32MM)

Features:

• High quality imaging with 4 MP resolution
• Excellent low-light performance via Darkfighter technology
• Efficient H.265+ compression technology to save bandwidth and storage
• Two years maintenance-free with the built-in 2 L large-capacity water box for cleaning the camera window once a week after filling the water box
• Ring-type sunshield to block the stray light incident from outside the range of lens field of view and reduce dust adhesion
• Built-in heater to ensure clear image under rainy or snowy weather and enhance the lens window glass decontamination ability
• Water and dust resistant (IP67) and anti-corrosion protection (NEMA 4X)
• White and IR supplement light

Technical Specifications:

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Maximum Resolution: 2560 × 1440
Shutter Time: 1 s to 1/100,000 s
Day and Night Mode: Blue Glass Module (Reduced Ghost Phenomenon)

Minimum Illumination

• 2.8 to 12 mm Lens: Colour: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light
• 8 to 32 mm Lens: Colour: 0.002 Lux @ (F1.7, AGC ON), 0 Lux with Light

Lens

Focal Length and Field of View

• 2.8 to 12 mm: Horizontal FOV 89.1° to 36.3°, Vertical FOV 48.3° to 20.7°, Diagonal FOV 106.1° to 41.9°
• 8 to 32 mm: Horizontal FOV 40.3° to 14.5°, Vertical FOV 22.1° to 8.2°, Diagonal FOV 46.9° to 16.5°

Focus Modes

• Auto
• Semi-Auto
• Manual

Iris Type: DC Iris

Aperture

• 2.8 to 12 mm: F1.47
• 8 to 32 mm: F1.7

Illuminator

Supplement Light Type

• IR
• White Light

Supplement Light Range

• IR (2.8 to 12 mm): Up to 60 m
• IR (8 to 32 mm): Up to 100 m
• White Light (2.8 to 12 mm): Up to 40 m
• White Light (8 to 32 mm): Up to 60 m

Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Main Stream (50 Hz)

• 2560 × 1440 @ 50 fps
• 1920 × 1080 @ 50 fps
• 1280 × 720 @ 50 fps

Main Stream (60 Hz)

• 2560 × 1440 @ 60 fps
• 1920 × 1080 @ 60 fps
• 1280 × 720 @ 60 fps

Sub-Stream

• 50 Hz: 704 × 576 @ 25 fps, 640 × 480 @ 25 fps
• 60 Hz: 704 × 480 @ 30 fps, 640 × 480 @ 30 fps

Third Stream

• 50 Hz: 1920 × 1080, 1280 × 720, 704 × 576, 640 × 480 @ 25 fps
• 60 Hz: 1920 × 1080, 1280 × 720, 704 × 480, 640 × 480 @ 30 fps

Fourth Stream

• 50 Hz: 704 × 576, 640 × 480 @ 25 fps
• 60 Hz: 704 × 480, 640 × 480 @ 30 fps

Fifth Stream

• 50 Hz: 704 × 576, 640 × 480 @ 25 fps
• 60 Hz: 704 × 480, 640 × 480 @ 30 fps

Video Compression

• Main Stream: H.265+, H.265, H.264+, H.264
• Sub-Stream: H.265, H.264, MJPEG
• Third Stream: H.265, H.264
• Fourth Stream: H.265, H.264, MJPEG
• Fifth Stream: H.265, H.264, MJPEG

Video Bit Rate: 32 Kbps to 8 Mbps

H.264 Profiles

• Baseline Profile
• Main Profile
• High Profile

H.265 Profile: Main Profile

Bit Rate Control

• CBR
• VBR

Scalable Video Coding (SVC): H.264 and H.265 Encoding
Target Cropping: Yes

Region of Interest (ROI):

• 4 Fixed Regions per Stream

Network

Supported Protocols

• TCP/IP
• ICMP
• HTTP
• HTTPS
• FTP
• SFTP
• DHCP
• DNS
• DDNS
• SRTP
• RTP
• RTSP
• RTCP
• PPPoE
• NTP
• UPnP
• SMTP
• SNMP
• IGMP
• 802.1X
• QoS
• IPv4/IPv6
• UDP
• Bonjour
• SSL/TLS
• ARP
• WebSocket
• WebSockets

Simultaneous Live View: Up to 20 Channels

API Support

• ONVIF (Profile S, Profile G, Profile T)
• ISAPI
• SDK
• ISUP

User Management

• Up to 32 Users
• Administrator
• Operator
• User

Security Features

• Password Protection
• HTTPS Encryption
• 802.1X Authentication
• Watermark
• IP Address Filtering
• HTTP/HTTPS Authentication
• RTP/RTSP Over HTTPS
• Security Audit Log
• TLS 1.2 and TLS 1.3

Storage

Network Storage

• NAS (NFS, SMB/CIFS)
• Auto Network Replenishment (ANR)
• Memory Card Encryption and Health Detection Support

Client Software

• iVMS-4200
• Hik-Connect

Web Browser Support

• Chrome 57.0+
• Firefox 52.0+
• Edge 89+


Image Parameter Adjustment

• Saturation
• Brightness
• Contrast
• Sharpness
• AGC
• White Balance

Day/Night Switching

• Day
• Night
• Auto
• Schedule
• Alarm Trigger

Wide Dynamic Range (WDR): 140 dB

Image Enhancement

• BLC
• HLC
• 3D DNR
• Distortion Correction
• Defog

Privacy Mask: 8 Programmable Polygon Masks

Picture Overlay: Logo Overlay Supported (128 × 128, 24-Bit BMP)

Image Stabilization: EIS

Interfaces

Ethernet Interface

• 1 × RJ45 10/100 Mbps Self-Adaptive Port

On-Board Storage

• microSD
• microSDHC
• microSDXC
• Supports Up to 1 TB

Audio

• 1 × Line Input (3.5 mm)
• 1 × Line Output (3.5 mm)

Alarm

• 2 × Inputs
• 2 × Outputs (Max. 24 VDC/24 VAC, 1 A)

Reset Key: Yes

RS-485 Interface

• 1 × RS-485 (Half Duplex)

Power Output: 12 VDC, Max. 100 mA

Events

Basic Events

• Motion Detection
• Video Tampering Alarm
• Video Quality Diagnosis
• Network Disconnection
• IP Address Conflict
• Illegal Login
• Abnormal Restart
• HDD Full
• HDD Error

Smart Events

• Scene Change Detection
• Audio Exception Detection
• Defocus Detection

Linkage Actions

• Upload to FTP/NAS/Memory Card
• Notify Surveillance Center
• Send Email
• Trigger Alarm Output
• Trigger Recording
• Trigger Capture
• Audible Warning

Deep Learning Features

Multi-Target Detection

• Human Body Detection
• Face Detection
• Vehicle Detection

Face Capture

• Detects Up to 120 Faces Simultaneously
• Captures Up to 40 Face Images per Frame
• Uploads Up to 10 Face Images per Second

Perimeter Protection

• Line Crossing Detection
• Intrusion Detection
• Region Entrance Detection
• Region Exit Detection

Road Traffic and Vehicle Detection

• Blocklist and Allowlist (Up to 10,000 Records)
• License Plate Recognition (Motorcycles Supported in Checkpoint Mode)
• Vehicle Attribute Detection
• License Plate Recognition Rate ≥98%

Tunnel Event Detection

• Fallen Object Detection
• Pedestrian Detection
• Parking Detection
• Congestion Detection
• Construction Detection

General

Power Supply

• 12 VDC ±20%, 1.55 A (Max. 18.6 W)
• PoE: IEEE 802.3at Type 2 Class 4 (Max. 22.5 W)

Material: Aluminum and Plastic

Dimensions: 337.3 × 193.2 × 261.5 mm

Storage Conditions: -30 °C to 60 °C, ≤95% Humidity (Non-Condensing)
Operating Conditions: -30 °C to 60 °C, ≤95% Humidity (Non-Condensing)

Languages Supported

• 33 Languages Including English, German, French, Spanish, Italian, Portuguese, Russian, Japanese, Korean, Thai, Vietnamese, and Others

General Functions

• Heartbeat
• Anti-Banding
• One-Key Reset
• Mirror
• Password Protection

Demist: Yes

Protection

Ingress Protection Rating: IP67
Anti-Corrosion Protection: NEMA 4X
PVC-Free: Yes

Compliance

EMC Compliance

• CE-EMC
• RCM
• IC
• KC

Safety Compliance

• CB (IEC 62368-1)
• CE-LVD
• LOA (IEC/EN 60950-1)

Environmental Compliance

• CE-RoHS
• WEEE
• REACH

Packaging

Package Dimensions: 350 × 270 × 355 mm
Product Weight: Approx. 3080 g
Package Weight: Approx. 4780 g
