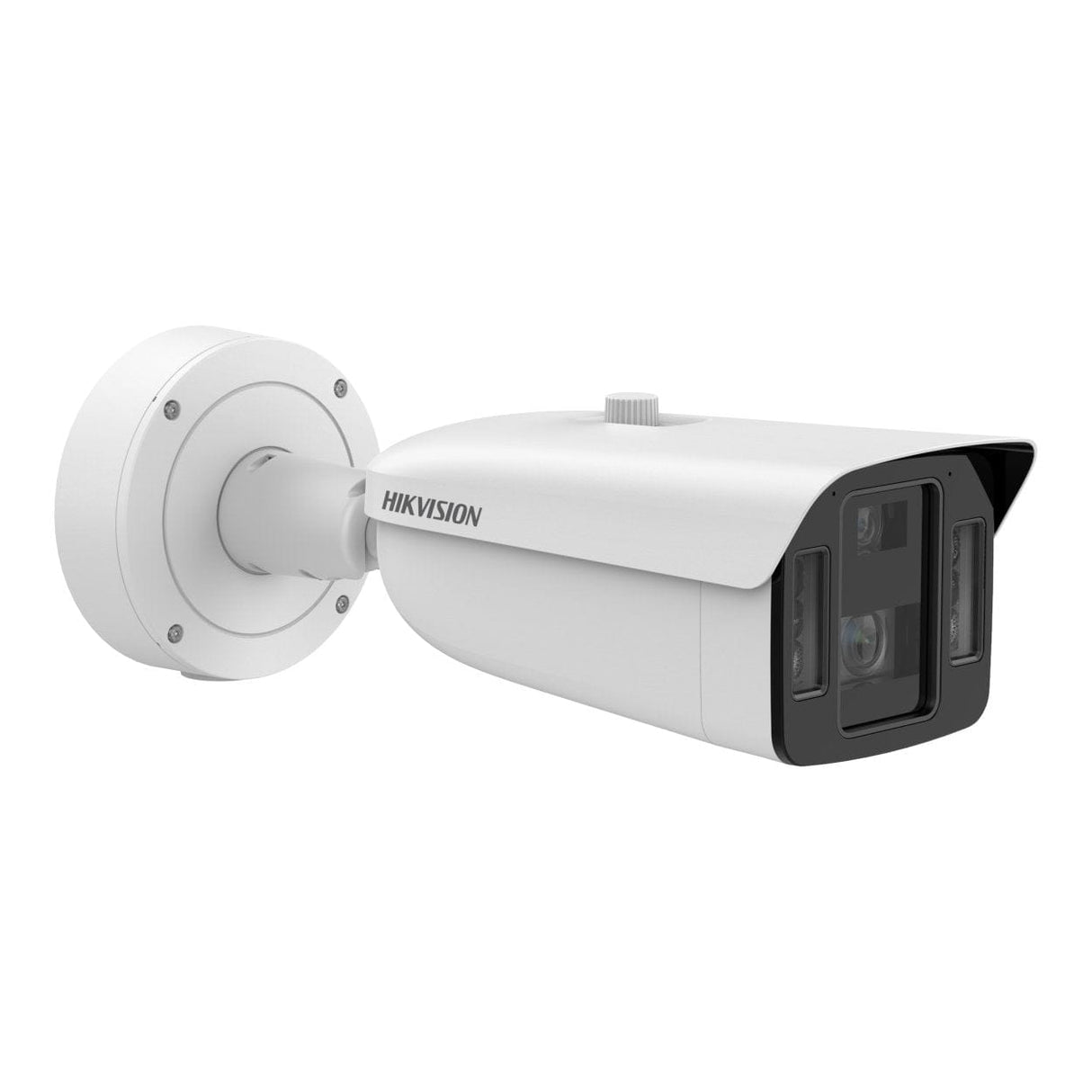

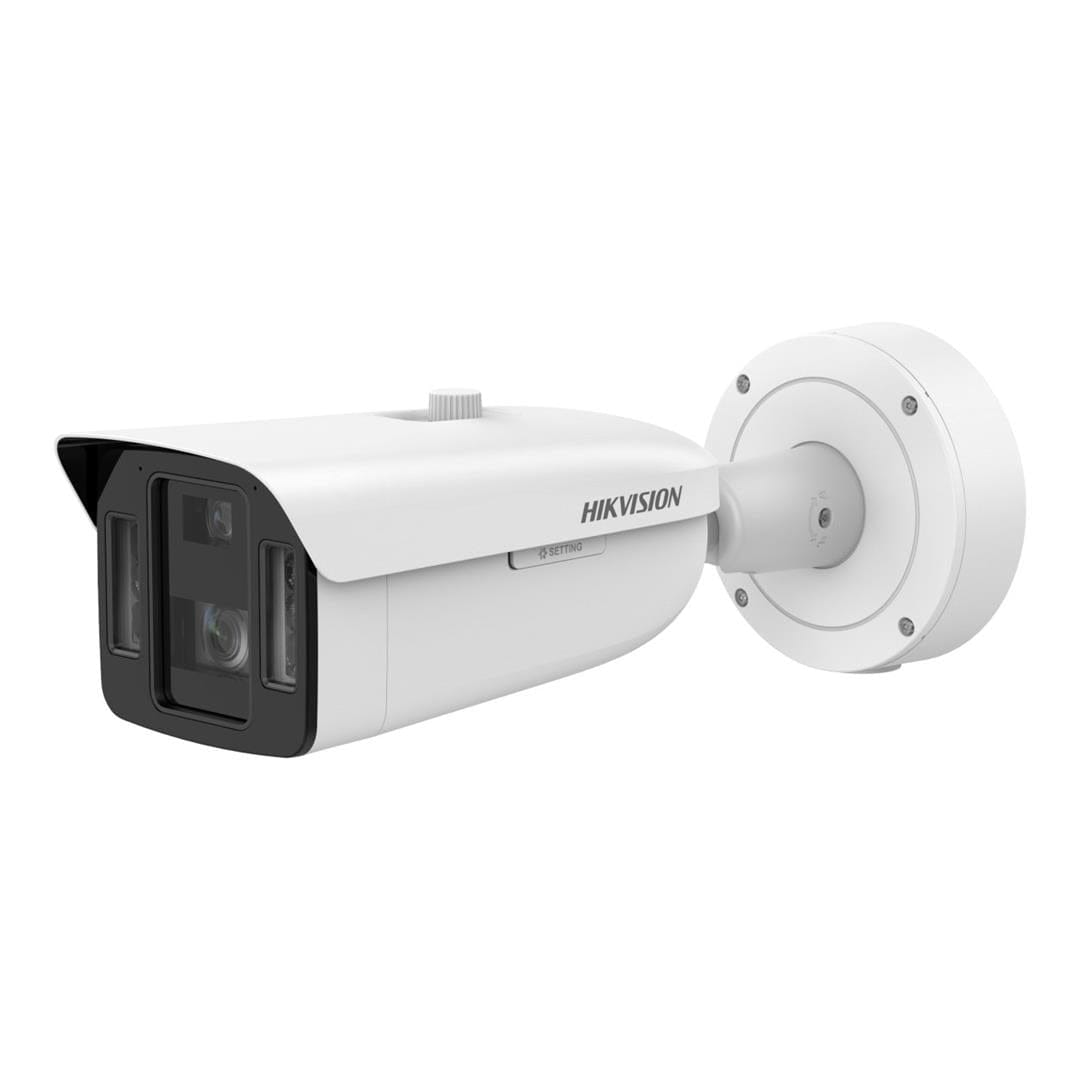

Hikvision 4MP DeepinView Multi-Sensor Bullet Camera iDS-2CD8A46G2-XZHSY(0832/4)

Hikvision 4MP DeepinView Multi-Sensor Bullet Camera iDS-2CD8A46G2-XZHSY(0832/4)

Features

• High quality imaging with 4 MP resolution in channel 1 and 4 MP resolution in channel 2
• Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2
• Excellent low-light performance via DarkFighter 2.0 technology
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Capture vehicles and humans of different speed clearly via ShotN technology
• License plate recognition and vehicle attribution recognition
• Water and dust resistant (IP67) and vandal proof (IK10)
• Anti-Corrosion Protection -Y model: NEMA 4X (NEMA 250-2018)

Technical Specification

Image Sensor

• Channel 1: 1/1.8" Progressive Scan CMOS
• Channel 2: 1/1.8 Progressive Scan CMOS

Max. Resolution

• Channel 1: 2688 × 1520
• Channel 2: 2688 × 1520

Focal Length & FOV

• Channel 1: 8 to 32 mm: Horizontal FOV 42.5° to 15.2°, Vertical FOV: 23.4° to 8.7°, Diagonal FOV 49.7° to 17.3°
• Channel 2: 4 mm: Horizontal FOV: 89°, Vertical FOV: 45°, Diagonal FOV: 107°

Iris Type

• Channel 1: P-iris
• Channel 2: Fixed

DORI

Channel 1

• Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
• Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Channel 2

• D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

Supplement Light Type: Hybrid (IR and White Light)

Supplement Light Range

• Channel 1: up to 100 m
• Channel 2: up to 40 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

Alarm: 2x inputs, 2x outputs (max. 24 VDC, 1 A)

Built-in Microphone: 2x built-in microphones

Audio

• 1x input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
• 1x output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

Built-in Speaker: 1x built-in speaker

RS-485: 1x RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Wiegand: 1x Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)

Video Output: 1X Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)

Ethernet Interface: 1X RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Power

• Three-core terminal block
• 12 VDC ± 20%, 1.89A, max. 22.6 W
• 24 VAC ± 20%, 1.48 A, max. 22.2 W
• PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.57 A to 0.43 A, max. 24 W
• Please note: Power supply is not included
