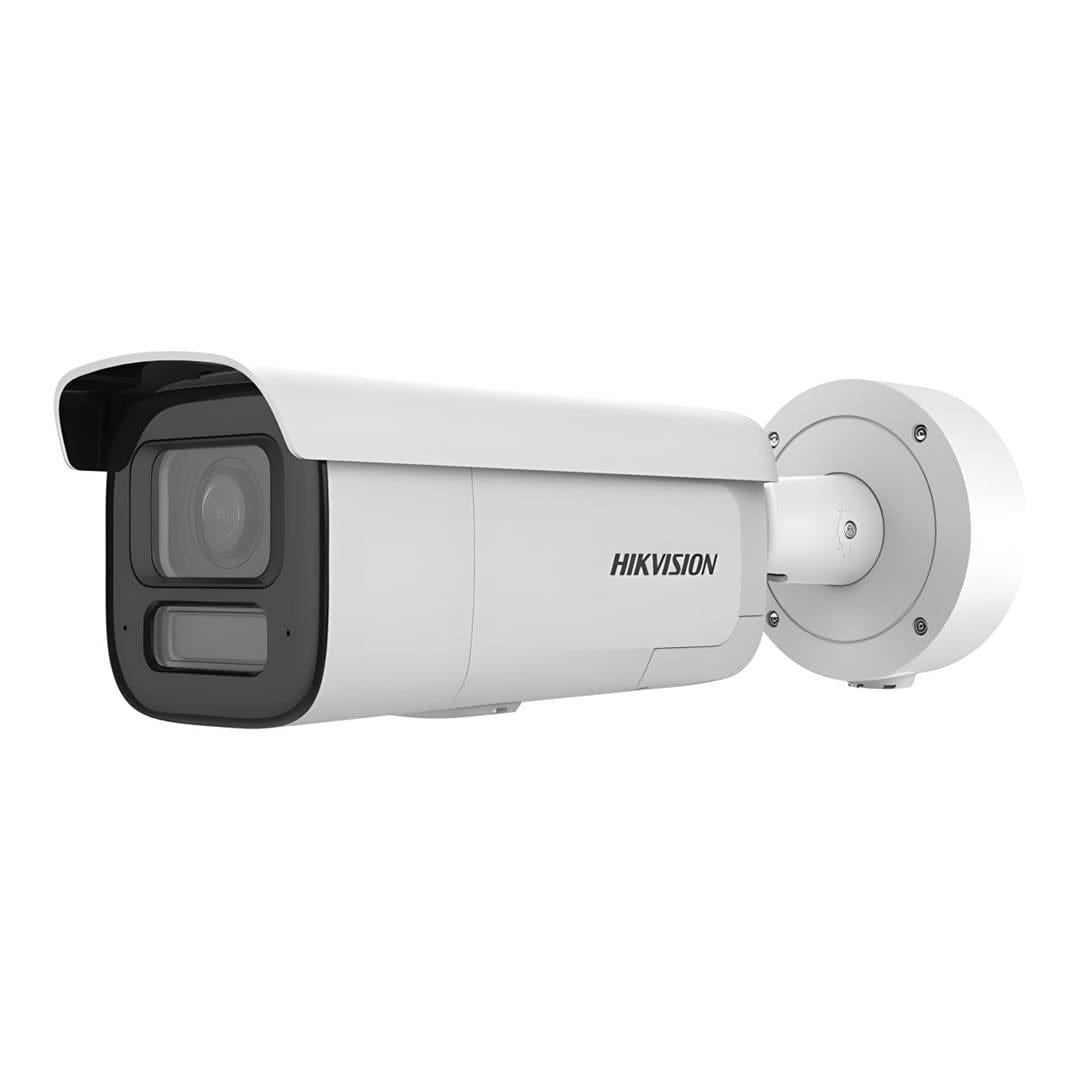

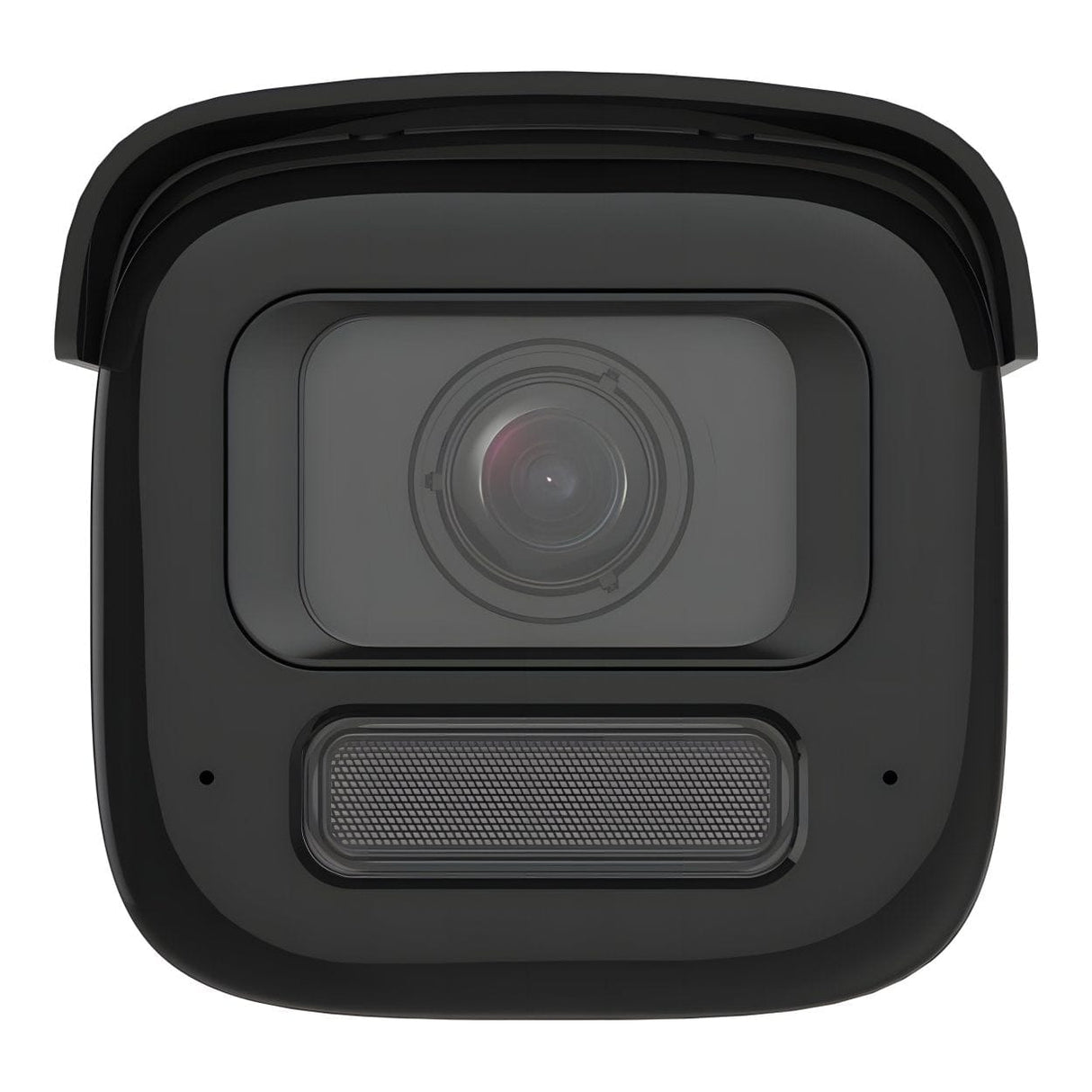

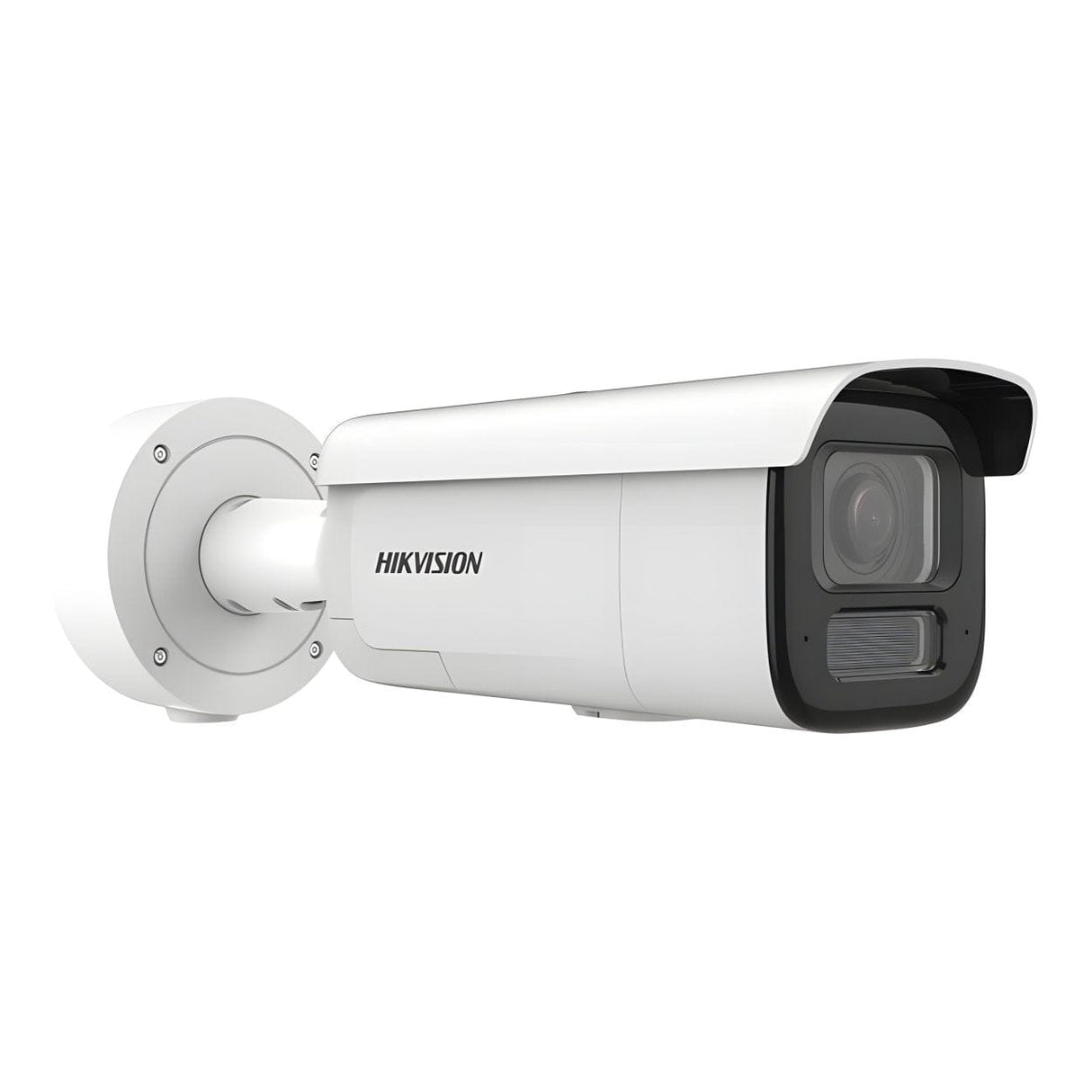

Hikvision 4MP Darkfighter Motorized Varifocal Bullet Network Camera DS-2CD2646G2H-IZS2U/SL(2.8-12mm)

Hikvision 4MP Darkfighter Motorized Varifocal Bullet Network Camera DS-2CD2646G2H-IZS2U/SL(2.8-12mm)

Features:

• High quality imaging with 4 MP resolution
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Motorized varifocal lens for easy installation and monitoring
• Focus on human and vehicle classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Built-in arrayed dual-microphone for real-time high quality audio security

Technical Specifications:

Camera

Image Sensor
1/3" Progressive Scan CMOS

Max. Resolution
2688 × 1520

Min. Illumination
Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR

Shutter Time
1/3 s to 1/100,000 s

Day & Night
IR cut filter

Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens
Lens Type: Varifocal, motorized, 2.8–12 mm
Focal Length & FOV: 2.8–12 mm, horizontal FOV 105.4°–34.3°, vertical FOV 56.1°–19.3°, diagonal FOV 125.8°–39.4°
Lens Mount: Ø14
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 2.8–12 mm: 1 m to ∞
DORI:

• Wide: D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m
• Tele: D: 180.6 m, O: 71.7 m, R: 36.1 m, I: 18.1 m

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 60 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Supported under certain settings

Video Compression: Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline, Main, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265
Region of Interest (ROI): 1 fixed region for main and sub-stream

Audio
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1/G.726)/32–192 Kbps (MP2L2)/8–320 Kbps (MP3)/16–64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering: Yes
Built-in Microphone: Arrayed dual-microphone
Audio Interface: 1 input (line in), 1 output (line out), two-core terminal block

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, T, G), ISAPI, SDK, ISUP
User/Host: Up to 32 users; 3 levels: administrator, operator, user
Security: Password protection, HTTPS, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, basic/digest auth for HTTP/HTTPS, WSSE, RTP/RTSP over HTTPS, control timeout, audit log, TLS 1.1/1.2/1.3, MAC authentication
Network Storage: NAS (NFS, SMB/CIFS), ANR

Client
iVMS-4200, Hik-Connect, Hik-Central

Web Browser
Plug-in required: IE 10, 11
Plug-in free: Chrome 57+, Firefox 52+, Edge 89+
Local service: Chrome 57+, Firefox 52+, Edge 89+

Image Parameters Switch: Yes
Image Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable via client or browser
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
SNR: ≥ 52 dB
Wide Dynamic Range (WDR): 120 dB
Privacy Mask: 4 programmable polygon masks

Interface
Ethernet Interface: 1 RJ45 10/100 M self-adaptive
On-Board Storage: microSD/microSDHC/microSDXC up to 512 GB

Alarm & Event
Alarm: 1 input, 1 output (max 24 VDC/24 VAC, 1 A)
Reset Key: Yes
Basic Event: Motion detection (human/vehicle), video tampering alarm, exception
Smart Event: Scene change detection
Linkage: Upload to FTP/NAS/memory card, notify center, send email, trigger alarm, recording, capture, audible warning

Deep Learning Function – Face & Perimeter Protection:
Face capture: Yes
Perimeter: Line crossing, intrusion, region entrance/exiting; supports human/vehicle alarm

General
Power: 12 VDC ± 25%, 1.21 A, max 14.5 W, two-core terminal block, reverse polarity protection; PoE: IEEE 802.3at, Class 4, max 18 W
Material: Front cover: metal, body: metal, bracket: metal
Dimension: Ø140 mm × 333.8 mm (Ø5.51" × 13.14")
Package Dimension: 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Weight: Approx. 1520 g (3.4 lb); With Package: 2520 g (5.6 lb)
Storage & Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% non-condensing
General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
Language: 33 languages
Flashing Light: SRB: Red/Blue; SL: White

Approval – EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; IC: ICES-003: Issue 7; RCM: AS/NZS CISPR 32:2015; KC: KN32:2015, KN35:2015

Safety: CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017

Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; REACH: EC 1907/2006

Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002
