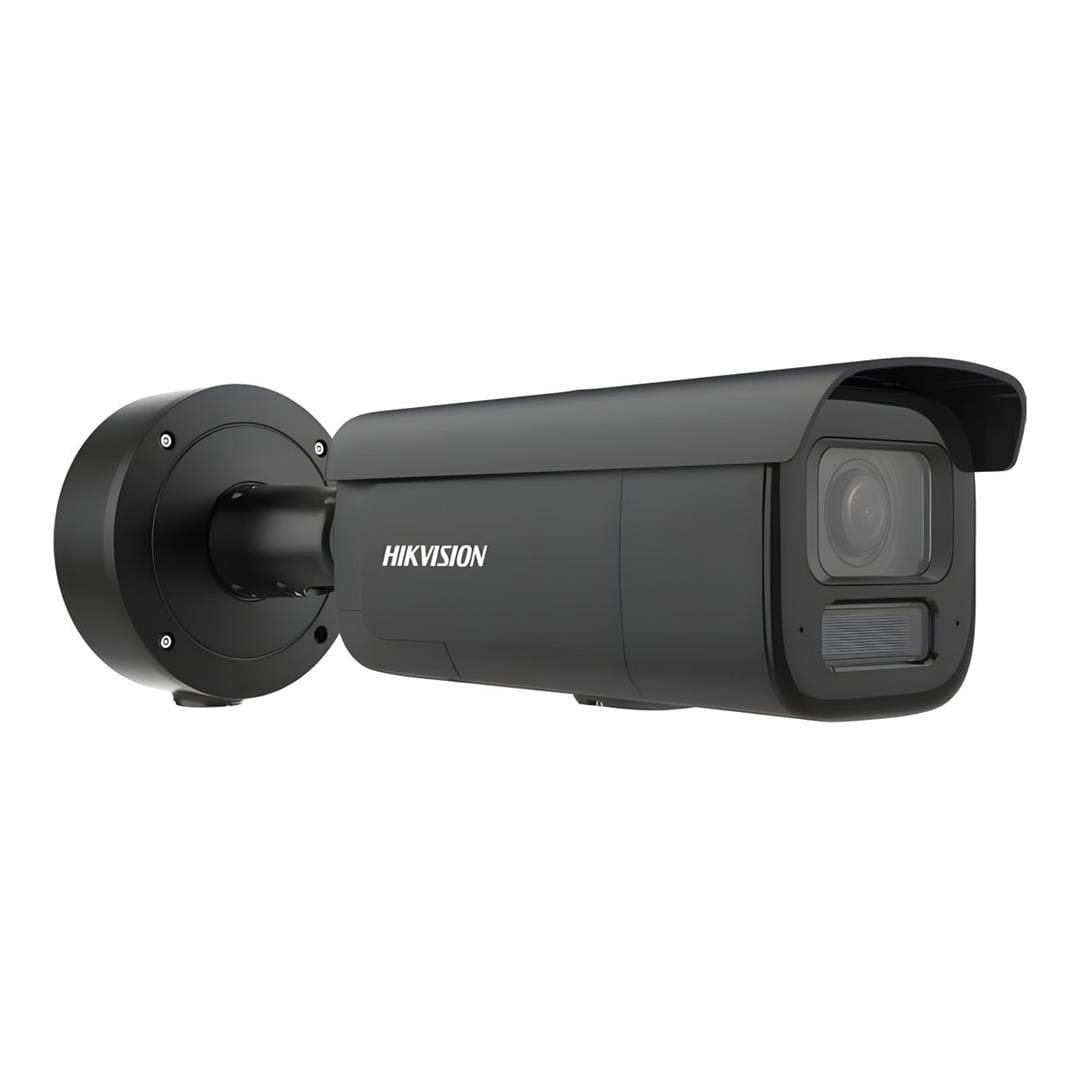

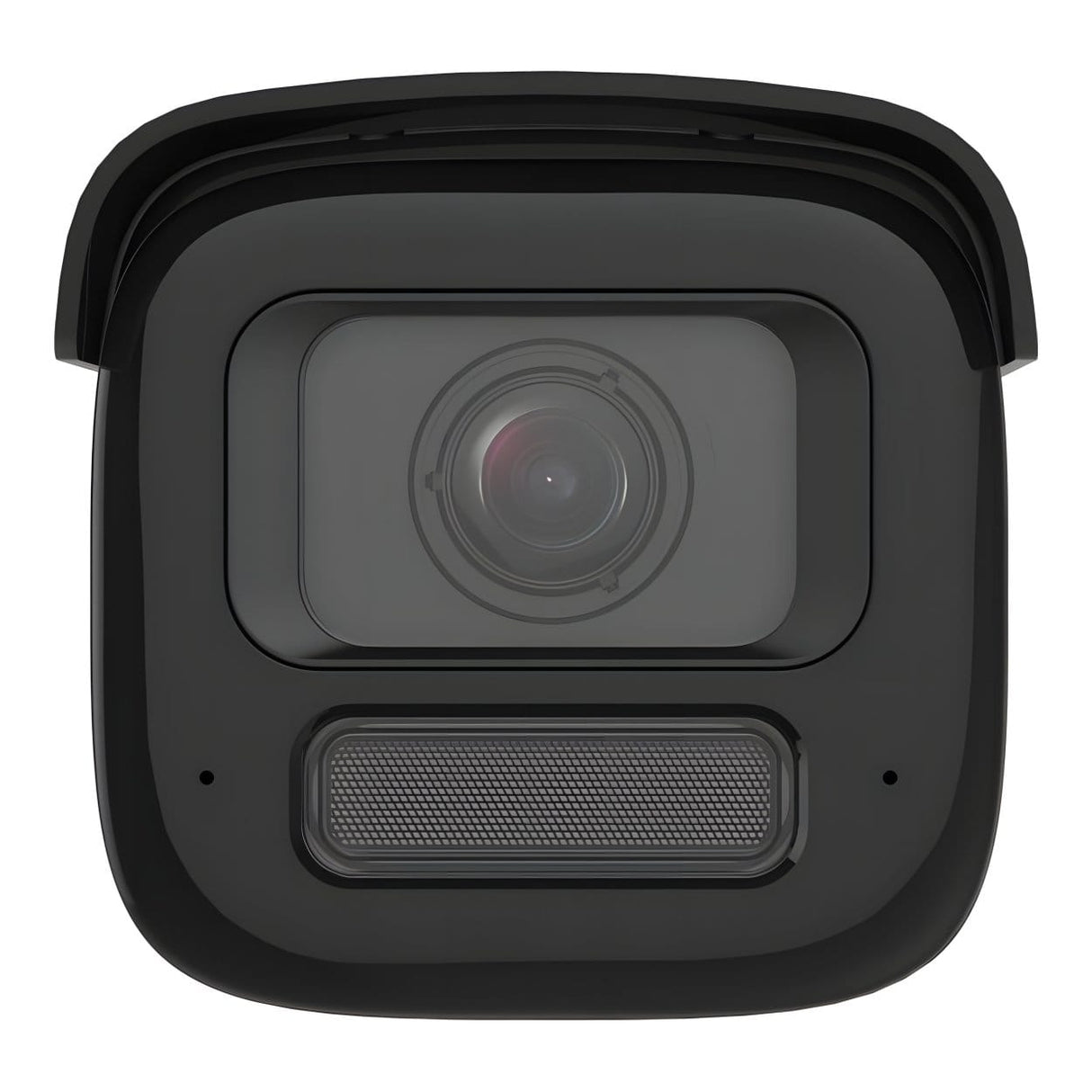

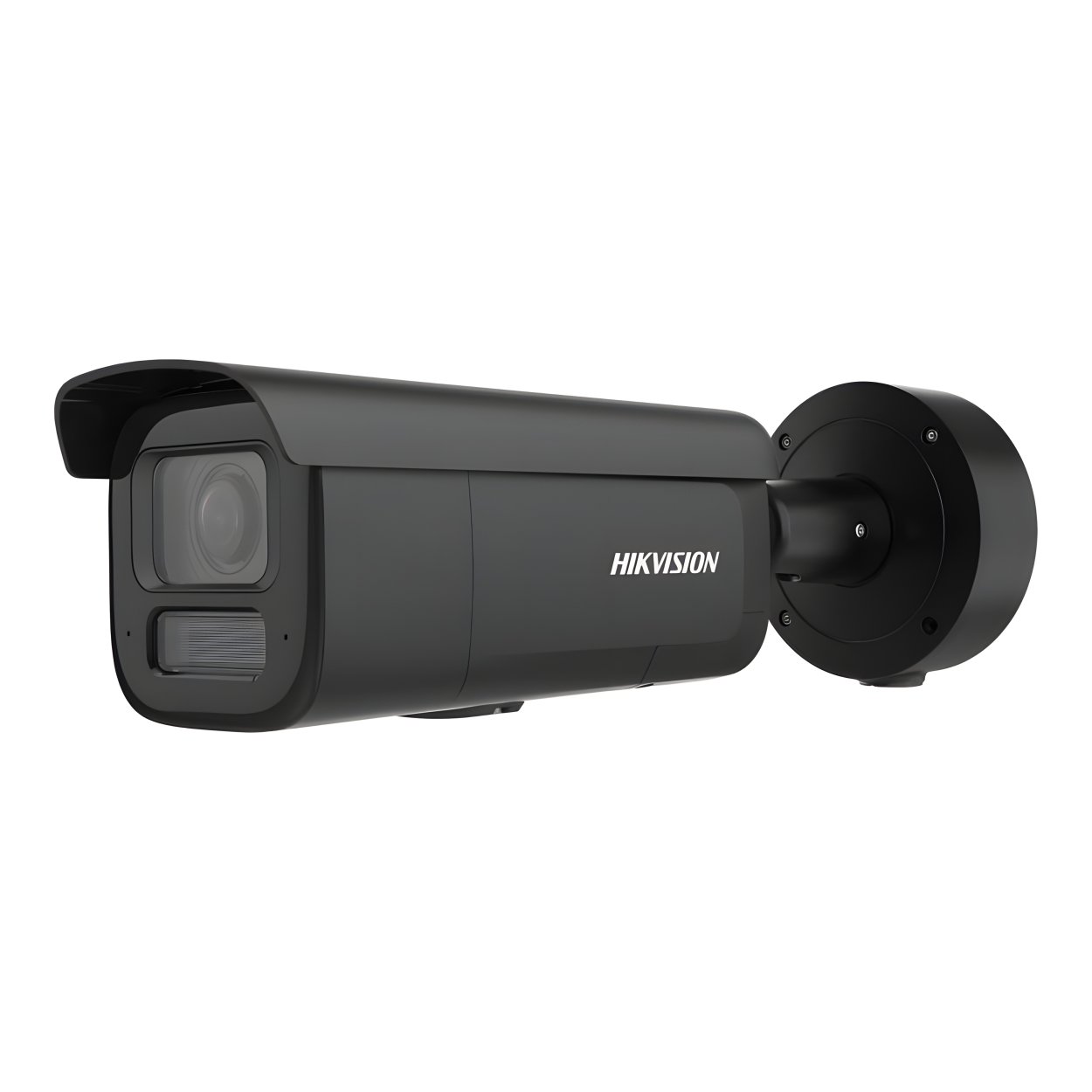

Hikvision 4MP Darkfighter Motorized Varifocal Bullet Network Camera Black DS-2CD2646G2H-IZS2U/SL(2.8-12)eFO-STDBLK

Hikvision 4MP Darkfighter Motorized Varifocal Bullet Network Camera Black DS-2CD2646G2H-IZS2U/SL(2.8-12)eFO-STDBLK

Features:

• High quality imaging with 4 MP resolution
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Motorized varifocal lens for easy installation and monitoring
• Focus on human and vehicle classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Built-in arrayed dual-microphone for real-time high quality audio security

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Maximum Resolution: 2688 × 1520
Minimum Illumination:

• Color: 0.001 Lux @ F1.0, AGC On
• Black And White: 0 Lux With IR

Shutter Speed: 1/3 S To 1/100,000 S
Day/Night Mode: IR Cut Filter

Angle Adjustment:

• Pan: 0° To 360°
• Tilt: 0° To 90°
• Rotate: 0° To 360°

Lens
Lens Type: Motorized Varifocal Lens
Focal Length: 2.8 To 12 Mm
Field Of View:

• Horizontal: 105.4° To 34.3°
• Vertical: 56.1° To 19.3°
• Diagonal: 125.8° To 39.4°

Lens Mount: Ø14
Iris Type: Fixed
Aperture: F1.0
Depth Of Field: 1 M To Infinity

DORI Performance
Wide:

• Detection: 63.4 M
• Observation: 25.2 M
• Recognition: 12.7 M
• Identification: 6.3 M

Tele:

• Detection: 180.6 M
• Observation: 71.7 M
• Recognition: 36.1 M
• Identification: 18.1 M

Illuminator
Supplement Light Type: IR
Supplement Light Range: Up To 60 M
Smart Supplement Light: Yes
IR Wavelength: 850 Nm

Video
Main Stream Resolution And Frame Rate:

• 25 Fps: 2688 × 1520, 1920 × 1080, 1280 × 720
• 30 Fps: 2688 × 1520, 1920 × 1080, 1280 × 720

Sub-Stream Resolution And Frame Rate:

• 25 Fps: 1280 × 720, 640 × 480, 640 × 360
• 30 Fps: 1280 × 720, 640 × 480, 640 × 360

Third Stream Resolution And Frame Rate:

• 10 Fps: 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360

Video Compression:

• Main Stream: H.265, H.264, H.264+, H.265+
• Sub-Stream: H.265, H.264, MJPEG
• Third Stream: H.265, H.264

Video Bit Rate: 32 Kbps To 8 Mbps

H.264 Profiles:

• Baseline Profile
• Main Profile
• High Profile

H.265 Profile: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding: H.264 And H.265 Encoding
Region Of Interest: 1 Fixed Region For Main Stream And Sub-Stream

Audio
Audio Compression:

• G.711
• G.722.1
• G.726
• MP2L2
• PCM
• MP3
• AAC-LC

Audio Bit Rate:

• 64 Kbps (G.711Ulaw/G.711Alaw)
• 16 Kbps (G.722.1/G.726)
• 32 To 192 Kbps (MP2L2)
• 8 To 320 Kbps (MP3)
• 16 To 64 Kbps (AAC-LC)

Audio Sampling Rate:

• 8 KHz
• 16 KHz
• 32 KHz
• 48 KHz

Environment Noise Filtering: Yes

Network
Protocols:

• TCP/IP
• ICMP
• HTTP
• HTTPS
• FTP
• DHCP
• DNS
• DDNS
• RTP
• RTSP
• RTCP
• NTP
• UPnP
• SMTP
• IGMP
• 802.1X
• QoS
• IPv4
• IPv6
• UDP
• Bonjour
• SSL/TLS
• PPPoE
• SNMP
• WebSocket
• WebSockets
• SRTP
• SFTP

Simultaneous Live View: Up To 6 Channels

API Support:

• ONVIF (Profile S, Profile T, Profile G)
• ISAPI
• SDK
• ISUP

User Access: Up To 32 Users
User Levels:

• Administrator
• Operator
• User

Security Features:

• Password Protection
• HTTPS Encryption
• 802.1X Authentication
• Watermark
• IP Address Filter
• TLS 1.1/1.2/1.3
• MAC Address Authentication
• Security Audit Log

Network Storage:

• NAS (NFS, SMB/CIFS)
• Auto Network Replenishment (ANR)

Supported Clients:

• iVMS-4200
• Hik-Connect
• Hik-Central

Supported Web Browsers:

• IE 10/11
• Chrome 57+
• Firefox 52+
• Edge 89+

Image Parameter Switch: Yes
Image Settings:

• Rotate Mode
• Saturation
• Brightness
• Contrast
• Sharpness
• Gain
• White Balance

Day/Night Modes:

• Day
• Night
• Auto
• Schedule

Image Enhancement:

• BLC
• HLC
• 3D DNR

SNR: ≥52 DB
Wide Dynamic Range: 120 DB

Privacy Masks:

• 4 Programmable Polygon Privacy Masks

Interfaces
Ethernet Interface: 1 X RJ45 10/100 Mbps Self-Adaptive Ethernet Port

On-Board Storage:

• MicroSD
• MicroSDHC
• MicroSDXC
• Supports Up To 512 GB

Audio Interfaces:

• Built-In Arrayed Dual Microphone
• 1 X Audio Input (Line-In)
• 1 X Audio Output (Line-Out)

Alarm Interface:

• 1 X Alarm Input
• 1 X Alarm Output (Max. 24 VDC/24 VAC, 1 A)

Reset Key: Yes

Events & Analytics
Basic Events:

• Motion Detection
• Video Tampering Alarm
• Exception Alarm

Smart Events:

• Scene Change Detection

Linkage Actions:

• Upload To FTP/NAS/Memory Card
• Notify Surveillance Center
• Send Email
• Trigger Alarm Output
• Trigger Recording
• Trigger Capture
• Audible Warning

Deep Learning Functions:

• Face Capture
• Line Crossing Detection
• Intrusion Detection
• Region Entrance Detection
• Region Exiting Detection
• Human And Vehicle Classification

Power
Power Supply:

• 12 VDC ±25%, 1.21 A
• PoE IEEE 802.3at Class 4

Maximum Power Consumption:

• 14.5 W (12 VDC)
• 18 W (PoE)

Reverse Polarity Protection: Yes

Physical Specifications
Material:

• Front Cover: Metal
• Body: Metal
• Bracket: Metal

Dimensions: Ø140 × 333.8 Mm
Package Dimensions: 385 × 190 × 180 Mm
Net Weight: Approx. 1520 G
Package Weight: Approx. 2520 G

Environmental
Storage Conditions: -30°C To 60°C, ≤95% RH Non-Condensing
Operating Conditions: -30°C To 60°C, ≤95% RH Non-Condensing

General Features
General Functions:

• Heartbeat
• Mirror
• Password Reset Via Email
• Pixel Counter
• Anti-Banding

Supported Languages: 33 Languages Including English, German, French, Spanish, Japanese, Korean, Traditional Chinese, Portuguese, Russian And More

Flashing Light:

• /SRB Model: Red And Blue Light
• /SL Model: White Light

Certifications & Protection
EMC Certifications:

• CE-EMC
• ICES-003
• RCM
• KC

Safety Certifications:

• CB
• CE-LVD

Environmental Certifications:

• CE-RoHS
• WEEE
• REACH

Protection Ratings:

• IP67
• IK10
