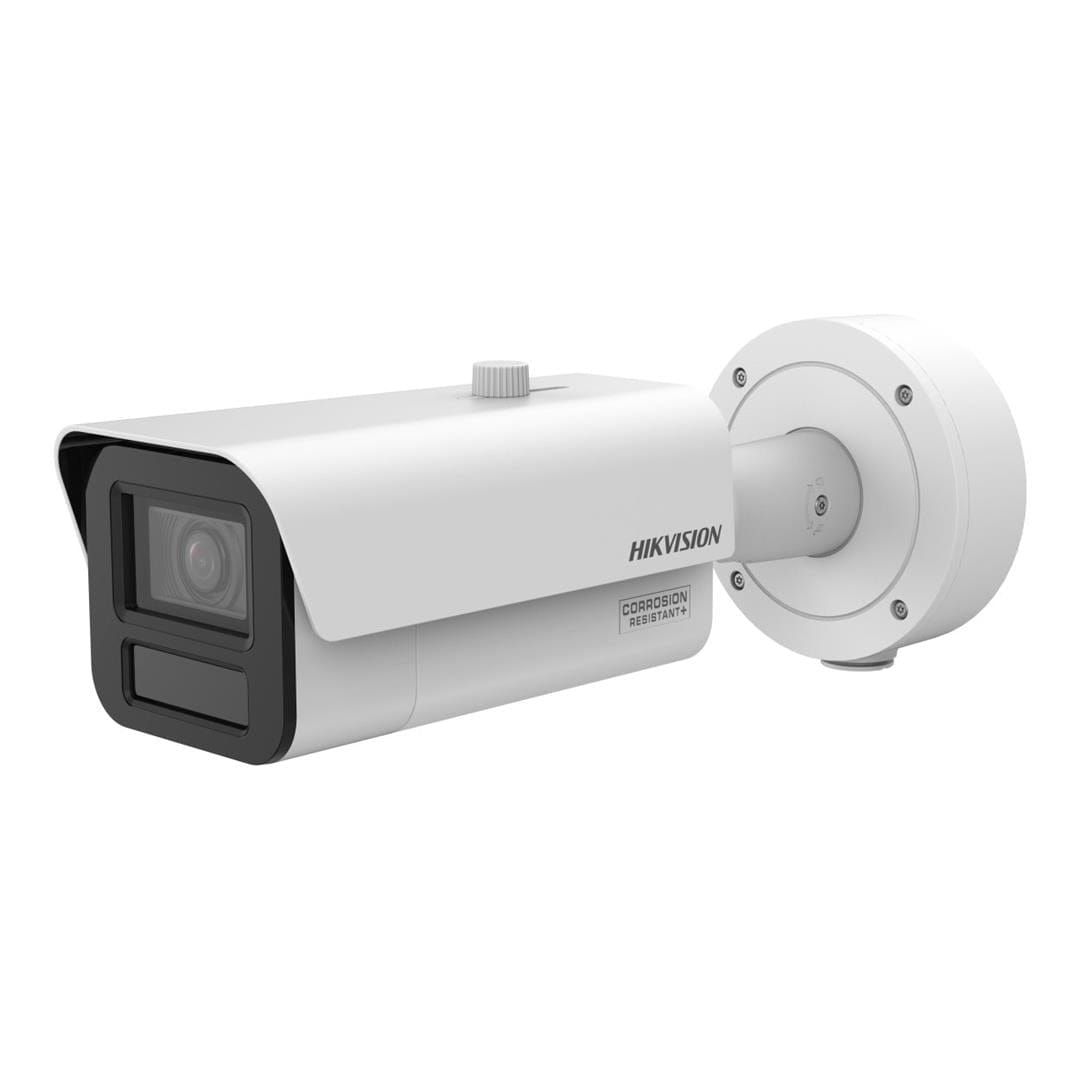

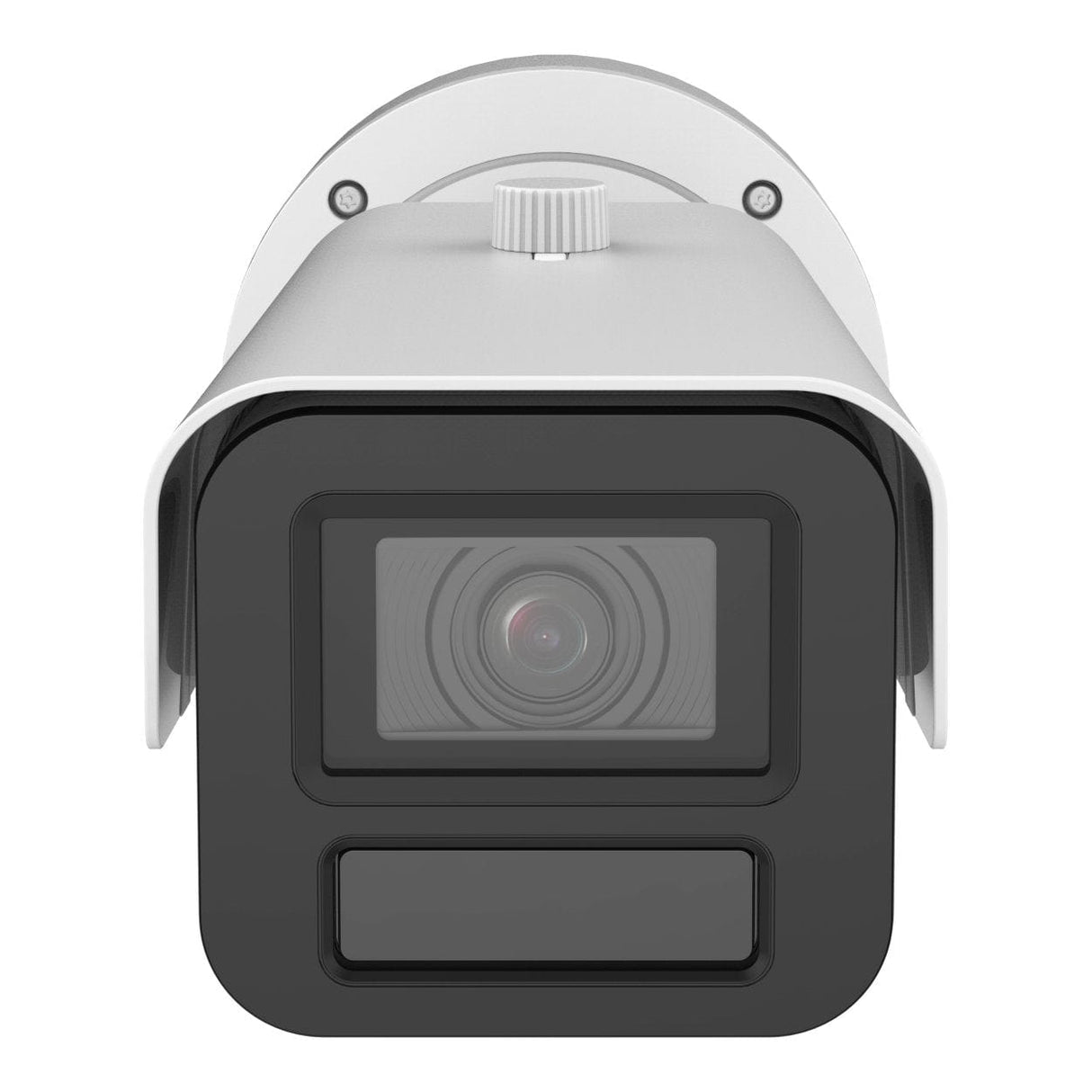

Hikvision 4MP 6-132mm DeepinView Motorized Varifocal Bullet Camera iDS-2CD7A46G2-IZHSY(6-132mm)

Hikvision 4MP 6-132mm DeepinView Motorized Varifocal Bullet Camera iDS-2CD7A46G2-IZHSY(6-132mm)

Features

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter 2.0 technology
• Clear imaging against strong back light due to 150 dB AWDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X)
• Capture vehicles and humans of different speed clearly via ShotN technology
• High frame rate, up to 2MP@120fps and 4MP@60fps
• Built-in heater to ensure clear image under rainy or snowy weather
• Built-in Gyro sensor for GIS and vibration detection
• Built-in power meter for historical power statistics

Technical Specification

Image Sensor: 1/1.8" Progressive Scan CMOS

Max. Resolution: 2688 × 1520

Focal Length: 6 to 132 mm

FOV: Horizontal FOV 59.5° to 3.7°, Vertical FOV 35.9° to 2.1°, Diagonal FOV 66.5° to 4.3°

Focus: Auto,Semi-auto,Manual

Supplement Light Type: IR

Supplement Light Range: Monitoring: 200 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

Mobile Communication: Not supported

Integrated Connector Panel (-Y model): No

Alarm: 2x inputs, 2x outputs (max. 24 VDC/24 VAC, 1 A)

Audio

• 1x input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
• 1x output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

RS-485: 1x RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Video Output: 1x Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)

Ethernet Interface: 1x RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Power

• Two-core terminal block
• 12 VDC ± 20%, 1.88 A, max. 22.56 W
• PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W
• Please note: Power supply is not included
