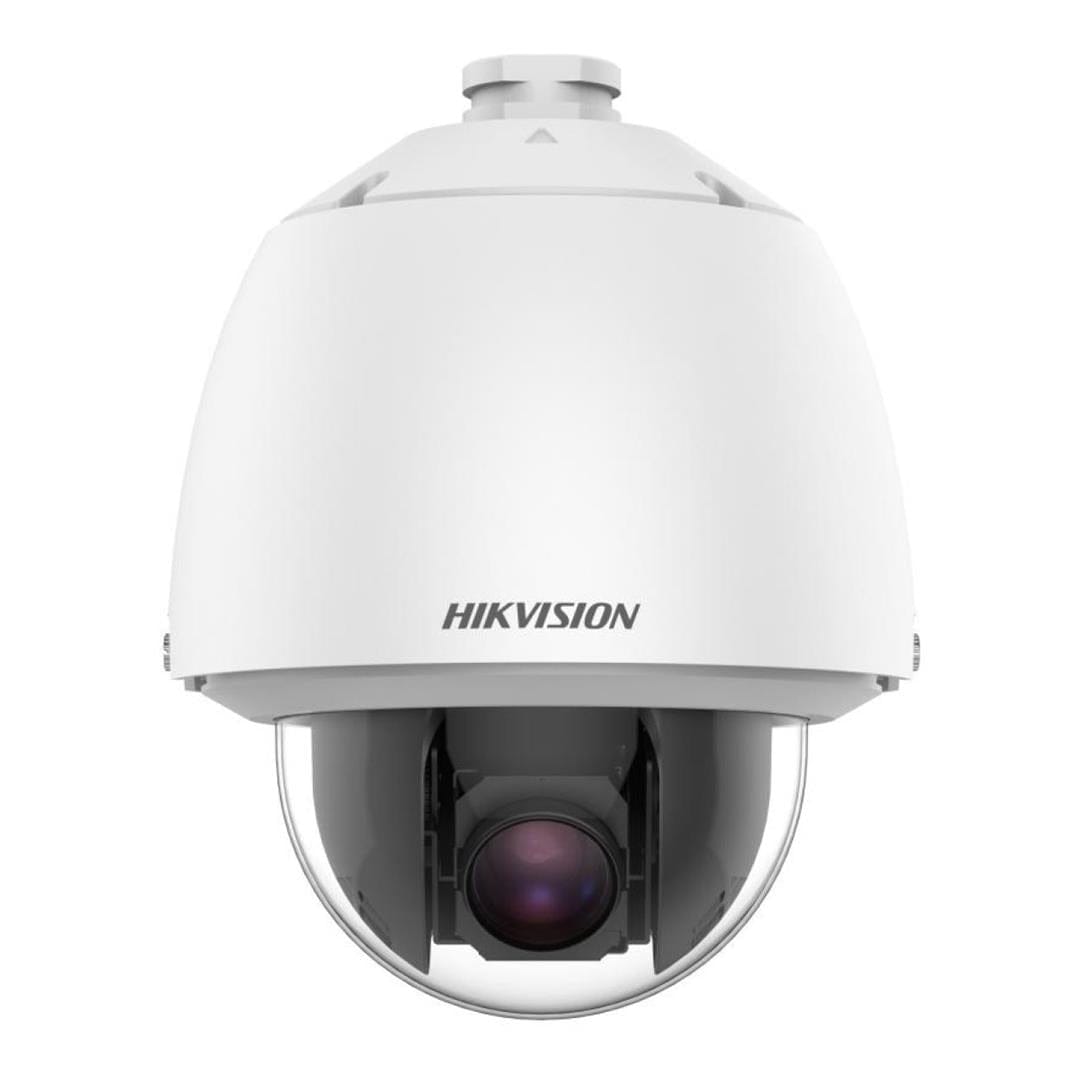

Hikvision 4MP 4.8 mm 32X DarkFighter AcuSense Speed Dome Camera DS-2DE5432WG1-E

Hikvision 4MP 4.8 mm 32X DarkFighter AcuSense Speed Dome Camera DS-2DE5432WG1-E

4 MP 32X Powered by DarkFighter Acusense Network Speed Dome

• Excellent low-light performance with powered-by-DarkFighter and AI-ISP technology
• High focus speed with self-learning focus technology keep the picture clear every single second
• High quality imaging with 4 MP resolution
• 1/2.8" Progressive Scan CMOS
• 32× optical zoom and 16× digital zoom provide close up views over expansive areas
• WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• 36 VDC & 24VAC & PoE (802.3at)
• Water and dust resistant (IP66) and vandal resistant (IK10)
• Support link to hikvision network speakers and network microphones to play audio
• Improve playback efficiency and be compatible with the AcuSeek and AcuSearch technologies of NVR for combined use

Specifications:

Camera

Image Sensor: 1/2.8″ Progressive Scan CMOS

Max. Resolution: 2560 × 1440

Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON)

Shutter Speed: 1 s to 1/30,000 s

Day & Night: IR cut filter

Zoom: 32x optional, 16x digital

Slow Shutter: Yes

Lens

Focal Length: 4.8 mm to 153.6 mm

FOV: Horizontal field of view: 50.8° to 2.6° (wide-tele),Vertical field of view: 29.4° to 1.5° (wide-tele),Diagonal field of view: 57.4° to 3° (wide-tele)

Focus: Auto, semi-auto, manual

Aperture: Max. F1.6

Zoom Speed: Approx. 4.8 s

PTZ

Movement Range (Pan): 360°

Movement Range (Tilt): -5° to 90° (auto flip)

Pan Speed: Pan speed: configurable from 0.1° to 250°/s; preset speed: 300°/s

Tilt Speed: Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s

Proportional Pan: Yes

Presets: 300

Preset Freezing: Yes

Patrol Scan: 8 patrols, up to 32 presets for each patrol

Pattern Scan: 4 pattern scans

Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning: Yes

PTZ Status Display: Yes

Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Power-off Memory: Yes

Video

Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG

Video Bit Rate: 32 Kbps to 16 Mbps

H.264 Type: Baseline profile/Main profile/High profile

H.265 Type: Main profile

Scalable Video Coding (SVC): H.264 and H.265 encoding

Region of Interest (ROI): 8 fixed regions for each stream

Audio

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)

Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering: Yes

Network

Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Simultaneous Live View: Up to 20 channels

API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host: Up to 32 users; 3 user levels: administrator, operator, and user

Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)

Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client: iVMS-4200, HikCentral Pro, Hik-Connect

Web Browser: IE11, Chrome57+, Firefox52+, Safari11+


Image Parameters Switch: Yes

Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Day/Night Switch: Day, Night, Auto, Schedule

Wide Dynamic Range (WDR): 120 dB

SNR: ＞52 dB

Defog: Digital Defog

Image Enhancement: BLC, HLC, 3D DNR

Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable

Regional Focus: Yes

Regional Exposure: Yes

VR View: 360° Real Scene Stitched Panoramic Image

Interface

Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;1 output (line out), line level, output impedance: 600 Ω

Alarm: 2 inputs, 1 output

Reset: Yes

Event

Basic Event: Motion detection, video tampering alarm, exception, alarm input and output

Smart Event: line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Face Capture: Yes

General

Power: 36 VDC, Max.20 W, 24 VAC, Max.20 W, PoE (802.3at)

Dimension: 220 mm × 280 mm

Weight Approx: 3.0 kg

Material: Metal

Operating Condition: -30 °C to 65 °C. Humidity 90% or less (non-condensing)
