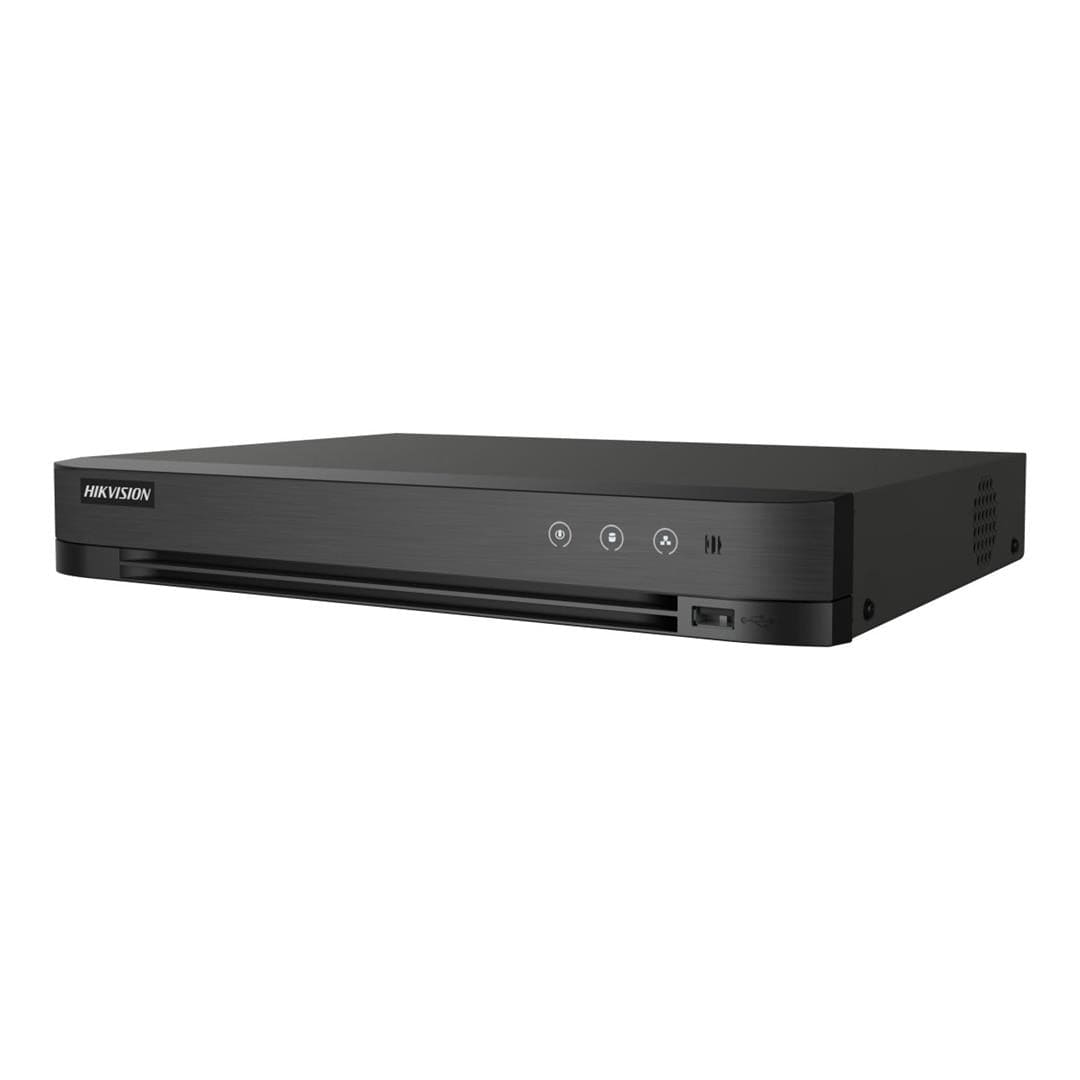

Hikvision 4-ch 1080p 1U H.265 AcuSense DVR iDS-7204HQHI-M1/XT

Hikvision 4-ch 1080p 1U H.265 AcuSense DVR iDS-7204HQHI-M1/XT

Features

• 4 channels and 1 HDD 1U AcuSense DVR
• Support 1-ch Facial Recognition or 2-ch Advanced model Perimeter Protection based on Deep Learning algorithm
• Support 2-ch AcuSearch Technology
• Efficient H.265 pro+ compression technology
• Encoding ability up to 3K/5MP Lite @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 6-ch network cameras can be connected
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology

Technical Specification

IP Video Input: 2-ch (up to 6-ch), Up to 6 MP resolution

Analog Video Input: 4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Total Bandwidth: 72 Mbps

Network Interface: 1x RJ45 10/100 Mbps self-adaptive Ethernet interface

Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

SATA: 1x SATA interface, up to 10 TB capacity for each disk

Serial Interface: 1x RS-485 (half-duplex)

USB Front panel: 1x USB 2.0

USB Rear panel: 1x USB 2.0

Alarm In/Out: N/A
