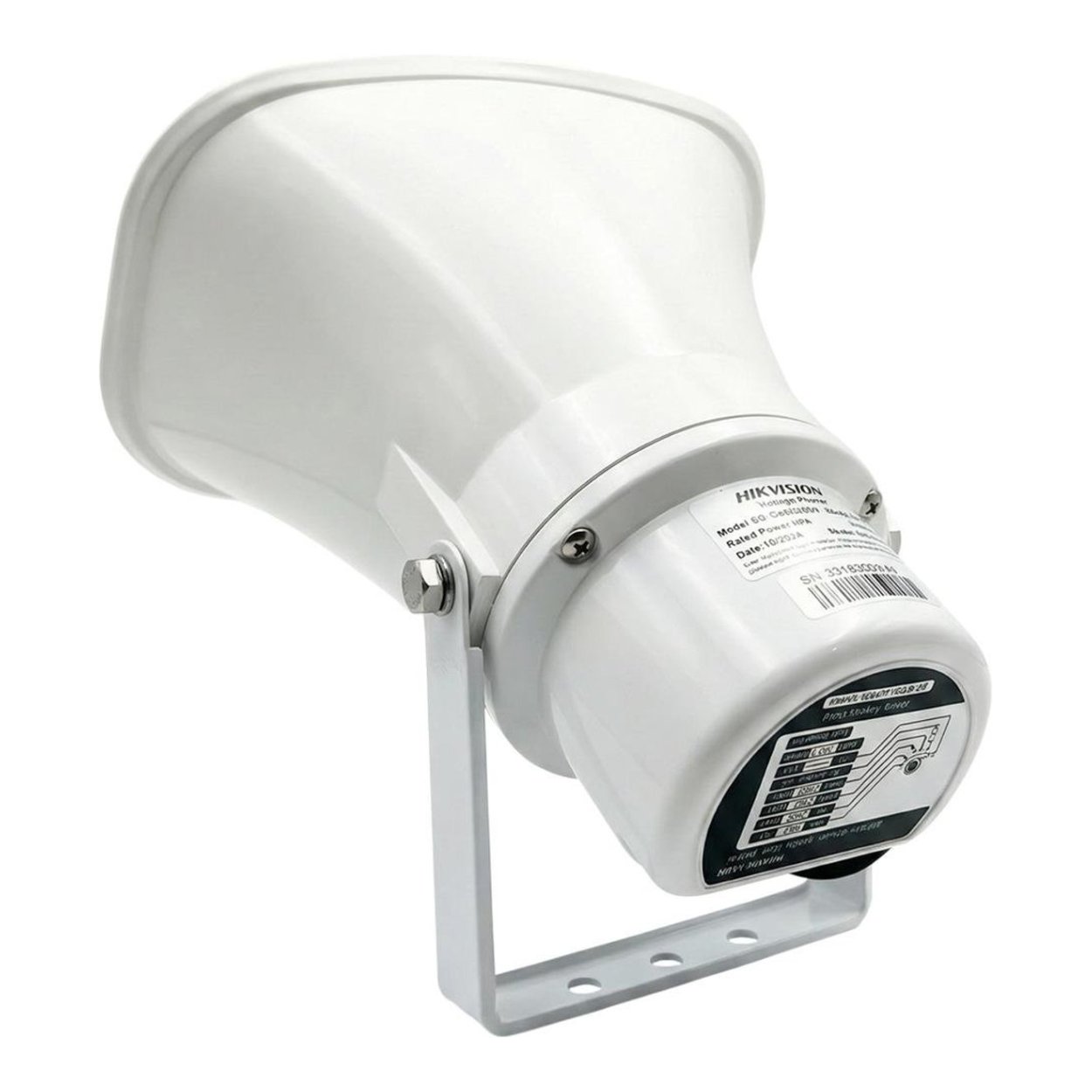

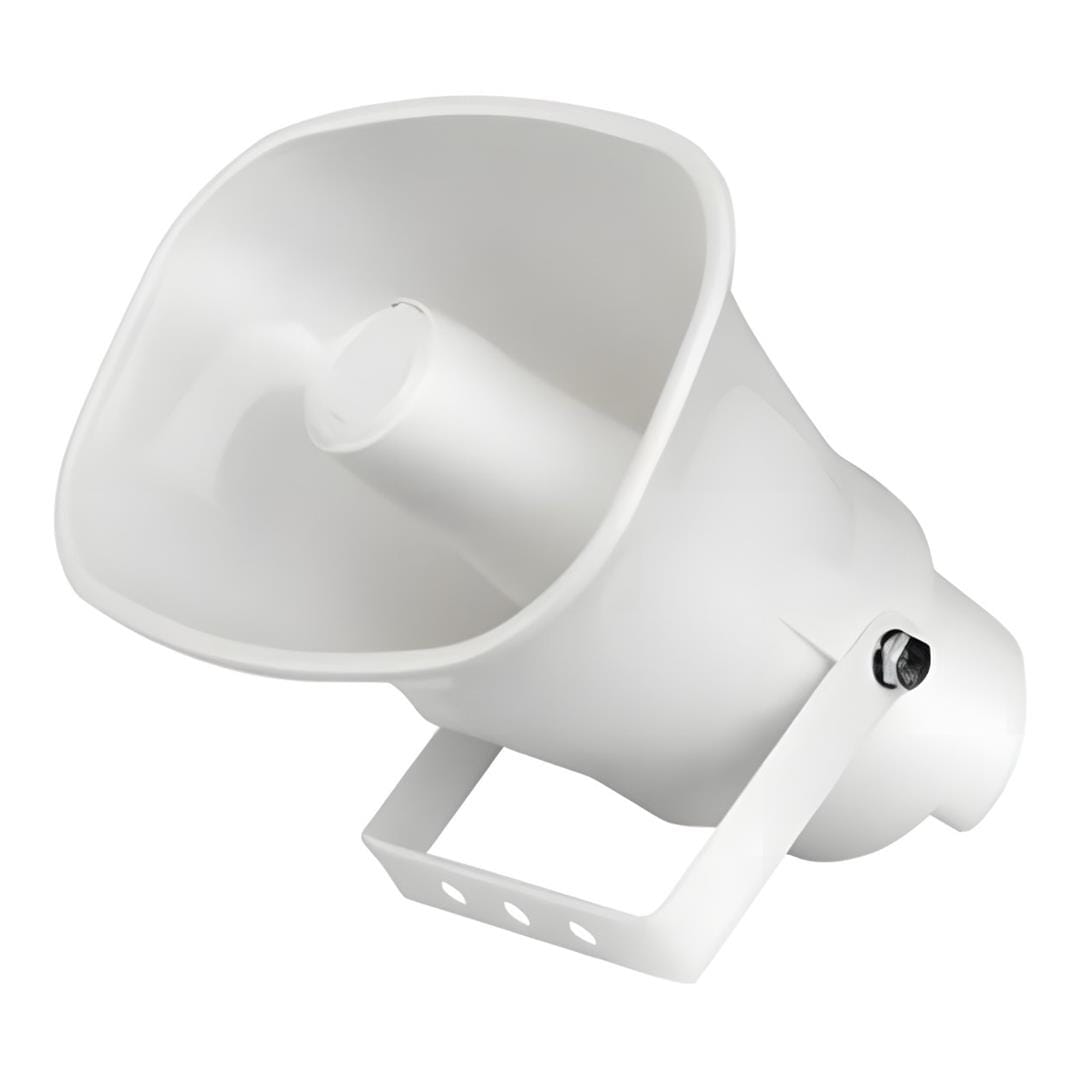

Hikvision 30W Analog Horn Speaker DS-QAE0330G1T-V

Hikvision 30W Analog Horn Speaker DS-QAE0330G1T-V

Features:

• 34-core 2-inch mid-to-high (dome resin film)
• Rated Power: 70 V: 2.5 W/5 W/7.5 W/15 W/30 W, 100 V: 5 W/10 W/15 W/30 W
• Sensitivity(1 m, 1 W): 108 dB ± 3 dB
• Max. SPL: 120 dB
• Frequency Response: 250 Hz to 8 kHz
• White

Technical Specifications:

Speaker Specifications

Rated Power
70 V

• 2.5 W
• 5 W
• 7.5 W
• 15 W
• 30 W

100 V

• 5 W
• 10 W
• 15 W
• 30 W

Maximum Acoustic Pressure
120 dB SPL

Sensitivity (1 m, 1 W)
108 dB ±3 dB

Frequency Response
250 Hz – 8 kHz

Speaker Unit
34-Core 2-Inch Mid-To-High (Dome Resin Film)

Coverage Angle
Horizontal
75°

Vertical
90°

General

Material
ABS

Color
White

Operating Temperature
-20 °C To 55 °C

Operating Humidity
< 90% (Non-Condensing)

Protection Rating
IP65

Physical Specifications

Dimensions
240 × 220 × 165 mm

Weight
Approx. 1.48 kg

Package Weight
Approx. 2.05 kg
