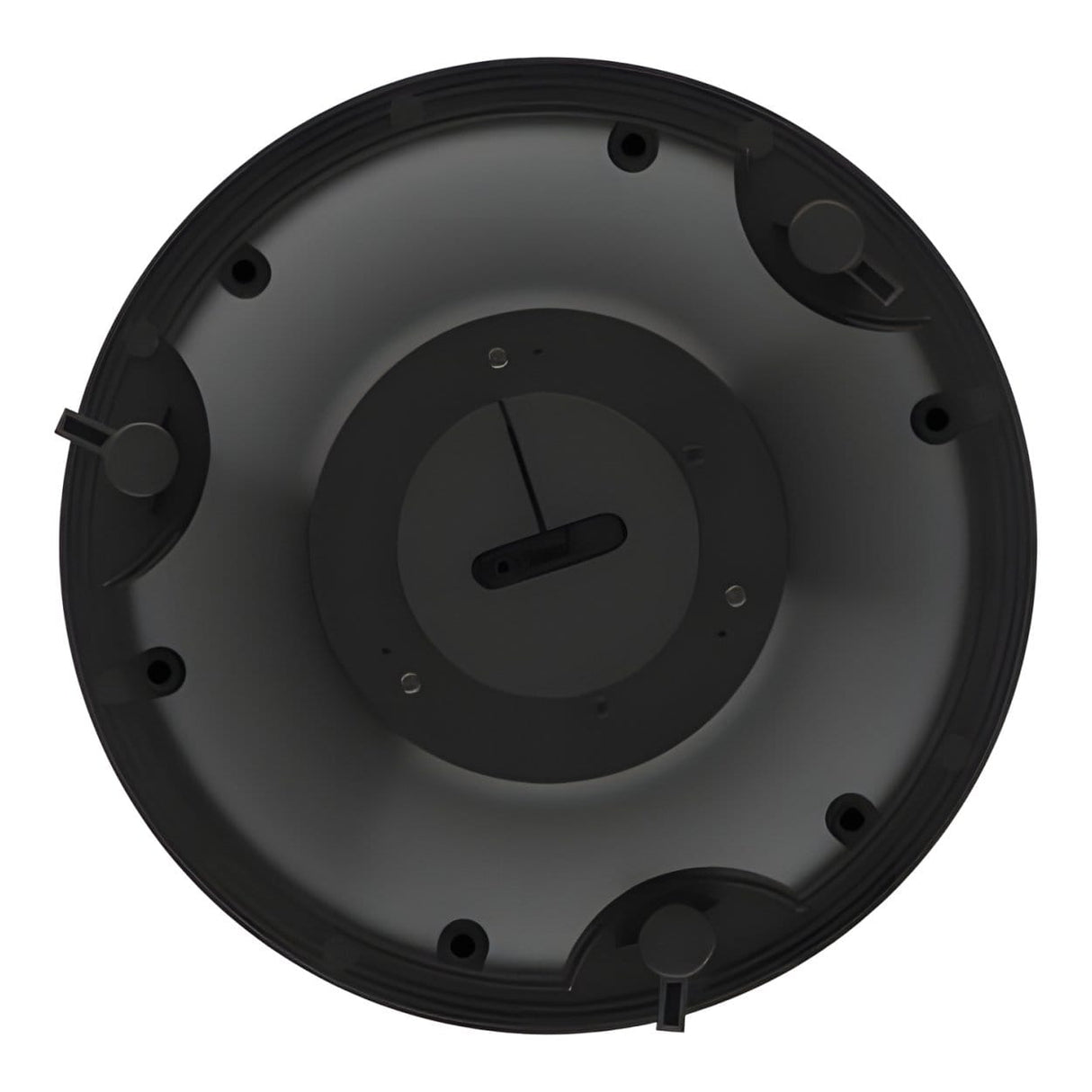

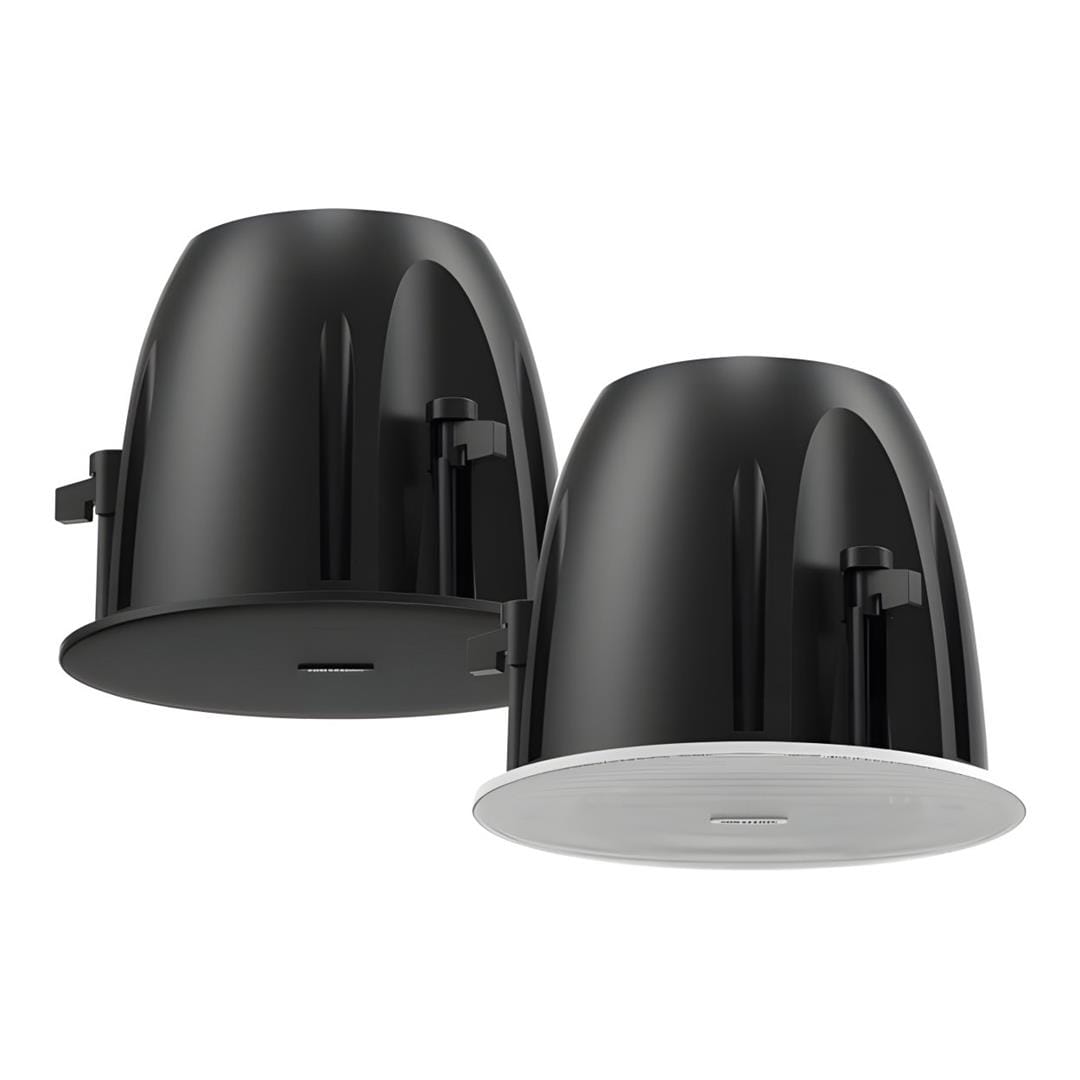

Hikvision 30W Analog Frameless Ceiling Speaker DS-QAZ0630G1

Hikvision 30W Analog Frameless Ceiling Speaker DS-QAZ0630G1

Features:

• 1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
• Rated Power: 100V: 30W/15W/7.5W, 70V：30W/15W/7.5W/3.25W
• Sensitivity(1 m, 1 W): 92 dB
• Max. SPL: 104 dB
• Frequency Response: 80 Hz to 20 kHz
• White or black appearance optional

Technical Specifications:

Speaker

Impedance
8 Ω

Rated Power
30 W

Total Harmonic Distortion (THD)
≤ 1%

Sensitivity (1 m, 1 W)
92 dB

Maximum Acoustic Pressure
104 dB

Frequency Response
80 Hz To 20 kHz (-10 dB)

Speaker Unit

• 1 × 1.0-Inch Tweeter
• 1 × 6.5-Inch Woofer

Coverage Angle
Conical Coverage: 90°

Interface

Audio Input

• Constant Voltage Input: 100 V
• Constant Voltage Input: 70 V
• Constant Impedance Input: 8 Ω

Voltage Input Power Taps

100 V

• 30 W
• 15 W
• 7.5 W

70 V

• 30 W
• 15 W
• 7.5 W
• 3.25 W

8 Ω Input
Supported

General

Material

• Main Body: PC
• Base: ABS

Mounting Hole Diameter
Ø270 mm

Dimensions
Ø286.74 × 213.6 mm

Weight
Approx. 2.7 kg

Package Dimensions
350 × 350 × 343 mm

Package Weight
Approx. 2.9 kg

Operating Temperature
-10 °C To 45 °C

Operating Humidity
≤ 90% (Non-Condensing)

What's in the Box:

• Analog Frameless Ceiling Speaker × 1
• Regulatory Compliance And Safety Information × 1
