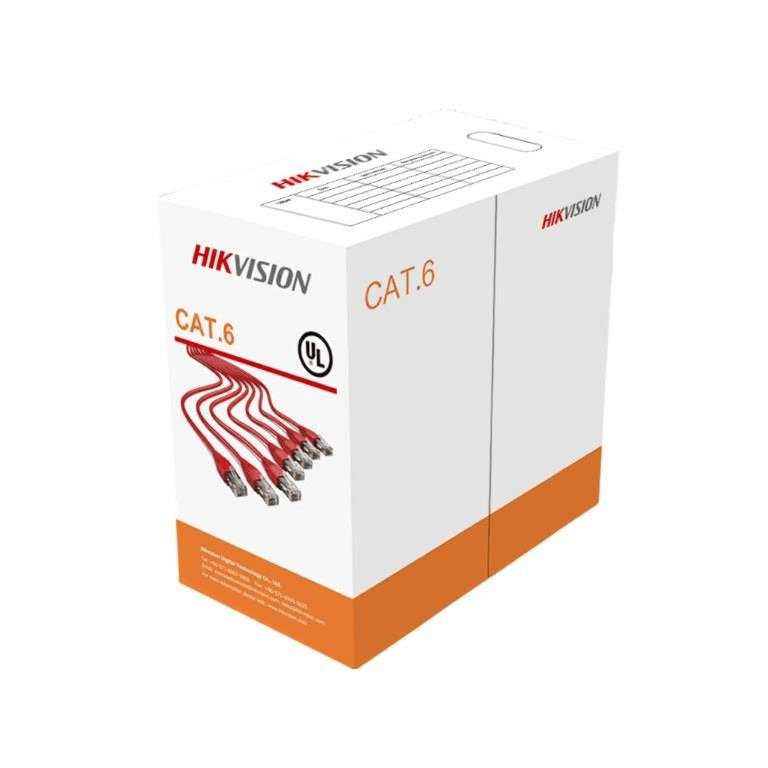

Hikvision 305m CAT6 Solid Copper UTP Network Cable Orange DS-1LN6-UU

Hikvision 305m CAT6 Solid Copper UTP Network Cable Orange DS-1LN6-UU

This is a high-quality, 305-metre CAT6 UTP network cable from Hikvision, designed for stable and efficient data transmission - ideal for networking installations, CCTV/IP camera systems, PoE setups, and general structured cabling. Its solid copper core and robust PVC sheath ensure reliable performance and long-term durability, even in demanding environments. The bright orange outer jacket makes identification easy during installation or maintenance.

• Full diameter 305 m CAT6 network cable
• Core diameter: 0.565mm
• Excellent transmission performance using solid copper
• Quality verified by Fluke test
• Guaranteed long PoE transmission distance
• Great PVC flame resistance.

Specification:

Core Color:
1: White/Blue & Blue
2: White/Orange & Orange
3: White/Green & Green
4: White/Brown & Brown

Packing: Wooden Tray & Carton
Carton Dimension: As requested
Packing Length: 305 ± 1.5 m
Rip-cord: Yes
Drain Wire: No

Sheath Physical Properties:
Before Aging: Tensile Strength ≥ 13.5 MPa, Elongation ≥ 150%
Aging Period: 100 °C × 24 h × 10 days
After Aging: Tensile Strength ≥ 12.5 MPa, Elongation ≥ 125%
Cold Bend (-20 ± 2 °C × 4 h) – 8 × Cable O.D., no visible cracks

Electrical Characteristics (20 °C):
Impedance (1.0–250.0 MHz): 100 Ω ± 15
Delay Skew (1.0–250.0 MHz): ≤ 45 ns/100 m
DC Resistance: Max 9.38 Ω/100 m
DC Resistance Unbalance: Max 5%

Conductor:
Material: Solid Bare Copper (99.95%)
Nominal O.D: 0.565 ± 0.005 mm

Insulation:
Material: HDPE
Diameter: 1.02 ± 0.05 mm

Sheath:
Thickness: 0.55 ± 0.05 mm
External O.D: 6.2 ± 0.4 mm
Surface: Clean, smooth, uniform
Material: PVC (RoHS compliant), CM Rated
Color: Orange (RAL2003)

Surface Printing:
Letter Height: 3.0 ± 0.3 mm
Print Color: Black
Print Error & Spacing: ≤ ±0.5%, every 1 m
