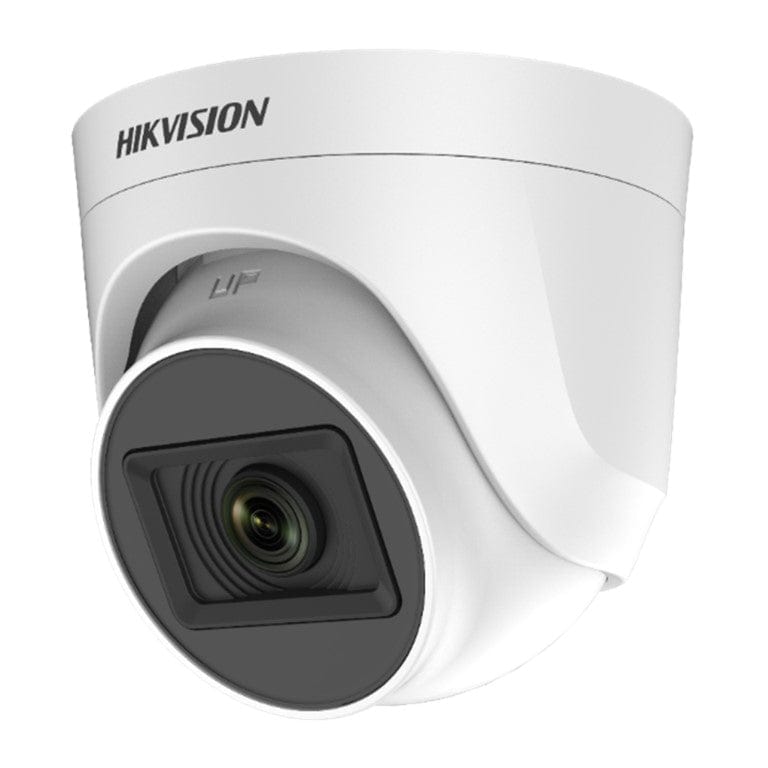

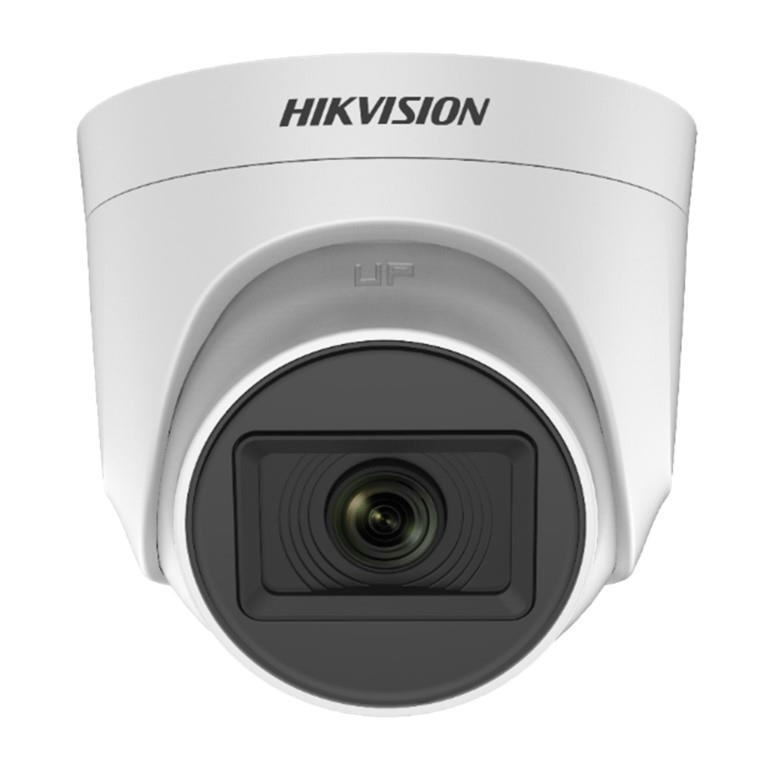

Hikvision 2MP 3.6mm Indoor Fixed Turret Camera DS-2CE76D0T-EXIPF(3.6mm)

Hikvision 2MP 3.6mm Indoor Fixed Turret Camera DS-2CE76D0T-EXIPF(3.6mm)

Features

• High quality imaging with 2MP CMOS
• 1920 x 1080 resolution
• 3.6mm Fixed focal lens
• Horizontal FOV: 76.9°, Vertical FOV: 40.6°, Diagonal FOV: 92.0°
• Up to 20m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• 12 VDC ± 25%, Max. 3.3W
• *Power supply is not included

Technical Specifications:

Camera
Image Sensor: 2 MP CMOS
Signal System: PAL/NTSC
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night: IR Cut Filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens
Lens Type: 2.8 mm, 3.6 mm Fixed Lens
Focal Length & FOV: 2.8 mm, horizontal FOV 96.5°, vertical FOV 48.9°, diagonal FOV 120.5°. 3.6 mm, horizontal FOV 76.9°, vertical FOV 40.6°, diagonal FOV 92.0°
Lens Mount: M12

Illuminator
Supplement Light Range: Up to 20 m

Frame Rate: TVI: 1080p@25fps/30fps, AHD: 1080p@25fps/30fps, CVI: 1080p@25fps/30fps, CVBS: PAL/NTSC
Wide Dynamic Range (WDR): Digital WDR
Image Parameters Switch: STD/HIGH-SAT
Day/Night Mode: Auto/Color/BW (Black and White)
White Balance: Auto
Image Enhancement: DWDR, BLC, Global
Noise Reduction: 2D DNR
Image Settings: Brightness, Mirror, Smart IR, Sharpness, AGC

Interface
Video Output: Switchable TVI/AHD/CVI/CVBS

General
Language: English
Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity 90% or less (non-condensing)
Material: Plastic
Communication: HIKVISION-C
Dimension: Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
Weight: Approx. 195 g (0.43 lb.)
Power: 12 VDC ± 25%, Max. 3.3 W
